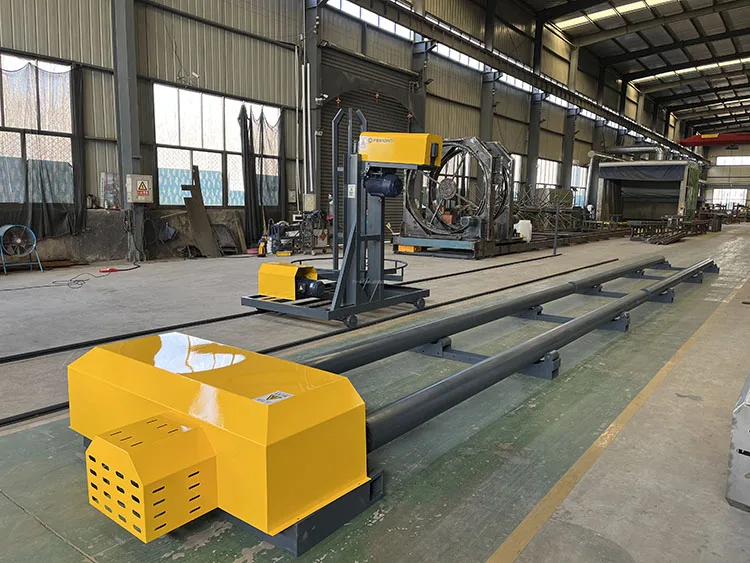

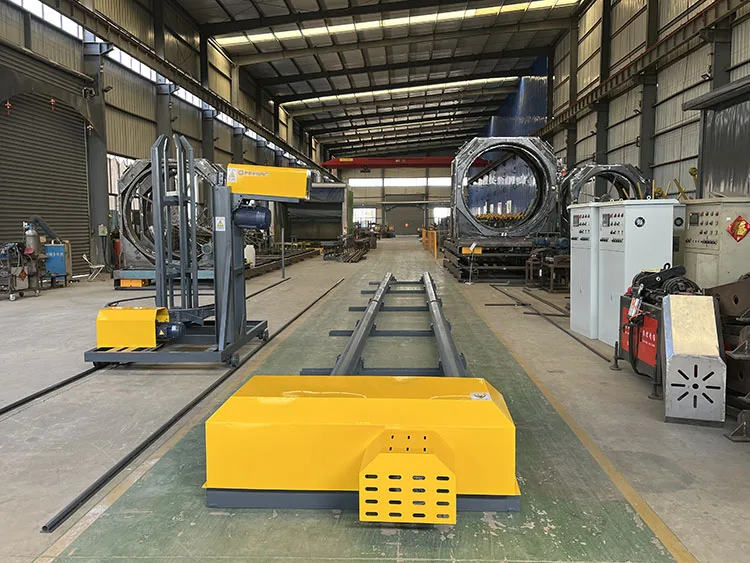

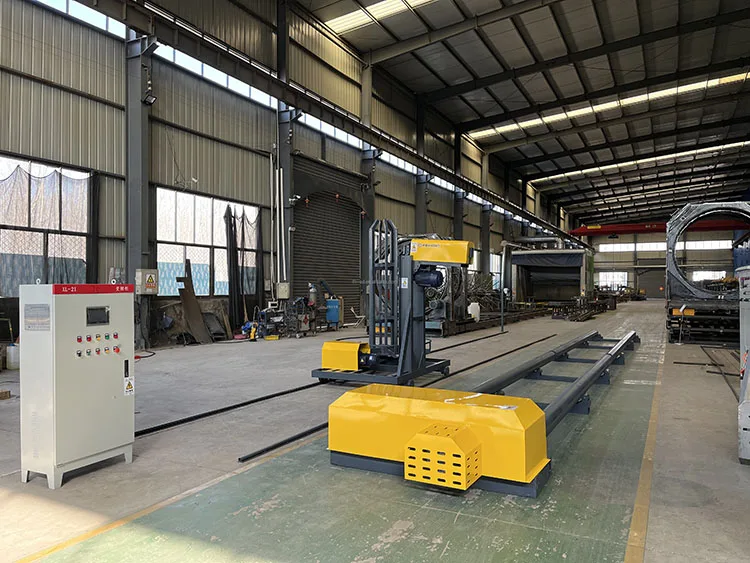

CNC Spiral Wire Winding Machine matched with CNC cage making machine
- Category: >>>
- Supplier: Shandong Feihong Engineering Machinery Co. Ltd.
Share on (1600074003530):
Product Overview
Description
Introduction & Advantage:
CNC Rolling Cage Welding Machine

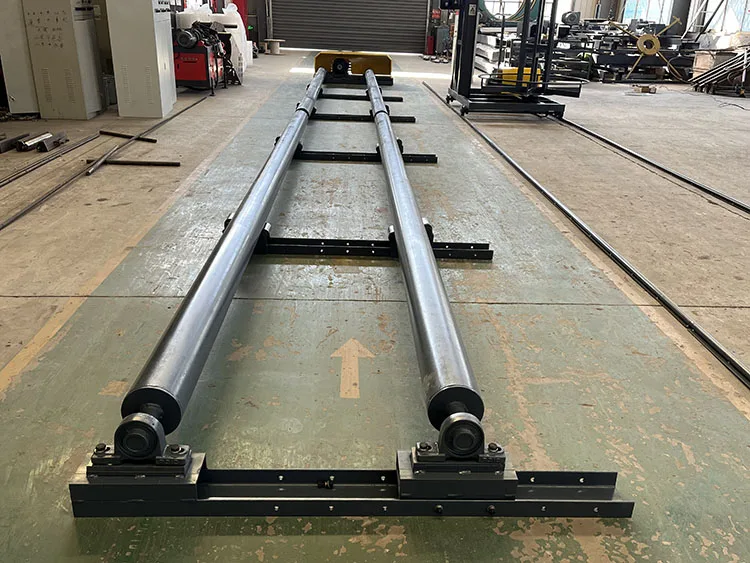

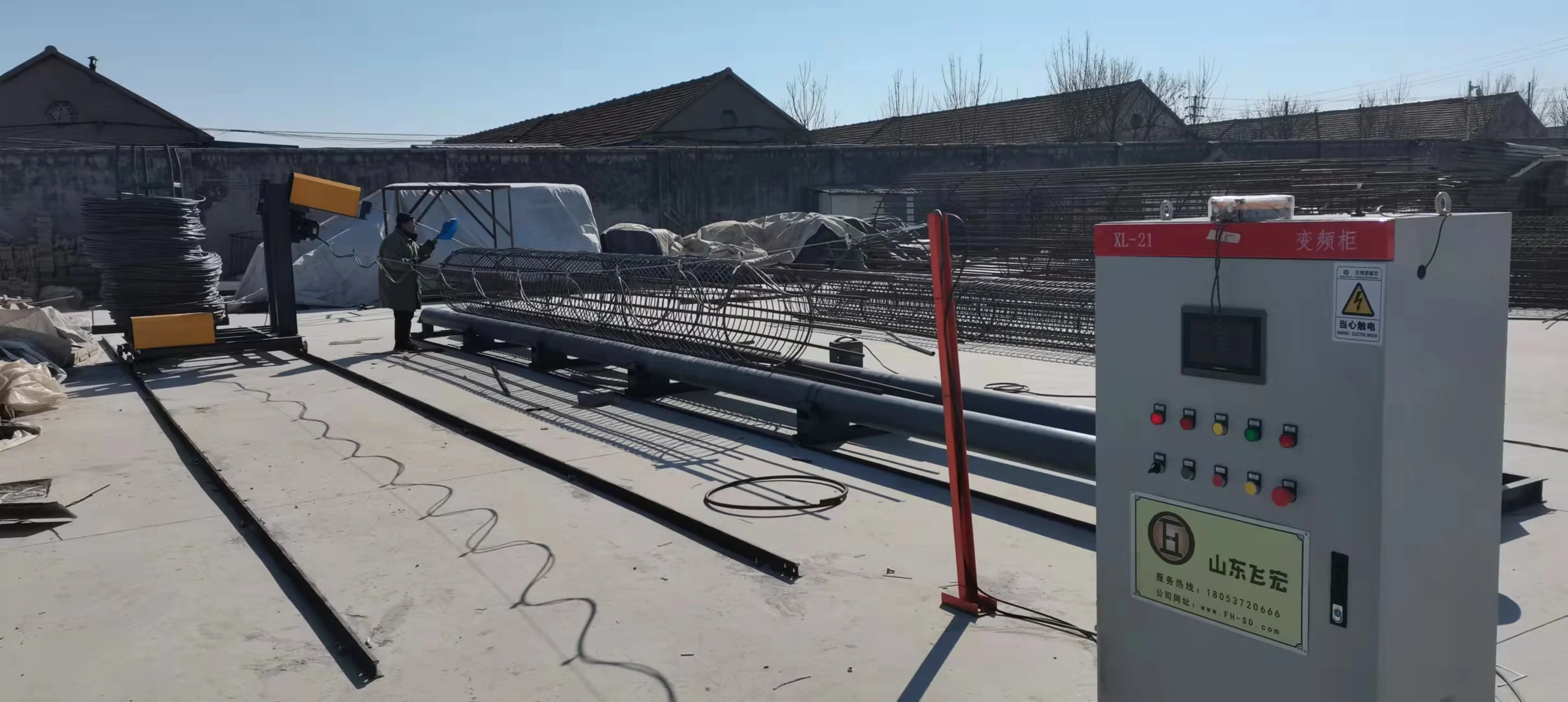

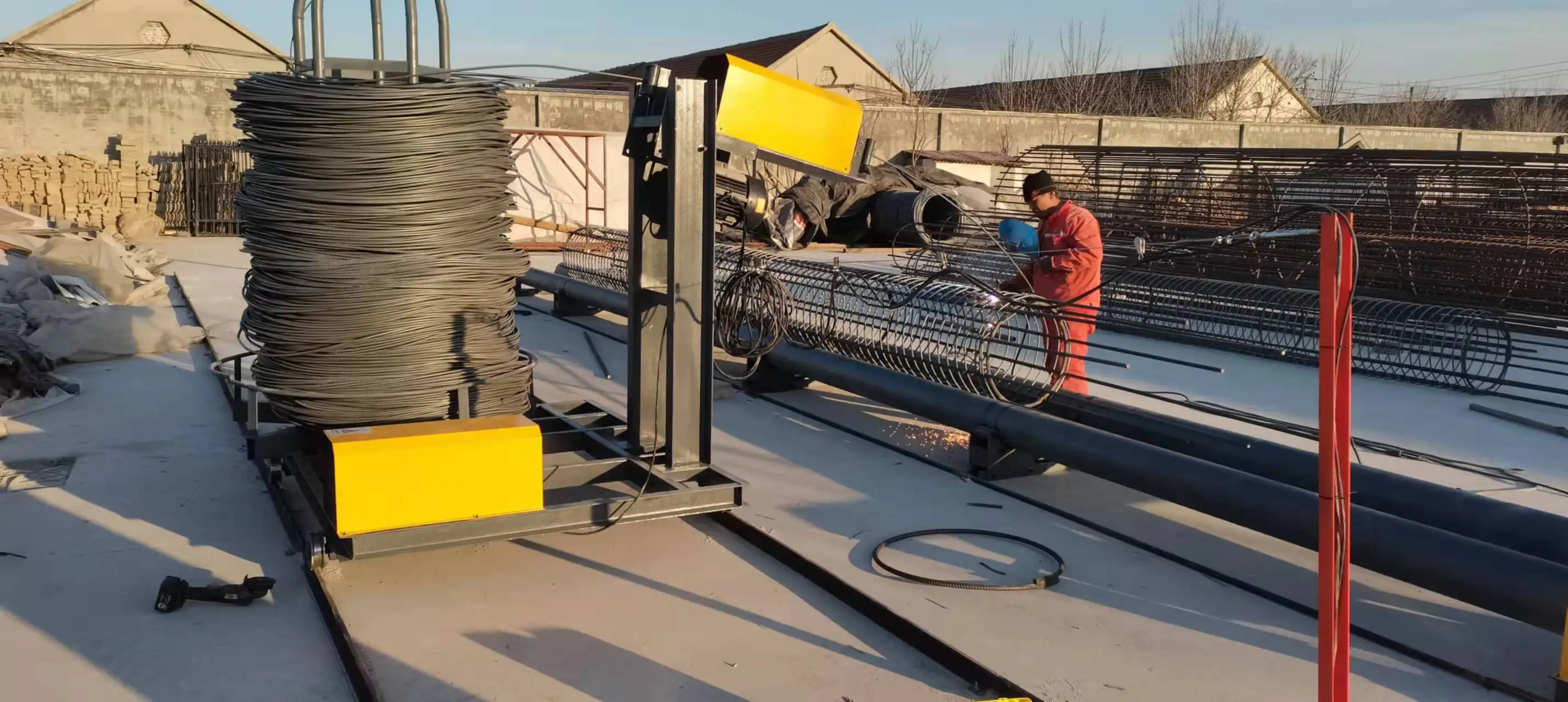

Reinforced cage winding machine FHR3000, the main machine adopts the principle of friction transmission, that is, the reinforced cage is placed between two sets of power rollers, and the trolley carries the wire parallel to the main machine at a constant
speed to form a spiral winding bar. Welding during the winding process (you can also apply welding or binding after rapid winding) until the production is completed.
1. Fast speed: 2 people in the standby state can produce the whole process, 3-6 people in normal working conditions can produce more than 10-20 steel bars in one day.
2. Stable quality: Mechanized operation is not affected by human factors, and the quality is stable.
3. Variety of production specifications: to meet the production requirements of various types of steel cages, not subject to the
influence of main bars and stirrups and the quantity, form, model and other factors such as size and length.
4. Convenient production: the combined design of the tendon machine does not need to rely on lifting and resetting during
installation, production, handling, etc. It can not only meet the requirements of large-scale fixed production, but also meet the
scattered mobile operations on the construction site, with strong flexibility.
5. Low power consumption: can and does not affect the total capacitance ratio.
6. Assembly line production: independent construction is not affected by each process, and the main reinforcement stirrup welding forming and winding welding process are completed without interruption.
7. The threaded connection technology can be used for precise positioning, which helps to improve the speed of the decomposition and installation of the steel cage.
8. The design life of parts is long, and the replacement of spare parts is simple and fast.
speed to form a spiral winding bar. Welding during the winding process (you can also apply welding or binding after rapid winding) until the production is completed.
1. Fast speed: 2 people in the standby state can produce the whole process, 3-6 people in normal working conditions can produce more than 10-20 steel bars in one day.
2. Stable quality: Mechanized operation is not affected by human factors, and the quality is stable.
3. Variety of production specifications: to meet the production requirements of various types of steel cages, not subject to the
influence of main bars and stirrups and the quantity, form, model and other factors such as size and length.
4. Convenient production: the combined design of the tendon machine does not need to rely on lifting and resetting during
installation, production, handling, etc. It can not only meet the requirements of large-scale fixed production, but also meet the
scattered mobile operations on the construction site, with strong flexibility.
5. Low power consumption: can and does not affect the total capacitance ratio.
6. Assembly line production: independent construction is not affected by each process, and the main reinforcement stirrup welding forming and winding welding process are completed without interruption.
7. The threaded connection technology can be used for precise positioning, which helps to improve the speed of the decomposition and installation of the steel cage.
8. The design life of parts is long, and the replacement of spare parts is simple and fast.
333
Technical Parameters
Model | FHR3000 single spiral wire | FHR3000 double spiral wire | |
Cage diameter | 600-3000mm | 600-3000mm | |
Cage weight | 5000kg | ||
Cage length | Standard 12m, can be customized | 5.0-16mm | |
Roller size | 219*80mm | 12.0-32.0mm | |
Travel motor | 2.2kw | 50-500mm | |
Drum motor | 7.5kw | 11kw | |
Straightening motor | 5.5kw | 7.5kw | |
Equipment area | 16000*5000mm | 10Mpa | |
