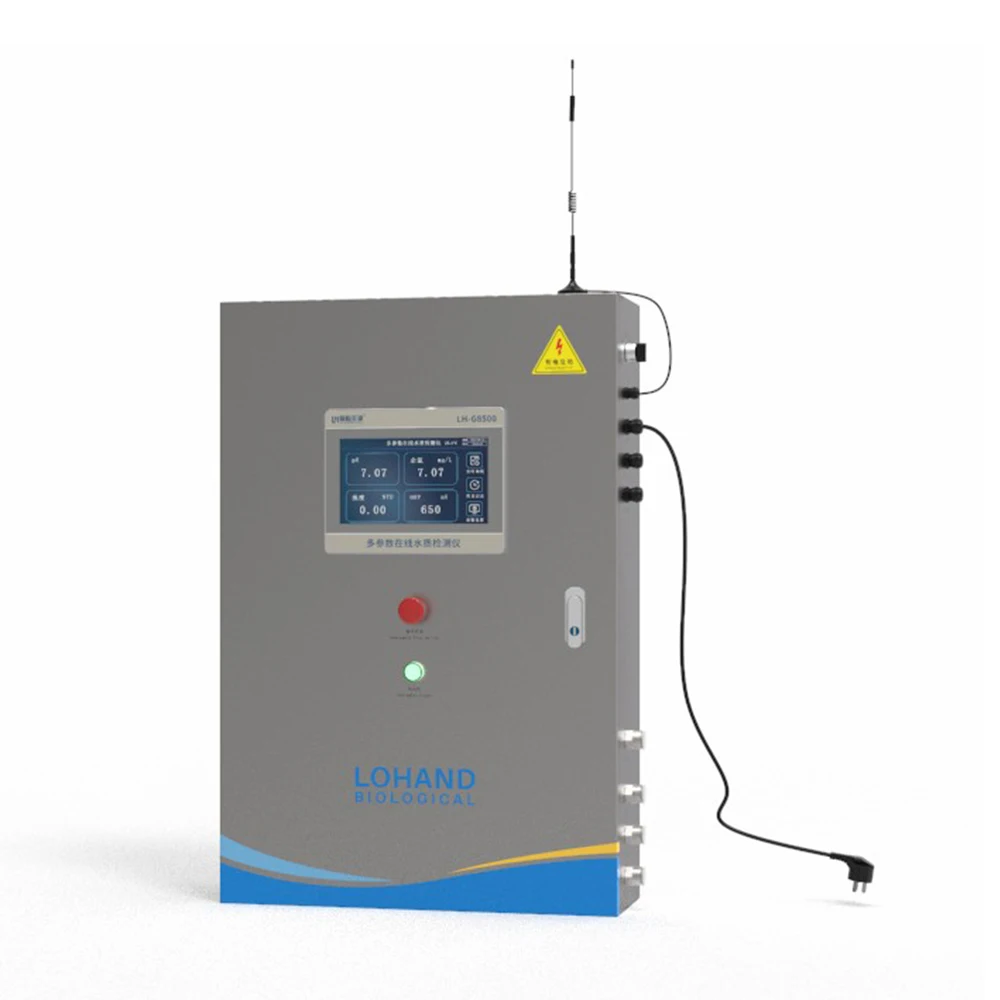

Online multi parameter controller pH ORP Residual Chlorine Turbidity Temperature in one box tester controller

Share on (1600074017447):


Price:$4,299.50 - $4,599.90

Quantity:


Product Overview

Description



Product Description


1logo.jpg Online multi-parameter controller pH ORP Residual Chlorine Turbidity Temperature







Feature:


Ten-inch high-definition LCD industrial touch screen display multiple parameters at the same time: ORP, residual chlorine, pH, turbidity, temperature


Touchable screen keys, one key switch parameters, graphs, query history data, easy to operate.


Wireless SIM card connection, remote computer monitoring, mobile phone APP real-time query.


Instrument uses high-precision signal acquisition and amplification circuit, extremely high measurement accuracy, good stability.


pH automatic temperature compensation, automatic identification of standard liquid, convenient calibration, accurate test parameters.


Residual chlorine, automatic / manual pH, temperature compensation, small range sensor detection parameters more accurate.


The turbidity digital electrode, use reset settings and use without calibration.


ORP digital electrode, easy calibration, strong anti-interference and fast response.


Parameter setting according to the screen prompt, the operation man-machine interaction, simple and convenient.


In-machine LCD backlight can be set according to the environment or operation time, more humane.


Three roads relay output control, can automatically alarm or with the dosing pump and other peripherals for automatic water quality control.


Two analog control signal outputs, external control circuit and equipment.


Restore factory settings to avoid data reset after misoperation.


Watchdog setting ensures that the instrument does not crash during use.


IP65 protection grade, waterproof, moisture-proof, dustproof to ensure the service life of the instrument.


According to the ISO9001 of this instrument The 2015 quality management system requires production, and before leaving the factory after strict testing and correction, to meet the requirements of the specifications.

















































































































Item



Specification



Item



Specification



AC power supply



186-240V 50/60Hz



Analog Control A



0-20mA or 4-20mA



Working condition



Ambient temperature0-60℃,relative humidity<90%RH



Analog Control B



0-20mA or 4-20mA



pH alarm and control



Relay load AC220V 10A



Display resolution



1024*600



Residual Chlorine alarm and control



Relay load AC220V 10A



Size



900*600*200cm



ORP measuring range



-2000mV-2000mV



Temperature measuring range



0-60℃



ORP accuracy



±6mV



Temperature resolution



0.1℃



ORP resolution



1mV



Temperature accuracy



0.1℃



pH measuring range



0-14



Turbidity measuring range



0-200NTU



pH resolution



0.01



Turbidity resolution



0.01NTU



pH  accuracy



±0.05



Turbidity accuracy



0.02NTU



pH standard solution



6.86/4.00/9.18



Controller Residual Chlorine range



0-20mg/L



Hypochlorous acid measuring range



0-1.5mg/L



Residual Chlorine sensor measuring range



0-3mg/L



Hypochlorous acid resolution



0.01mg/L



Residual Chlorine resolution



0.01mg/L



Residual Chlorine accuracy



 When the pH value is between 5.0-7.2 and constant, the residual chlorine accuracy ±0.03 mg/L or 3%, whichever is greater(Under constant pH test, pH within the error range of±0.2)



When the pH value is between 7.2-8.5 and constant, the residual chlorine accuracy ±10%(Under constant pH test, pH within the error range of±0.5)



When the pH value is between 8.5-9, the residual chlorine accuracy ±20%



When the pH is greater than 7.2, it is not suitable to test the low residual chlorine value; When the pH is greater than 9, the test value will be inaccurate



When measurement below 0.10 mg/L, the concentration error can not be calculated by percentage;When DPD  test error, the error is calculated by ±0.03 mg/L.



Residual Chlorine repeatability



0.03 mg/L or 3% whichever is greater




(This product without sensors)
