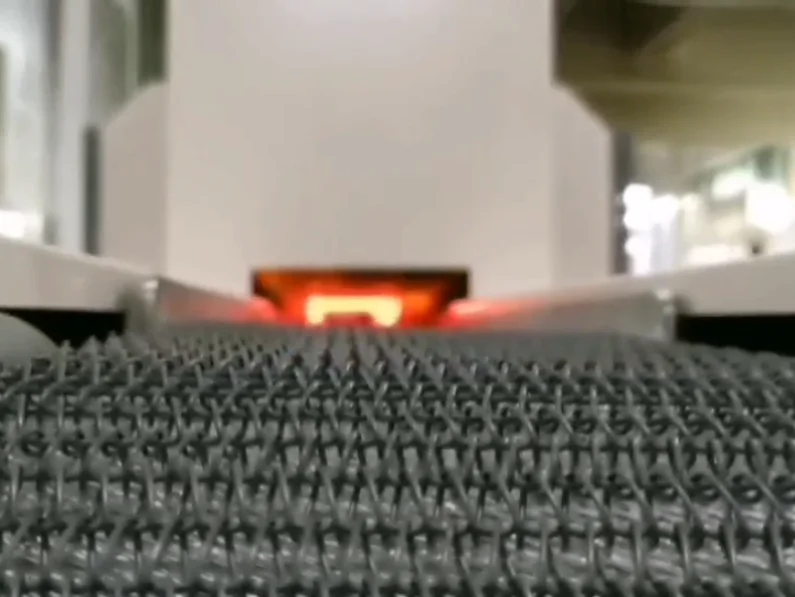

Continuous Mesh belt annealing hardening furnace for sale
CDOCAST Mesh Belt Annealing & Welding Furnace is designed for hardware industry, especially jewelry industry. It applies to K gold and silver link parts, and the welding of chains; Its combined frame is easy to install and dismantle, high-quality and stable pipe heating system, having a mechanical transmission with highly pure protective gas and it is equipped with a purification device of nitrogen produced via ammonia decomposition. And it is a good equipment for bright annealing, solution treatment, continuous welding, and lead welding of different metals and stamping parts.

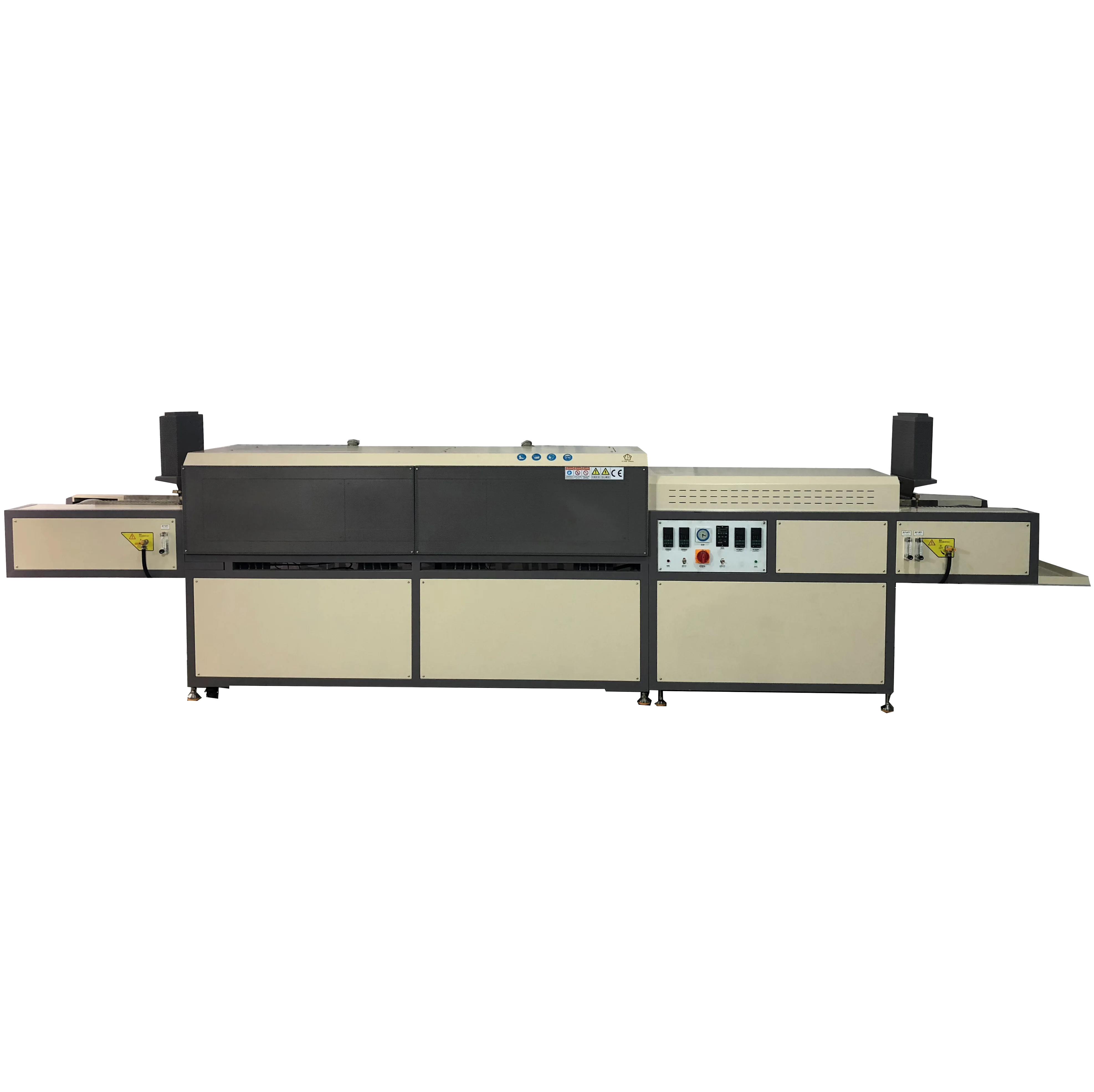

4M Mesh Belt Annealing & Welding Furnace

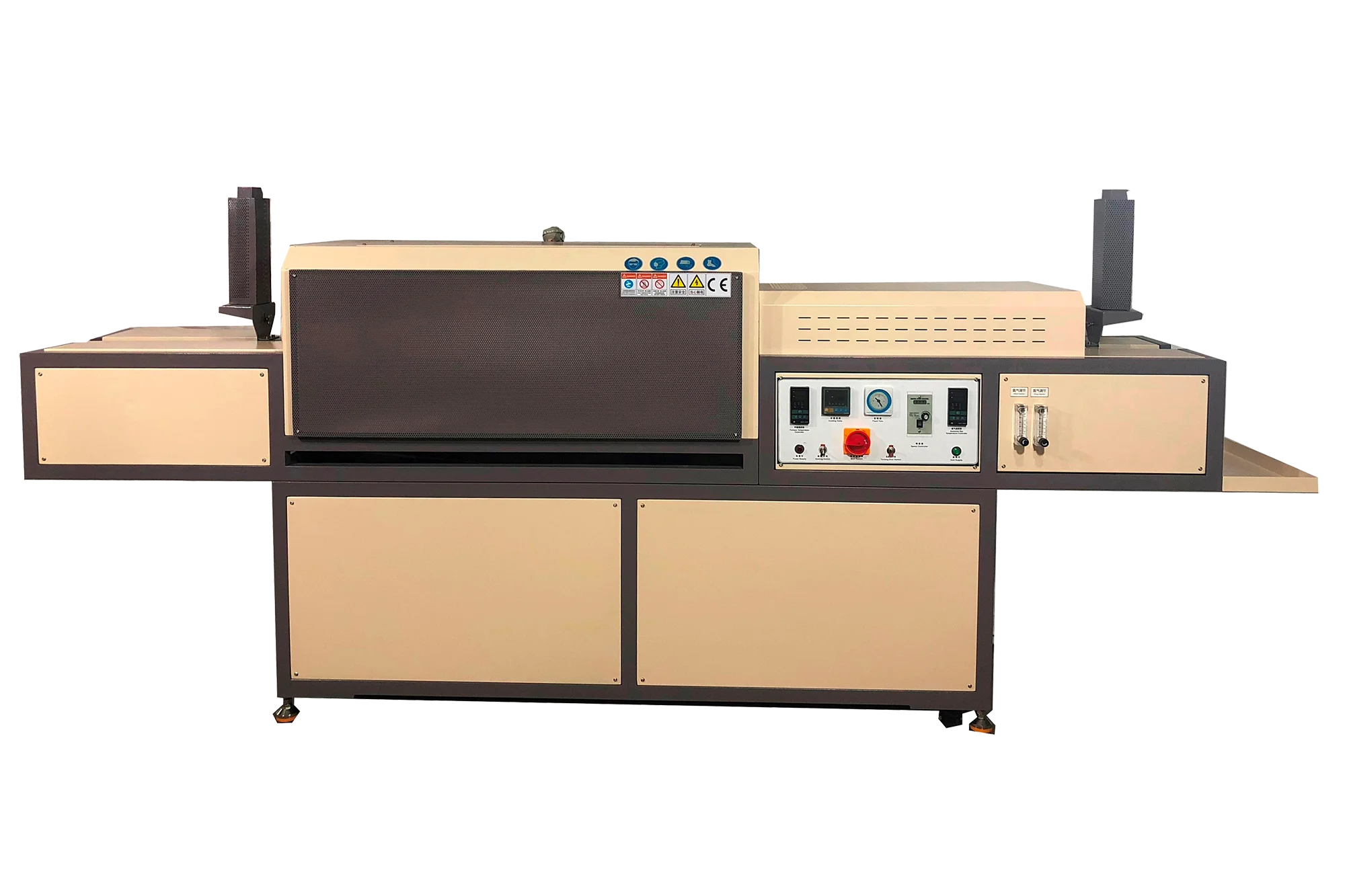

3M Mesh Belt Annealing & Welding Furnace

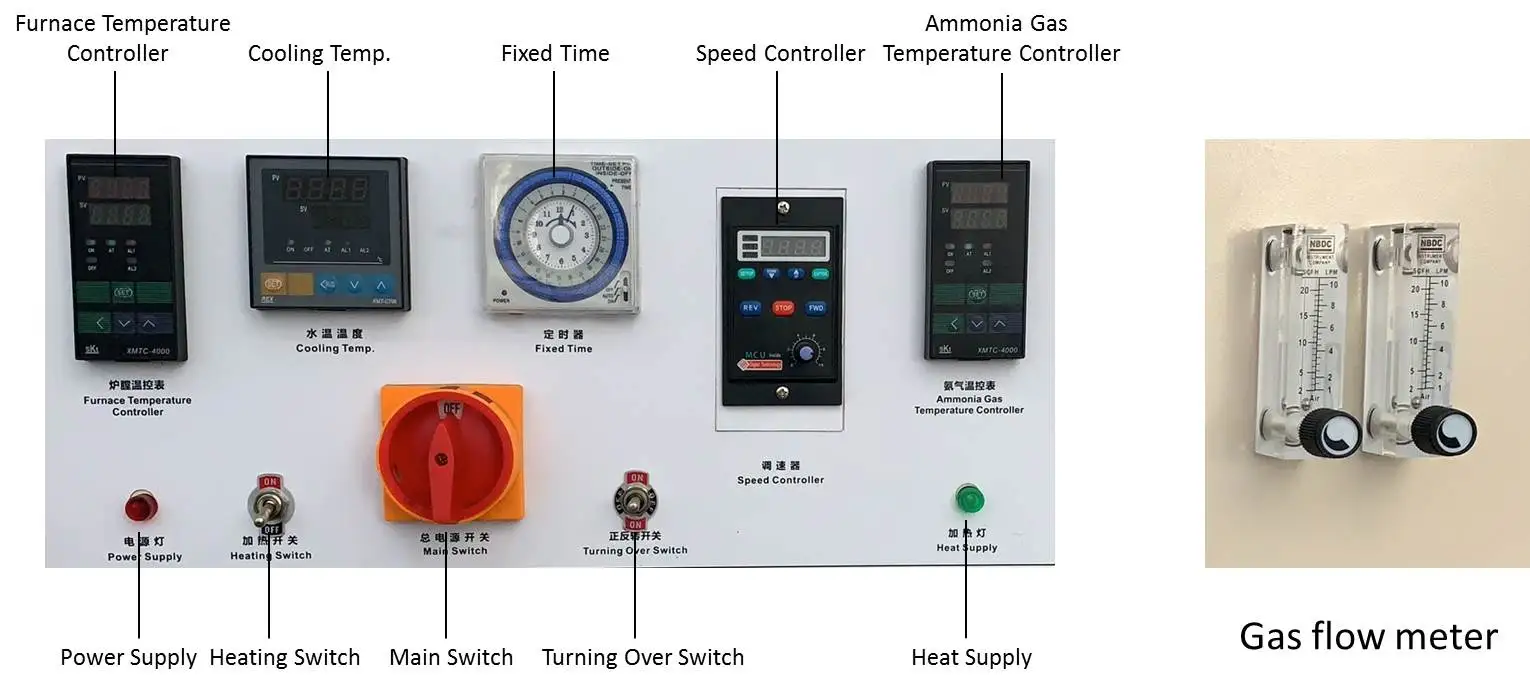

Structure
Parameter
Model number | CDO-30MB | CDO-40MB | ||
Power source | Three phase 380V±10%, 50/60Hz | Three phase 380V±10%, 50/60Hz | ||
Power | 16 kw | 18 kw | ||
Max temperature | 1000°C | 1000°C | ||
Applicable metal | All metals | All metals | ||
Heating rate | 700°C/80min | 700°C/80min | ||
Ammonia decomposition heating time | 880°C/80min | 880°C/80min | ||
Welding speed | 1m/min | 1m/min | ||
Dimension | 300(L)*50(W)*130(H)cm | 400(L)*50(W)*130(H)cm | ||
Weight | 400kg | 480 kg | ||
More models can be customized | ||||

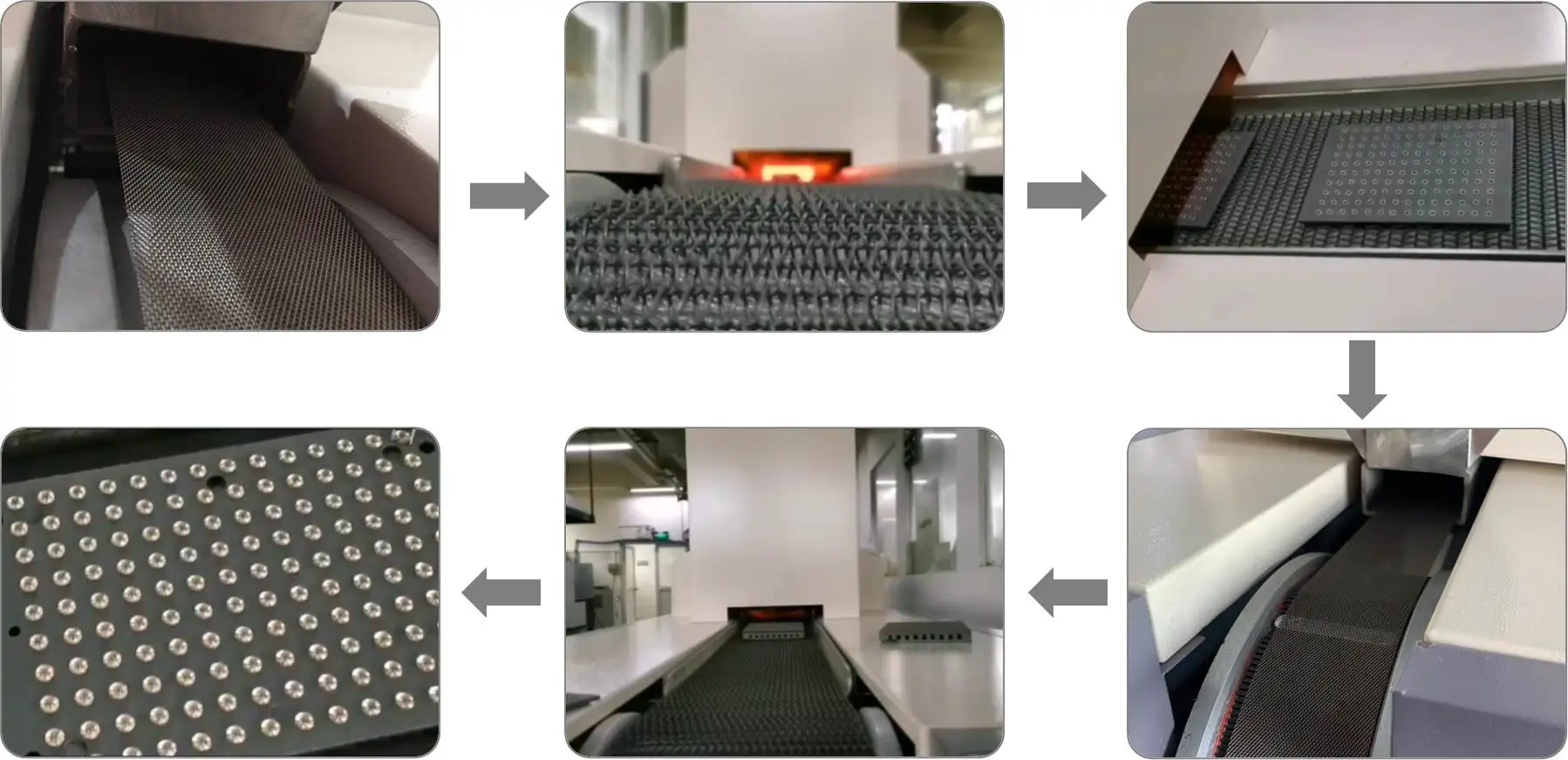

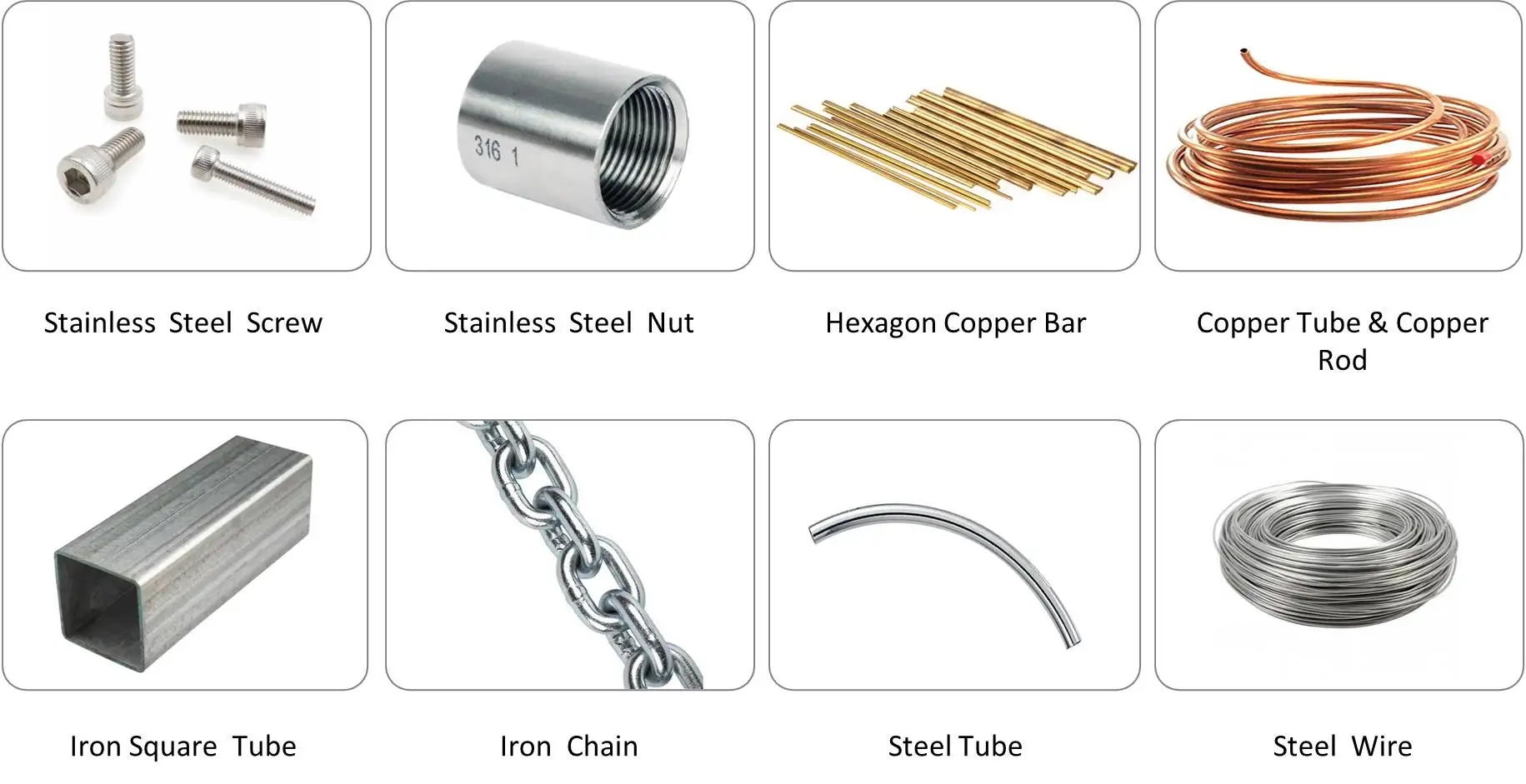

Application
Feature
1: CDOCAST’S standard length of the tunnel mesh belt heat treatment furnace is 3 meters and 4 meters, and different lengths can also be customized according to customer requirement.
2: PID temperature control program design, Multiple temperature heating curves can be set

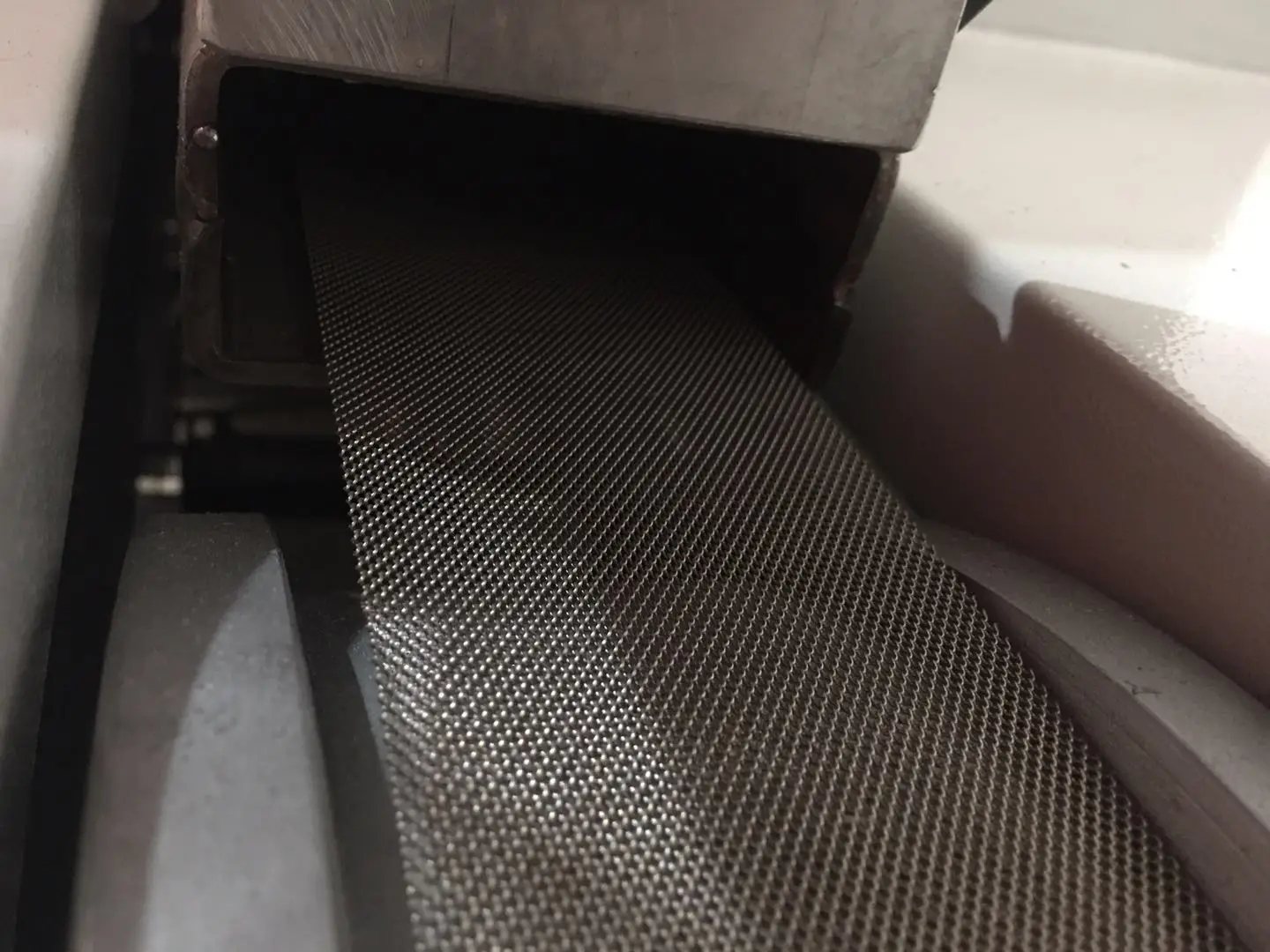

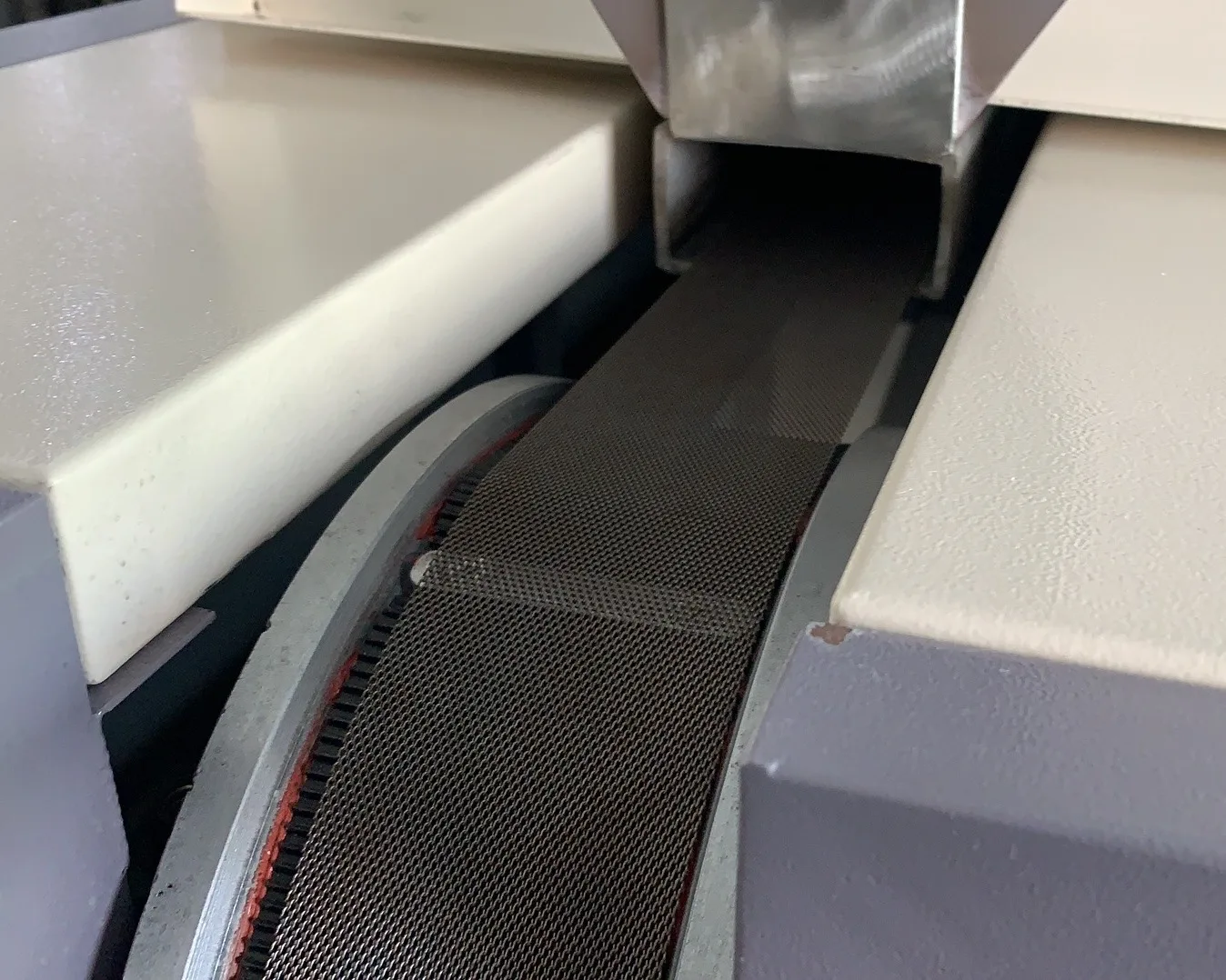

3: The high qulity mesh belt imported from Switzerland is used as the conveying device, which has a longer service life than other supplier
4: CDOCAST mesh belt heat treatment furnace comes with ammonia decomposition device, which can automatically decompose ammonia into nitrogen and hydrogen, nitrogen is used for protection, and hydrogen is used for reduction
5: The highest temperature can reach 1000 degrees, and the heating temperature is uniform
6: The speed of the mesh belt can be adjusted, the moving speed of the mesh belt can be adjusted according to different heating processes through the governor

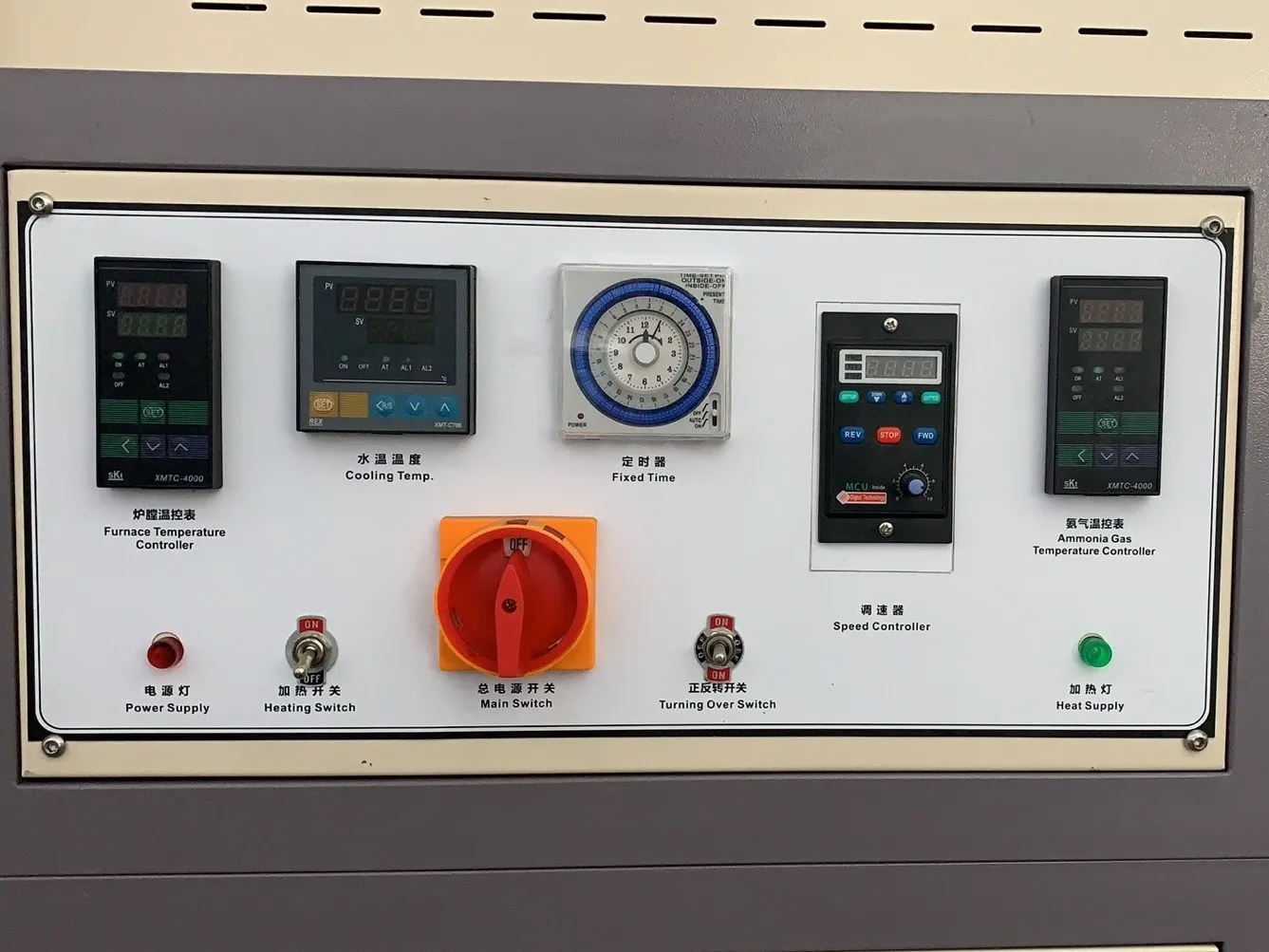

7: A timer is installed in the power control panel, which can be set to heat regularly, which is convenient for users
2: PID temperature control program design, Multiple temperature heating curves can be set
3: The high qulity mesh belt imported from Switzerland is used as the conveying device, which has a longer service life than other supplier
4: CDOCAST mesh belt heat treatment furnace comes with ammonia decomposition device, which can automatically decompose ammonia into nitrogen and hydrogen, nitrogen is used for protection, and hydrogen is used for reduction
5: The highest temperature can reach 1000 degrees, and the heating temperature is uniform
6: The speed of the mesh belt can be adjusted, the moving speed of the mesh belt can be adjusted according to different heating processes through the governor
7: A timer is installed in the power control panel, which can be set to heat regularly, which is convenient for users
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
