Product Overview
Description
Product Description
Structural features
The falling film room adopts stainless steel integral framework structure with low integral height. It is very suitable for installation in liquid milk workshop.
The hot pressure pump draws secondary steam, which is energy saving.
The device is installed with cleaning spray head and CIP internal system as well as fully sealed balancing tank and acid & alkali tanks, which can reduce pollution and volatilization of acid & alkali.

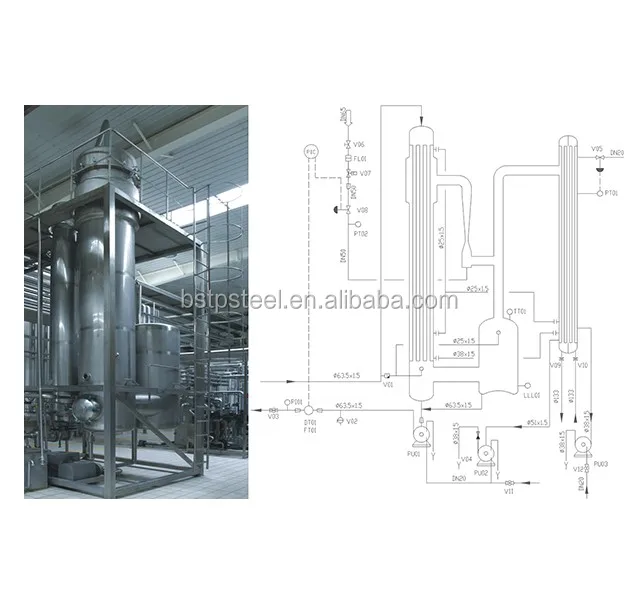

The automatic control box is equipped with simulated diagram of process flow which can clearly display the running status of the devices and have the advantage of convenient operation.
Technical Parameters
Specification | TLDJ-500 | TLDJ-1000 | TLDJ-1500 | TLDJ-2000 | TLDJ-2500 | ||||
Evaporation capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 2500 | ||||
Steam pressure(MPa) | <0.25 | ||||||||
Vapor pressure(MPa) | 0.08 | ||||||||
Concentration ratio | 1.2-1.3 | ||||||||
Outline dimensions LxWxH(mm) | 2000×1000×3000 | 2200×1200×3300 | 2500×1300×3500 | 4600×2350×5000 | 5500×2800×5000 | ||||
Our Company
JIANGSU TONX MACHINERY EQUIPMENT CO., LTD
Wenzhou Bestop Steel Co., Ltd (International Business Dept.)
Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation, mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.
The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological, chemical, food, dairy and other engineering fields.
