Product Description
Construction machinery parts small concrete delivery spreader for sale

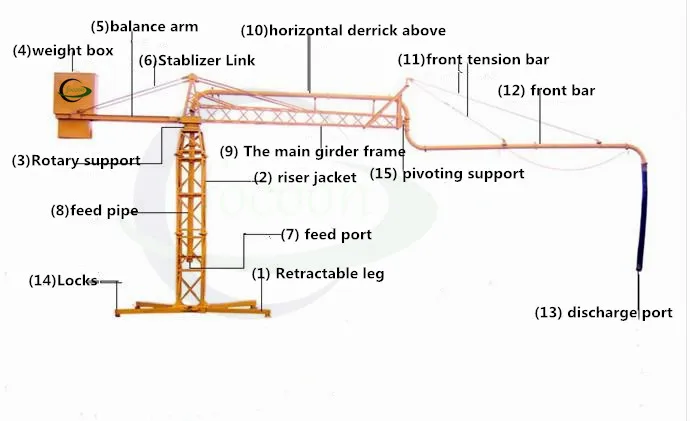

Concrete placing boom is an auxiliary equipment of concrete pump. It is connected by standard conveying pipe. Like a robot, it can quickly and accurately deliver the concrete to any pouring part of the working surface, which greatly reduces the labor intensity and improves the process and quality of the construction.
Model | BLG-6M | BLG-8M | BLG-10M | BLG-12M | BLG-15M | BLG--18M | BLG-20M |
Horizontal (m) | 6 | 8 | 10 | 12 | 15 | 18 | 20 |
Feeding height (m) | 0.5 | 0.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
Pipe diameter (mm) | DN125 | DN125 | DN125 | DN125 | DN125 | DN125 | DN125 |
Rotation angle (°） | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
Overall weight （kg) | 700 | 800 | 1100 | 1200 | 1500 | 2500 | 3000 |
Counter weight (kg) | 350 | 400 | 900 | 1000 | 1200 | 1600 | 1800 |

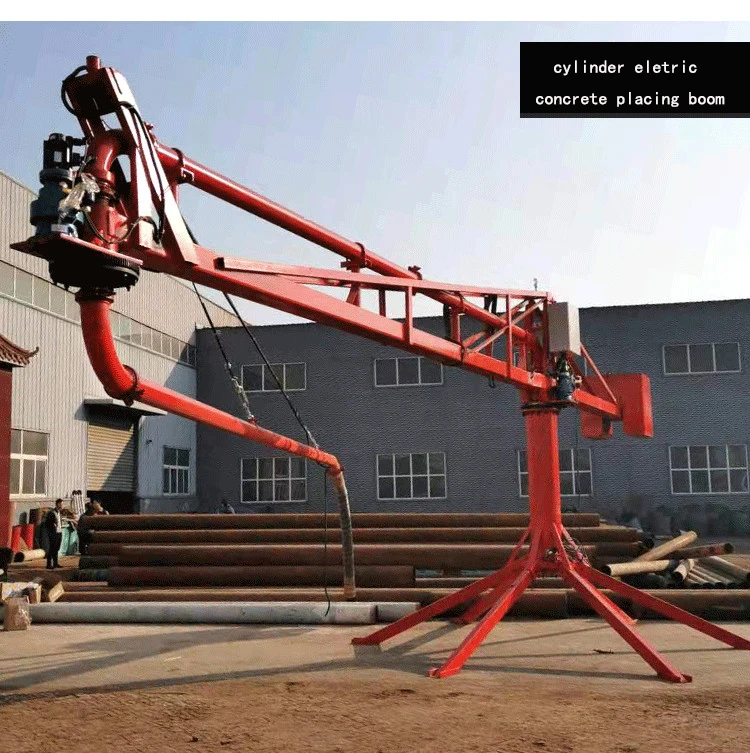

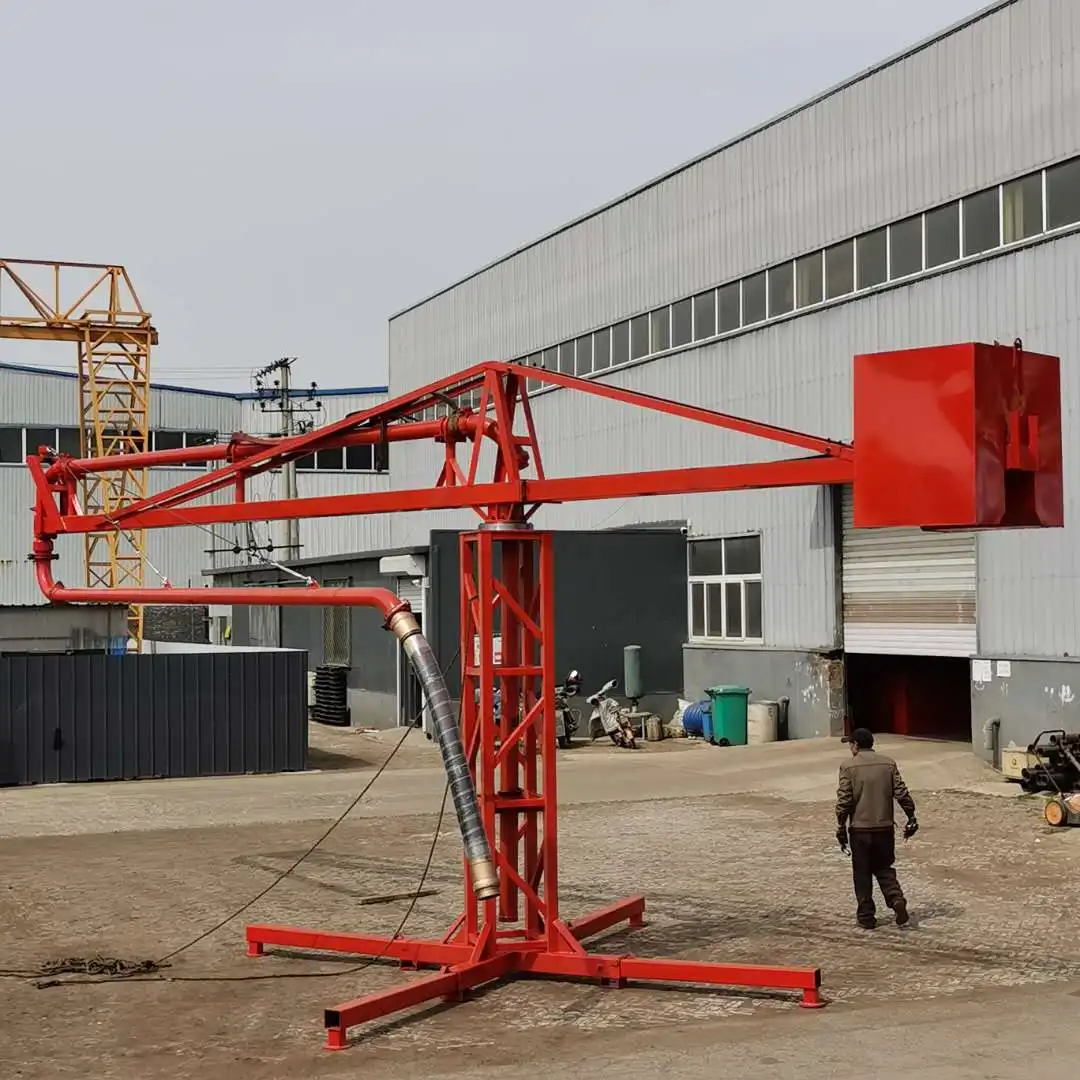

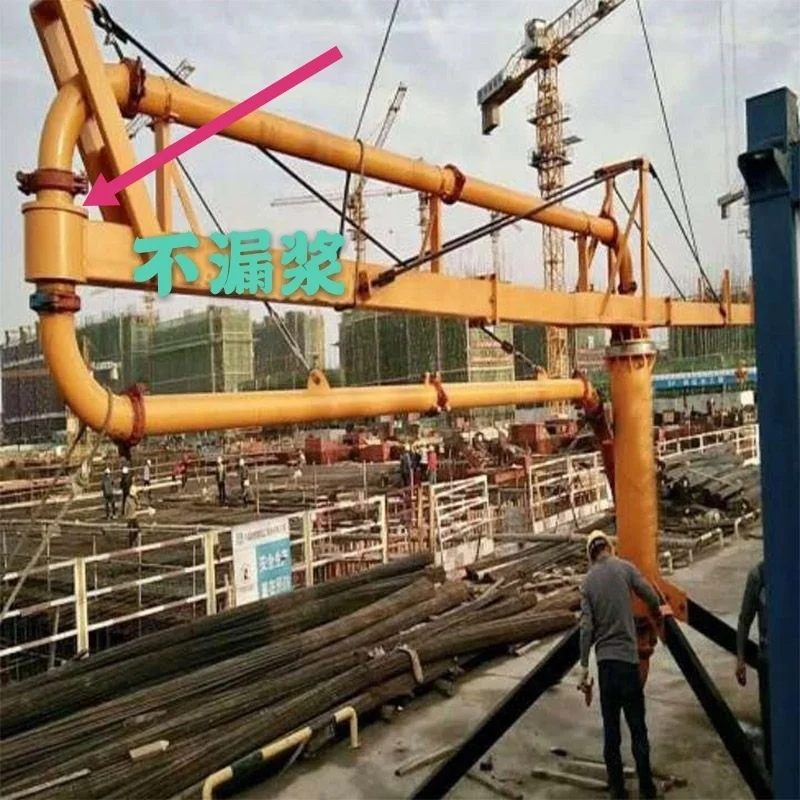

Cylinder concrete placing boom Frame concrete placing boom

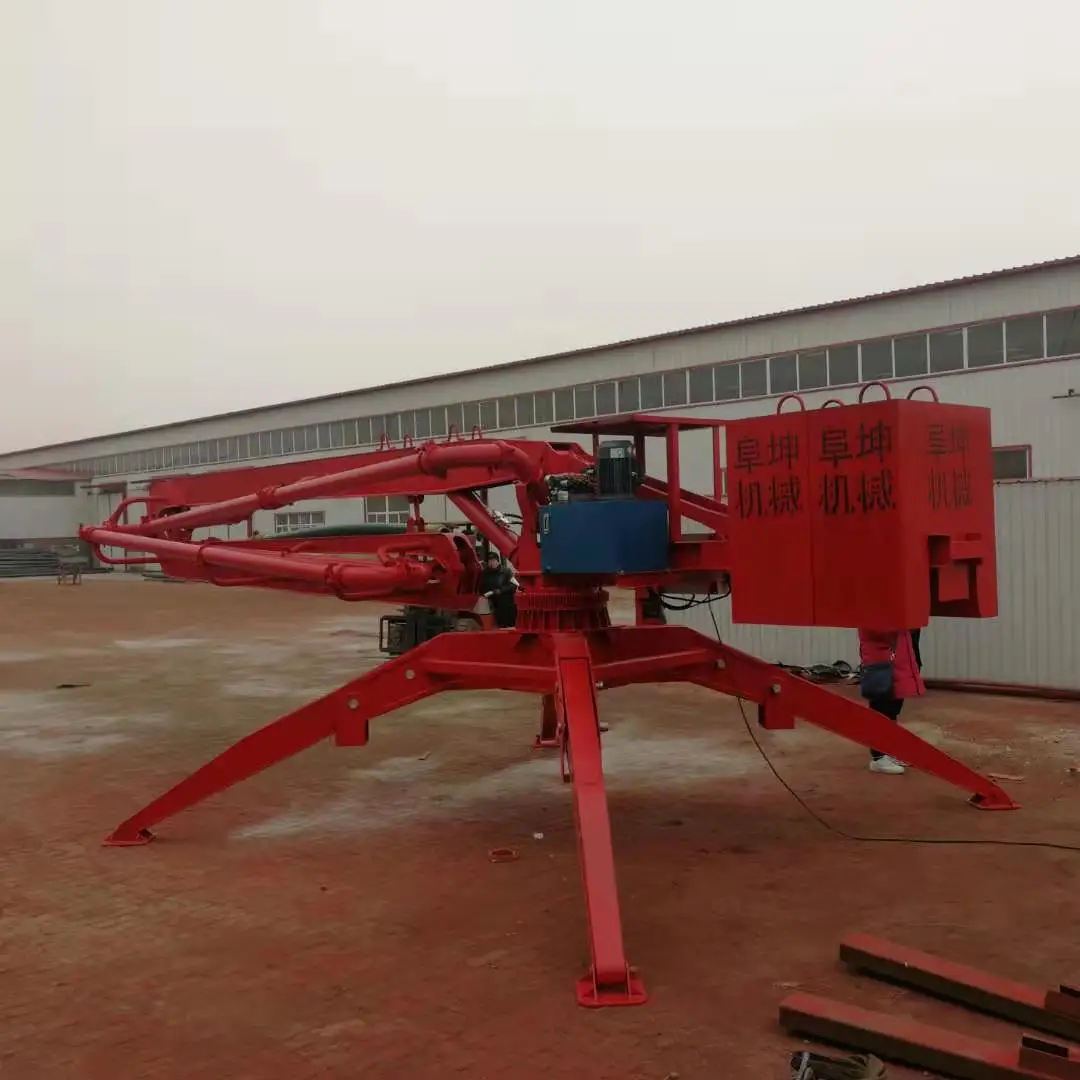

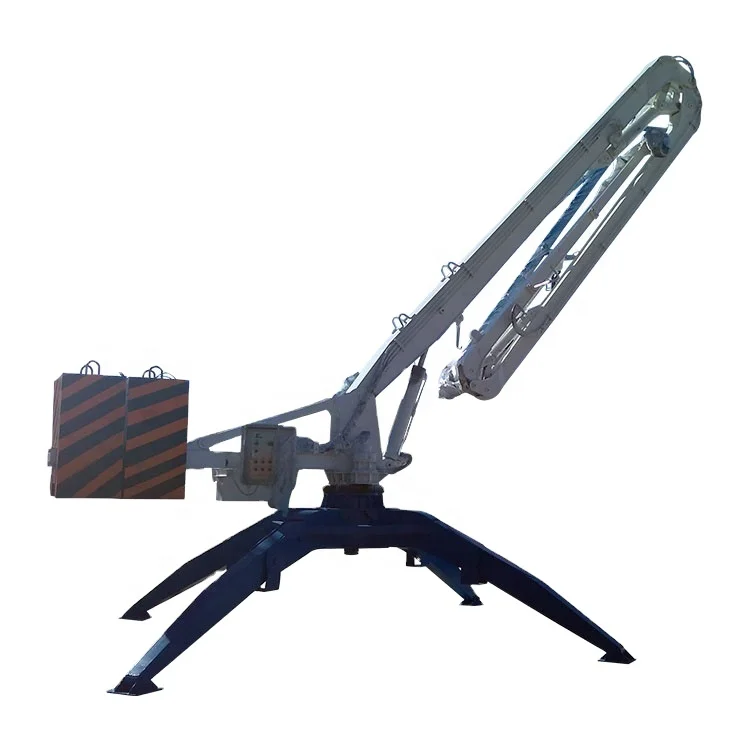

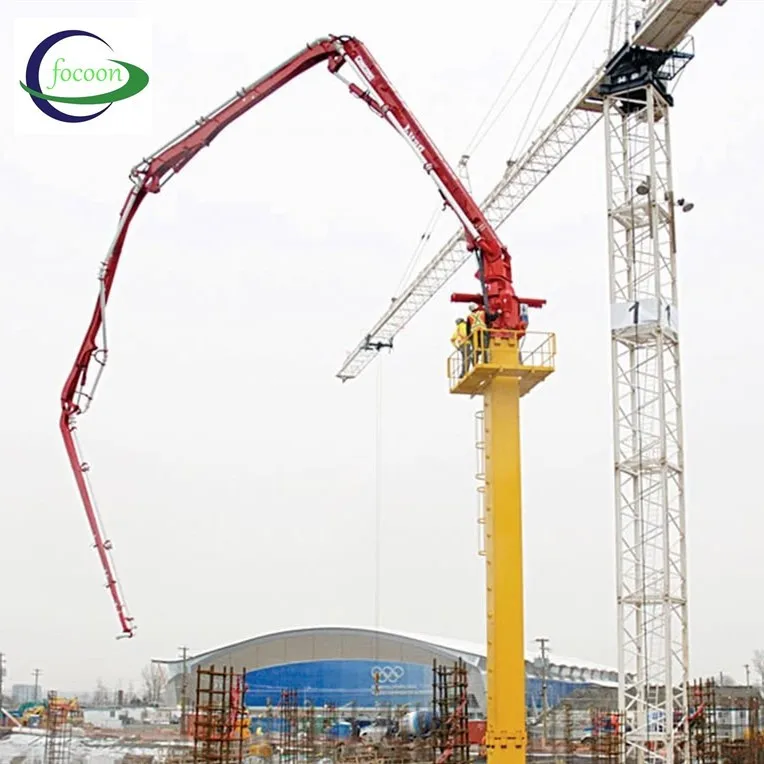

Hydraulic concrete placing boom Self-climbing concrete placing boom

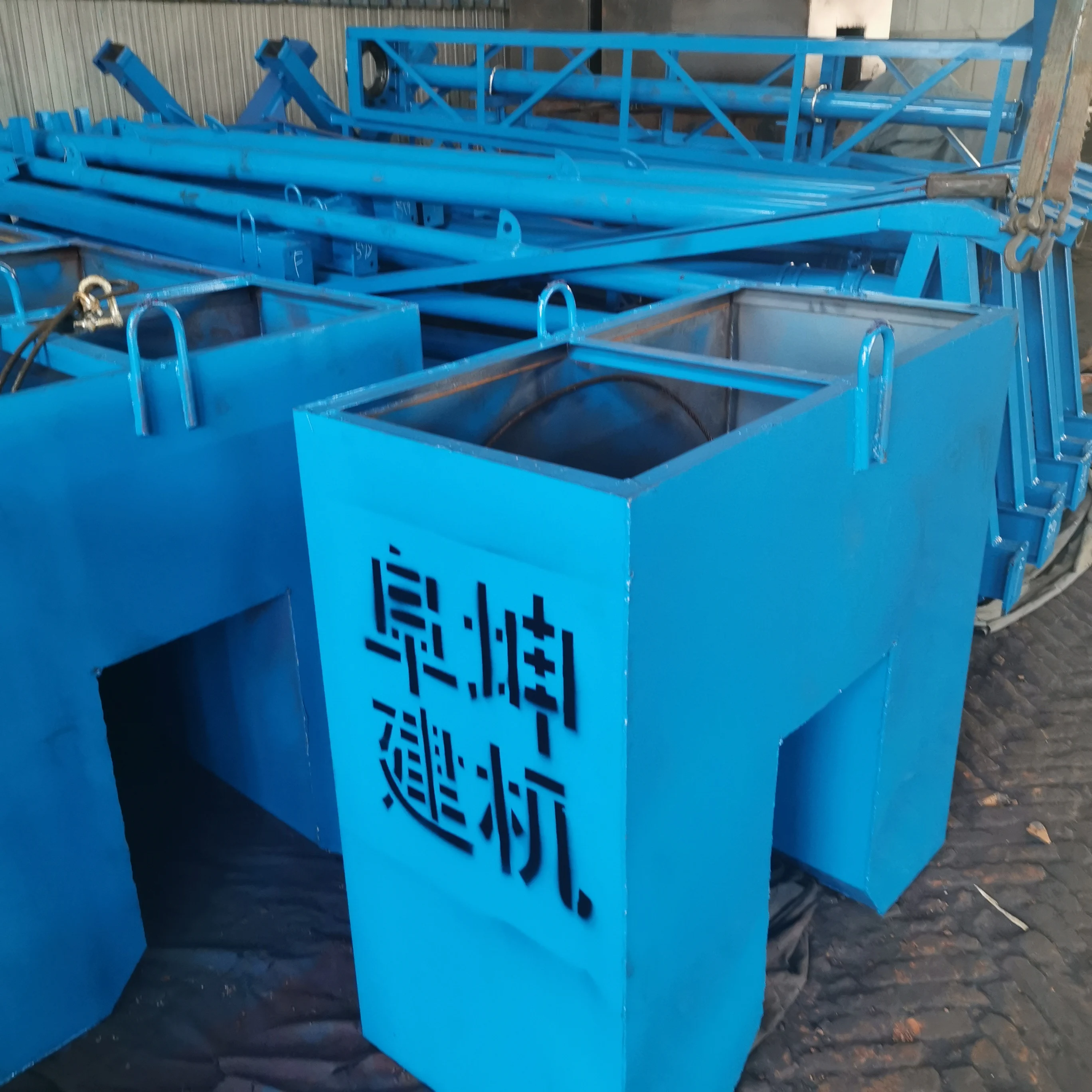

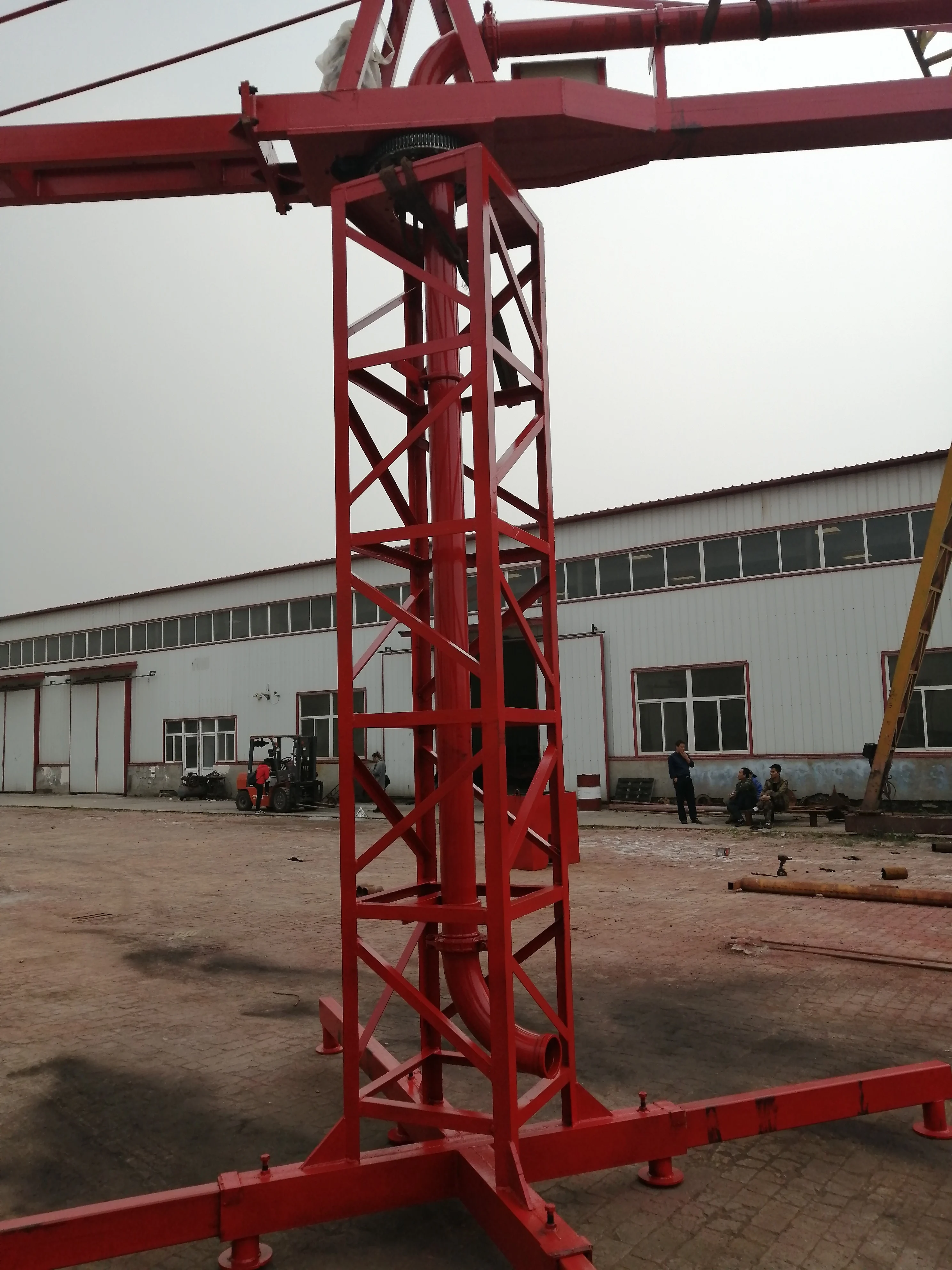

Adopting H type, it is welded by angle iron frame and 3mm iron plate, which ensures that the weight of bearing weight will not be deformed, twisted or spilled during lifting.
It is welded by seamless thick-walled square steel. The welding of square steel makes the welding surface to be closer durable and not deformed.
The base is made of thick-walled 6mm square steel, and the length of the legs is 4m by 4m, providing double stability and bearing capacity and enhancing the stability of construction.

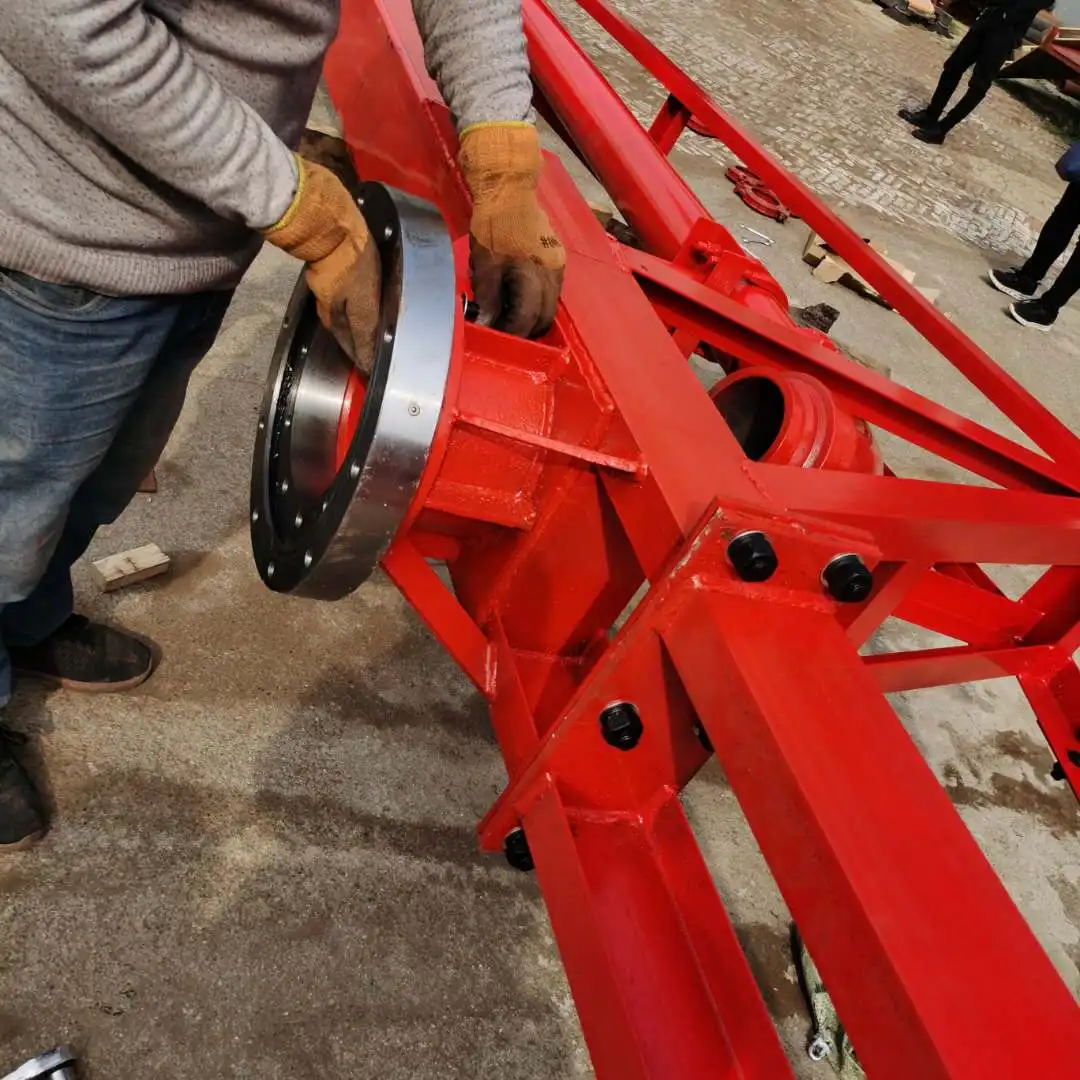

Slewing ring
The use of 380 and 500 super-large pressure bearings greatly enhances the stability and load capacity of the distributor.
