ABB Siemens Motor Sanitary Stainless Steel Centrifugal Pump
- Category: >>>
- Supplier: Wenzhou Compass Machinery Co. Ltd.
Share on (1600074411293):
Product Overview
Description
ABB Siemens Motor Sanitary Stainless Steel Centrifugal Pump
Product Description
Description
| Specification | 1.5T-80T,0.55KW-22KW |
| Material | SS304,SS316L |
| Standard | DIN, SMS |
| Voltage | <3KW,[210-230V)(360-400V)50HZ](420V-460V,60HZ); >3KW,[(360-400V)(630-690V)50HZ](420V-460V,60HZ) |
| Connection | Clamp,Union,Flange |
| Lift | 14-50M |
| Inlet/Outlet | 32-80MM |
Applications
The centrifugal pump is manufactured in stainless steel and with a hrouded motor,Its sanitary and cost-effcient design makes it perfect for the dairies, beverages, food-processing, pharmaceutical and fine chemicals industries
Operating principles
Housed inside the casing, the impeller rotates in conjunction with the pump shaft. with this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
This pump is not rever sible by simple by simple reversal of the direction of rotation,the direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

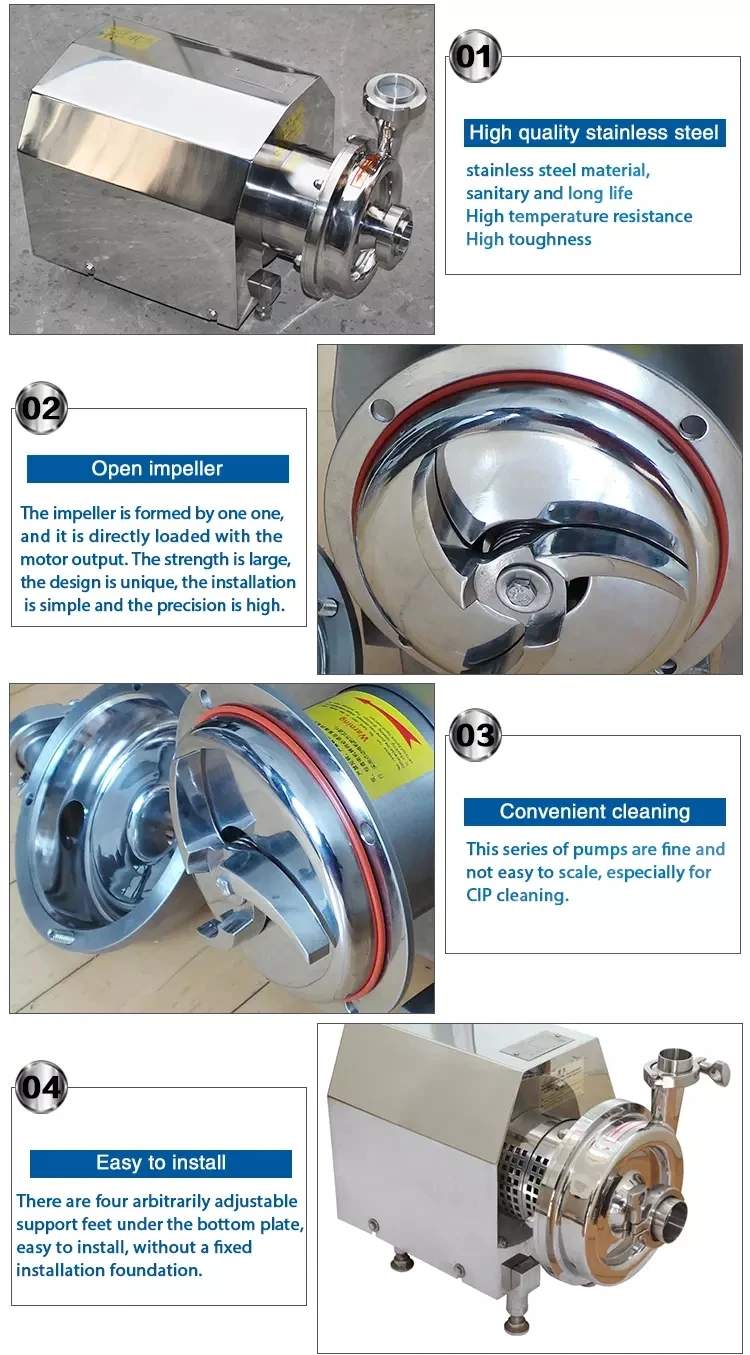

Design and features
The is mainly composed of a pump body, a pump base, and a motor part. Each part is connected by a bolt. The supporting feet of the base can be freely adjusted to facilitate installation without a fixed mounting base. The outlet pipe can be installed vertically or horizontally according to different needs.
It adopts a smooth transition, rigid structure and thick-walled design. The parts including the pump body, pump cover, impeller part and the part in contact with the material are all made of stainless steel (AISI316 or AISI304). Mechanical shaft seals are made of high quality stainless steel and silicon carbide. Greatly improved wear resistance and moisturization, extending the useful life.
The pump body and the impeller adopt the integral precision casting and surface of all parts are treated. With special fixtures to assist installation, ensuring an accurate dimensional clearance. The shaft seal adopts the open type structure, so even a small amount of leakage at the shaft seal can be observed in time. It also ensures that even if the leakage is not noticed within a short time, it will not overflow in the motor, thus ensuring a good service life of the motor.
Product Details

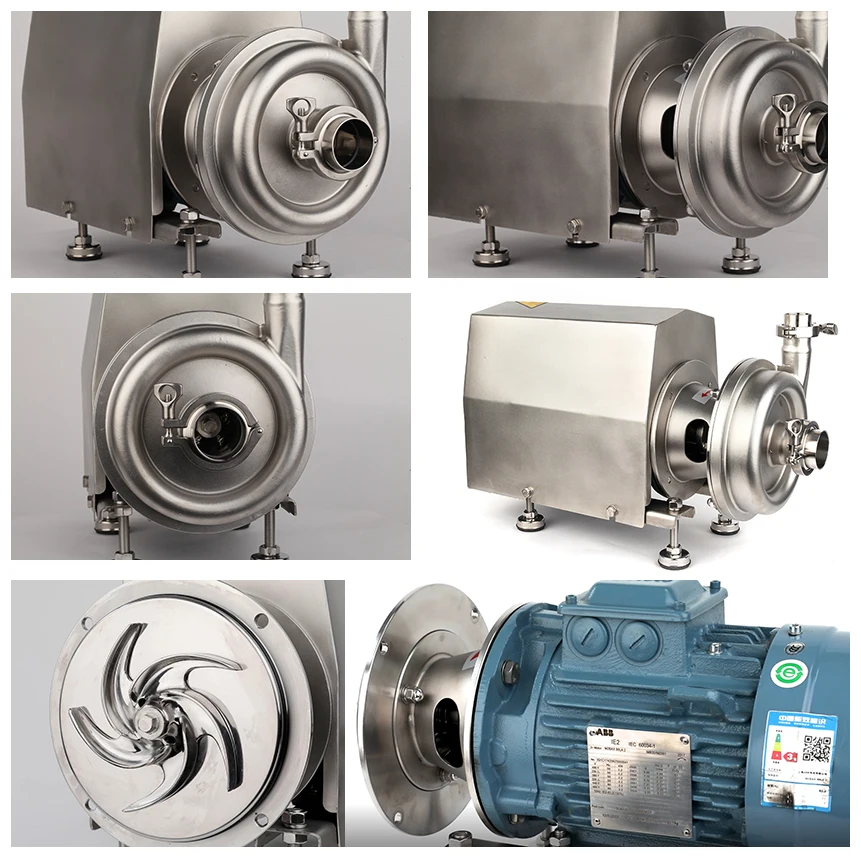

Product Show

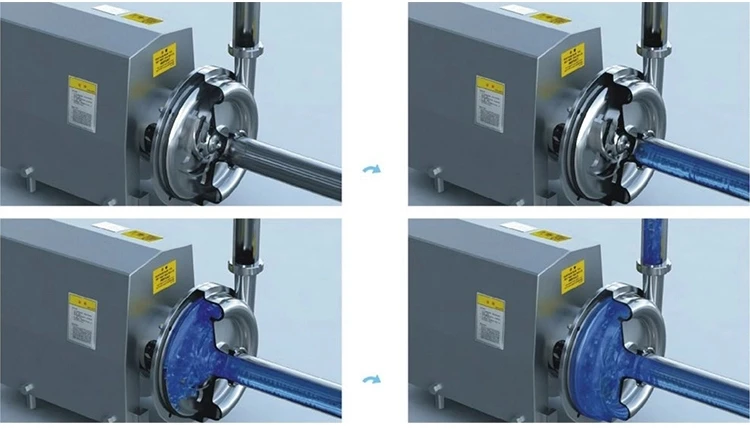

Working Principle
The liquid gains energy during movement through the impeller, and leaves the outer edge of the impeller at a high speed into the scroll casing, and then decelerates in the volute due to the gradual enlargement of the flow channel, and converts part of the kinetic energy into static pressure energy. The higher pressure finally flows in a tangential direction out of the pipe. While the liquid is forced from the center of the impeller to the outer edge, a vacuum forms at the center of the impeller. One end of the suction line of the pump communicates with the center of the impeller, and the other end is immersed in the delivered liquid. Under the action of the pressure between the liquid surface pressure (usually atmospheric pressure) and the pressure inside the pump (negative pressure), the liquid enters the pump through the suction pipe, as long as the impeller keeps rotating, the pump will continue to inhale and discharge liquid. The pump mainly rely on high-speed rotation of the centrifugal force generated by the impeller to transport liquid, that is why it is called centrifugal pump.

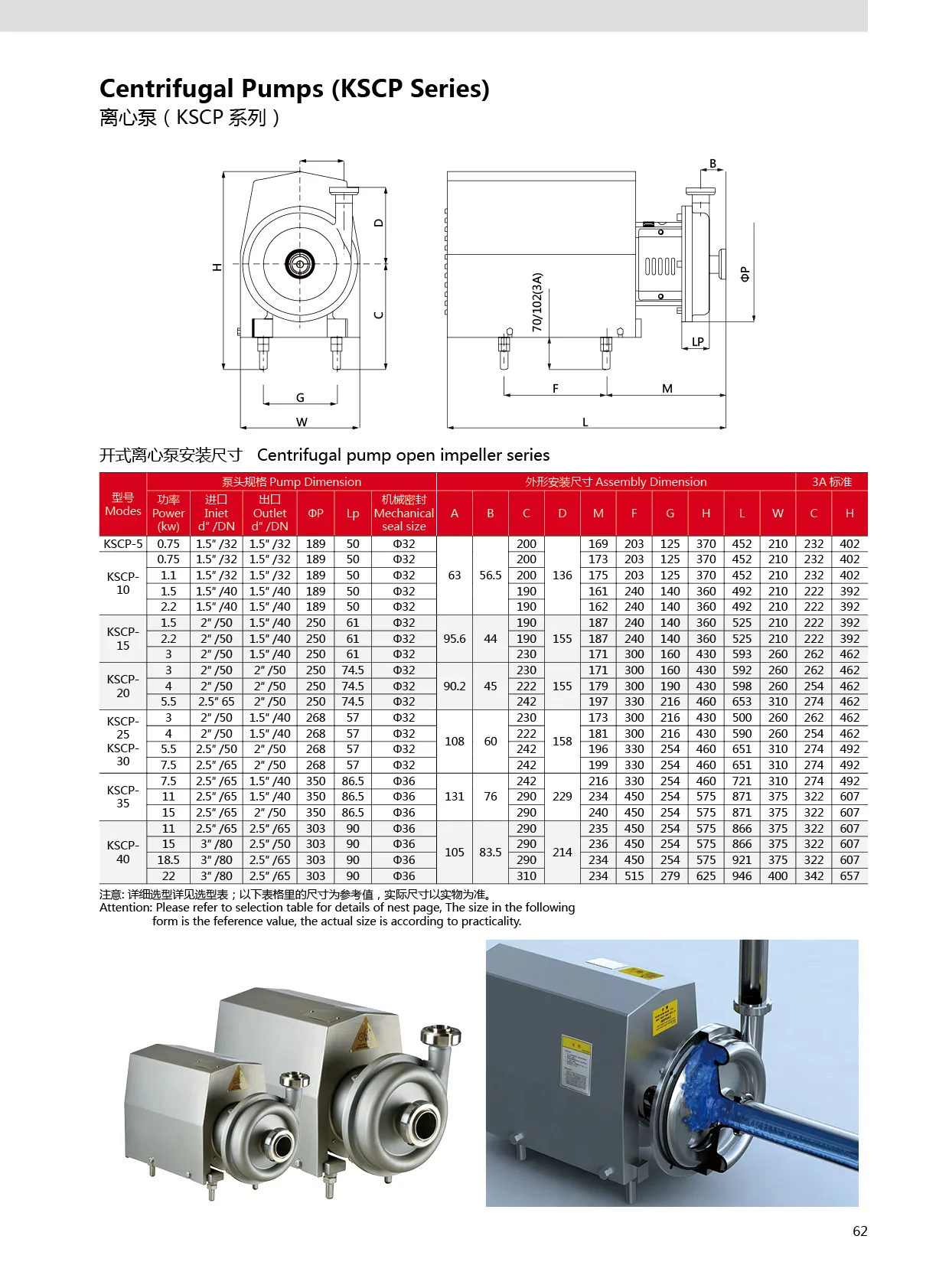

Product model description
Packaging & Shipping
Company Information
Wenzhou Compass Machinery Co.,Ltd is one of the manufactures which are capable of producing high precision stainless steel sanitary equipment and pipeline connection parts.We are a modern enterprise which integrates scientific research and production.
Compass can provide a variety of products,such as sample valve,divert valve, mix proof valve,pressure relief valve, manual and pneumatic butterfly valve, check valve, diaphragm valve , ball valve, pipe fitting, manhole cover, pump, tube/pipe and other related products. All products can be made according to different materials and industrial standard, such as SMS, DIN. , ISO, RJT, DF, BS, DS and BPE.
Our products are widely applied to dairy, food, beer, beverage, chemical industrial of equipment, and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.
Provide process design, machinery manufacturing,installation,technical training.
Compass applies the most advanced CNC machine from Japan for processing,cutting machines, automatic equipment,complete inspection equipment,excellent quality control system, an after-sale service center and strong production capacity. It makes each products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.
We persist in the principle of "Quality First,Customer Satisfaction" and will create more excellent liquid fittings to meet customers' requirement by full passion and first-class service.Moreover,we can also design according to your drawing and samples.
We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits,we welcome worldwide friends to give us more supports and suggestions!!
Our Services
FAQ
Q1. Are you a trading company or factory?
We are a manufacturing factory.
Q2. Do you have certificate for the materials?
is very important for the food processing machines.
Q3. May I have free sample before ordering?
Yes,our company is very pleased to send to you free sample for quality test as long as freight cost being paid by buyers themselves.
Q4. What’s the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q5.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
Q6.If there is any quality problem,how do you solve it?
We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.
Q7.How long is your delivery time?
For normal production in 7-10days.For bulk order in 15-25days.
Q8.Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
Q9.More questions are appreciated.
