11mm 350m 12mm 200m cable Duct Rodders fibre push rods Fiberglass Snake Rodder
- Category: >>>
- Supplier: Hebei Hsiao Chau Trade Co. Ltd.
Share on (1600074744072):
Product Overview
Description
11mm 350m 12mm 200m cable Duct Rodders fibre push rods Fiberglass Snake Rodder
We specialized in an extensive range of fiberglass tools,contains 4.5mm/ 6mm portable tracing duct rodder,4.5mm/6mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/15mm/16mm/18mm wheeled traceable duct rodders.
1.Portable small duct rodders
2.fiberglass duct rod without cage
3.wheeled duct rodder
All the duct rodders with high quality drawing head.
Our Telecommunication Duct Laying Fiber Optical Cable Installation And Maintenance Cable Duct Rodder with high strength with minimum bending radius.
The fibreglass core is sheathed with a tough ABS jacket, providing a high quality combination of strength durability. The rod is supplied complete with brass male ends with screw-on hauling eye and fitted to a sturdy zinc plated steel frame with brake for use during transportation.
We sell rodders of different length and sizes. The rodder listed has the following distinctive features
1. Strong non-conductive fibreglass rod construction.
2. Bright Yellow colour for easy visibility.
3. Marking at every meter.
4. For longer conduit runs and underground duct.
5. Rugged tubular steel reel with adjustable brake position.
6. Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.
1. Strong non-conductive fibreglass rod construction.
2. Bright Yellow colour for easy visibility.
3. Marking at every meter.
4. For longer conduit runs and underground duct.
5. Rugged tubular steel reel with adjustable brake position.
6. Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.
1.Description: 11mm 12mm 200m Snake Duct Rodders Push Rod Fiberglass Snake Rodders
2.Standard Lengths :100 meters,200 meters,300 meters,500 meter.customized.
3.Copper Trace: 0.6 mm copper trace wires
4.Features:Has copper trace for location/detection work.
5.Set Includes:Galvanized Frame,Guide Roller,Drawing head,Conduit rod grapple set.
3.Copper Trace: 0.6 mm copper trace wires
4.Features:Has copper trace for location/detection work.
5.Set Includes:Galvanized Frame,Guide Roller,Drawing head,Conduit rod grapple set.
Our photographs are of the actual item for sale Everything included in the sale is photographed. High tension fiberglass rod. It comes loaded onto a reel,copper head,rubber wheels with high quality bearing, Great for home repair.
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,Φ18 | ||
Rod Length (m) | 30-500m | |||
Frame Spec.(mm) | 67cm*57cm*16cm,130cm*120cm*48cm | |||
Wheel Diameter(mm) | 300mm | |||
Wall thickness Metal Frame | 2.2mm | |||
Color | blue, yellow, red, white etc | |||
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature | ||
Rod Outer | High Density ABS coating | |||
Iron Frame | Steel with high-temperature Spray coating or Galvanized | |||
Wheel | rubber | |||
Brake | Yes | |||
Drawing head | copper | |||
Physical Characters | Density | 55g/m | ||
Working temperature | -40°C to +80°C | |||
Breaking tension | 100kg | |||
Bending Radius | 295mm | |||
Technology | Pultrusion | |||
Packing | Inside | plastic woven strip wind around the frame | ||
Outside | Carton Wooden box | |||
Fibreglass cable rodder is ideal for all telecommunication and electrical cable laying applications.
Adjustable brake to control runout speed Using under square angel tube, please pay attention on the end of rod.Avoid to break the end of rod .
It has the advantages of time saving, labor saving, improved work efficiency, etc, and can be used for the cleaning and the optical cable, the cable and the plastic tube of the telecommunication pipeline.

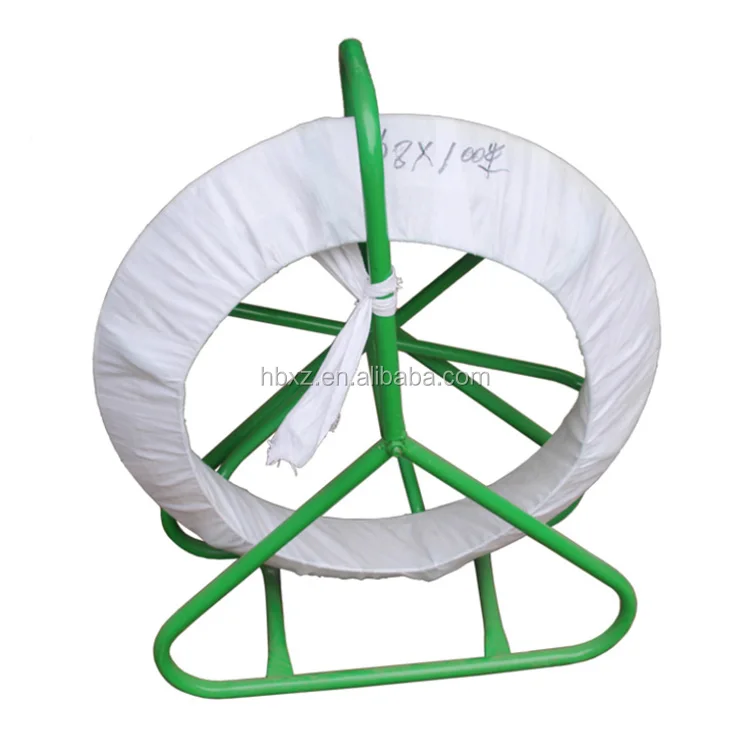

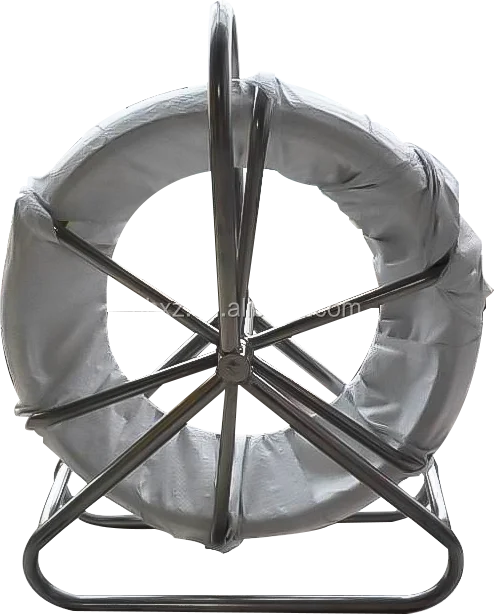

11mm 12mm 200m Snake Duct Rodders Push Rod Fiberglass Snake Rodders inner packed by plastic woven strip,outer can be packed by wooden box or carton.
Local pick up from factory ,or we can arrange delivery to your place.
Any questions, please contact us via trade message or email us.
We will reply your message within 24 hours.
We will always do our up most to exceed your expectations in customer service,communication and dispatching of your orders.
