pharmacy cross outdoor led P6 full or single color pedestrian crossing sign for clinic

Share on (1600074763341):


Price:$456.00 - $499.00

Quantity:


Product Overview

Description


pharmacy cross outdoor led P6 full or single color pedestrian crossing sign for clinic








1.iron cabinet any size coul dbe customized ,convenient for installation Specially used in clinics and road


2.Realistic image and brillint colors ,IP 65 Protection level.


3.unique design to cope with different environment needs ,undertake hot weather and big windy












Product Description



































































































Outdoor front service P6 LED Display
Model numberP6
Pixel pitch6mm
Module resolution32*32
Module size      192mm*192mm
Pixel density27777dots/sqm
LED EncapsulationSMD3535
Module weight0.26kg
Average consumption600w/sqm
Max power consumption1000w/sqm
Best view distance6m~80m
Best view angle140º
Brightness≥5400cd/sqm
Scanning1/8scan
Refresh rate1920HZ
Frame frequency360HZ
cabinet size 960*960 mm
screen dimension960*192mm
Grey scale16384
Working voltage220VAC/50Hz±10%
Life span100000hours
Working temperature-20℃ to +60℃
CertificationCCC/CE/RoHS








750 .jpg750-2.jpgp8.jpg

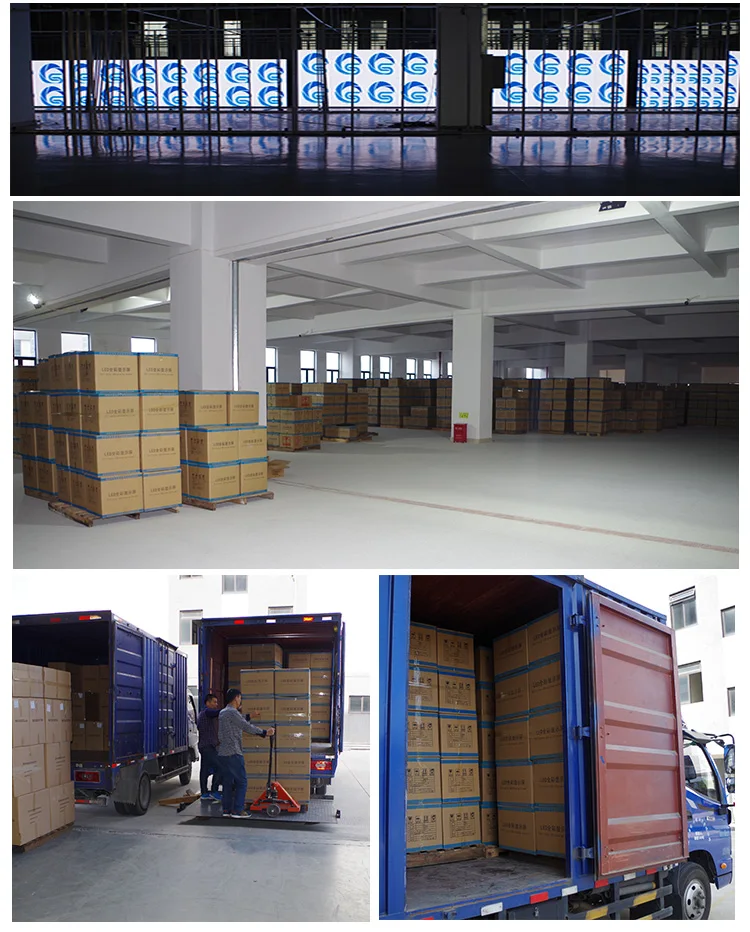

Packaging & Shipping















 _02






Our Services
















Company Information








Shenzhen Scree optoelectronics Co.. Ltd, is a large-scale comprehensive high-tech enterprise,which is dedicated to the R & D, production, sales, assembly and engineering installation,with two major production bases,one is in shenzhen ,one is in dongguan ,Total plant area is over 40000 m^2,





we have been focusing on the LED display field, founded in 2009 . Our products include LED outdoor full-color display screen, LED indoor full-color display screen, LED rental screen, LED car top screen, LED transparent screen, LED curtain screen, LED floor screen and other LED display products and used for leasing products, billboards, highway signs, shaped screen, stadium screen and other





The company's products have passed ISO9001:2008 quality management system


certification. CE. CCC. UL and other quality certification and related ROHS certification,





Products are sold to North America, Europe, the Middle East, Southeast Asia, Africa, Australia and other overseas markets, has been recognized and praised by customers around the world.










FAQ





Q1:what does the pixel pitch mean ,and how to choose pixel pitch ?
A: it mean the best distance people view this led display ,the pixel pitch smaller ,the distance you view ,it looks clear ,





Q2:how led display is installed ?


A:client need to do steel structures according the the cabinet size ,usually we could provide the Steel structure drawings,after client placed the order





Q3.any size could do ?


A;yes ,but because the modules size is fixed ,so just exist a little difference between your size





Q4:software of led display is the same ?


A:it depends on the system you choose ,different system using the different software





Q5:why the same pixel pitch without the same price ?


A:Because the  configuration is different ,we have the different types of the lamp and ic ,first class and second class ,and the cheapest one ,depend on your budget .





Q6:If i want the quotation ,what i need to provide you ?


A:You need to provide me the size you want ,and indoor or outdoor use ? flexible installation or fixed installation ,if possible ,send me the detailed Installation Environment(Picture of the actual scene) thanks ,





Q7:If we do not know how installation ?how could i do ?


A:About the installation ,we have the Professional engineer team , provide steel structure drawings after you take the order ,
