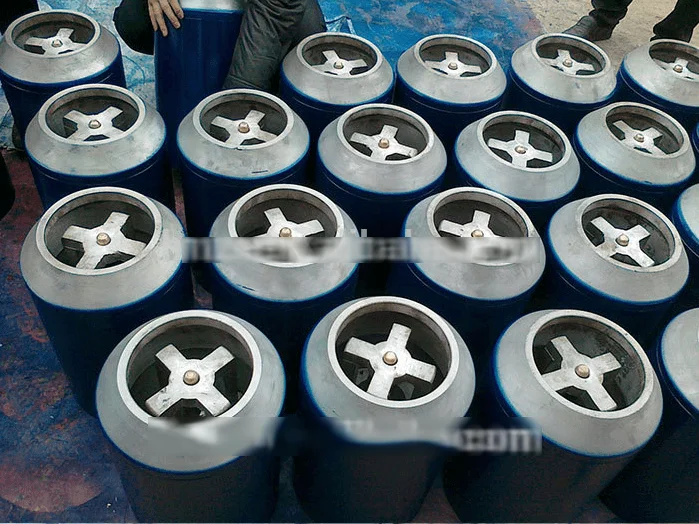

API Casing guiding Shoe and reamer shoe

Specification

O.D. (mm)

Total length(mm)

I.D. (mm)

Min. Dia. (mm)

Connection Type

Affordable strength of back-pressure (Mpa)

Float collar

5

141.3

500

110

50

5 BCSG

35

5 1/2

153.67

530

112

55

5 1/2 BCSG

35

7

194.46

586

162.5

77

7 BCSG

35

9 5/8

270

720

225

77

9 5/8 BCSG

35

13 3/8

365

720

319

77

13 3/8 BCSG

35

20

533.4

720

475

77

20 BCSG

35

Float shoe

5

140.3

495

110

50

5 BCSG

35

5 1/2

153.67

514

122

55

5 1/2 BCSG

35

7

194.46

533

162.5

77

7 BCSG

35

9 5/8

269.88

550

225

77

9 5/8 BCSG

35

13 3/8

339.7

550

319

77

13 3/8 BCSG

35

20

534

652

475

77

20 BCSG

35
