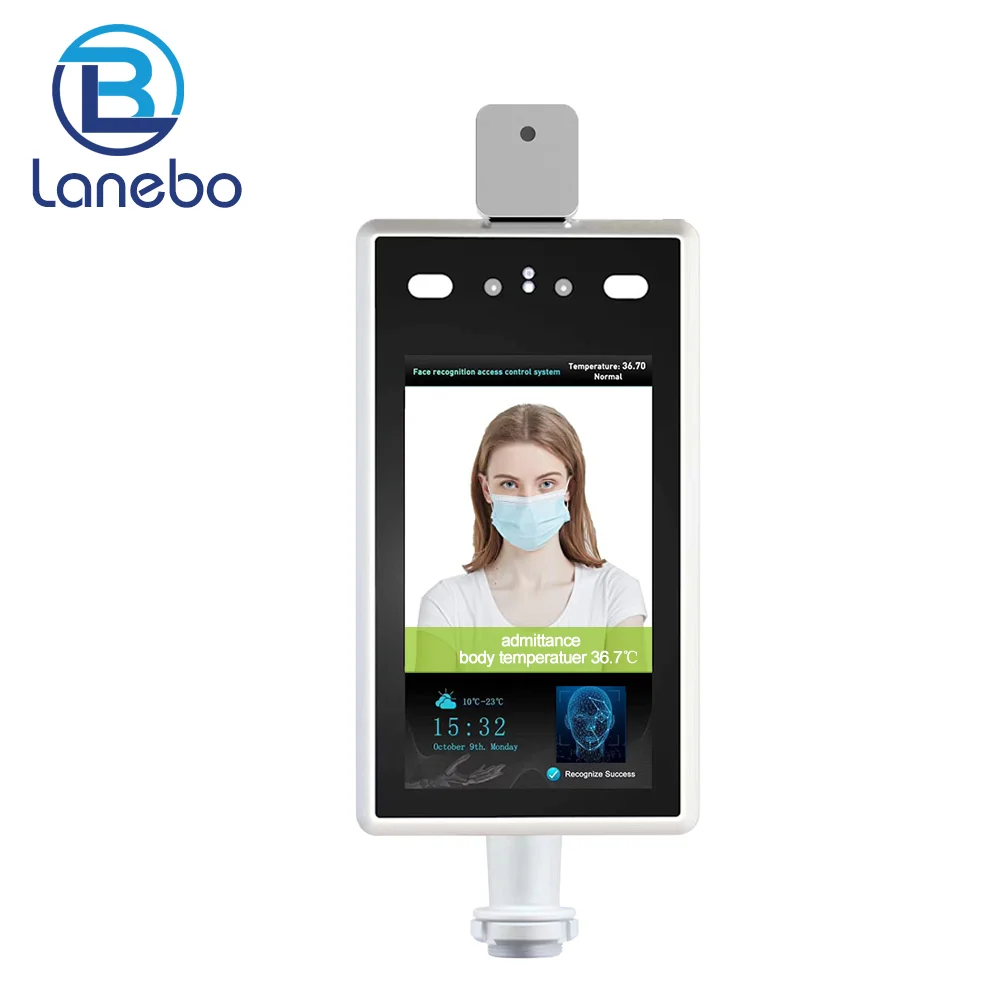

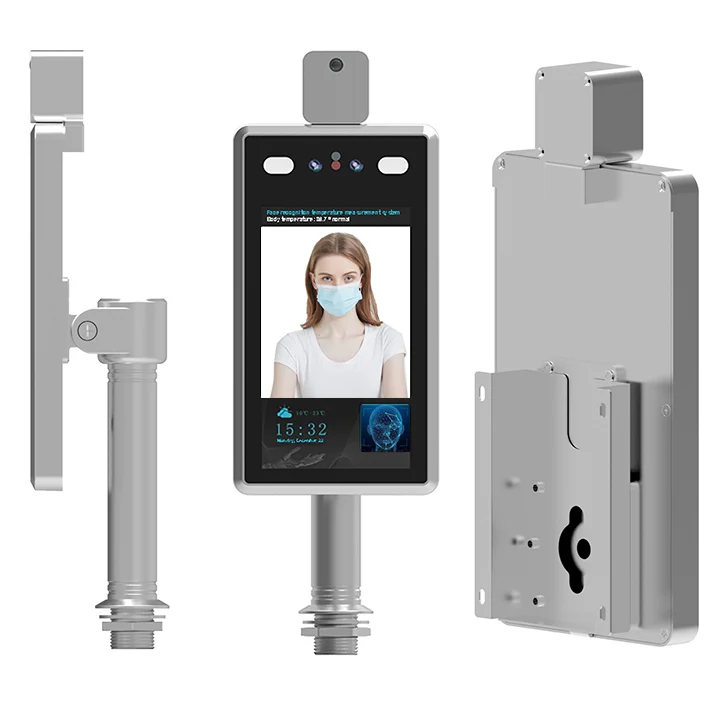

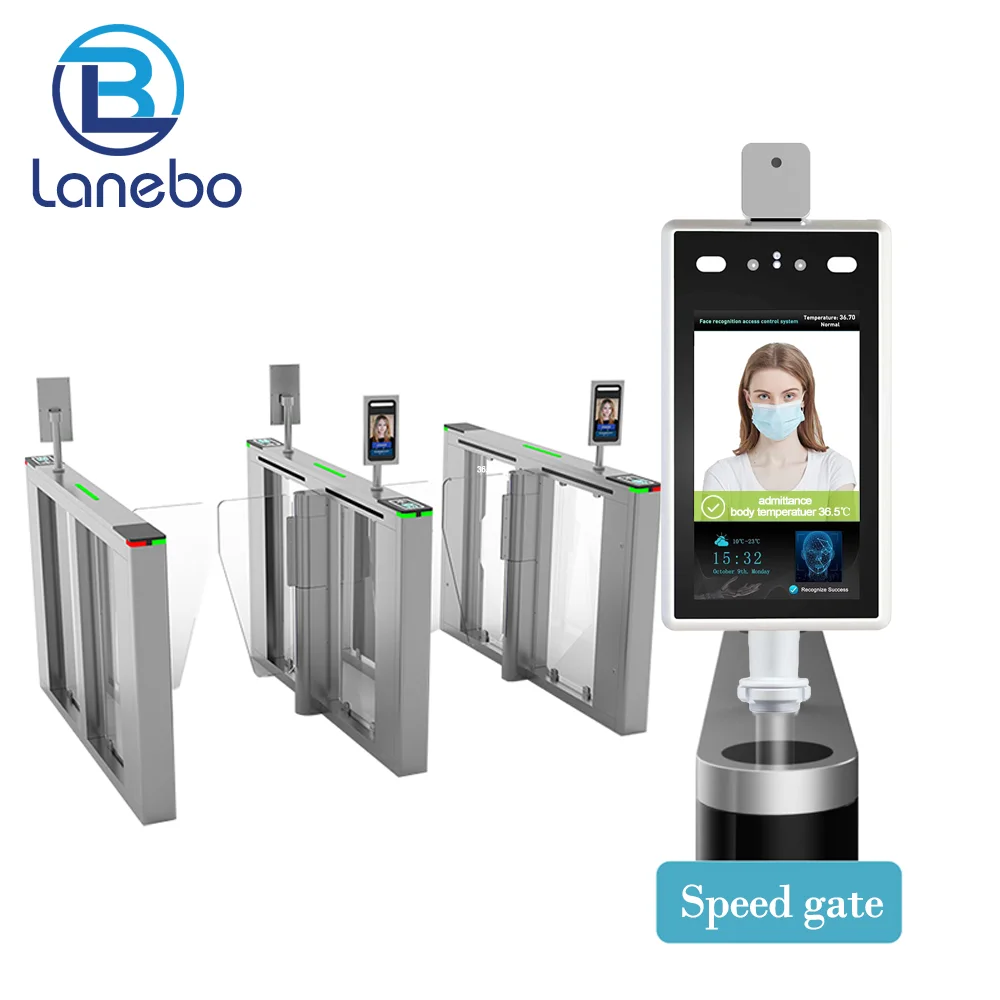

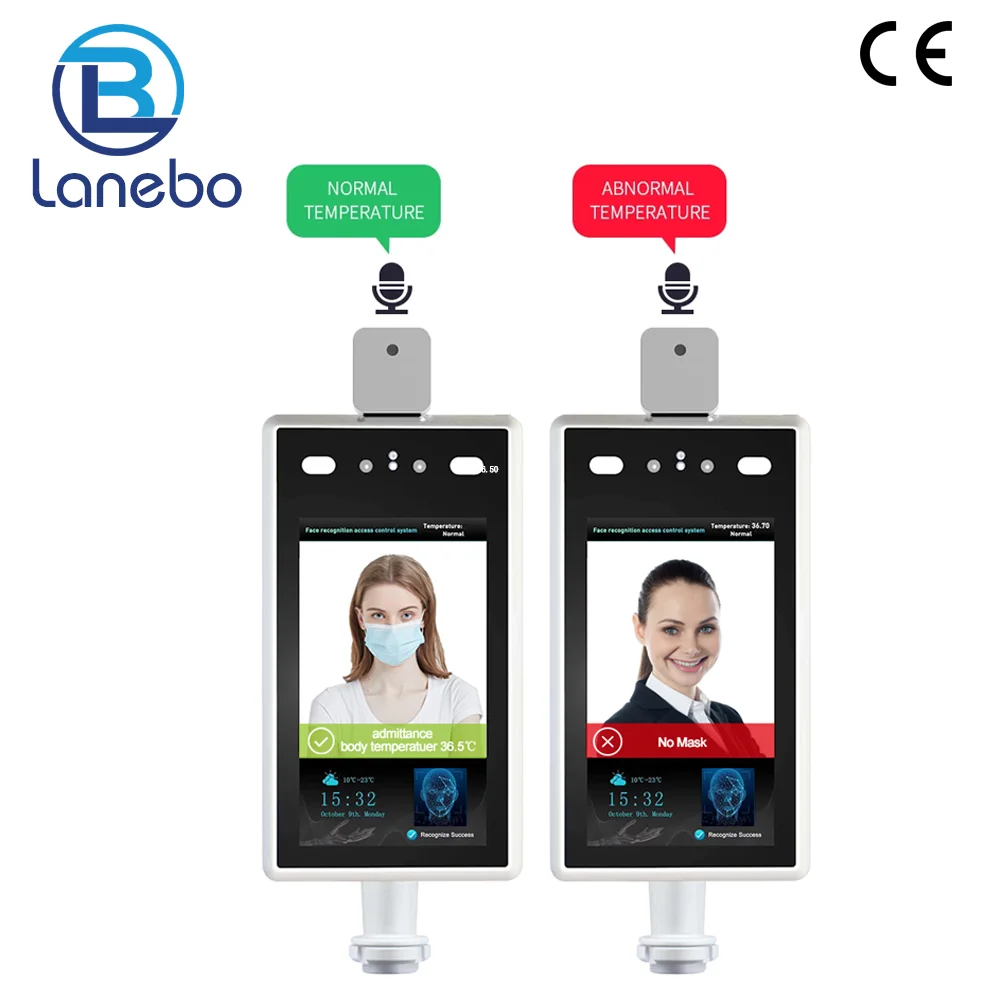

China Manufactory biometric access control system real time indicate facial recognition thermal imaging camera
- Category: Smart Security Devices >>>
- Supplier: Shenzhen Lanebo Automation Tech Co. Ltd.
Share on (1600075699255):
Product Overview
Description
Specification
Product Name | China Manufactory biometric access control system real-time indicate facial recognition thermal imaging camera | |
Model | LB-FR102 | |
Hardware | ||
Chipset | Hi3516DV300 | |
System | Linux operation system | |
RAM | 16G EMMC | |
Image sensor | 1/2.7" CMOS | |
Lens | 4.5mm | |
Camera Parameters | ||
Camera | Binocular camera supports live detection | |
Effective pixel | 2Mega pixel,1920*1080 | |
Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 | |
SNR | ≥50db(AGC OFF) | |
WDR | ≥80db | |
Face Recognition | ||
Height | 1.2-2.2 M, angle adjustable | |
Distance | 0.5-2 Meters | |
View angle | Vertical ±40 degree | |
Reco. Time | <500ms | |
Temperature | ||
Range | 30-45(℃) | |
Accuracy | ±0.5(℃) | |
Distance | 0.3-0.8 | |
Response time | <300ms | |
Interface | ||
Internet interface | RJ45 10M/100M Ethernet | |
Weigand port | Support input/output 26 and 34 | |
Alarm output | 1channel relay output | |
USB port | 1USB port (Can be connected to ID identifier) | |
General | ||
Power input | DC 12V/3A | |
Power consumption | 20W(MAX) | |
Working temperature | 0℃ ~ +50℃ | |
Humidity | 5~90%, no condense | |
Dimension | 123.5(W) * 84(H) *361.3(L)mm | |
Weight | 2.1 kg | |
Column aperture | 33mm | |
Product Description

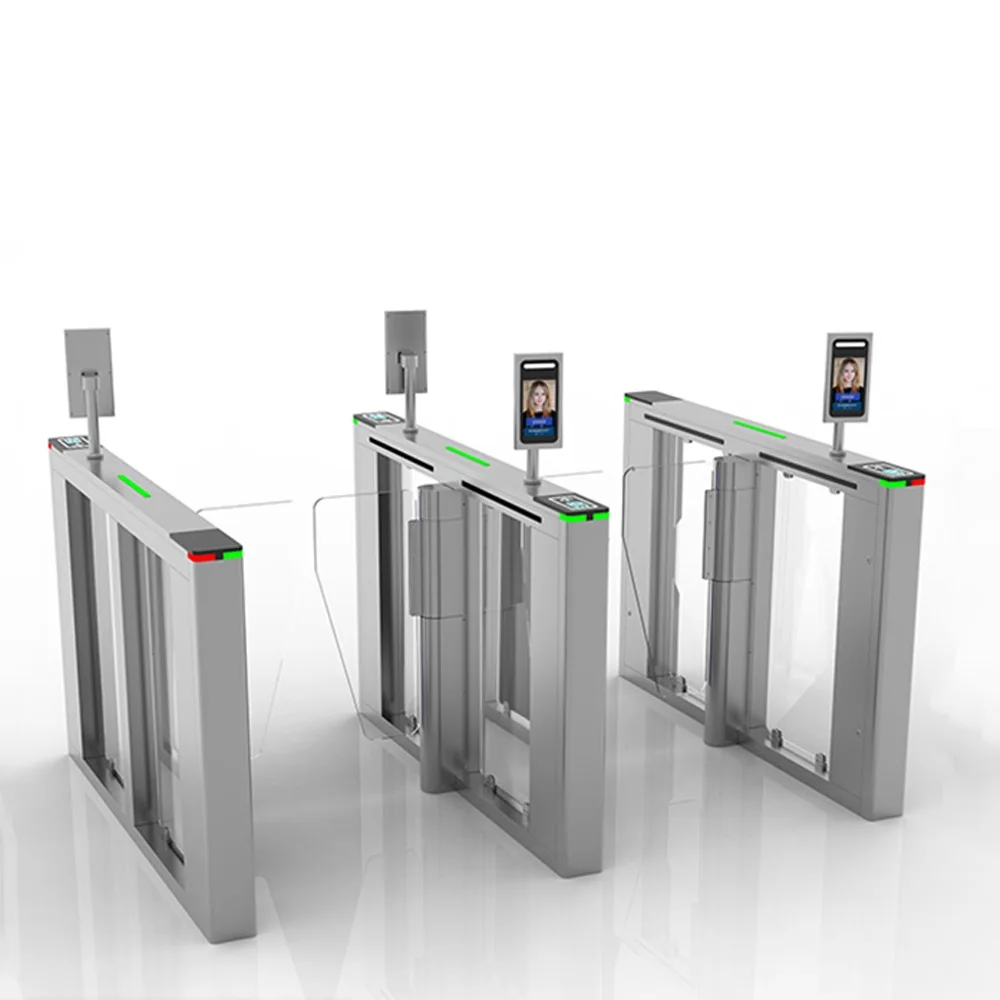

Case&Application

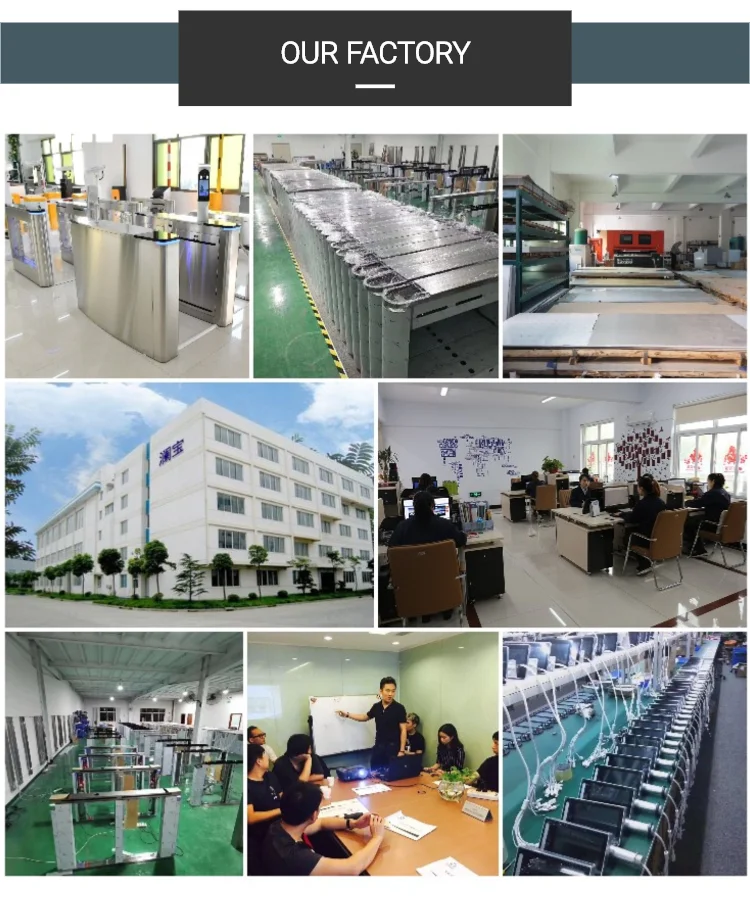

Company Profile

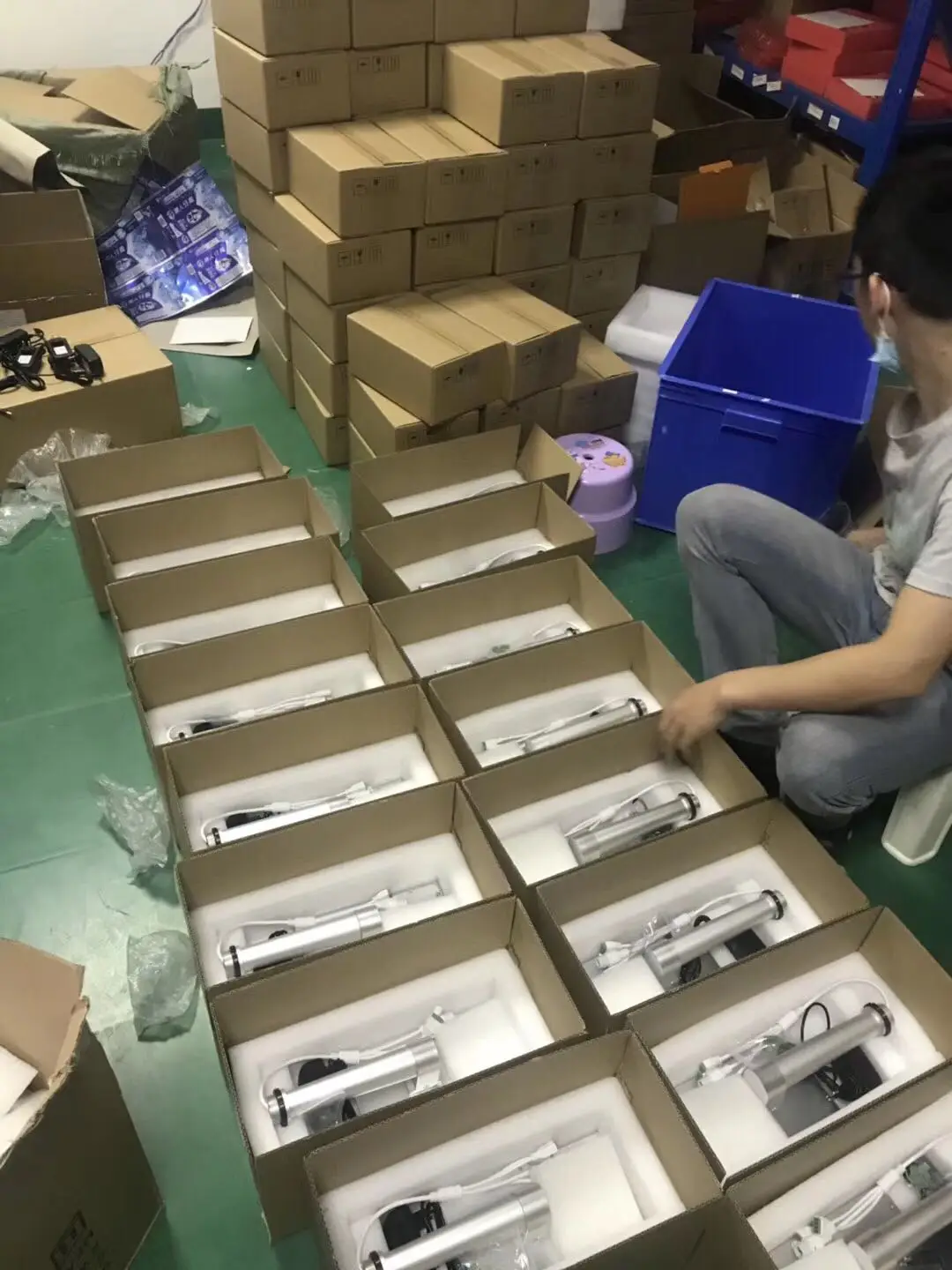

Shipping

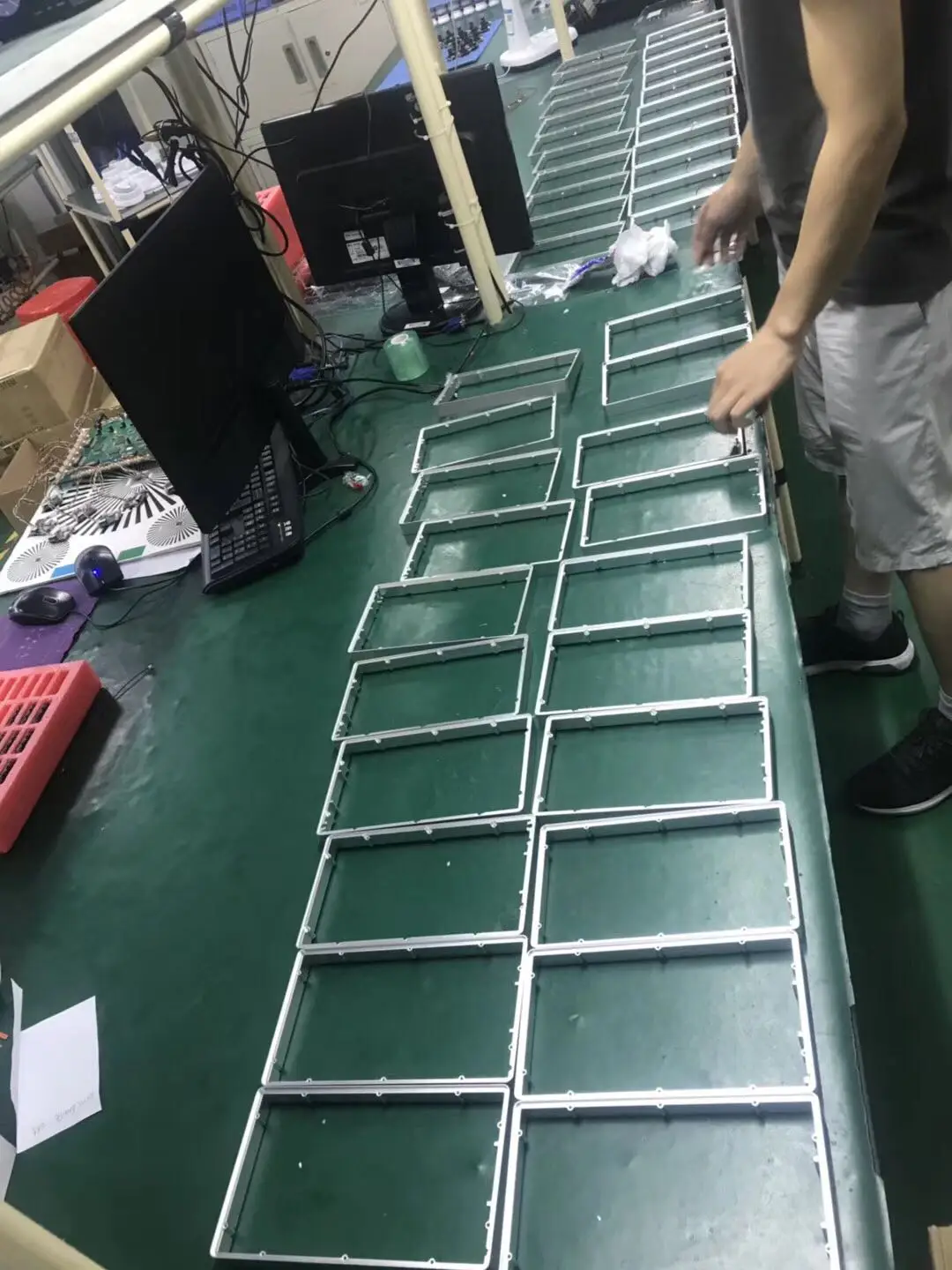

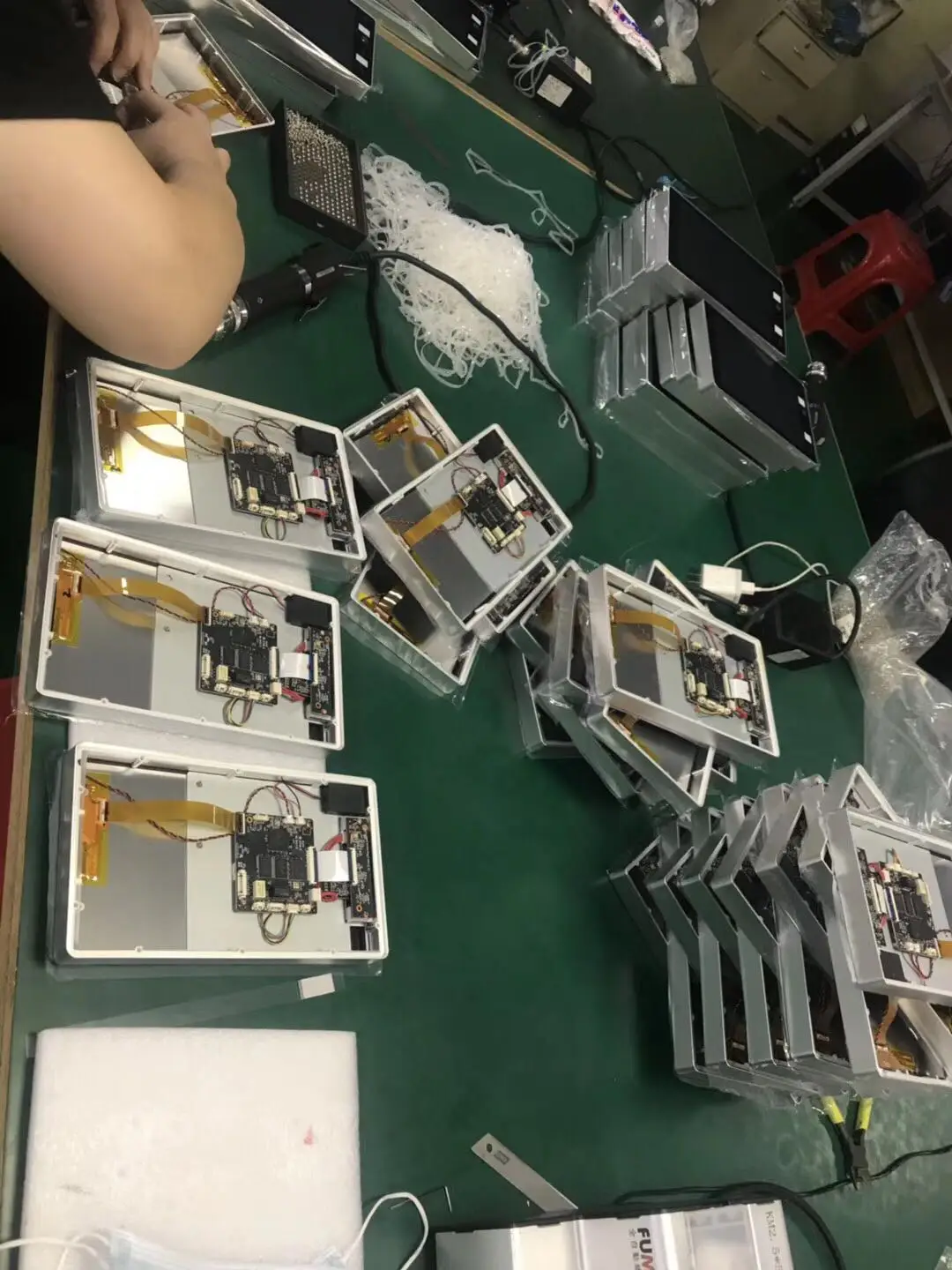

Company Profile
