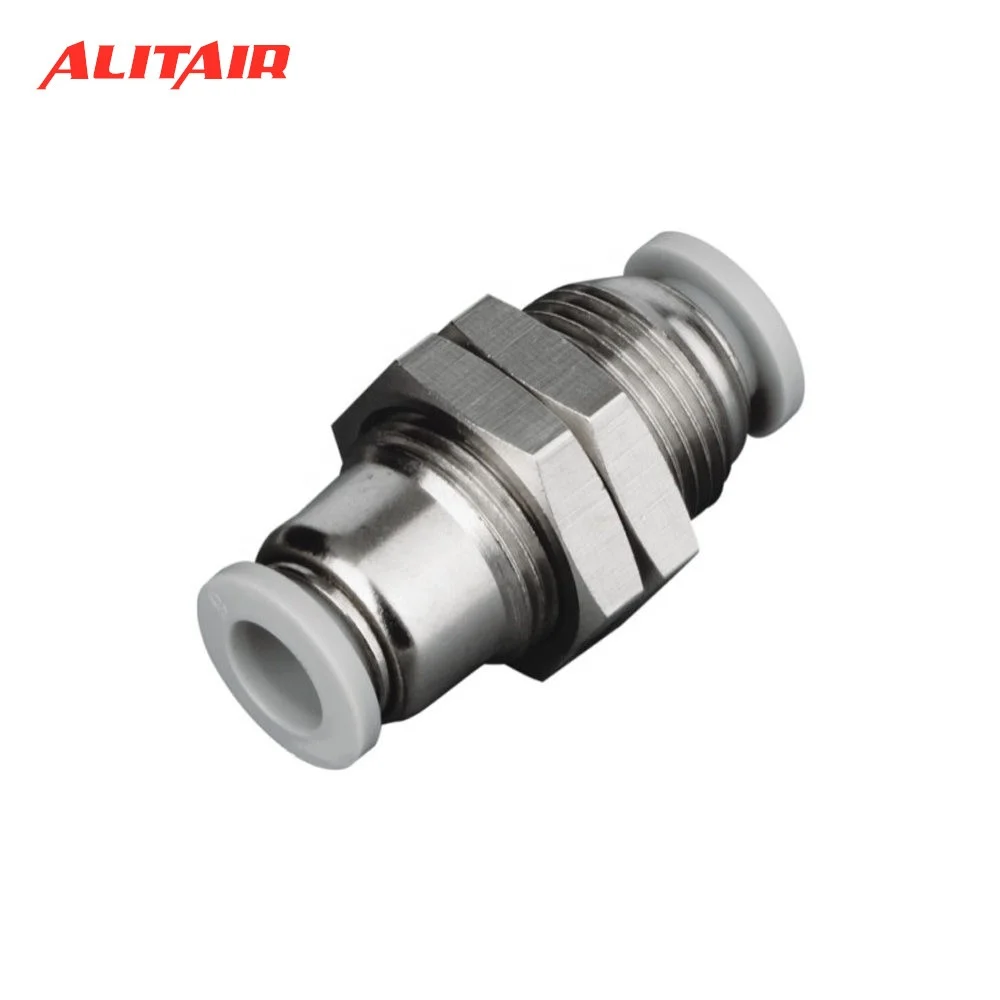

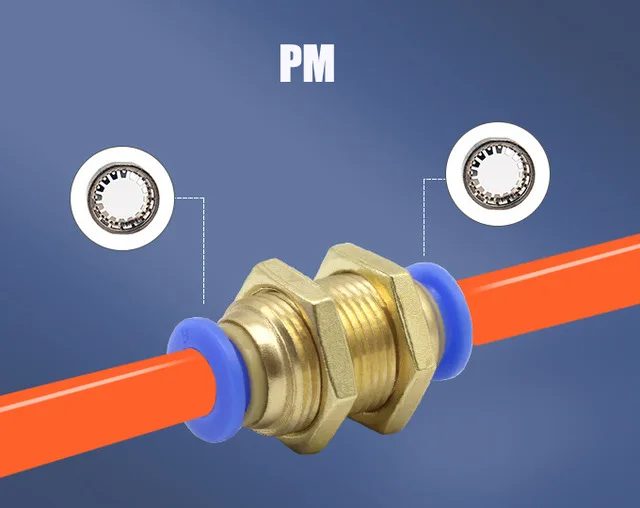

PM04 PM06 PM08 PM10 PM12 Air Connectors bulkhead Hose Fittings Push In Fittings pneumatic connector
PM04 PM06 PM08 PM10 PM12 Air Connectors bulkhead Hose Fittings Push In Fittings pneumatic connector
PM04 PM06 PM08 PM10 PM12 Air Connectors bulkhead Hose Fittings Push In Fittings pneumatic connector
PM04 PM06 PM08 PM10 PM12 Air Connectors bulkhead Hose Fittings Push In Fittings pneumatic connector
PM04 PM06 PM08 PM10 PM12 Air Connectors bulkhead Hose Fittings Push In Fittings pneumatic connector

PM04 PM06 PM08 PM10 PM12 Air Connectors bulkhead Hose Fittings Push In Fittings pneumatic connector

Share on (1600075723948):


Price:$0.15 - $0.29

Quantity:


Product Overview

Description


Product Description
Features :
1. Designed for Polyurethane or Nylon tubing.
2. Simple installation pneumatic push in connector.
3. After installation, the direction of the tube can be changed freely.
4. Elliptical release ring help to connect tube easily by manual, no special tools required.
5. Outside (and Inside where applicable) hexagonal wrench tightening.
6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.
Type
Quick Connect Air Fittings PLM Union 90 Degree Elbow Plastic Pneumatic Bulkhead Fitting
Operating Pressure
0-1.0MPa | 0-150psi
Operating Temperature
0 - 60 °C
Apply For
4/6/8/10/12MM tube/hose/pipe
Applicable Tube
PU / PA / PE / PVC
1. Quick installation, simple and flexible,space-saving
2.The tube fitting comes in a wide variety of models to meet all your
needs in pneumatic piping
3.Even after installation,the direction of tubing can be changed freely
4.The release ring adopts the
ellipse design to make it more convenient and labor saving for disconnection
5.All taper pipe threads are pre-coated with Teflon with fine seal performance.
6.All fitting are equipped with the internal hexagonal holes.It is easy for them to be mounted in the
narrow places

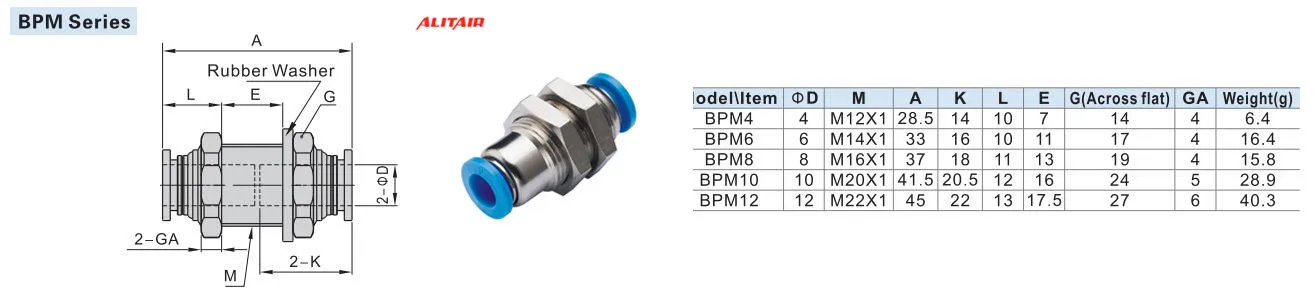

Specification
1) The compact apperance space saving
2) The threaded portion is covered with sealant and the M3/M5 thread is attached with a sealing gasket to prevent air leakage over the connection thread portion
3) Grey and blue are optional for the release button
Operating Pressure Range 0-1.0Mpa
Negative Pressure-750mm Hg ( 10 Torr )
Proof Pressure1.5Mpa
Ambient and fluid temperature-20~70
Applicable tubingSoft Nylon or Polyurethane
Color Grey / Black
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

FAQ
1, Direct factory, competitive prices based on good quality
2, More than 10 years of production and exportation experience
3, Good before-after service
4, Competitive price
5, OEM&ODM accepte
6, Fast delivery, 6000000pcs/month
