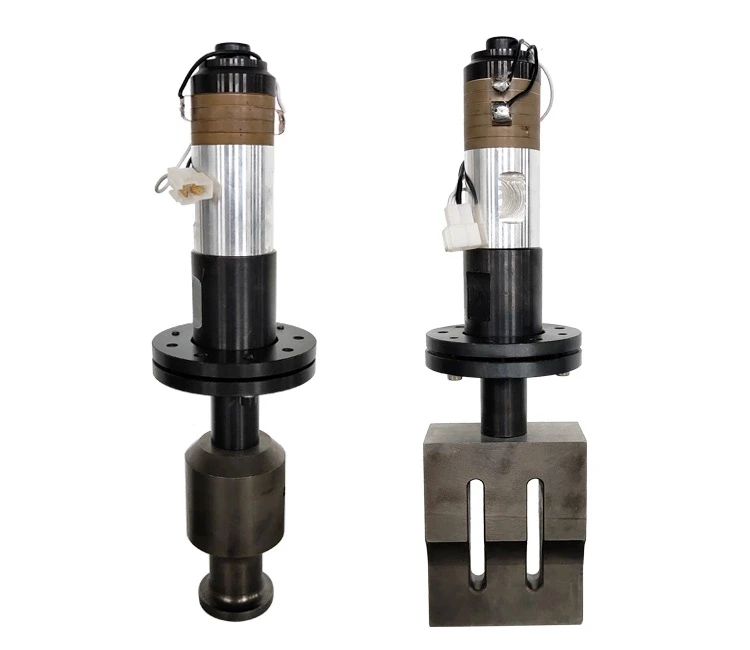

Shingding 20KHz 2000W Adjustable Ultrasonic Welding Generator Transducer Welder For Mask

Product Overview

Description

Feature:



Automatic frequency tracking: the system automatically tracks the resonant frequency of welding head.Compensation for dissonance due to heating and other reasons.
Digital frequency control: the working frequency is controlled by the microcontroller.
Digital amplitude setting: this feature allows users to set precise amplitudes according to application requirements, providing a greater range and repeatability than analog systems.
Large amplitude adjustable:1%~100% continuously adjustable, different from the traditional generator low amplitude difficult to work.
High-speed microcontroller: the operating frequency of the internal microcontroller is up to 168MHz, which can accurately and timely control the working situation.
0.5 ms control and sampling interval: 2000 times per second sampling and control for welding process.
Touch screen display: through color screen and touch, friendly and easy to use human-computer interaction, better experience.
Button and touch co-exist: common functions can provide better interaction through buttons.One of the buttons use silicone keys, feel better.
Operating language: the user can select the applicable language in the start screen: only English and Chinese are supported at present.
Oblique start up: ultrasonic power supply and solder head start up at the most appropriate rate to reduce electromechanical pressure on the system.
Vibration drop after welding: the user can start the ultrasonic wave after the welding and pressure retaining process to shake down the workpiece adhered to the welding head.
Welding quality monitoring: user-defined process alarm. When it is outside the scope of user-defined defective products, the system will generate an alarm to remind the user.
Diagnosis at startup: during startup, test the main components of the system.
Timing frequency search: when starting up, the system shall conduct frequency search every minute to update the resonant frequency of welding head.This is especially effective for a welding process which can affect the temperature of the welding head.



Specification:

Model	Frequency(KHz)	Maximum ultrasonic power(W)
JYD-2700S	15	2600
JYD-2700S	20	2000
JYD-2700S	25	2000
JYD-2700S	28	2000
JYD-2700S	30	1500
JYD-2700S	35	1500
JYD-2700S	40	1000

Application:   plastic welding,non-woven fabrics welding and so on.
