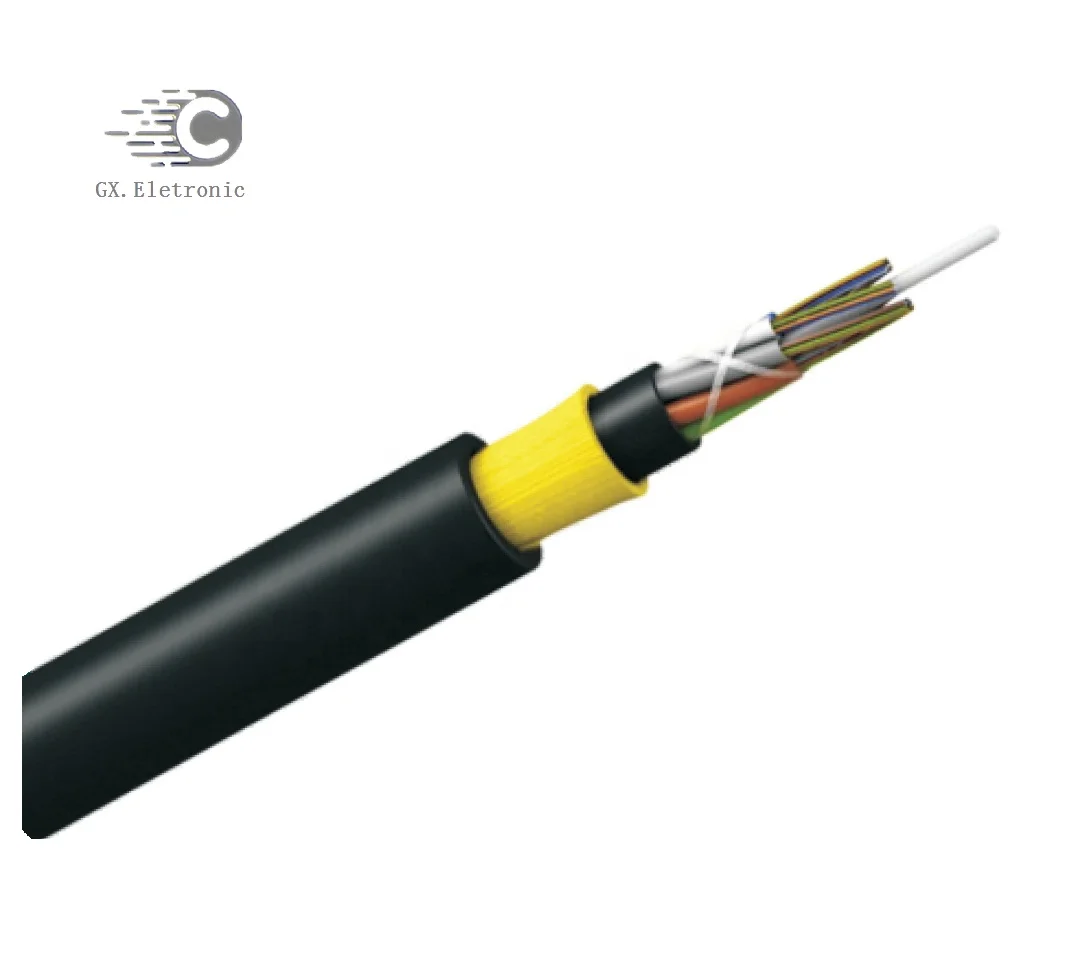

ADSS FO 2~288 Core All Dielectric Outdoor Self supporting Optic Fiber cable
- Category: >>>
- Supplier: Optical Trust (Xuzhou) Electronic Technology Co. Ltd.
Share on (1600075900554):
Product Overview
Description
Features
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, waterproof tape are applied around, finally completed with a PE sheath.
Characteristics:
1 : Provide good performance of moisture-proof and prevents water penetration2： Provides good protection for optic fiber
3： Eliminateselectromagnetic induction effect
4. Crush resistance and flexibility
5. PE sheath protects cable from ultraviolet radiation
6： Single Fiber Reinforced Plastic as the central strength member
ADSS cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.
1. No metal structure，with excellent anti-electromagnetic interference performance
1. No metal structure，with excellent anti-electromagnetic interference performance
2. Used for long distance and interagency communications, especially for the environment of strong interference of electromagnetic place, and power supply system
3. Suit for installation built on stilts, pipeline laying

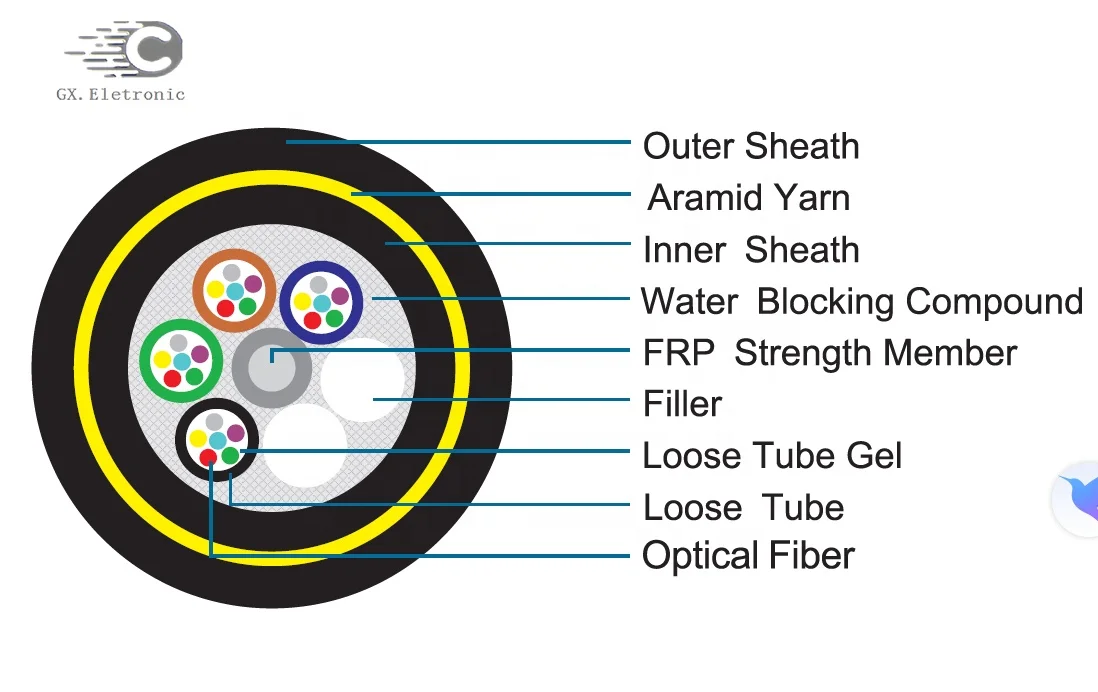

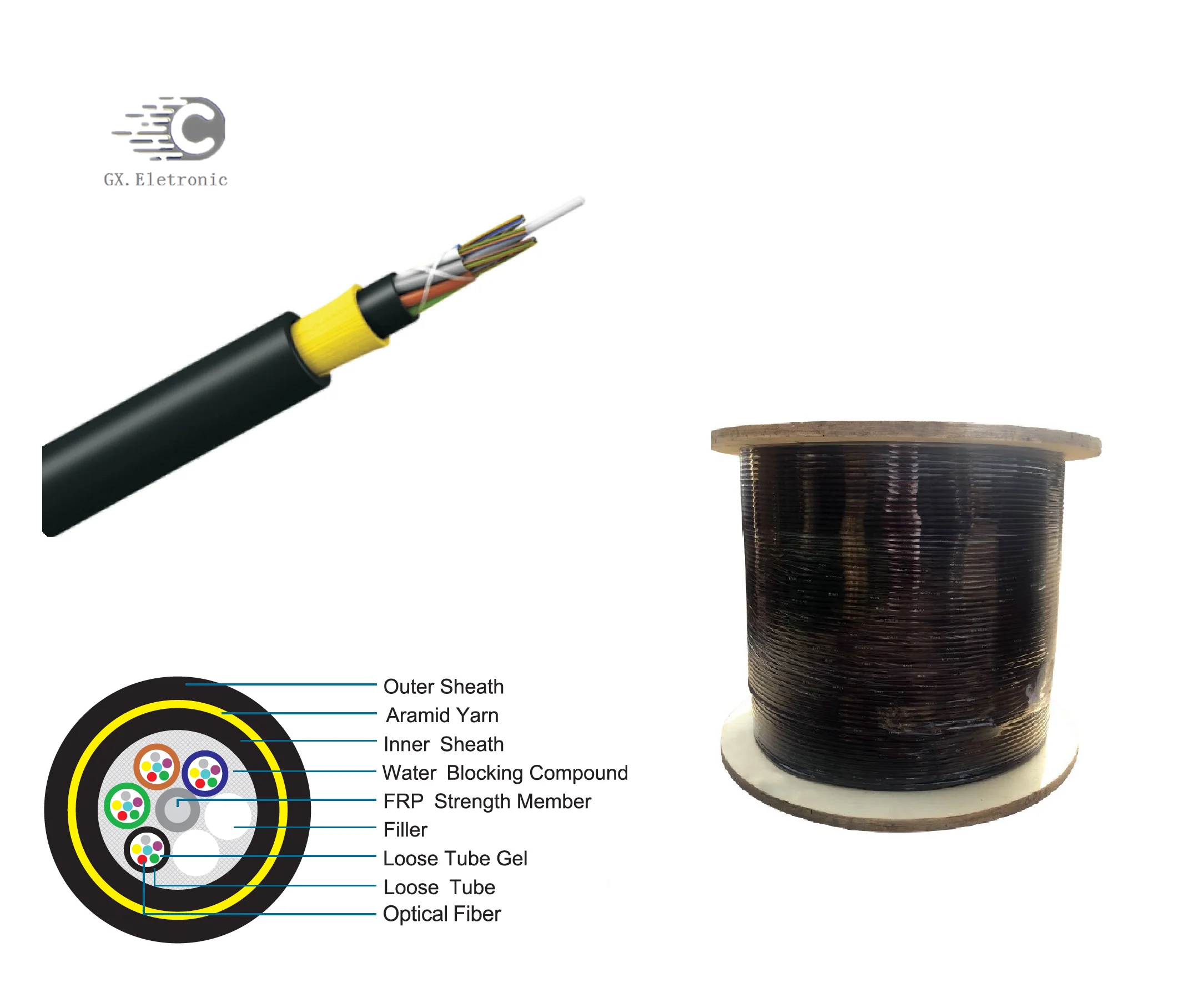

Schematic Diagram Of Optical Cable
Specification
Product Specification | ||||||||||||
Cable Type | Fiber Count | Cable Diameter(mm) | Cable Weight(kg/km) | Tensile Strength(N) | Crush Resistance (N/100mm) | Bending Radius (mm) | ||||||
Long/Short Term | Long/Short Term | Static/ Dynamic | ||||||||||
ADSS | 2~36 | 10.7 | 92 | 2700/000 | 300/1000 | 10D/20D | ||||||
ADSS | 38~73 | 11.6 | 103 | 2700/000 | 300/1000 | 10D/20D | ||||||
ADSS | 74~96 | 13.3 | 149 | 2700/000 | 300/1000 | 10D/20D | ||||||
ADSS | 98~120 | 14.8 | 180 | 2700/000 | 300/1000 | 10D/20D | ||||||
ADSS | 122~144 | 16.4 | 222 | 2700/000 | 300/1000 | 10D/20D | ||||||
ADSS | 146~216 | 18.8 | 224 | 2700/000 | 300/1000 | 10D/20D | ||||||
ADSS | Available upon customer’s request | |||||||||||
Temperature Range | ||
Working | -40℃~+70℃ | |
Storage/Transportation | -40℃~+70℃ | |
Installation | -20℃~+60℃ | |
Fiber Details | ||||||||||||
Fiber type | G.652D | G655 | G657A.2 | OM2 | OM3 | |||||||
MFD @1310nm | 9.2±0.4μm | 1550nm: 9.6±0.5μm | 8.8±0.4μm | 50±2.5um | 50±2.5um | |||||||
OD of Cladding | 128.0±0.7μm | 128.0±0.7μm | 128.0±0.7μm | 125±1.0um | 125±2.0um | |||||||
Concentricity error | ≤0.5μm | ≤0.6μm | ≤0.5μm | ≤1.5um | ≤1.5um | |||||||
Non-circularity of cladding | ≤ 0.7% | ≤ 1.0% | ≤ 0.7% | ≤ 2.0% | ≤ 2.0% | |||||||
Cutoff wavelength | Λcc ≤1260 nm | Λcc ≤1450 nm | Λcc ≤1260 nm | |||||||||
Attenuation | 1310nm | ≤0.34dB/km | 1550nm ： ≤0.22 dB/km | ≤0.35 dB/km | 850nm: ≤ 2.5dB/km | 850nm: ≤ 2.5dB/km | ||||||
1550nm | ≤0.20 dB/km | 1625nm： ≤0.24 dB/km | ≤0.22 dB/km | 1300nm: ≤ 0.7dB/km | 1300nm: ≤ 0.7dB/km | |||||||

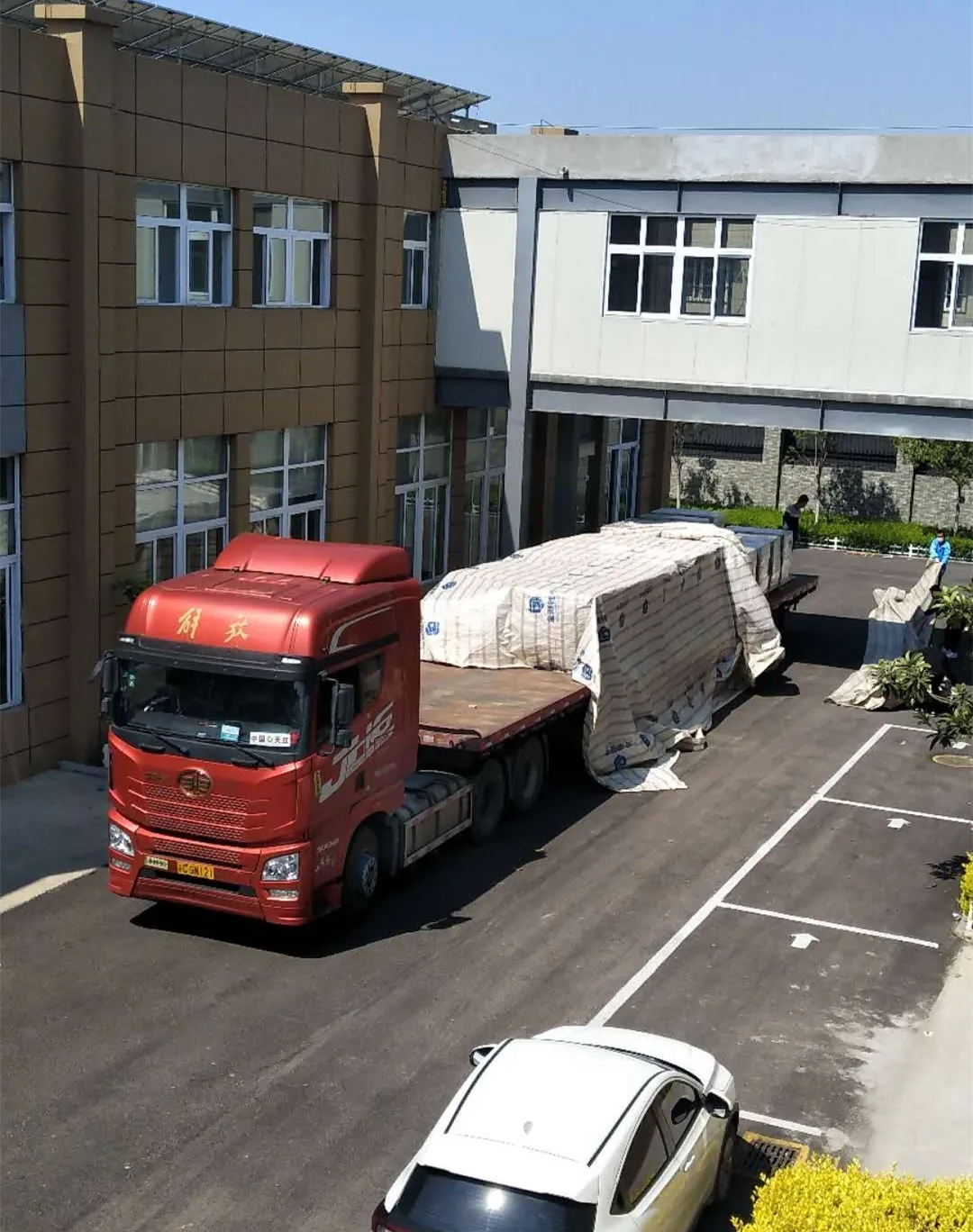

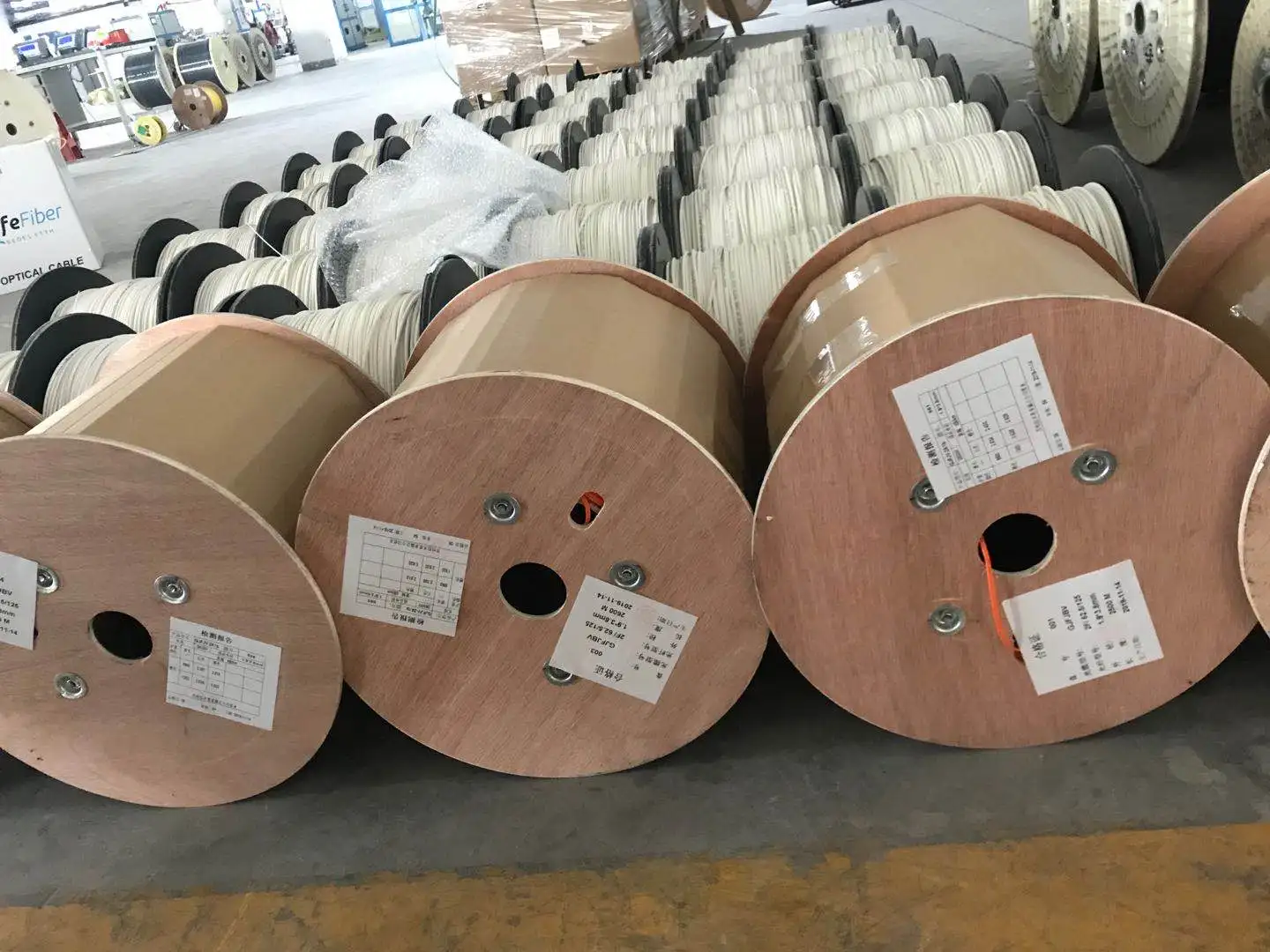

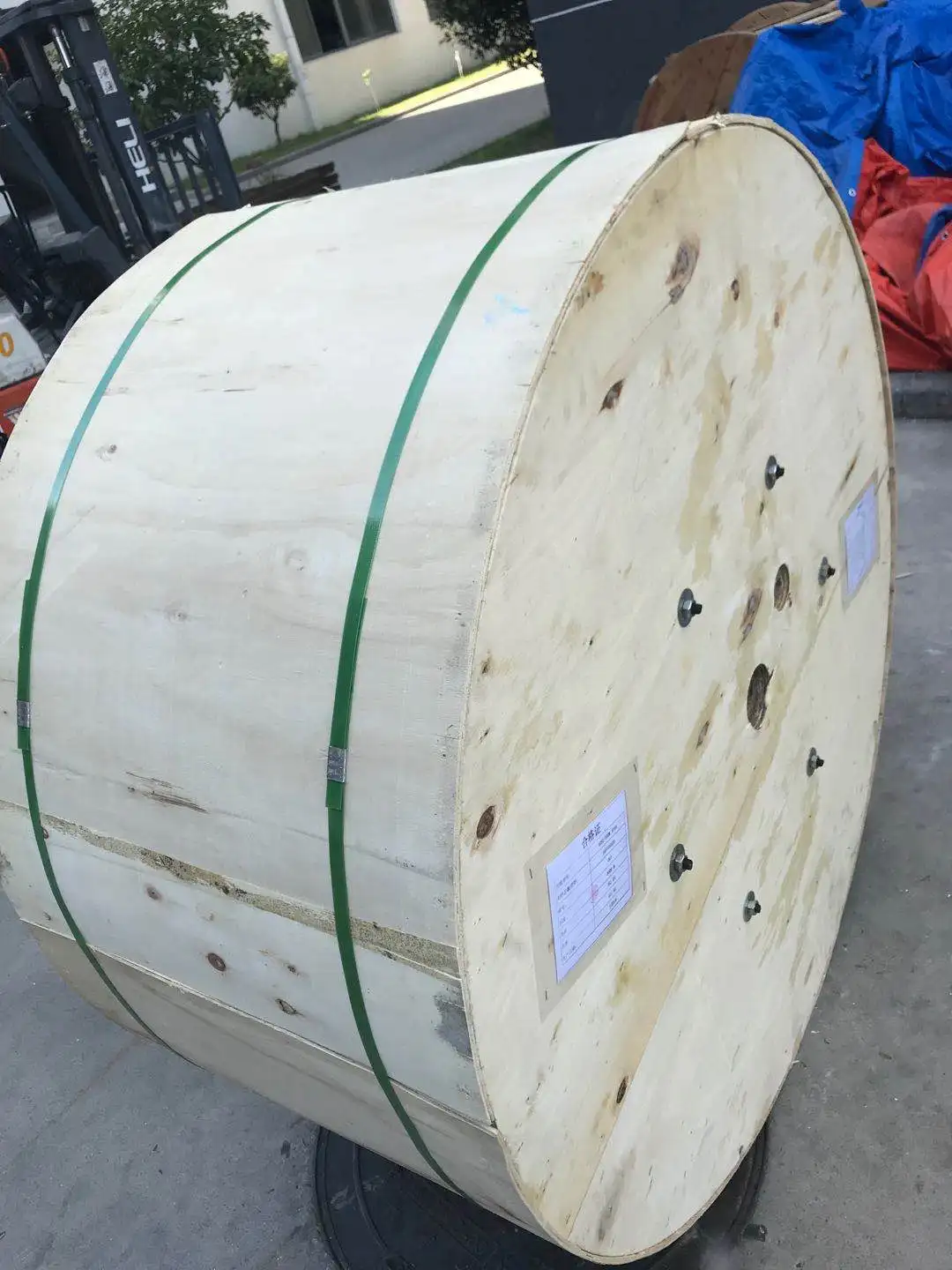

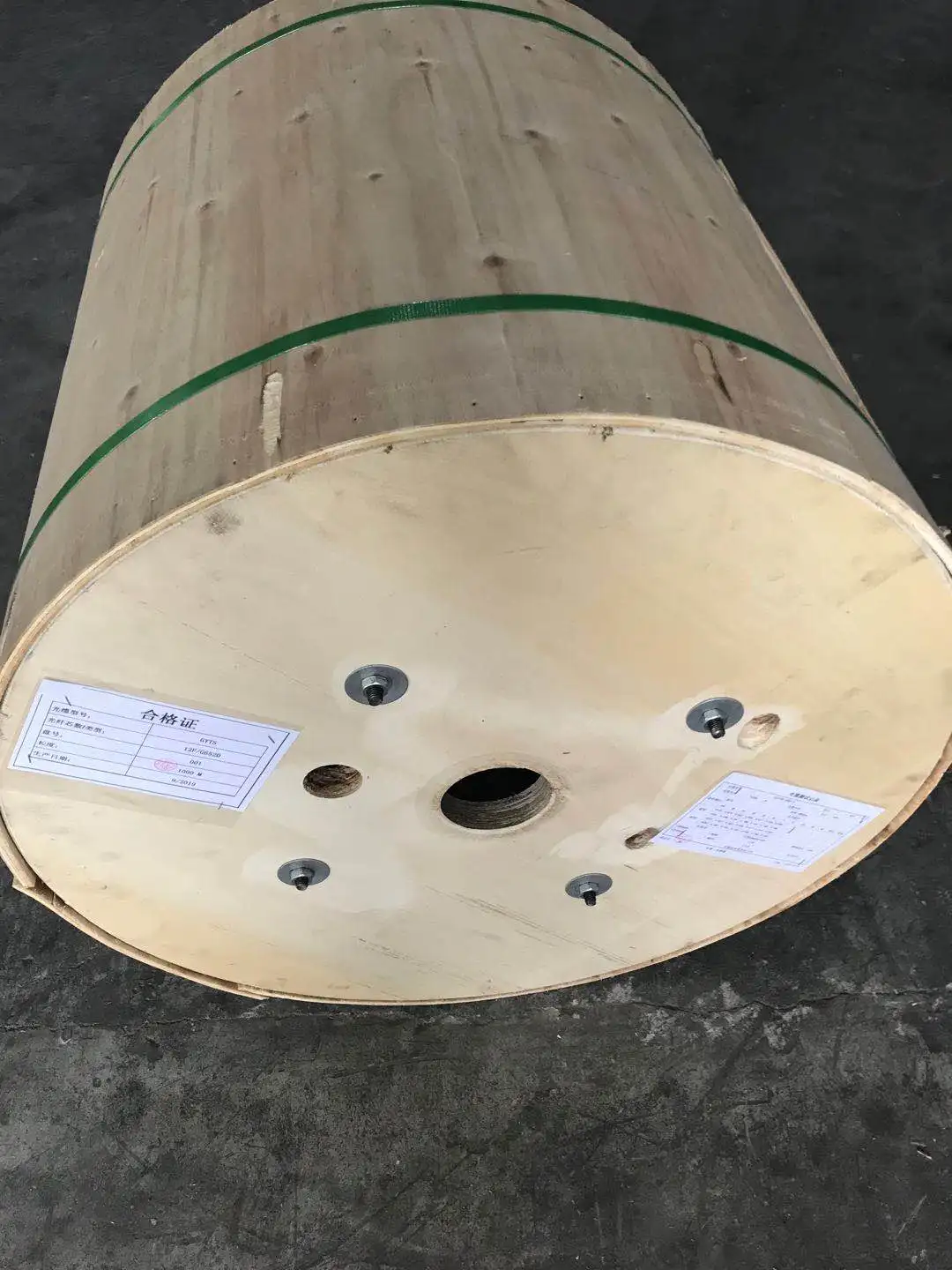

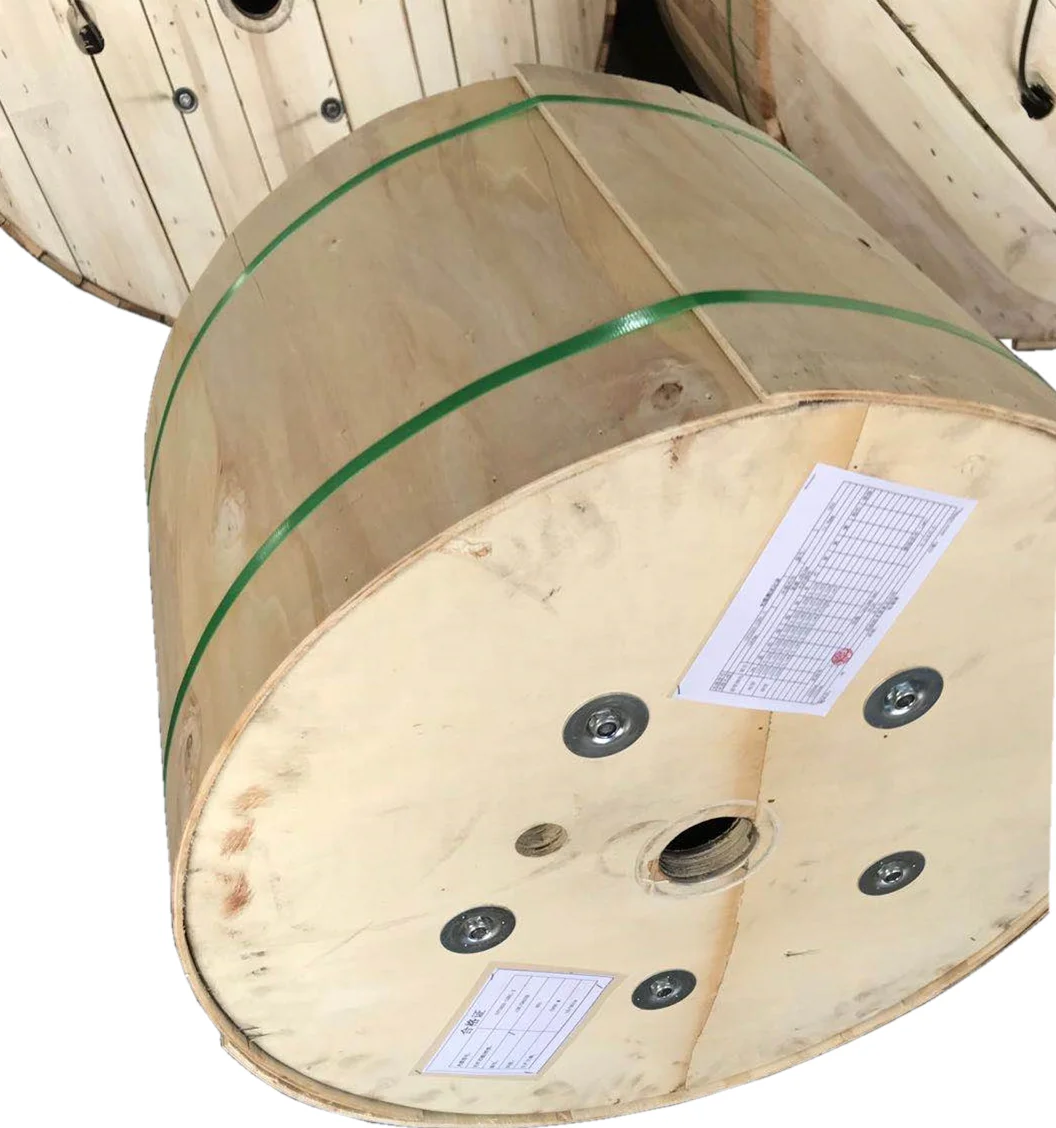

Product packaging
Company Profile
About us

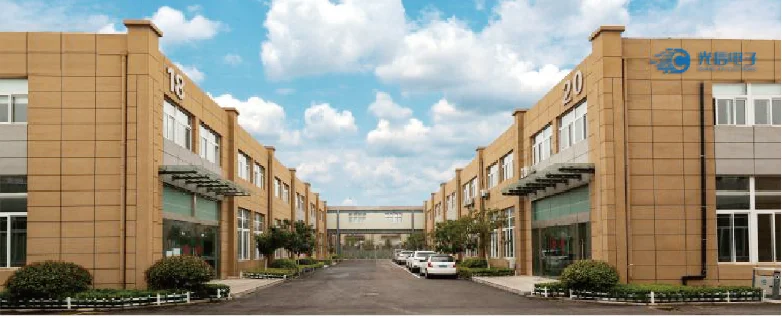

Optical Trust (Xuzhou) Electronic Technology Co., Ltd is located at No.18 and 20,XINWEI semiconductor industrial park, Xuzhou city, Jiangsu province, china. The company is an innovative manufacturer engaging in the telecom optical component. We adopts the latest cutting-edge product line and advanced inspection instruments. The products have been used widely in various application of telecommunication field.
