1000m/roll 2 cores 3 steel wire outdoor g657 ftth fiber optic drop wire cable lszh sheath g657a fiber optic cable for Malaysia
Product Description

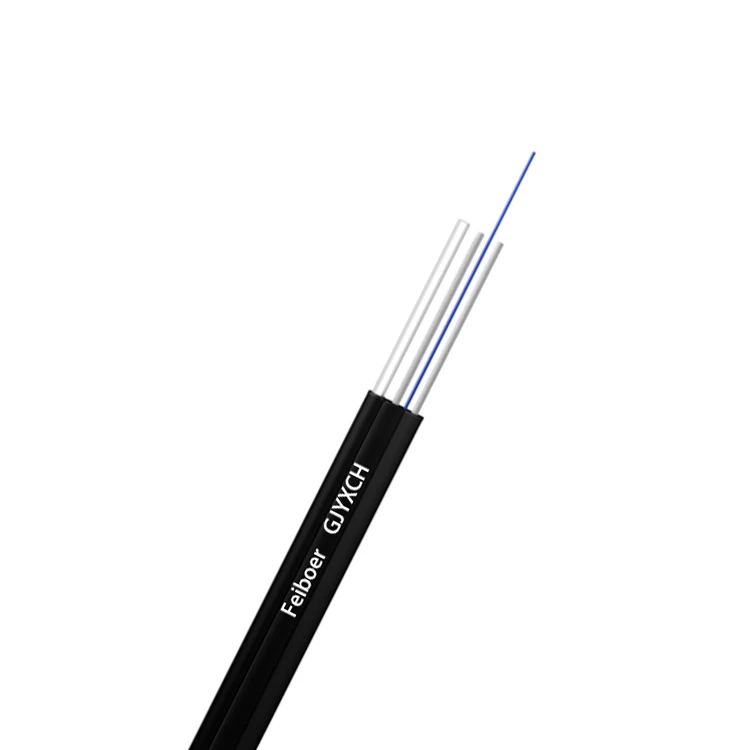

Self - supporting access network with butterfly - shaped indoor outdoor drop fiber optical cable

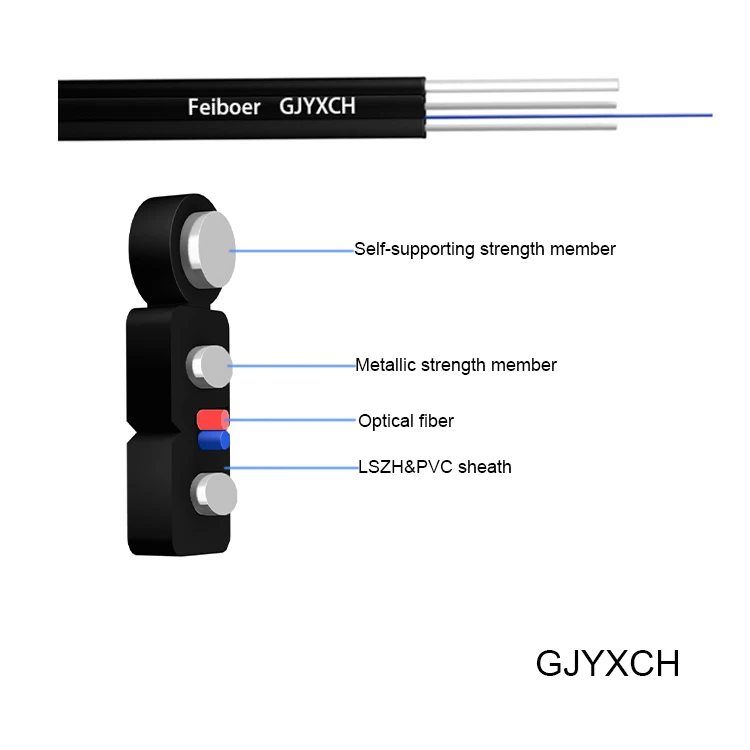

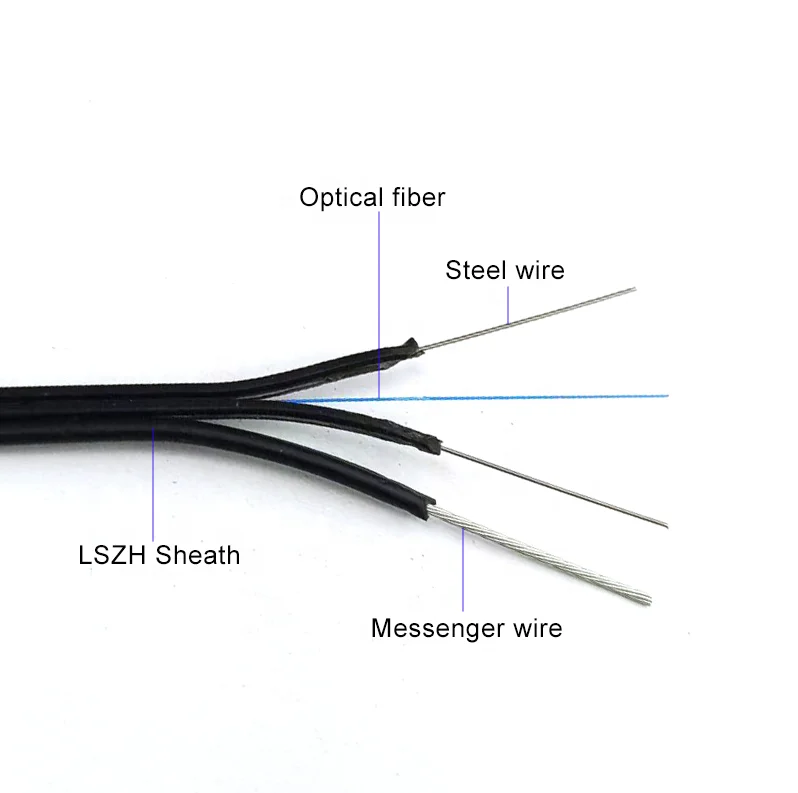

Self-supporting access network uses the indoor outdoor optical cable with a butterfly shape that is to place the optical communication unit in the center, two parallel metallic strength member are placed on both sides , and added single metallic strength member on the outside.Finally it is completed with a black or colored Lsoh Low Smoke Zero Halogen(LSZH) out sheath.
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor wiring system
• FTTH, terminal system
• Indoor shaft,building wiring
Structural Parameter
Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension | Crush (N/100mm) | Bending Radius Static / dynamic |
GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXCJH-1Xn | 1 | (2.0±0.1)×(5.6±0.1) | 21 | 300/600 | 1000/2200 | 15/30 |
GJYXCDH -4Xn | 4 | (2.0±0.2)×(6.0±0.2) | 22 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃

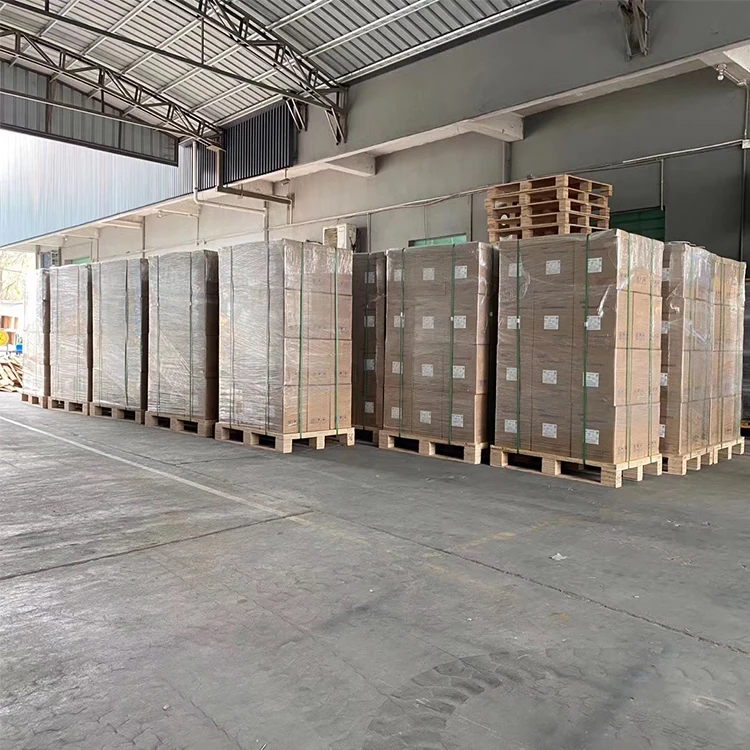

Packaging & Shipping

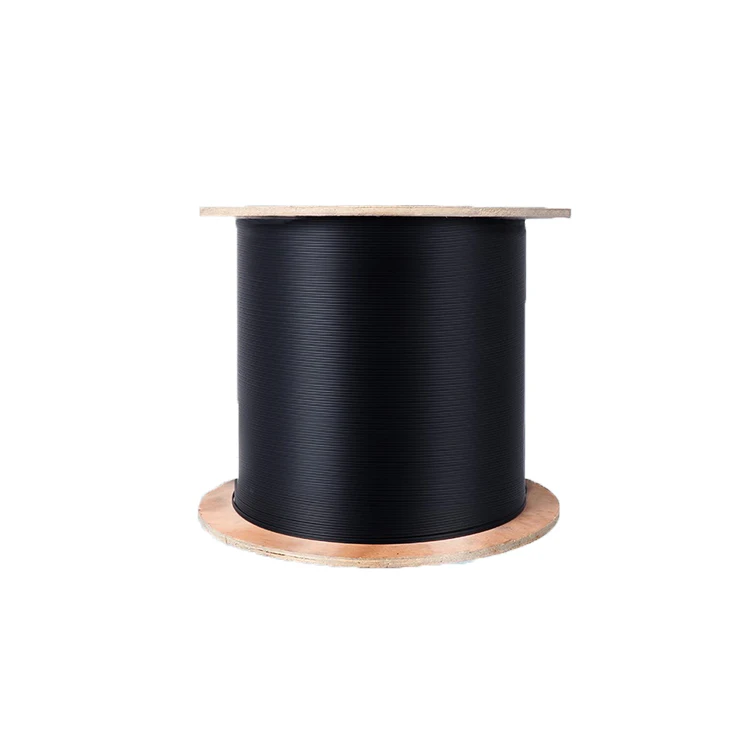

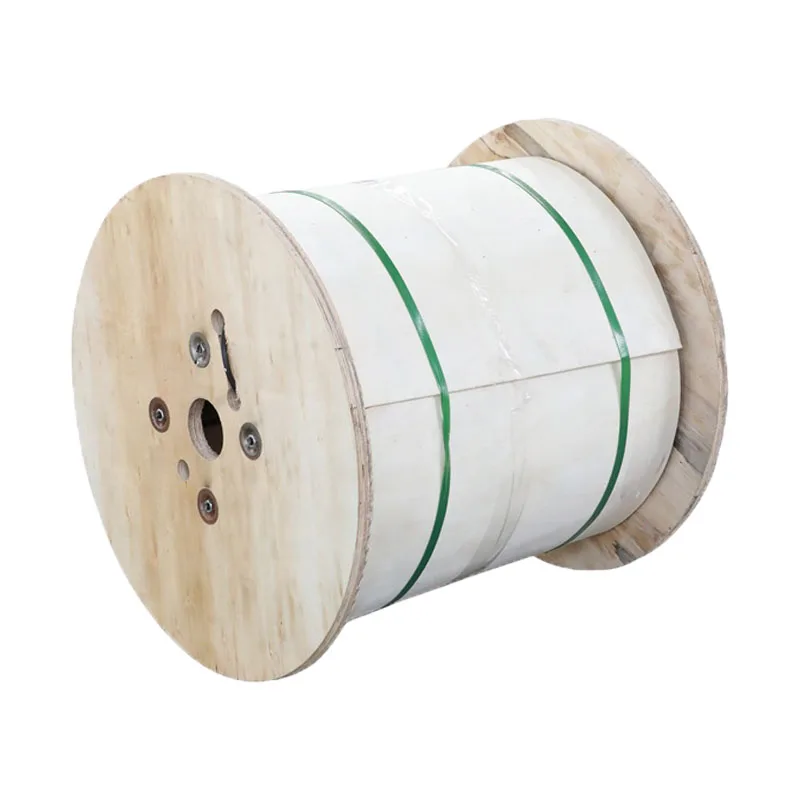

The fiber optic cable are packed in carton, coiled on Bakelite & wooden drum.
During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
Our Services
• 24 hours online service • Free sample
Production Flow
Related Products
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
