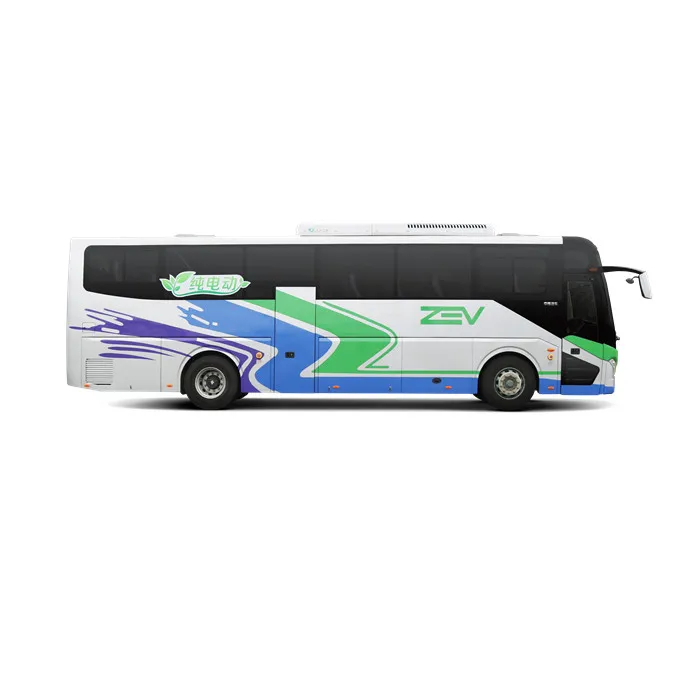

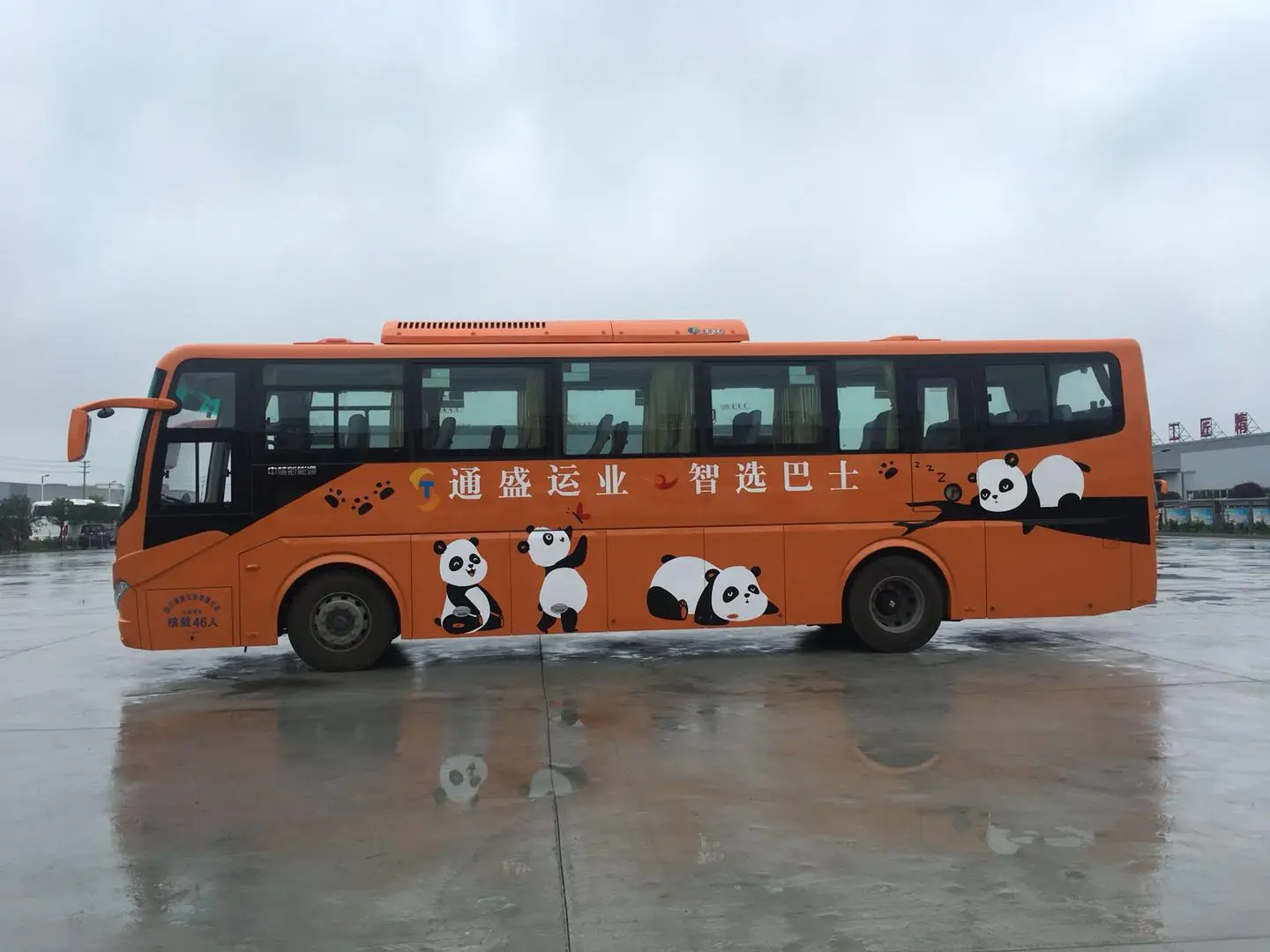

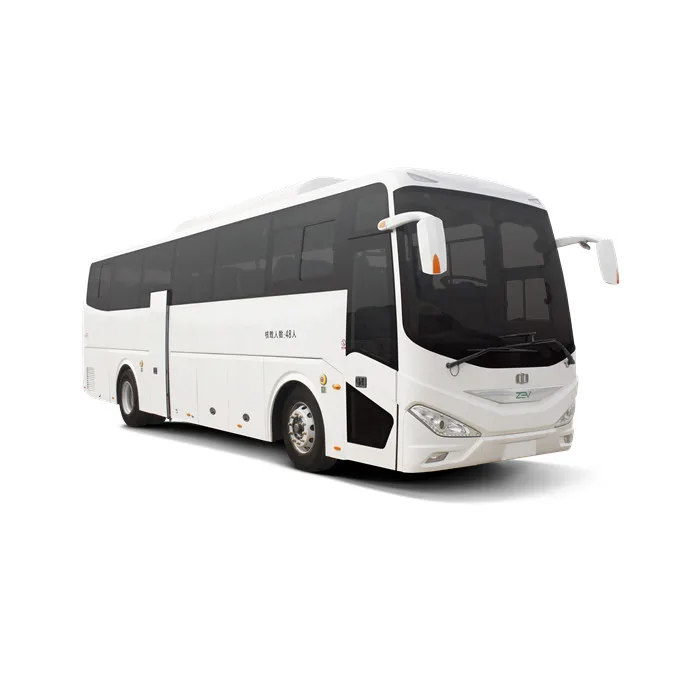

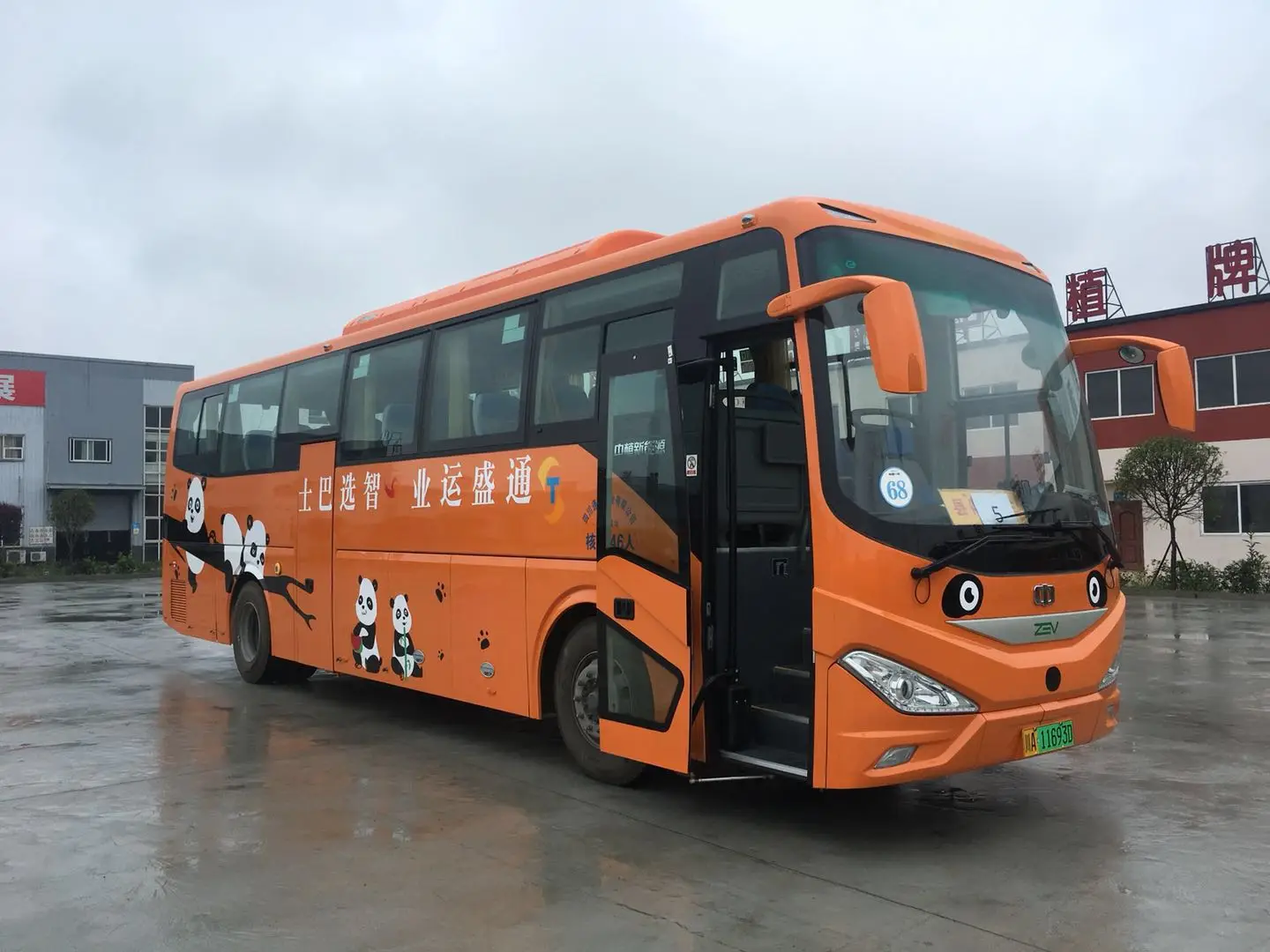

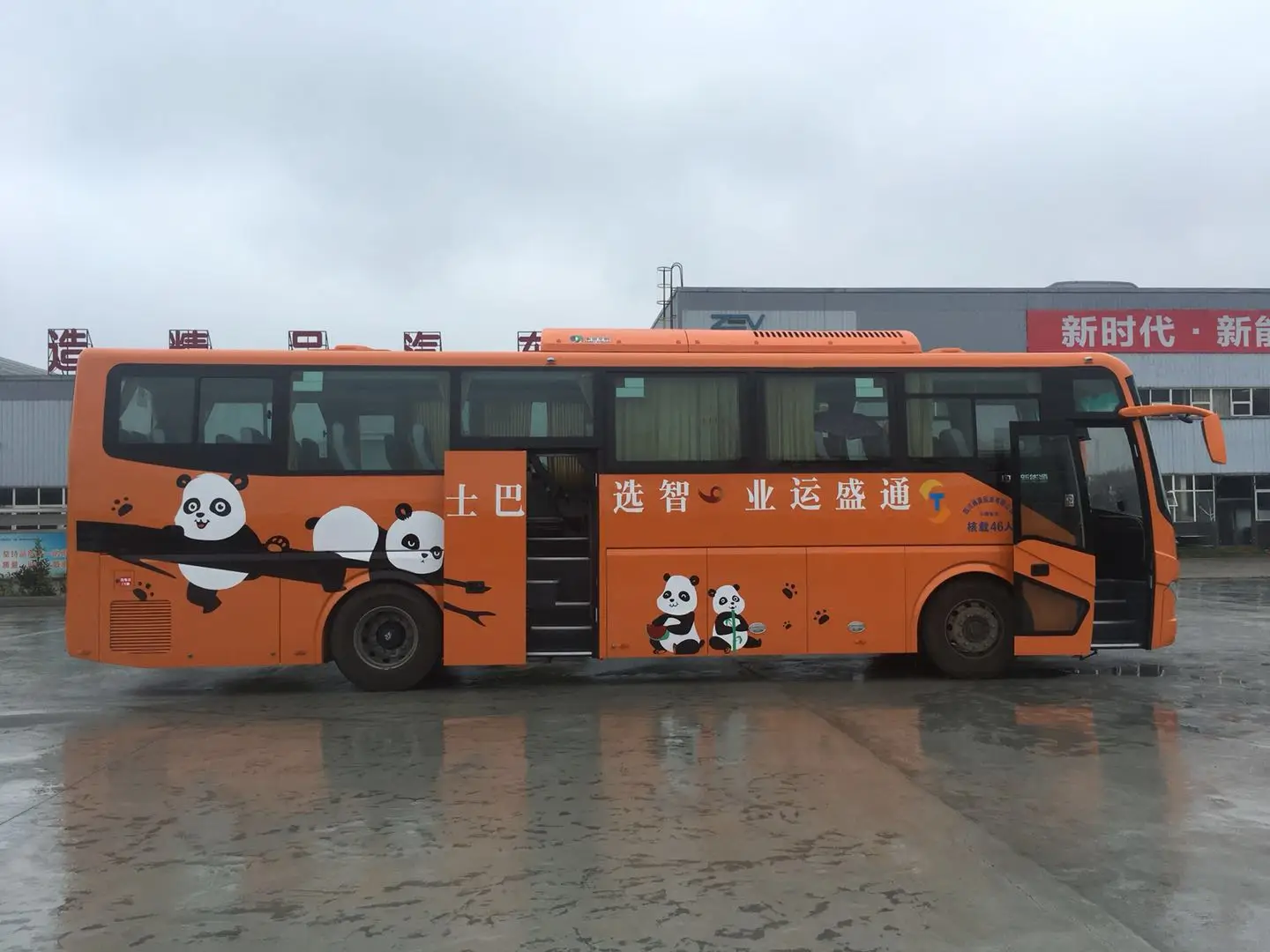

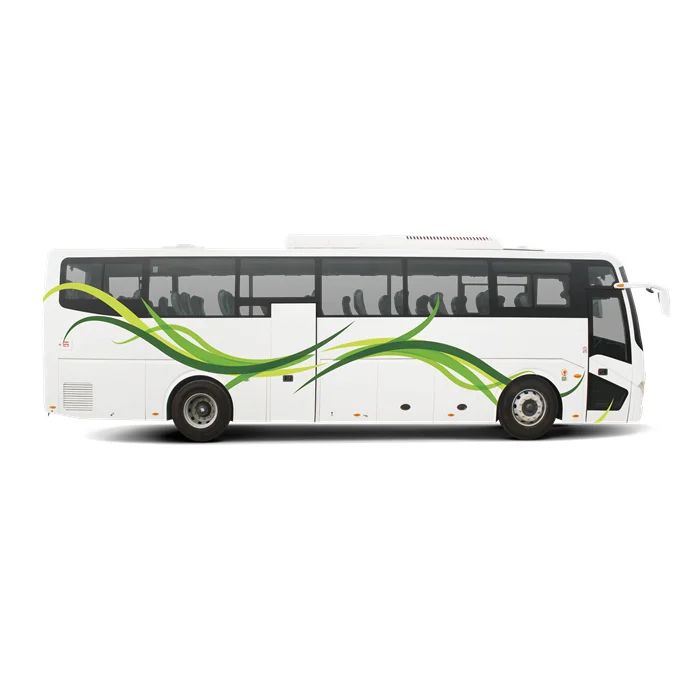

30 53 seats tourist coach intercity coach bus

Size

Length/Width/Height (mm)

10990 ×2500 ×3500,3600(with AC)

Engine

Engine model

YC6L280-42 Euro 4

Performance

Top speed (km/h)

120

Axle distance (mm)

5700

Front overhang / Rear overhang (mm)

2290/3000

Angle of approach / departure (º)

10/9

Wheel track(front/rear)(mm)

2060/1865

Gross weight/Curb weight(kg)

16150/11600

Basic Specification

Transmission

QJ Manual 6 speed

Suspension system

Air bag suspension

Steering system

Integral power steering

Braking system

Front disc and rear drum brake, spring actuated air-cut parking brake, ABS, auto slack adjuster

Cooling system

Water cooling
