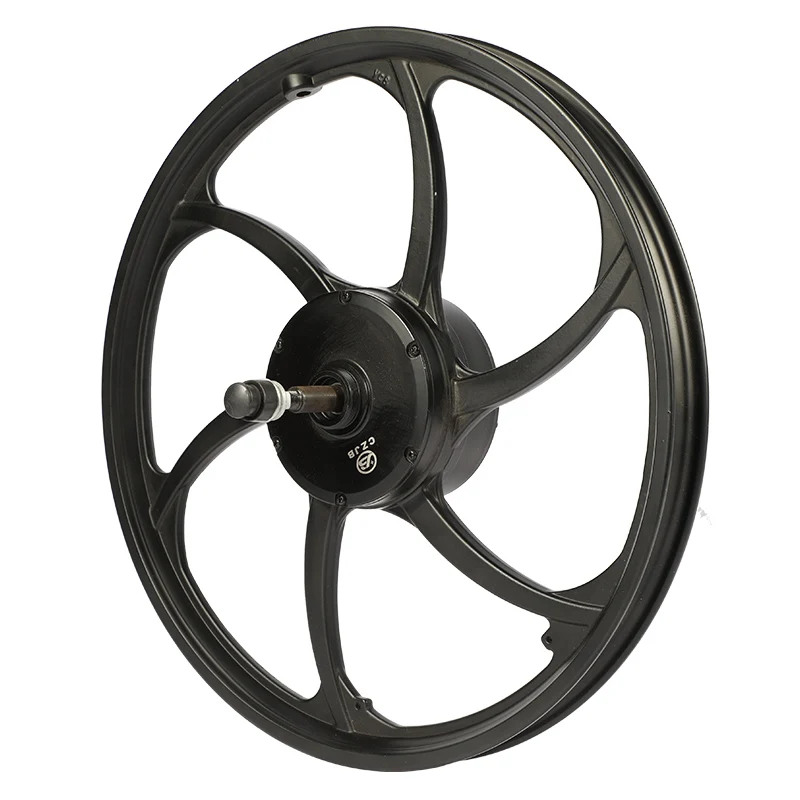

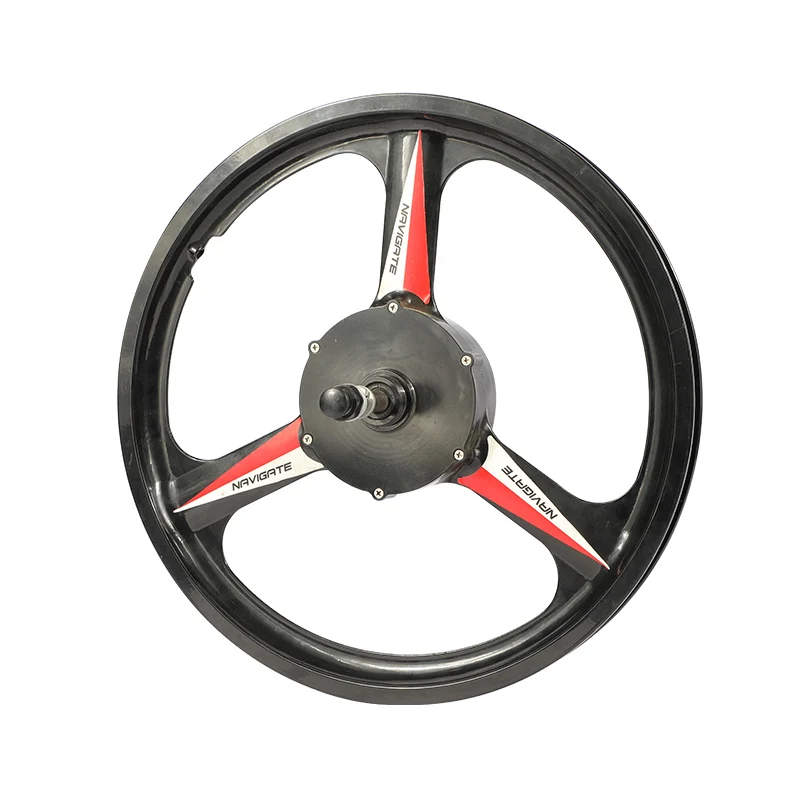

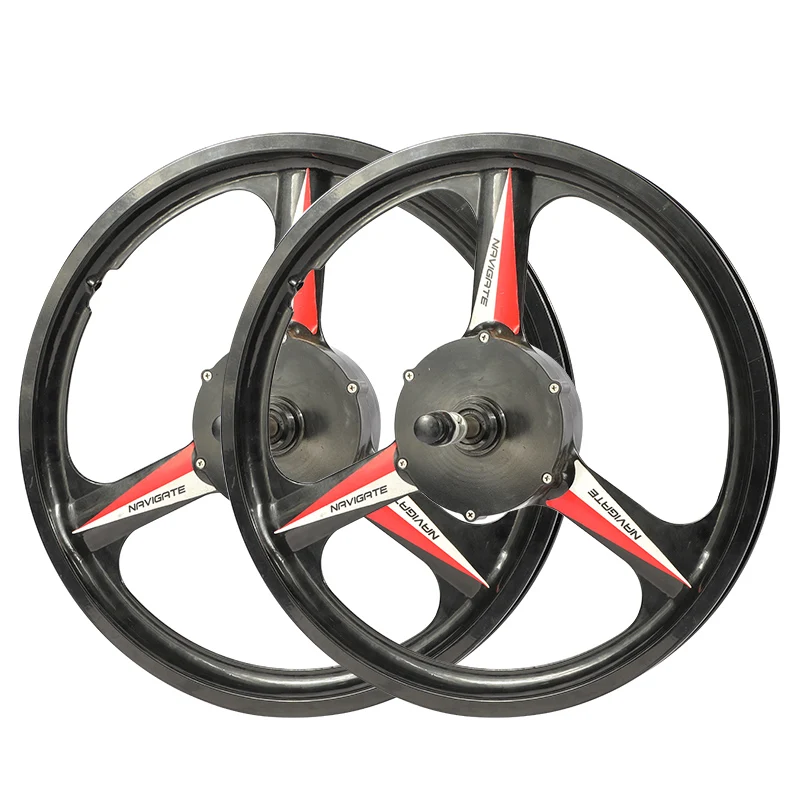

90T 20 inch good quality ce certified electric bicycle motor fashionable electric bike conversion kit with led/lcd display

Share on (1600076167429):


Price:$108.45 - $123.54

Quantity:


Product Overview

Description

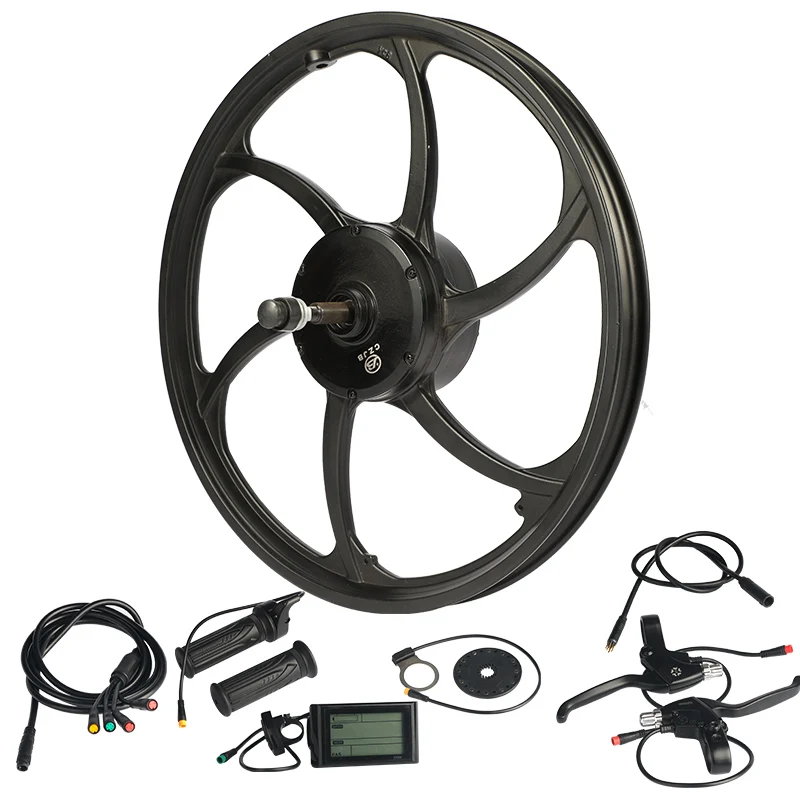

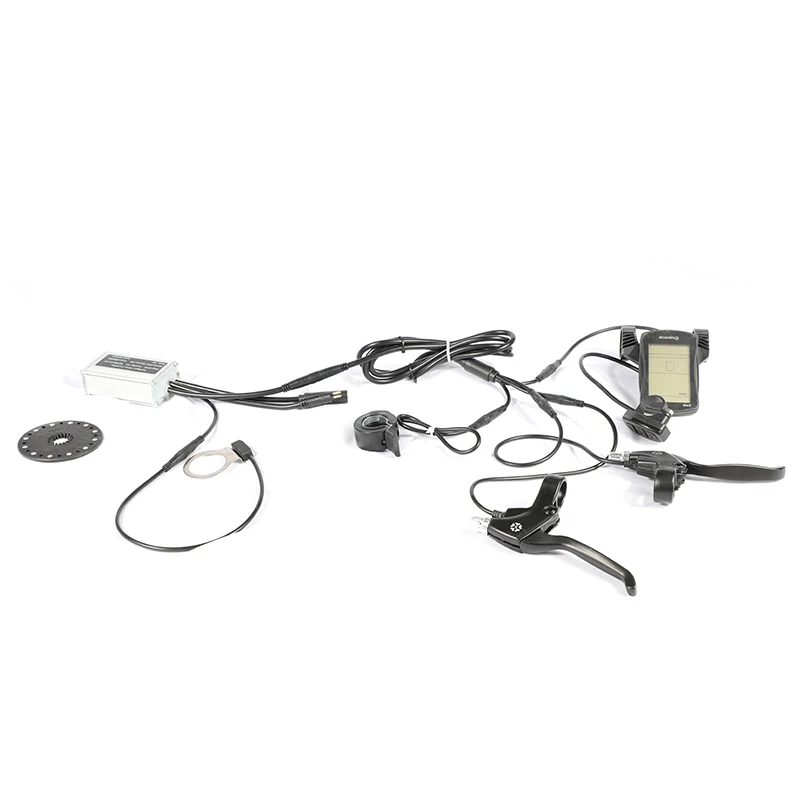

250W E Bike Conversion Kits
Brake
Left Brake&Right Brake , waterproof cable 300mm
throttle
half of throttle,waterproof cable 300mm
controller
6 mosfet sinewave controller 15A waterproof cable 110mm size:80*50*30mm
display
S900 LCD display,waterproof cable 300mm
PAS
1:1PAS,separated 12 magnets waterproof cable 1000mm
1T4 integrated cable
1500mm
extension cable
1.2*850mm
Products Description

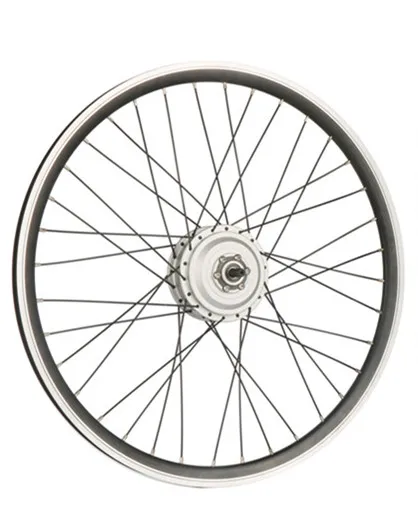

MODEL:90T
24V/36v/48v
180-350w
Rated Speed: 25Km/h
Wheel size: 16-28 inch
Dropout:135mm
Cable Location:
Shaft Center Right
Waterproof Grade: IP65

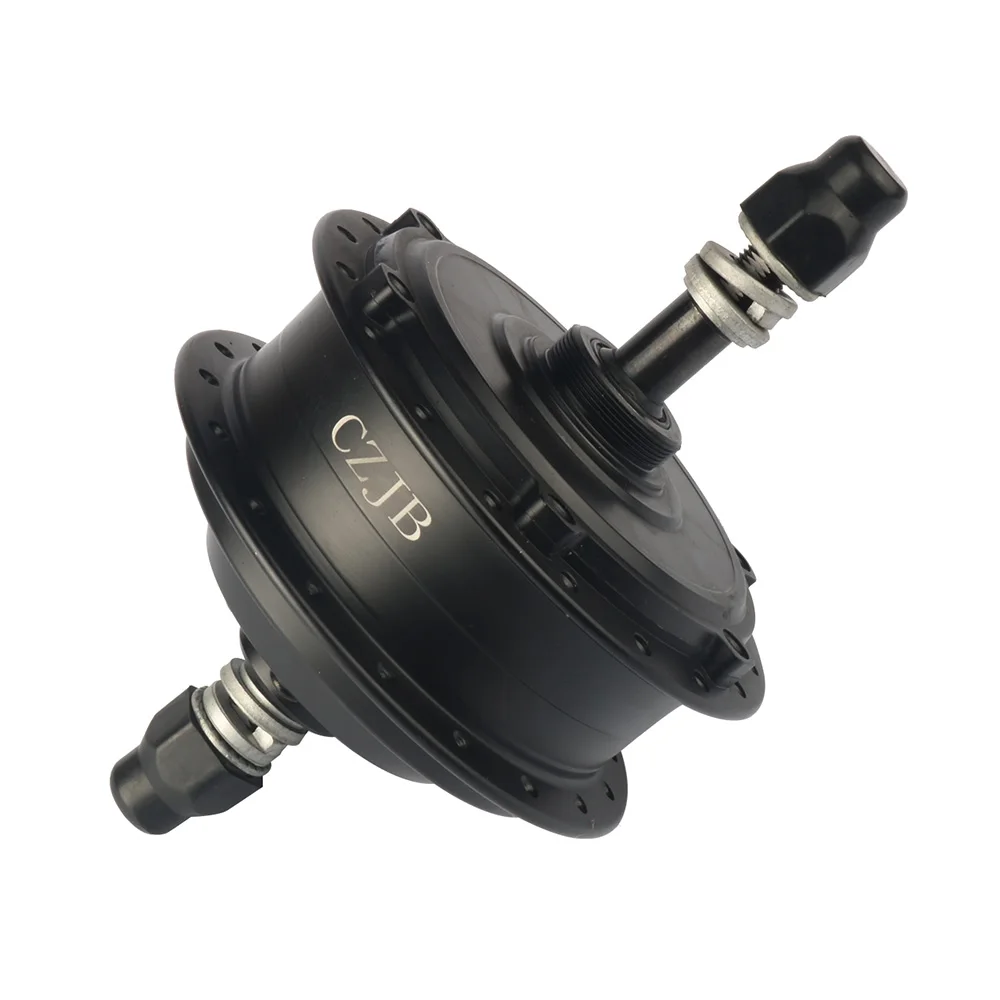

rear gear motor use for MTB BIKE
use helical gear,climbing will be better

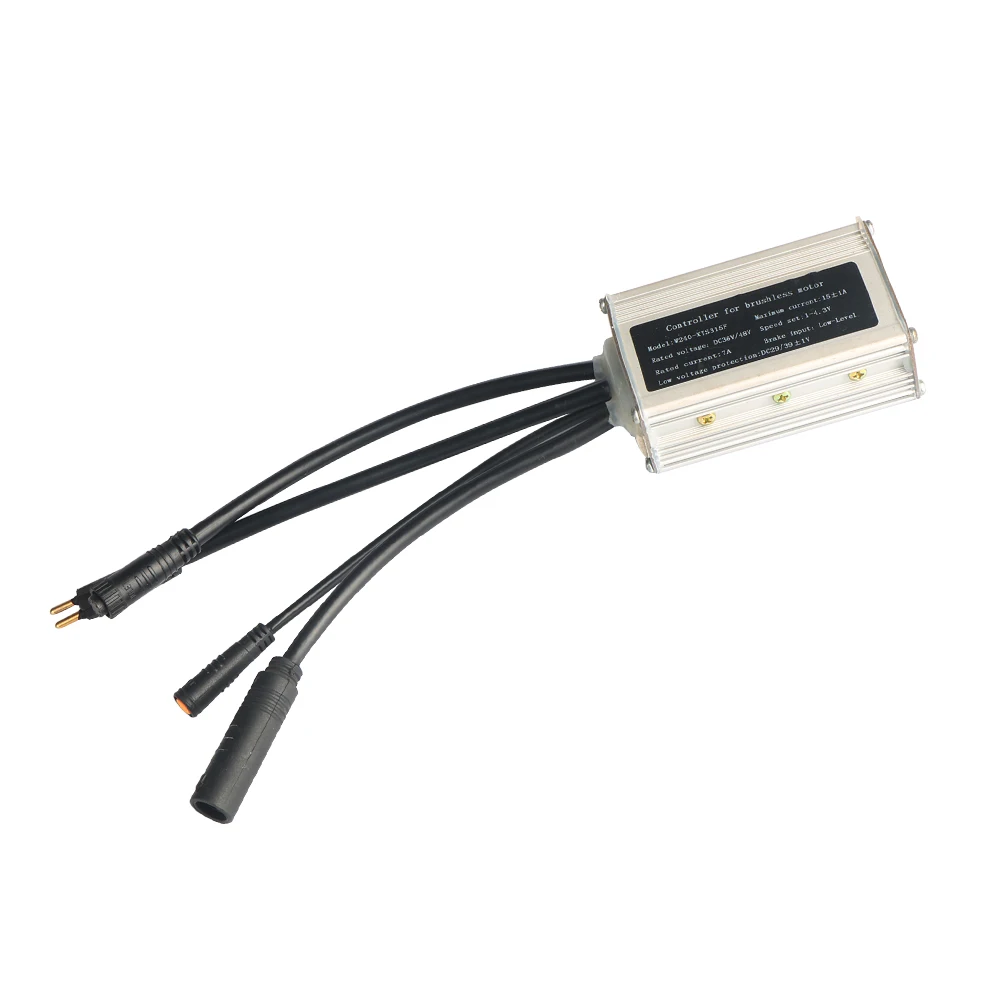

6 mosfet sinewave controller,15A
waterproof cables 110m
size:80*50*30mm

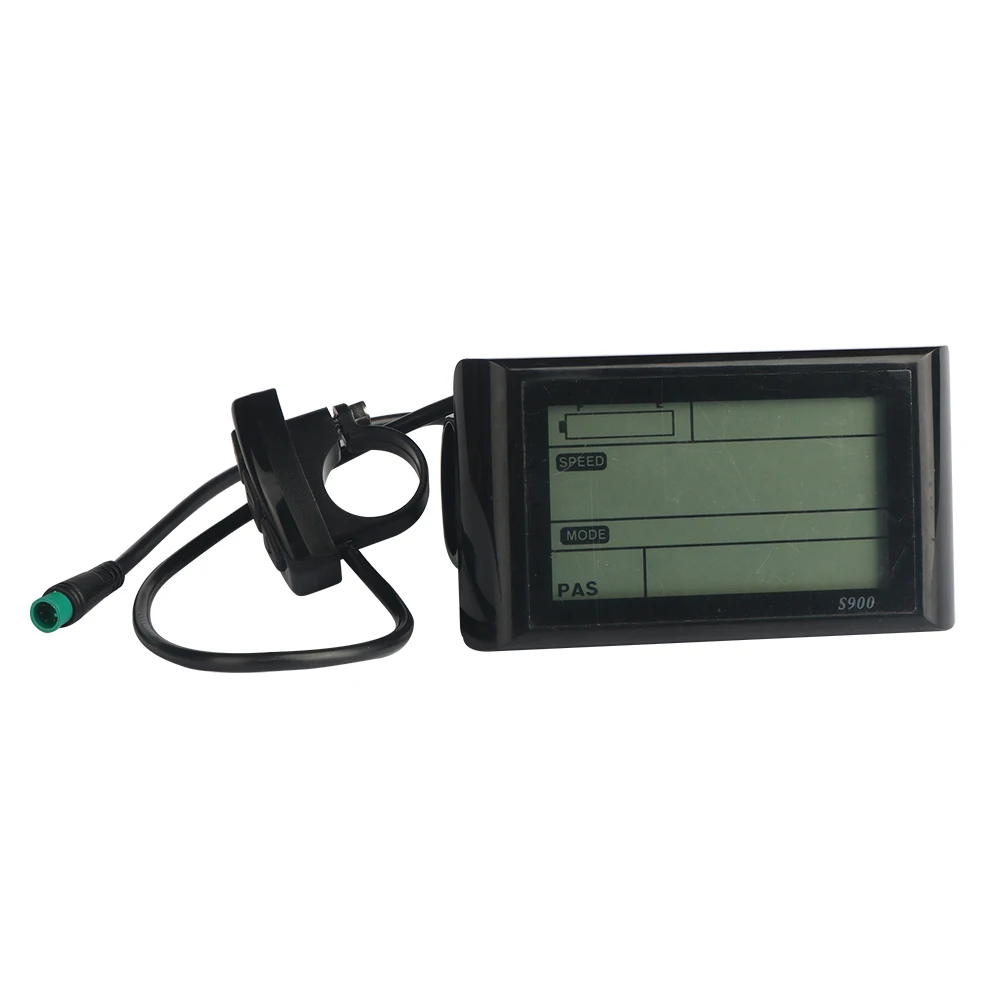

LCD-S900 Display
More LED/LCD display
please take catalogue from us
1:1PAS,separated 12 magnets
waterproof cable 1000mm
full throttle,waterproof
cable 300mm
Left Brake&Right Brake ,waterproof cable 300mm
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)

motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.

Installation specifications:




wheel size:16-28"
rim:1.75-2.125
black(double wall)
spoke:36H*12G/13G
black/silver
fork size,front 100m
rear:135mm
Recommend Products
Conversion Kits
Display ,Battery ; Speed or Torque Sensor for Opinion
E Bike Spoke Hub Motor
250W/350W/500W/750W/1000W/Customized
Fat Tire Motor
350W/500W/750W/Customized
Integral Wheel Motor
8/8.5/12/14/16/20/26 Inch Motor
20 inch for Fat Tire Motor
Product Application
Company Profile
Certifications
Product packaging
FAQ
1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm

2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.

3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.

4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.

5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.

6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.

7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.

8.A:ODM,OEM?
B:it is possible.

9.A:production and delivery time?
B:if sample,motor is 10-15days,ebike kit is 25-30days;if orders,motor is 15-20days,ebike convension kit 30days according
quantities and requiremnts.
