Product Overview
Description
Smart city advanced long range outdoor lora zigbee lightingcontrols transmitter
LoRa System Management
Operation of LoRa System
LoRa Concentrator provides individual wireless remote control of luminaries with installed Smart LED Driver, Base Station
communicates as master to slave nodes using wireless interface. Base Station creates and controls a mesh network of up to 250
nodes in a range of up to 5 km, maximum distance depends on terrain and density of buildings. Base Station communicates with
software applications through GSM to control each luminaries remotely, monitor their status and power consumption.
communicates as master to slave nodes using wireless interface. Base Station creates and controls a mesh network of up to 250
nodes in a range of up to 5 km, maximum distance depends on terrain and density of buildings. Base Station communicates with
software applications through GSM to control each luminaries remotely, monitor their status and power consumption.
Product Description
LoRa Concentrator
*In addition to its master functions, concentrator controls all electrical equipment in the cabinet, collects data from electric meter and other connected devices and sends live status of overall LoRa system to server via GSM/GPRS/3G mobile net. Programming of concentrator and light scheduling are performed remotely from the software.
Specification
* Model No. SLGJ2-OLORA
* Input Voltage 100-277VAC 50/60Hz* Power 2W
* Power Factor >0.9
* Communication GSM/GPRS
* Protocol LoRa
* Radio 470/868/915 MHz
* RF Tx Power 17 dBm
* Control Capacity Max 250 nodes
* IP 66
* Working Tem -40~+70℃
* Housing Aluminium
* Surge Protection 10kV
* Weight 4 kg
* Size 230x200.5x85mm

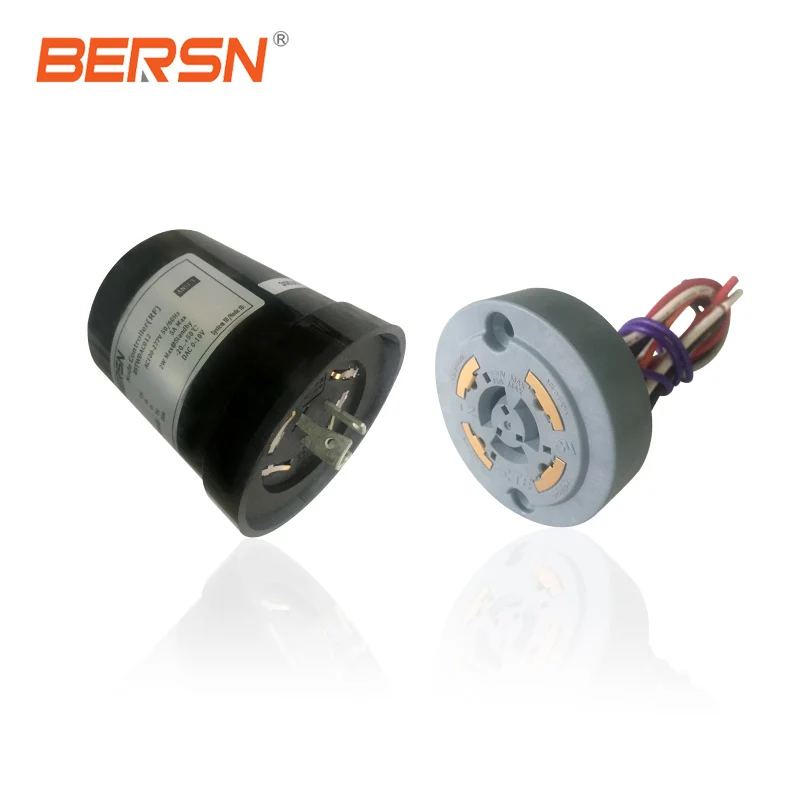

LORA ANSI-T Node Controller

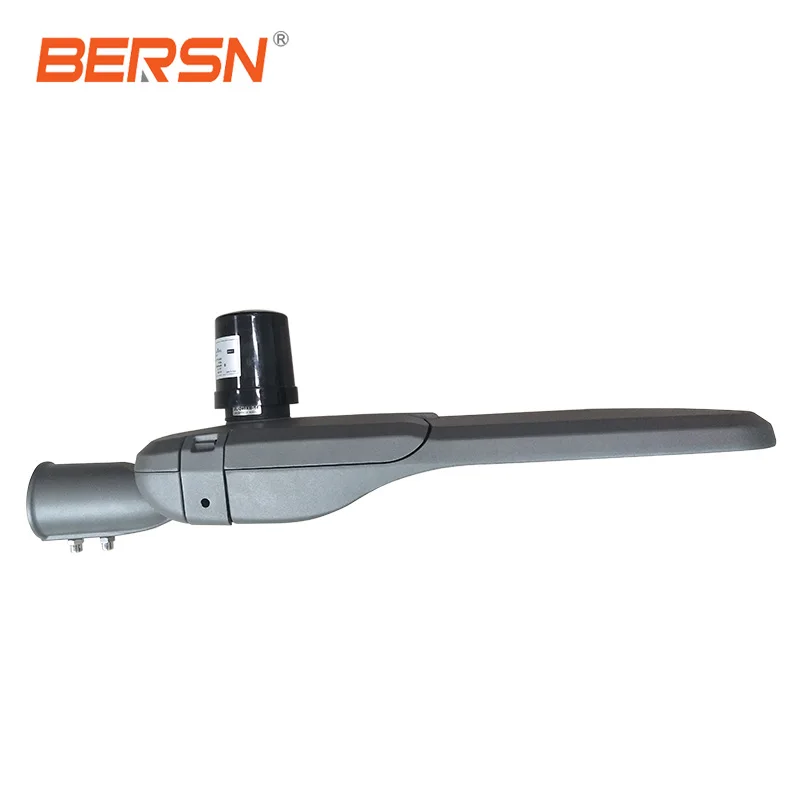

Wireless node controller, installed into the housing of each luminaire, and controlled by Concentrator via RF 433/865/868/915MHz.
Provide load control (on/off) as well as dimming function on luminaires.
Provide load control (on/off) as well as dimming function on luminaires.
Specification
* Input Voltage: 100-277VAC 50/60Hz
* Stanby Power: ≦1.2W
* Load Power: Max 1000W
* Load Current: Max 16A
* Ripple Factor: <3%
* Working Temp: -40~55℃
*Output Interface: DAC 1-10V/ PWM
* Connectors: Leads 5P, NENA Socket
* Communication: 433/865/868/915 Mhz
* Housing: Solid plastic case, IP66
* Demension: Ø94x97mm
* Weight: 0.3 kg
* Input/Output Wire: Black-White/Red-White
* Dim Control Wire: Purple (+)/Gray(-)
* Stanby Power: ≦1.2W
* Load Power: Max 1000W
* Load Current: Max 16A
* Ripple Factor: <3%
* Working Temp: -40~55℃
*Output Interface: DAC 1-10V/ PWM
* Connectors: Leads 5P, NENA Socket
* Communication: 433/865/868/915 Mhz
* Housing: Solid plastic case, IP66
* Demension: Ø94x97mm
* Weight: 0.3 kg
* Input/Output Wire: Black-White/Red-White
* Dim Control Wire: Purple (+)/Gray(-)
Smart LED Driver
Smart LED Driver Integaraged with LoRa node controller, installed into the housing of each luminaire, and controlled by Concentrator via LoRa . Provide load control (on/off) as well as dimming function on luminaires.
Specification
* Power: 60W-240W
* Input Voltage: 160-305VAC 50/60Hz
* Input Voltage: 160-305VAC 50/60Hz
* Frequency: 50/60 Hz
* Output Voltage: 24-36V; 40-48V
* Power Factor: >0.95
* Working Temp: -40~70℃
* Protocol: LoRa
* Network: Mesh
* Radio: 470~510/868/915 MHz
* Dim Range: 0~100%
* RF Tx Power: 17 dBm / 50mW
* Antenna Gain: 2 dBi
* Housing: Aluminium, IP67
* Size: 230x74x42mm
* Output Voltage: 24-36V; 40-48V
* Power Factor: >0.95
* Working Temp: -40~70℃
* Protocol: LoRa
* Network: Mesh
* Radio: 470~510/868/915 MHz
* Dim Range: 0~100%
* RF Tx Power: 17 dBm / 50mW
* Antenna Gain: 2 dBi
* Housing: Aluminium, IP67
* Size: 230x74x42mm
System Feature
