Hot Laser Welding Embossed Design Heat Resistant Plate
US $100.00-$1200
220v heating element with thermostat for water boiler
- Category: Heating Equipment >>>
- Supplier: Yancheng,Nice,Electric,Heating,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Description
Solar water heater electric tubular heating element are easy to form and feature highest mechanic stability and electric properties at the same time.
Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.
Screw in Tubular heating element are standardised for use in liquids like water.
Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available.
Specification
| 1. Name:Solar water heater electric tubular heating element | |
| 2.Tube diameter: Φ8mm-Φ16mm | |
| 3. Tube Material: SS201, SS304, SS316 and INCOLOY800 etc | |
| 4. Insulation Material: MgO | |
| 5. Conductor Material: Nichrome Resistance Wire | |
| 6. Wattage Density: High/Middle/Low (5-25w/cm2) | |
| 7. Lead Connection Option: Threaded Stud Terminal or Lead Wire | |
| 8.HI-POT Test: 1500V/S min cold condition | 9.Insulation resistance: 20M Ω min |
| 10.Leakage current: 0.75ma max | 11.Power tolerance:+5%,-10% |
How To Order
Dear Customers:
Pls well noted our products are custom based on your requirements.
Pls inform us the detailed datas as attached for best quotation
We will send drawings to you for last confirmation and arrange the cost effective express delivery.
Material of Solar water heater electric tubular heating element
Copper Sheath | Water heating, water solutions non-corrosive to copper. |
Stainless stell sheath | Immersion in oils, molten salt baths, alkaline cleaning solutions, tars and asphalt.Corrosive liquids, food processing equipment. Stainless steel 304 is the normalmaterial. |
Incoloy Sheath | Air heating, radiant heating, cleaning and degreasing solutions, plating and pickling solutions, corrosive liquids. Usually for high temperature. |
Titanium tube | corrosive environment. |
Application
1.Water Heating
2, Oil Heating
2.Air Heating
3.Heat Transfer Systems
4.Food Processing
5.Boiler Equipment
6.Parts Washing Tanks
Yancheng Nice Electric Heating Equipment Co.Ltd,is a professional manufacturer,has about 9 years experience in heating element.Our mainly products cover Cast Aluminum Heater,Cast Copper Heater,Teflon coated heaters,Cast Iron Electric Heater, other material heaters ,such as Flexible Silicone Rubber Heaters, Ceramic IR Heaters, Flange Heater,tubular heater,stainless steel heater,Laboratory heater board,thermal oil heater,air duct heater,pipeline heater etc.
After years of efforts and accumulation, the company product structure type is complete, the series of complete specifications, wide power, using the environment variety, has been widely used in machinery, metallurgy, oil chemical, electric power, shipbuilding, medical and other fields.

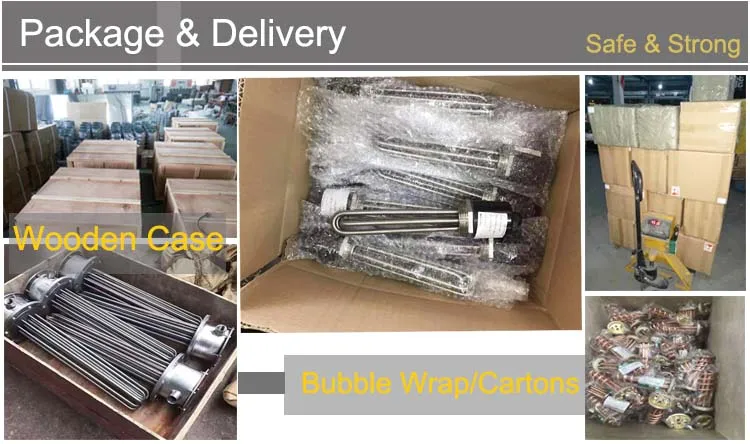

1.Delivery
For samples,usually will be shipped within 7 days
For big quantity,negotiated delivery time
2.Package
Carton box or wooden case
