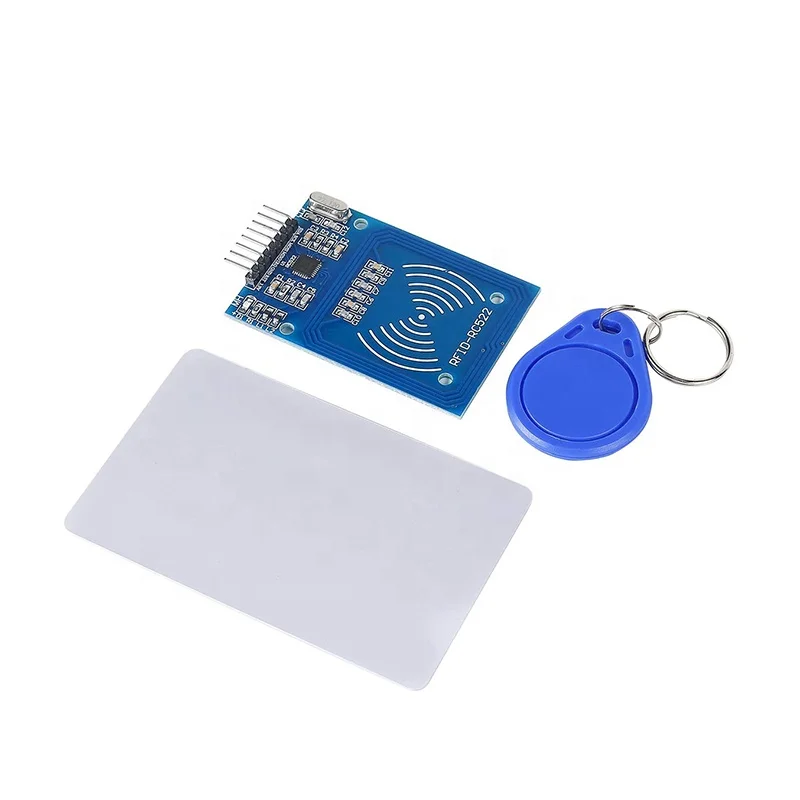

RFID Kit Mifare RC522 RFID Reader Module with S50 White Card and Key Ring for Arduino Raspberry Pi
- Category: >>>
- Supplier: Shenzhen Si Ka Fei Technology Co. Ltd.
Share on (1600076629236):
Product Overview
Description
Product Name | RFID Kit Mifare RC522 RFID Reader Module with S50 White Card and Key Ring for Arduino Raspberry Pi |
Controller chip | RC522 |
Package | Generic Box Package |
Package Included | 1 * RFID RC522 module 1 * RFID key fob 1 * RFID Card |
RFID Kit Mifare RC522 RFID Reader Module with S50 White Card and Key Ring for Arduino Raspberry Pi
Specifications:
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Read Range: 0 ~ 35mm (mifare1 card)
Size: 40mm×60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Module interfaces SPI: Data transfer rate maximum 10Mbit/s
Supported card types: Mifare1 S50, Mifare1 S70, MIFARE Ultralight, Mifare Pro, and MIFARE DESFire.
Package included:
1 * RFID RC522 module
1 * RFID key fob
1 * RFID Card
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Read Range: 0 ~ 35mm (mifare1 card)
Size: 40mm×60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Module interfaces SPI: Data transfer rate maximum 10Mbit/s
Supported card types: Mifare1 S50, Mifare1 S70, MIFARE Ultralight, Mifare Pro, and MIFARE DESFire.
Package included:
1 * RFID RC522 module
1 * RFID key fob
1 * RFID Card
