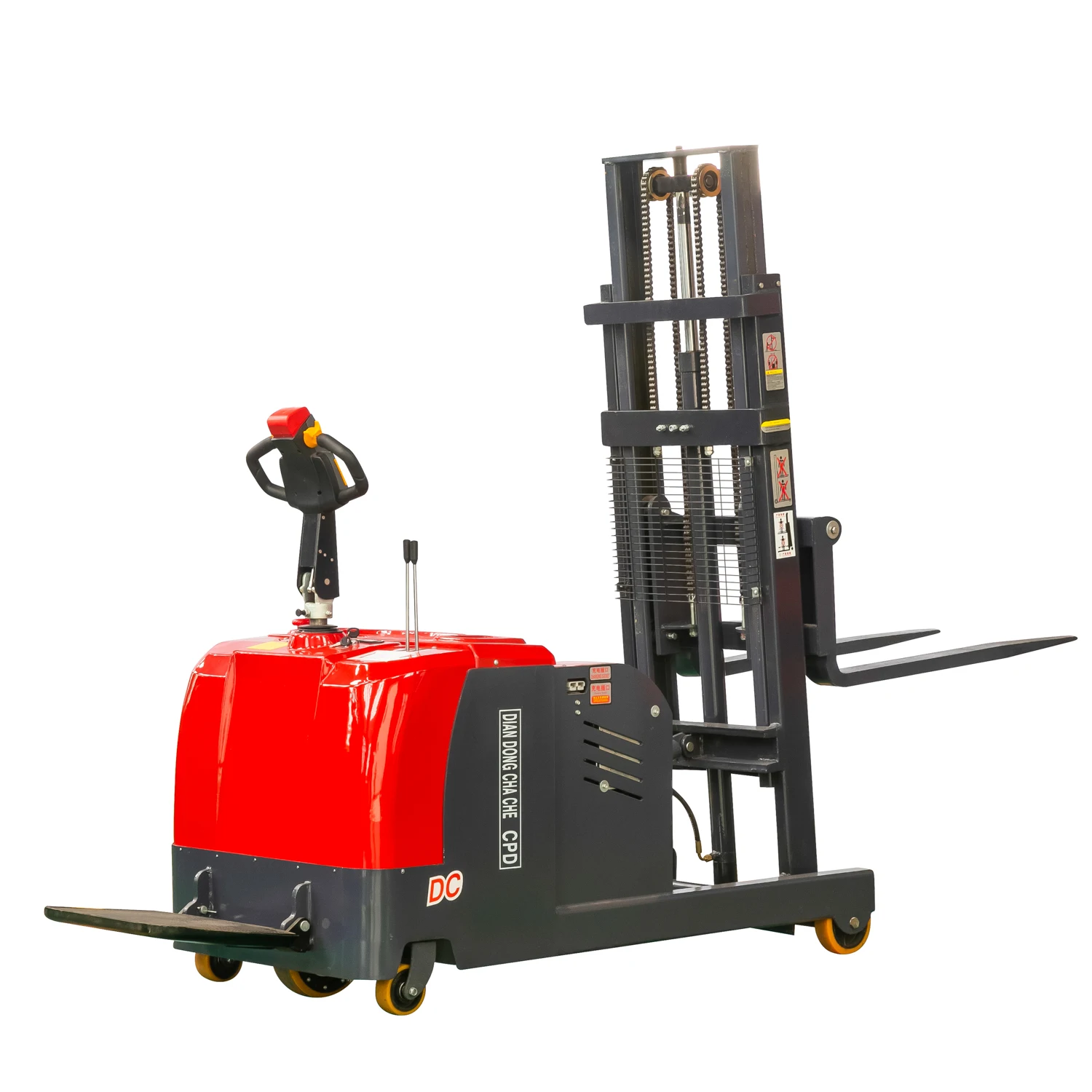

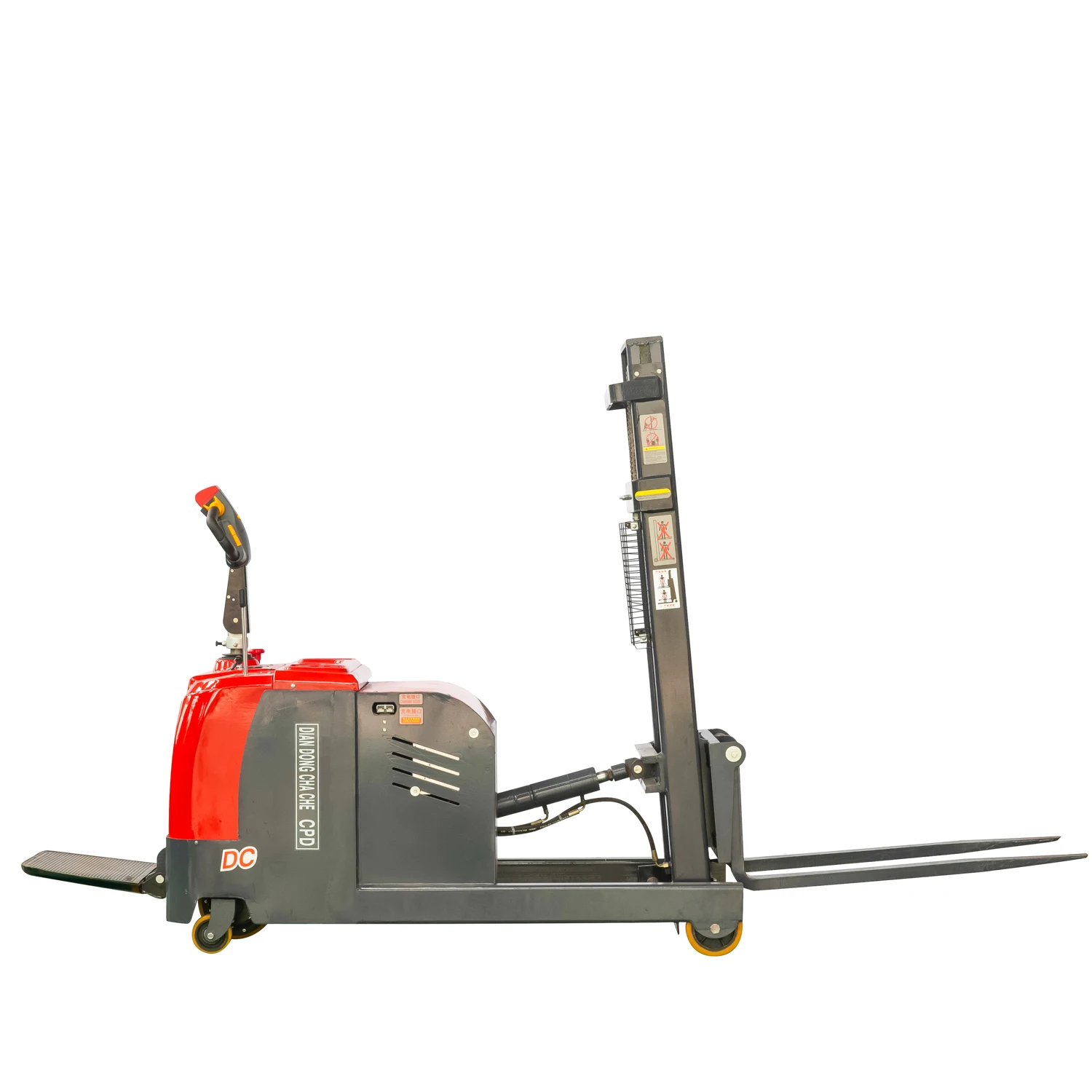

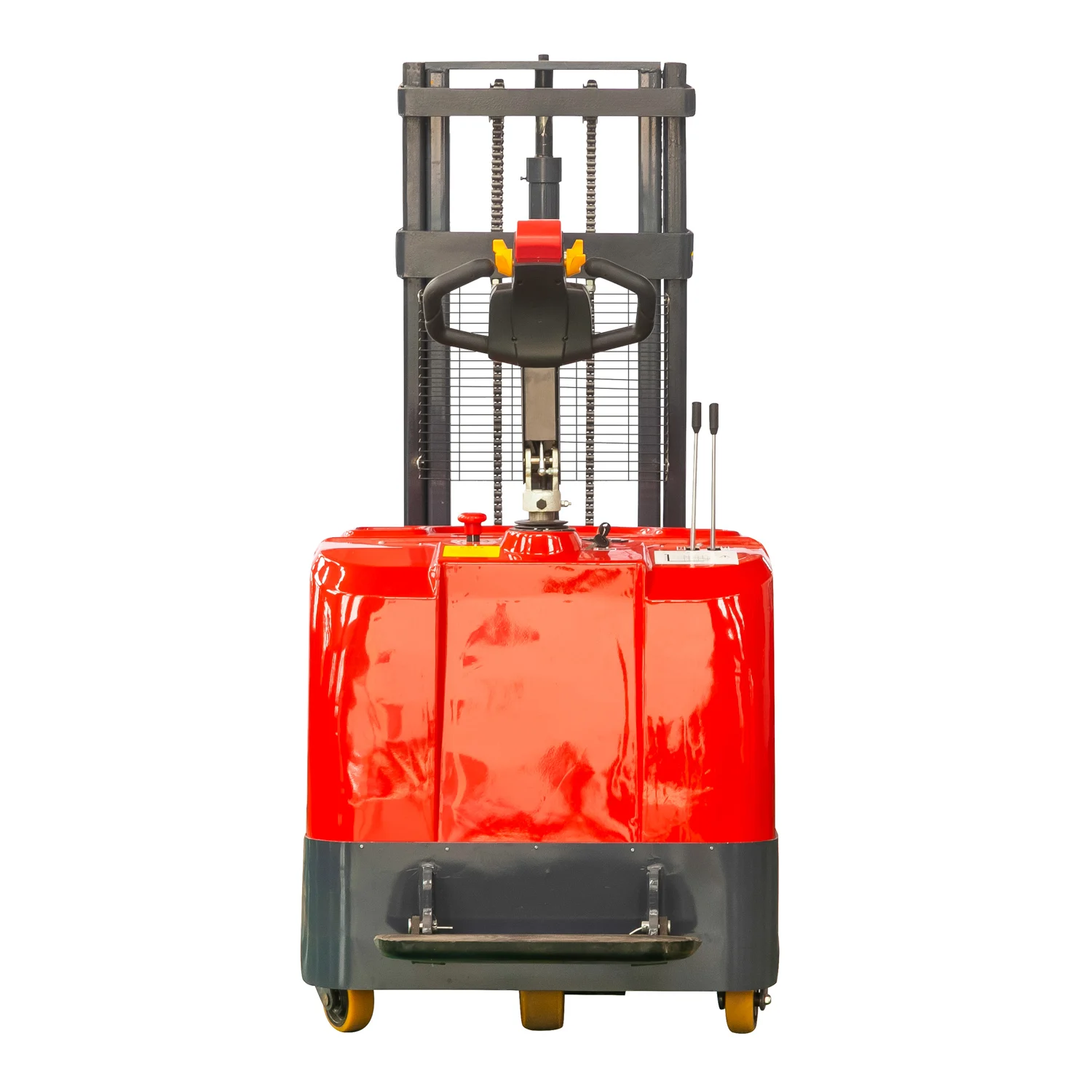

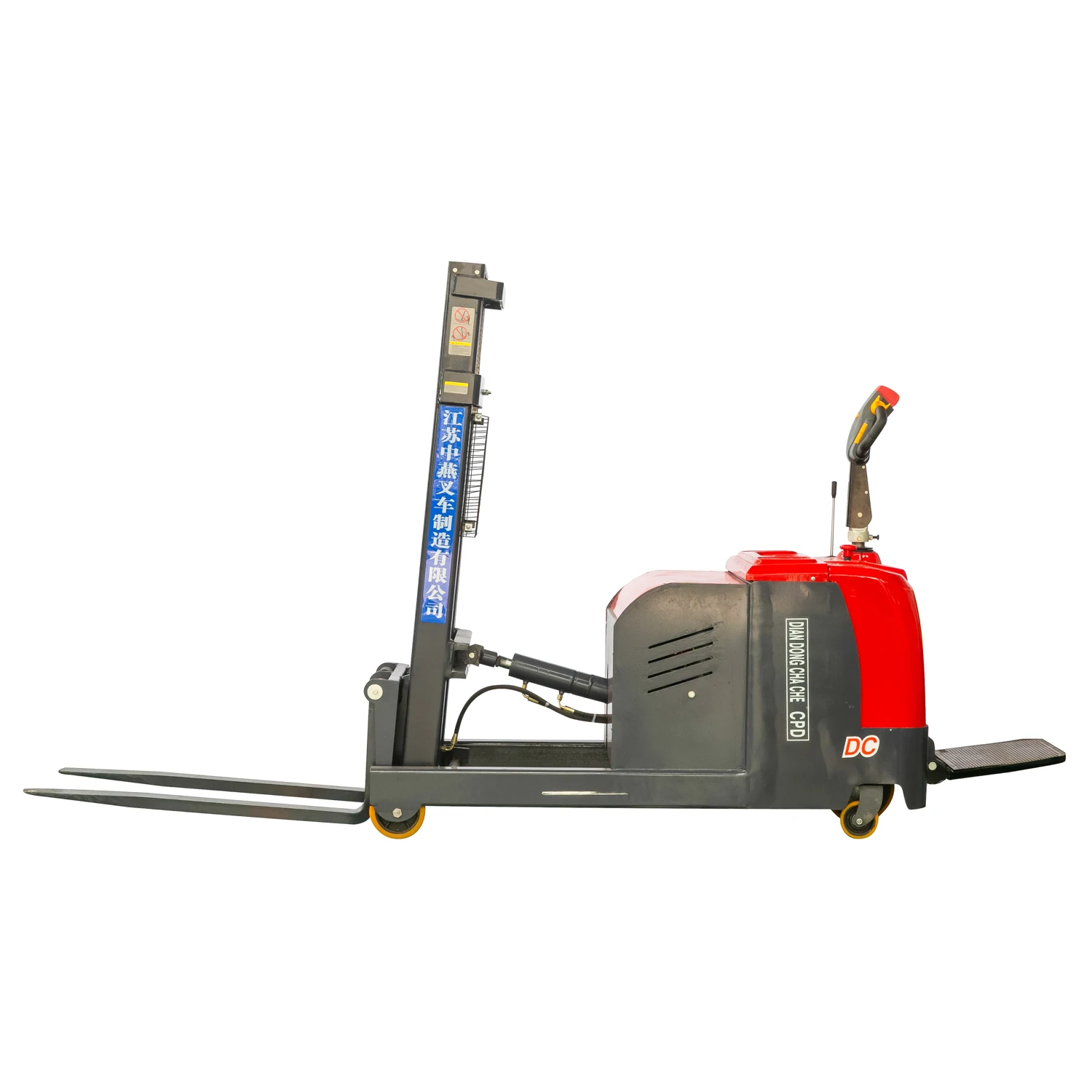

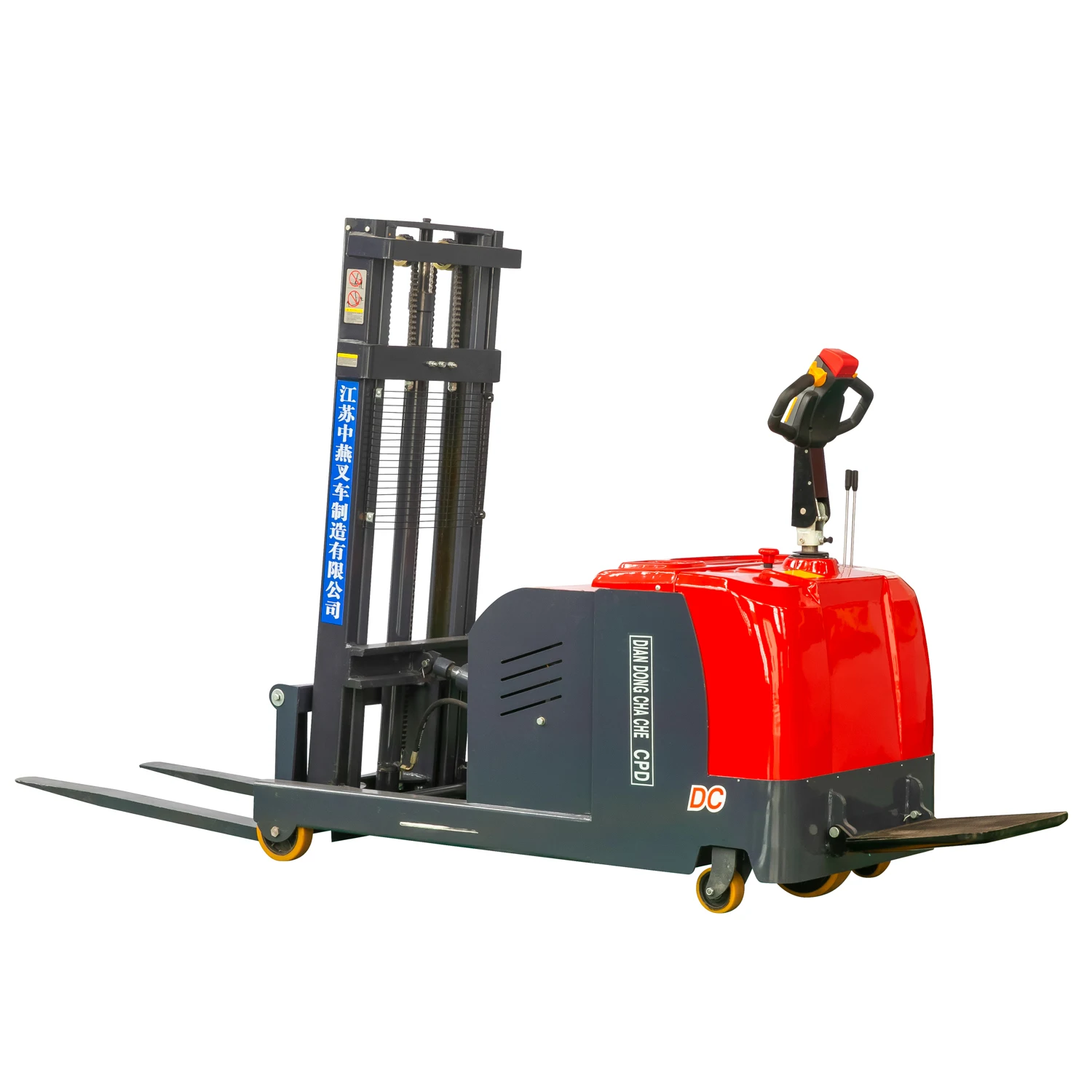

1.5 ton 2 ton Stand driving Counterbalance Electric Forklift telescopic telehandler hot sale

Share on (1600076792009):


Price:$3,300.00

Quantity:


Product Overview

Description



Product Description


Product Description for 1.5 ton 2 ton Stand driving Counterbalance Electric Forklift telescopic telehandler hot sale

CPD series electric counterbalance forklift is a vertical tri-point supported truck powered by battery. Because of its small volume, light weight and easy operation, it is an ideal loading, discharging and stacking tool in narrow or complicated areas, such as warehouse, workshop or factory. The truck adopts polyurethane cast steel wheel with pretty small diameter. It is suitable walk on flat and hard ground.
The forklift can work by unit with pallet and container, which can effectively reduce the damage rate of products and stacking area so as to improve quality, save infrastructure investment and improve moving efficiency.






Technical Parameter for Stand type Counterbalance Electric Forklift



Model
CPD1030
CPD1530
CPD2030
Load Capacity(Kg)
1000
1500
2000
Lift Height(m)
3000
3000
3000
Load Center (mm)
500
500
500
Fork Length (mm)
1070
1070
1070
Lowest height(mm)
100
100
100
Manipulation Way
Handle
Handle
Handle
Tyres
Nylon/PU
Nylon/PU
Nylon/PU
Dimension of Driving Wheel
250*80
250*80
250*80
Speed at Full Load km/h
4.5
4.5
4.5
Lifting Speed at full Load mm/sec
90
90
90
Speed Control Way
Stepless Speed Regulation
Stepless Speed Regulation
Stepless Speed Regulation
Mast Tilt Angle °
3~6
3~6
3~6
Gradient at full Load °
10
8
8
Battery V/Ah
24/180
24/180
24/210
Working Time(for reference) (h)
6~8
6~8
6~8
Driving Motor (kw)
1.2
1.5
1.5
Lifting Motor (kw)
2.2
2.2
3
The Min. Turning Inner Radius (mm)
1650
1750
1850
L X W X H Dimension (mm)
2780*860*2080
2980*860*2080
3200*860*2080
weight(kg)
1500
1600
1700


Main Features for 1 ton 2 ton Stand drive Counterbalance Electric Forklift with High quality Low price

1.\tAdopt imported motor to output strong traction and power so that it can still walk steadily on rough road and slope.
2.\tAdopt powerful hydraulic motor to supply more torque so as to make the truck lift and drop steadily.
3.\tMore safe and confortable braking system.
4.\tEquipped with combined idler wheel with high strength and low deformation degree.
5.\tEquipped oil cylinder on the back to make a broaden sight.
6.\tFlow-limiting valve can adjust drop speed of portal frame. It can prevent portal frame from dropping fast even though the oil pipe explodes, and guarantee the safety of operator.



Related Products

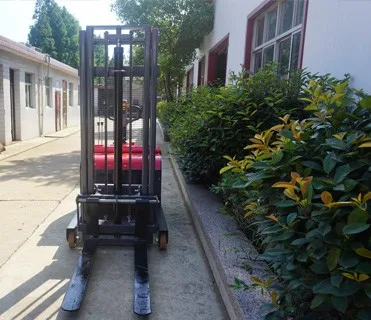

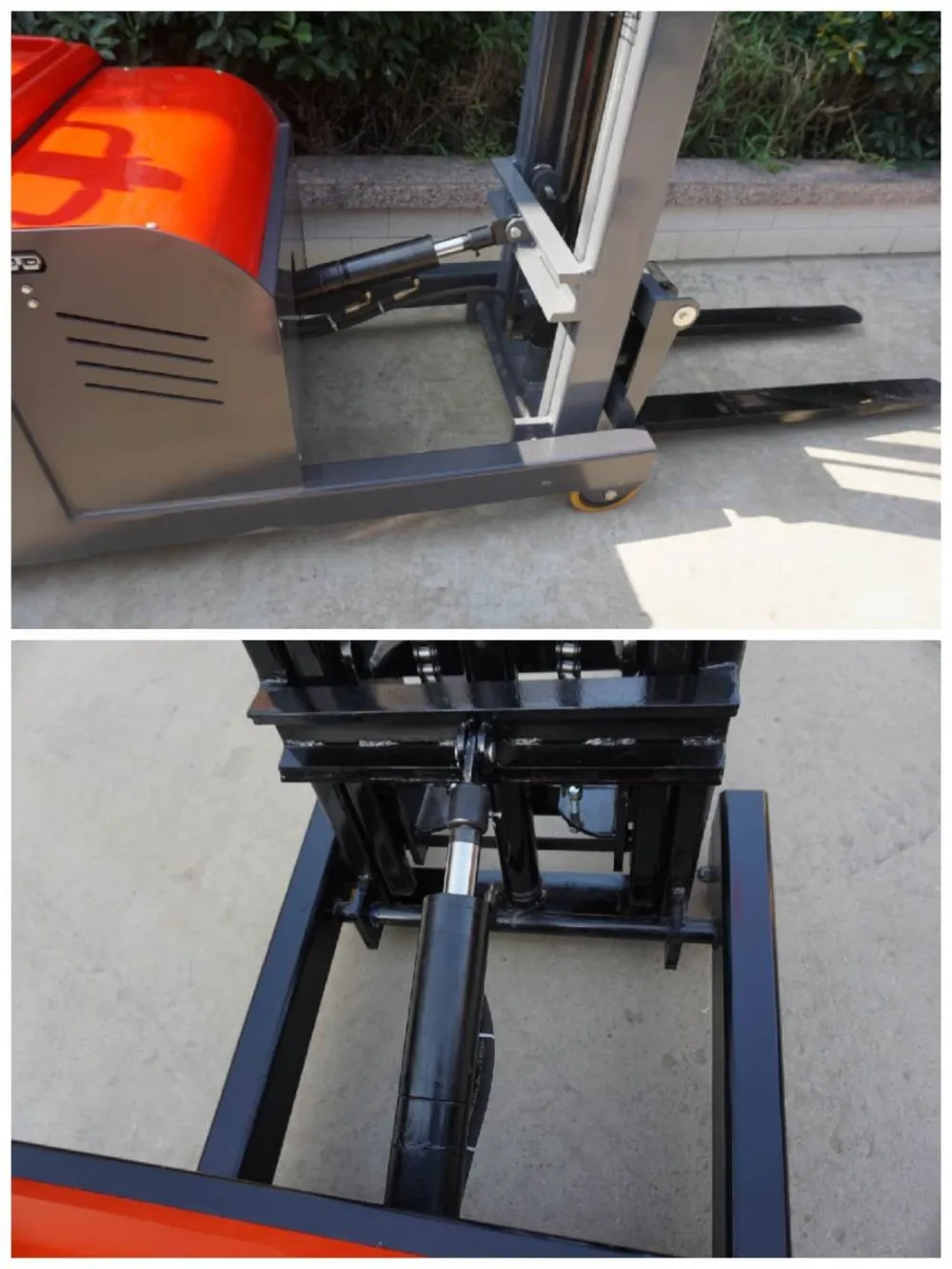

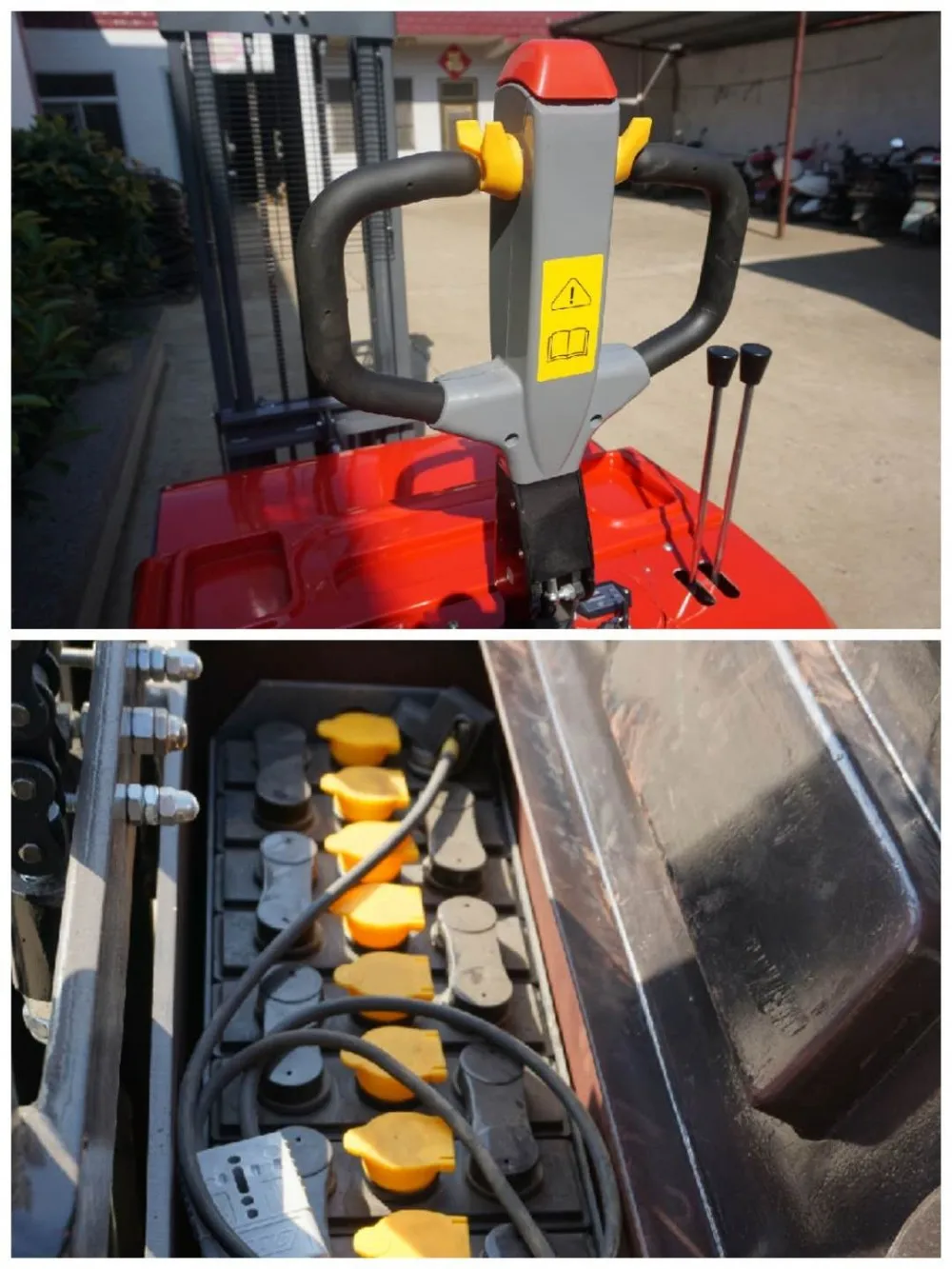

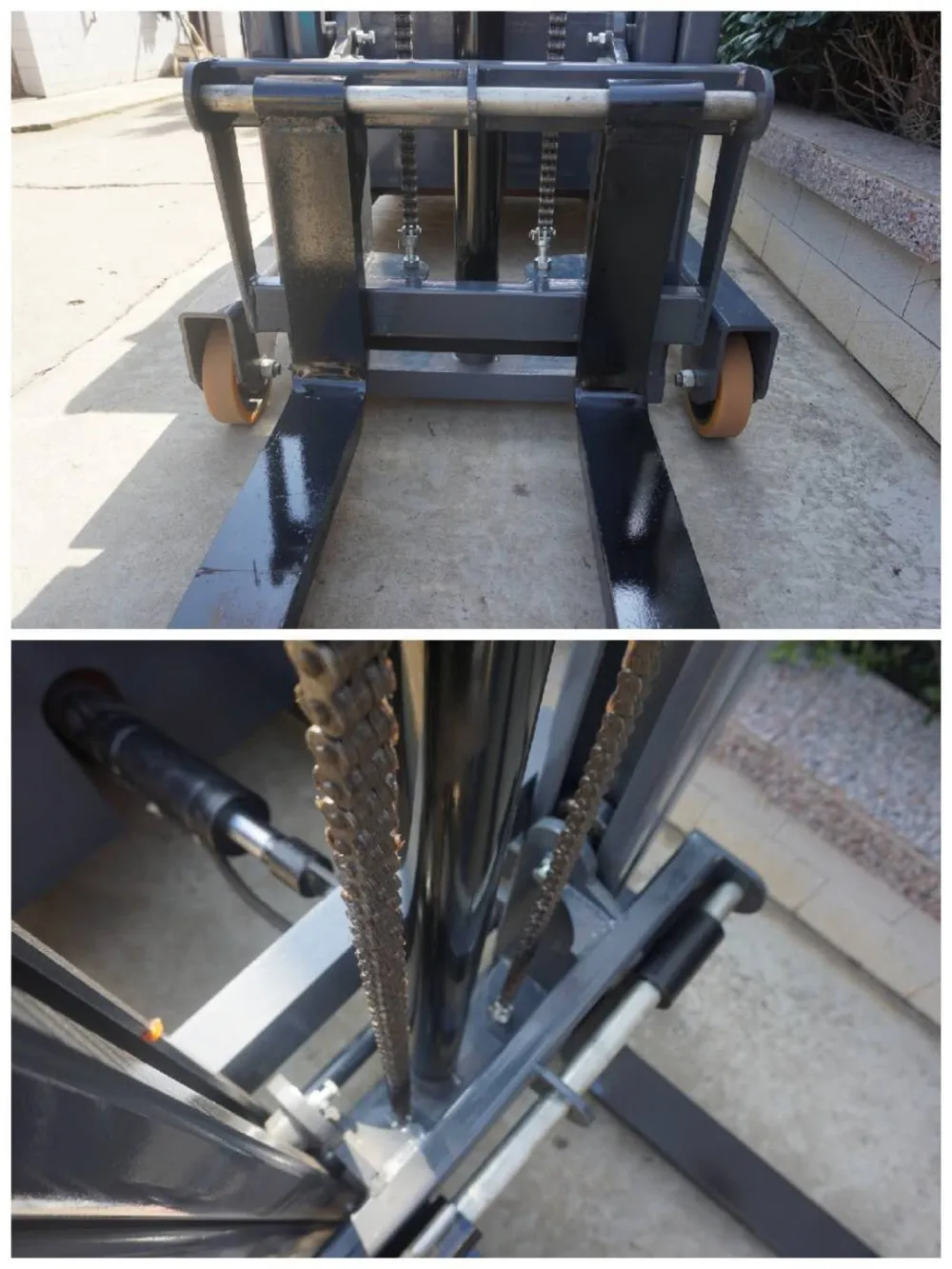

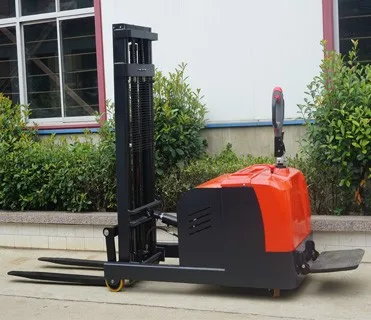

Detailed Image




Our Company




Introduction of Zhongyan Forklift

Jiangsu Zhongyan Forklift Manufacturing Co., Ltd. was established in 1997, covering an area of 21,800㎡ and owing a registered capital of 40 million RMB. It is a high-tech environmentally friendly enterprise specialized in research, production and marketing, and a cooperative company with the logistic department of national army for handling equipment. It is located in China historical and cultural city----Taixing, the north of Yangtze River delta.
We adhere to the operation philosophy of "Quality Services, Technology Innovation, Integrity Management and Lenient towards Others" and take the advantages of leading technology, sophisticated equipment and complete testing measures to professionally study and manufacture environment friendly and high intelligent reach forklift, electric forklift, semi-electric forklift and cost efficient manual forklift etc.
We attach importance to institutionalized and standardized construction, and established such regulations as pre-delivery inspection, product recall and product exchange/compensation for defect products. We can design and customize the needed products according to the practical usage situation and customers' requirements. For more than 2 decades, Zhongyan gained high reputation among customers from all over the world with its high quality and sound after-sale services.

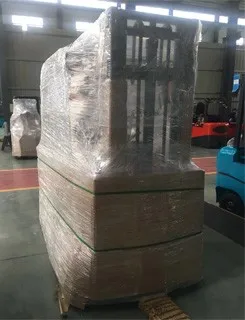

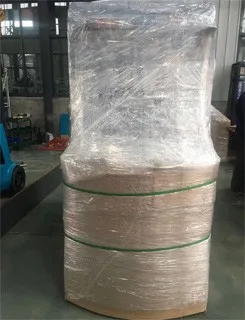

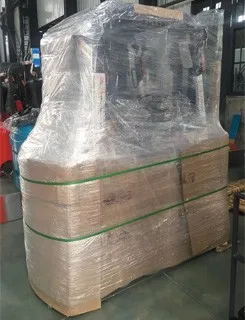

Packing & Delivery




Packed by PVC film and carton, loaded on pallet



Our Service


Presale Service: We provide professional suggestions for different type of cargos and different apllication places;

After-sale services: We supply technical support via video and free accessories damaged during delivery.

Warranty Time: 1 YEAR

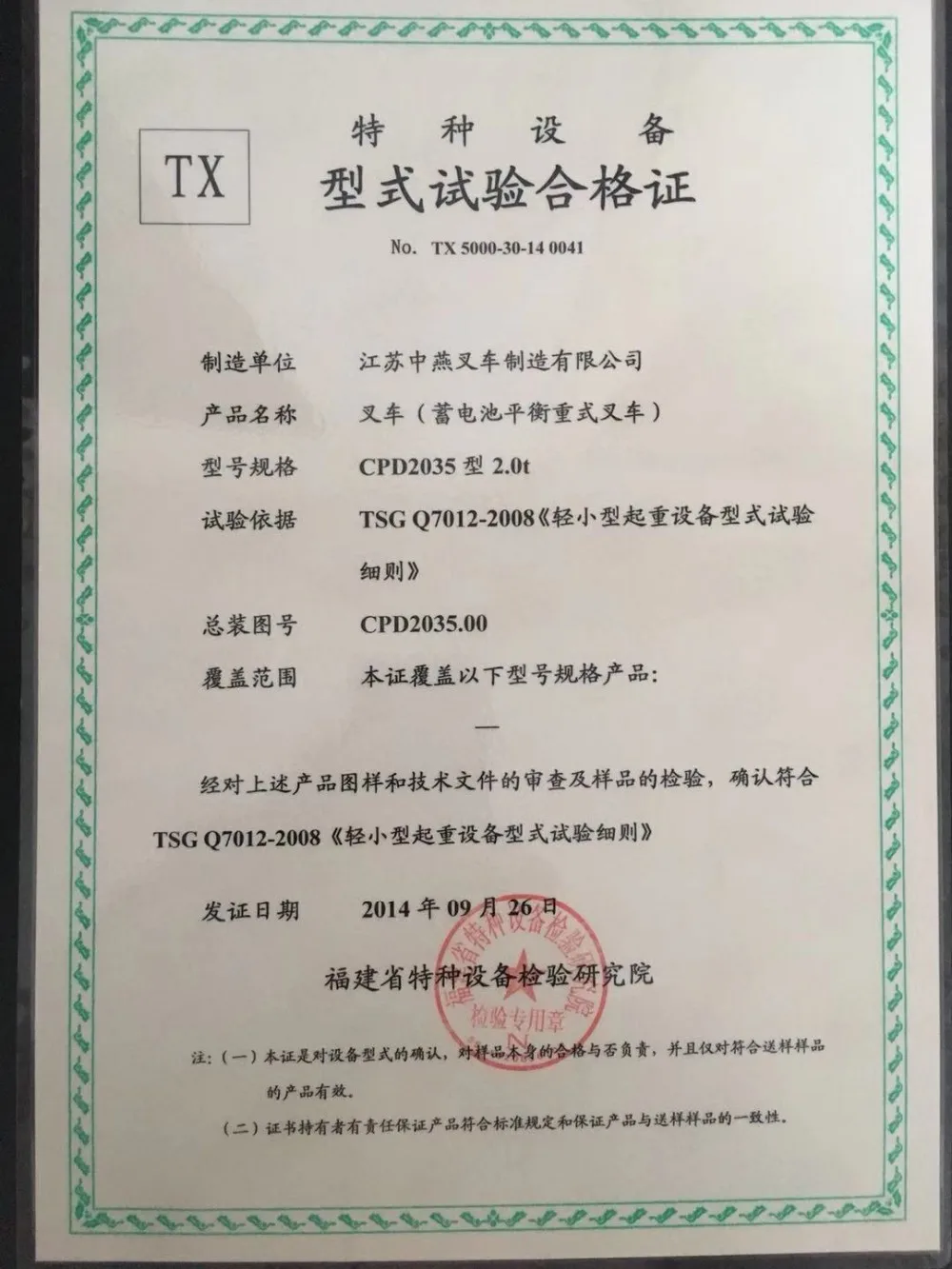

Certifications
