Price:RUB 546,369.12 - RUB 682,961.40

Quantity:


Product Overview

Description

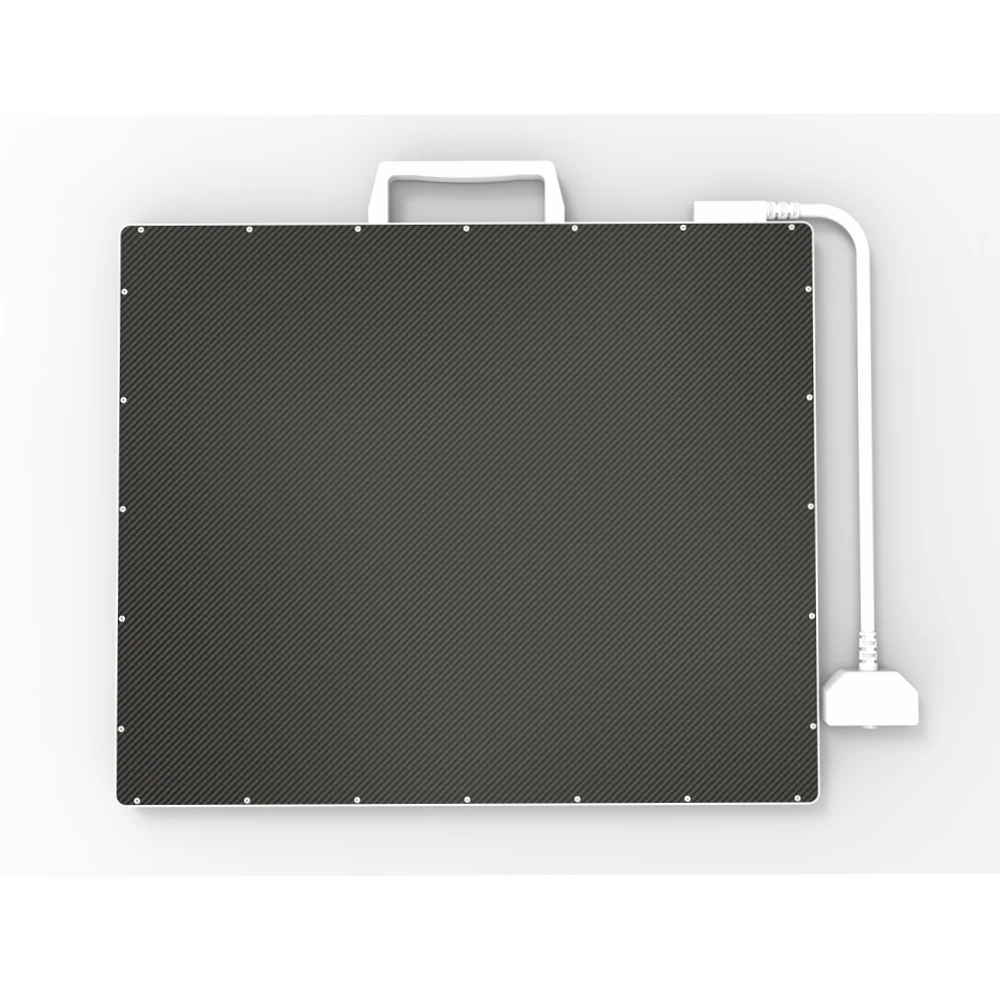

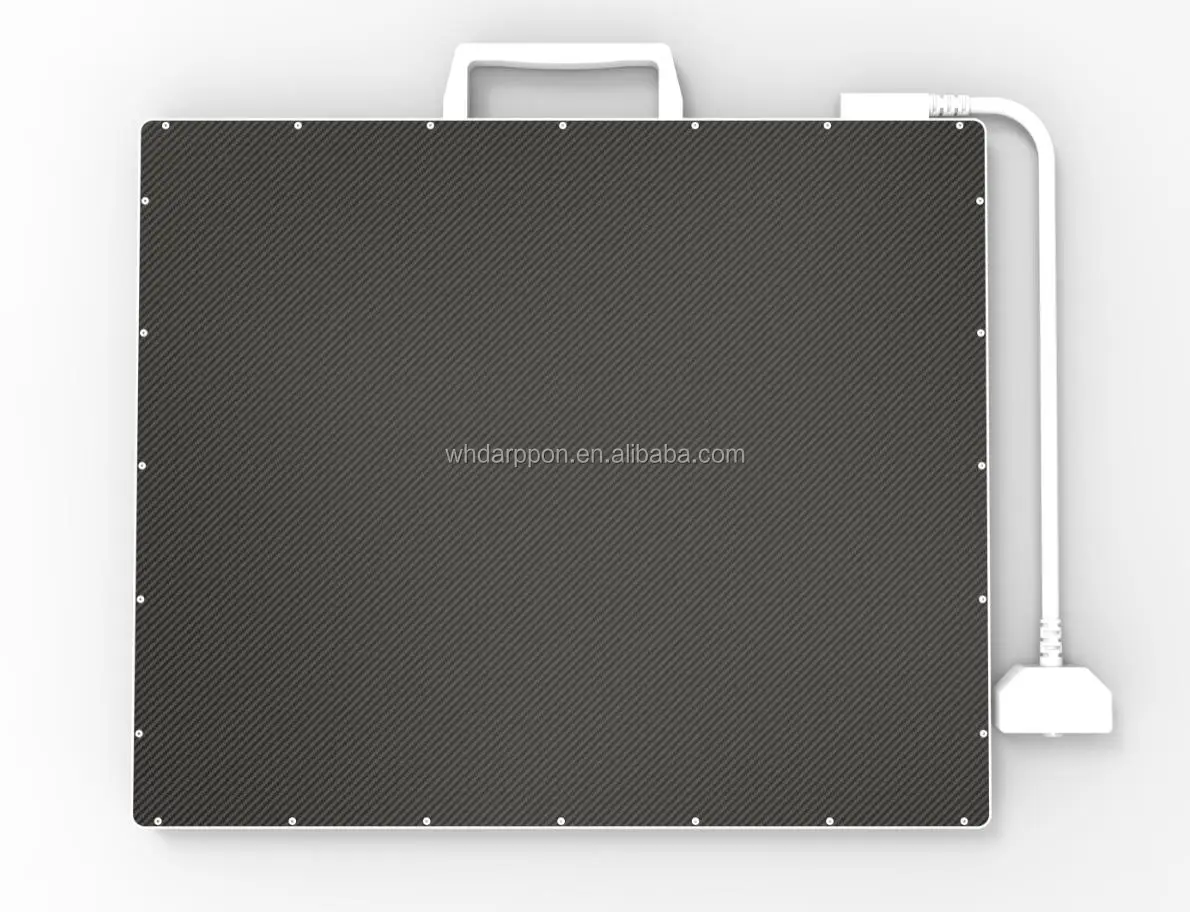

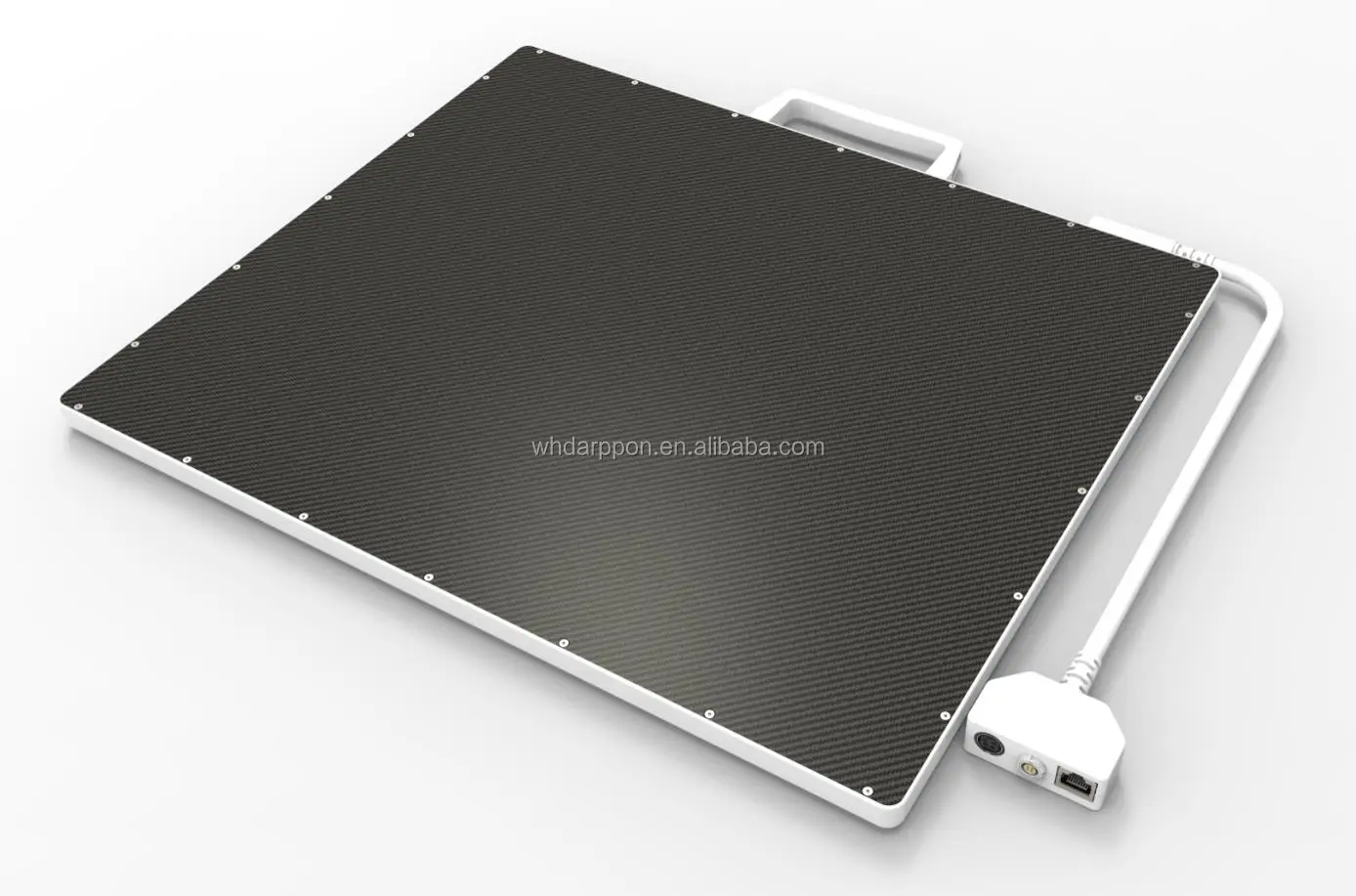

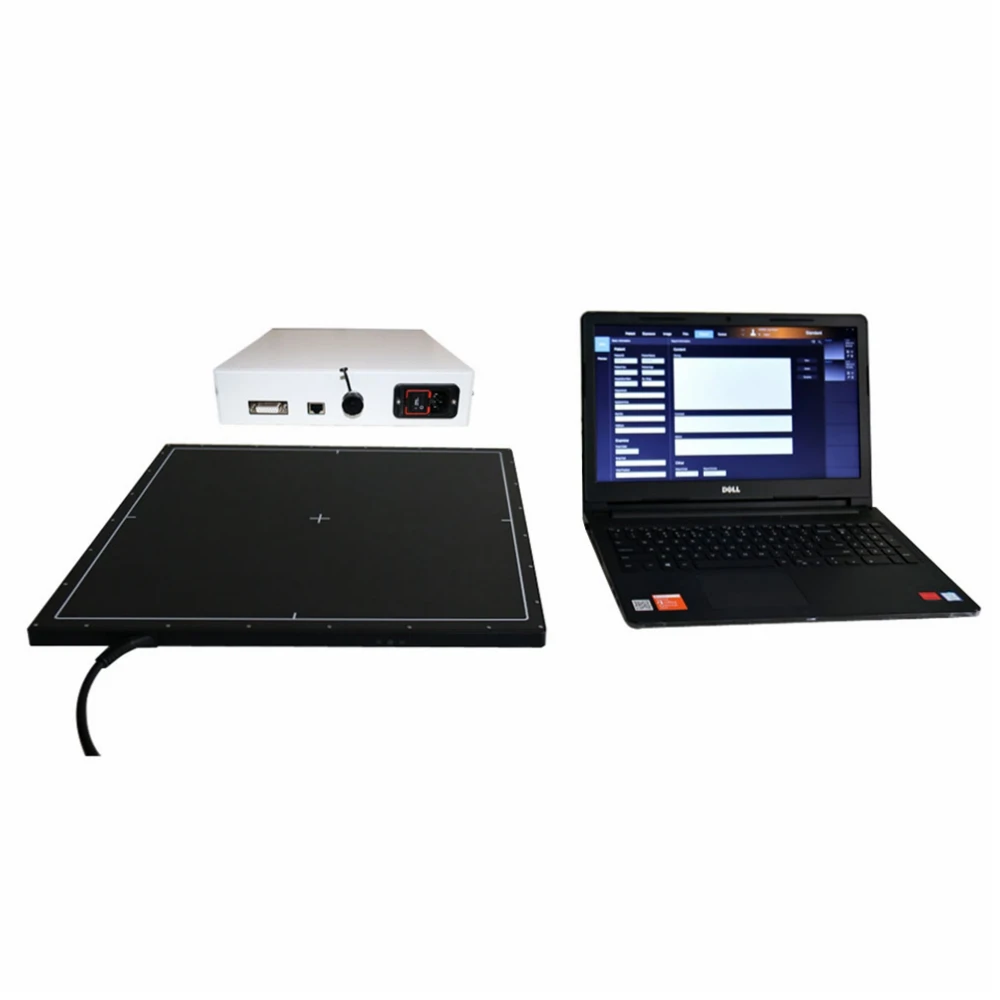

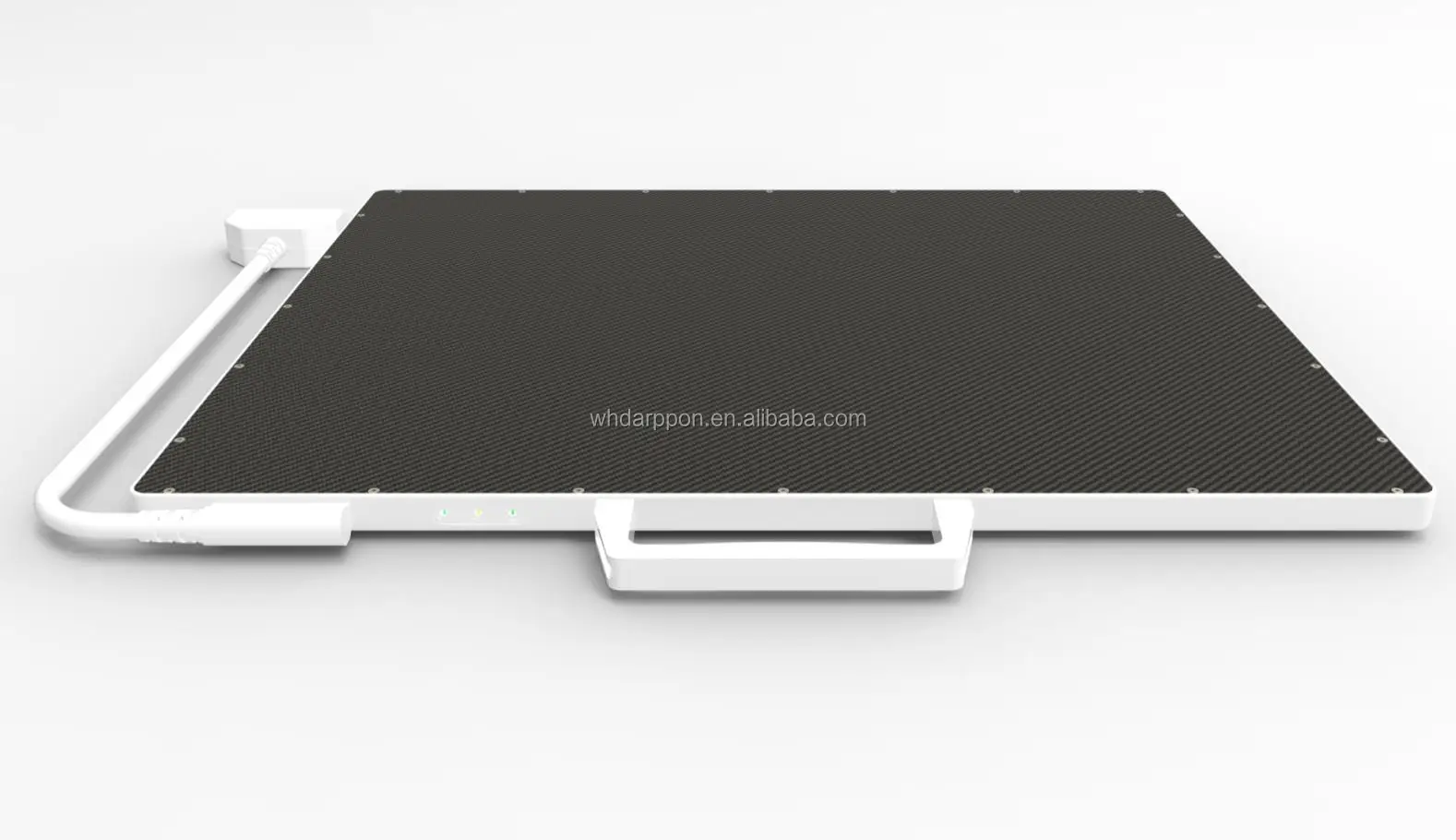

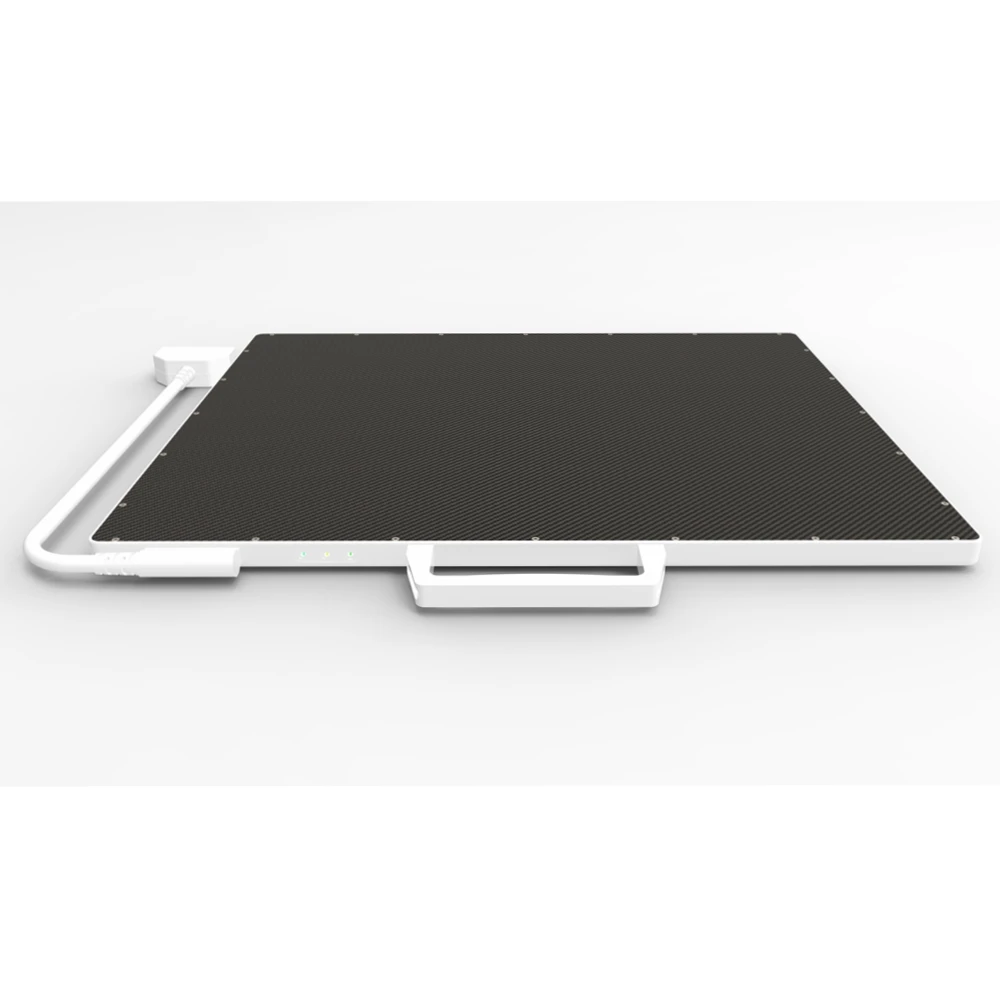

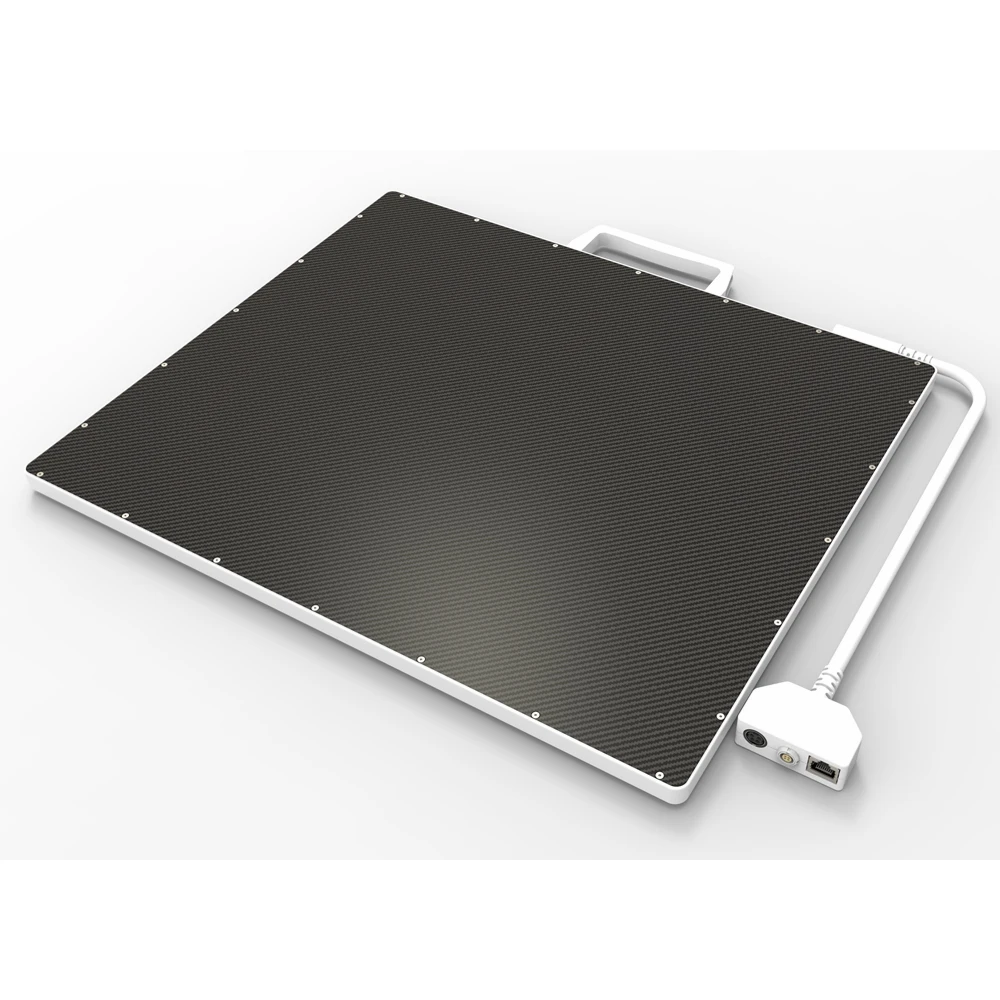

The model DP3543 is a portable type and low noise X ray flat panel detector based on amorphous silicon technology. A-Si technology based detector owns many advantages that are unavailable with other technology, the model DP3543 takes a high image quality and a large dynamic range, also it prossesses multi-gain stage, this function makes it possible that the detector can both be suitable for high sensitivity and large dynamic range requirements. Based on above characteristics, it can be widely used in medical, industrial,veterinary, and research application area.
Features
Pixel Pitch: 140um
Pixel Matrix: 2500*3052
ADC: 16-bit
Gain Stage: Multi-Gain
Scintillator: GOS/CSI
Water Proof: IPX0
Interface: Quick self-locking connector
Calibration: Software, Firmware
Radiation Hardness: ≥10000Gy
Specification
Receptor Type
A-Si
Scintillator
CsI/GOS
Pixel Pitch
140 μm
Pixel Matrix
3072×3072
Active Area
43×43 cm
ADC
16 bit
Resolution
3.50 lp/mm
Data Interface
Gigabit Ethernet
X Ray Energy Range
40 - 160 KV
Dimension
470X470*30mm
Weight
5kg
Power
14.4 W
