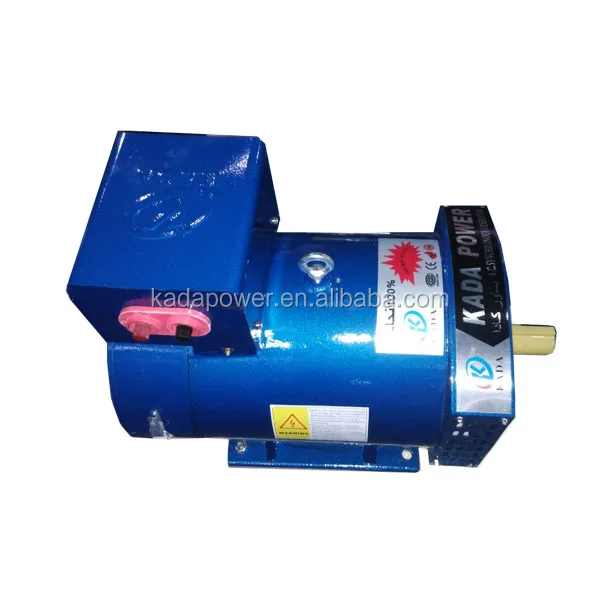

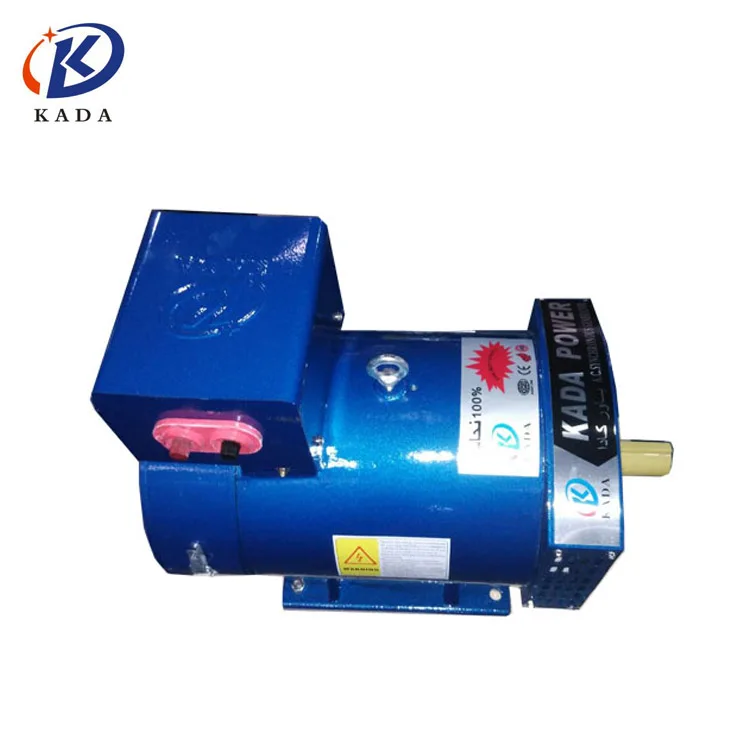

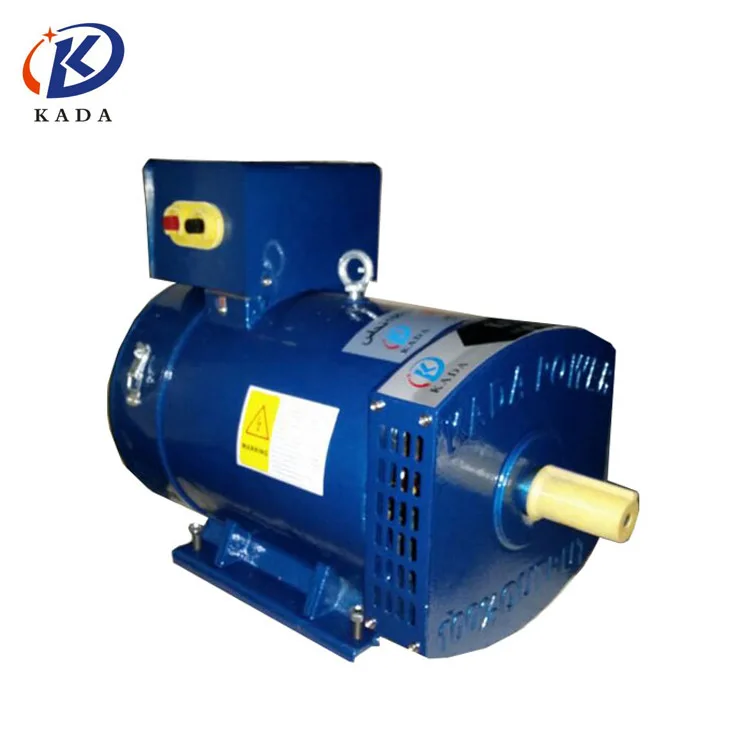

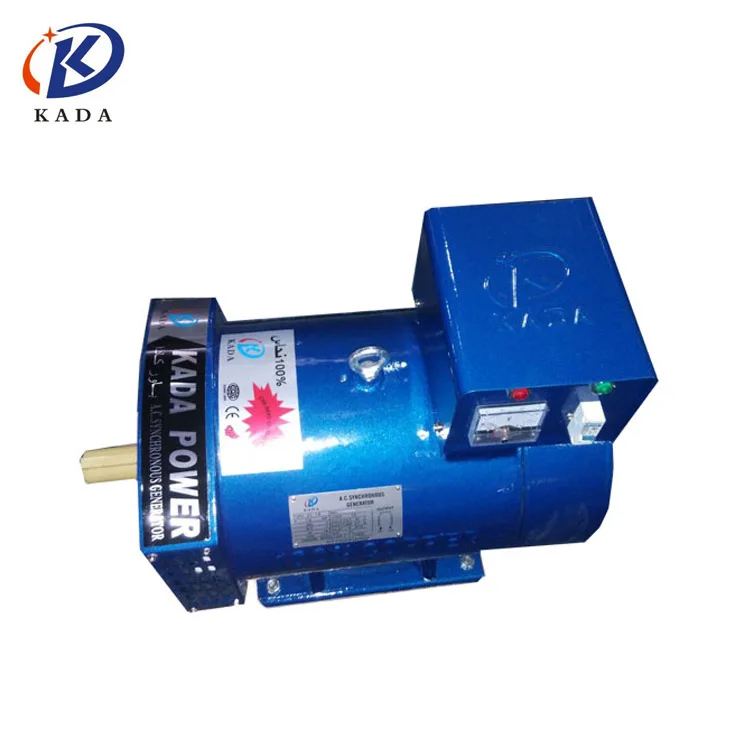

Kada 50hz brushless single phase double bearing 20 kva a.c synchronous alternator generator head
- Category: >>>
- Supplier: Ningde Kada Co. Ltd.
Share on (1600076990641):
Product Overview
Description
Product Description

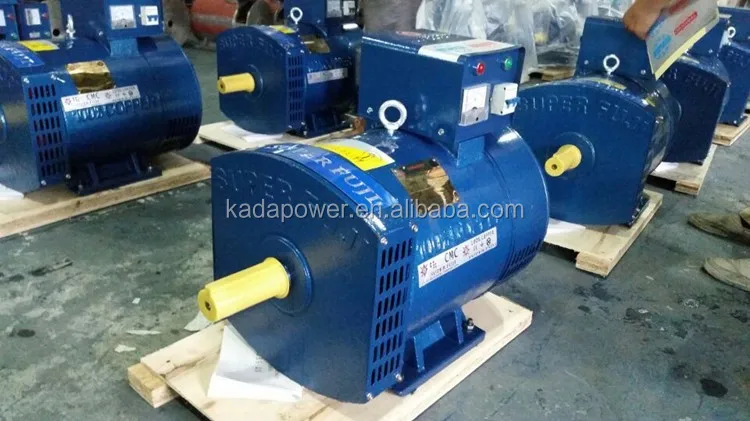

ST\\STC Series A.C Synchronous Alternator
The ST\\STC series ac alternator generators are mainly designed to serve as power generating unit of small capacity which supply
electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
The construction of the generators is of drip proof, salient pole rotating field self-excitation and constant voltage type The
alternator inside is used with high quality electric magnetic and electrical materials. Stator insulation is of Class E(or
B).rotor insulation is of Class B.Feature : Brush Alternator Generator
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.
electricity for lighting purpose in ships as well as for household electric devices used in towns or villages.
The construction of the generators is of drip proof, salient pole rotating field self-excitation and constant voltage type The
alternator inside is used with high quality electric magnetic and electrical materials. Stator insulation is of Class E(or
B).rotor insulation is of Class B.Feature : Brush Alternator Generator
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.
Main Features
1. Excellent compatibility with drive systems: standard mounting dimensions can be coupled to any diesel engines from worldwide,
many S.A.E. flanges and S.A.E. drive discs can be easily interchangeable.
2. IP23 Protection, H insulation, Suitable for harsh environments.
3. All AVR’s have numerous features for voltage adjustment, stability adjustment, low frequency protection and exterior
voltage adjustment. Standard AVR: EA460 Option AVR: EA440, EA230, EA08 or EA448
4. Standard 2/3 winding pitch, easy to be operated with other generators in parallel; Several types of winding are available to
optimize performance. (Max. voltages available range up to 690V).
5. CSC generators are provided with three phase as standard, easy to alter the voltage by reconnecting for 12-leads on terminal
plate, also the units can be run as single phase(except for CSC354).
1. Excellent compatibility with drive systems: standard mounting dimensions can be coupled to any diesel engines from worldwide,
many S.A.E. flanges and S.A.E. drive discs can be easily interchangeable.
2. IP23 Protection, H insulation, Suitable for harsh environments.
3. All AVR’s have numerous features for voltage adjustment, stability adjustment, low frequency protection and exterior
voltage adjustment. Standard AVR: EA460 Option AVR: EA440, EA230, EA08 or EA448
4. Standard 2/3 winding pitch, easy to be operated with other generators in parallel; Several types of winding are available to
optimize performance. (Max. voltages available range up to 690V).
5. CSC generators are provided with three phase as standard, easy to alter the voltage by reconnecting for 12-leads on terminal
plate, also the units can be run as single phase(except for CSC354).

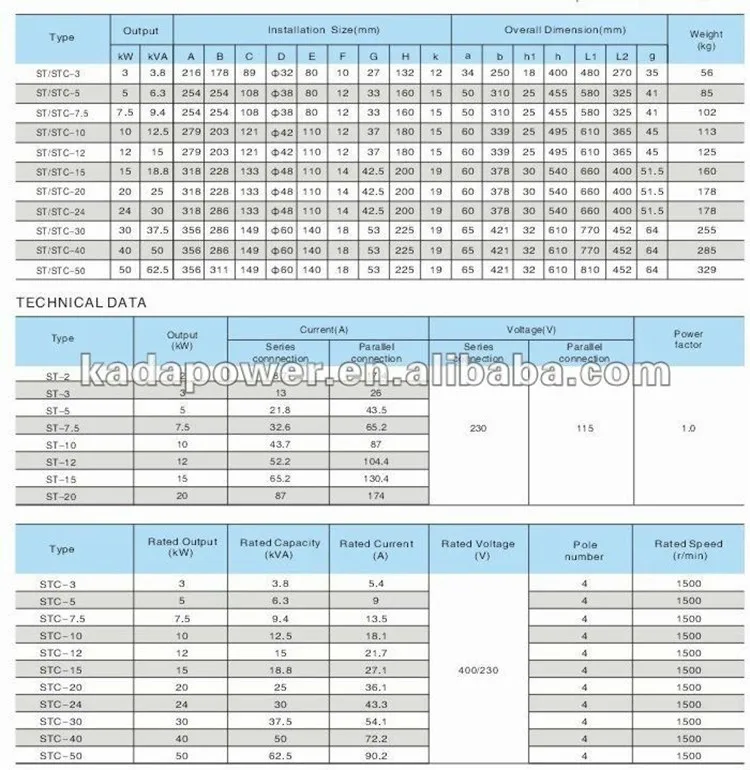

Specification

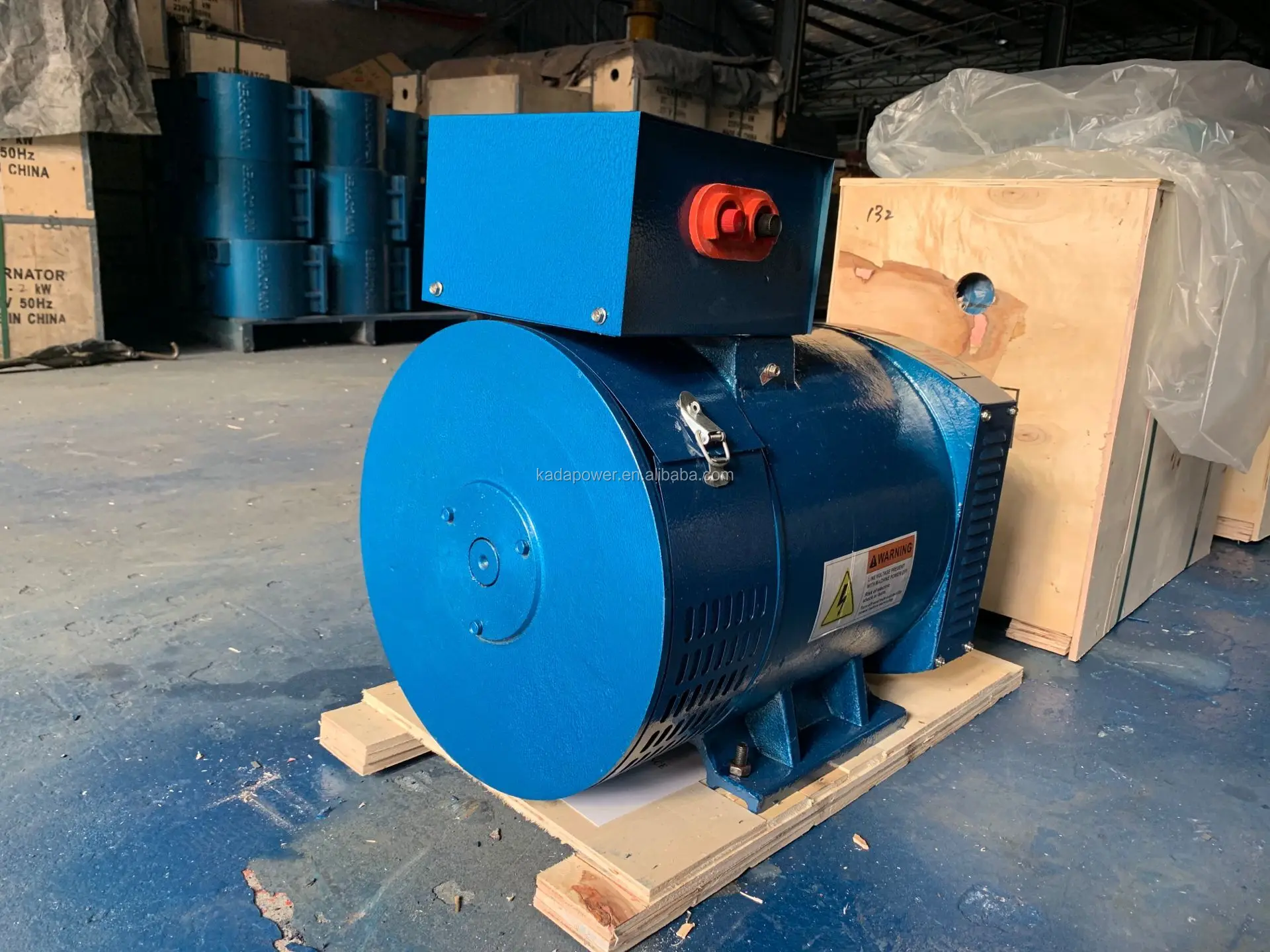

Packing & Delivery

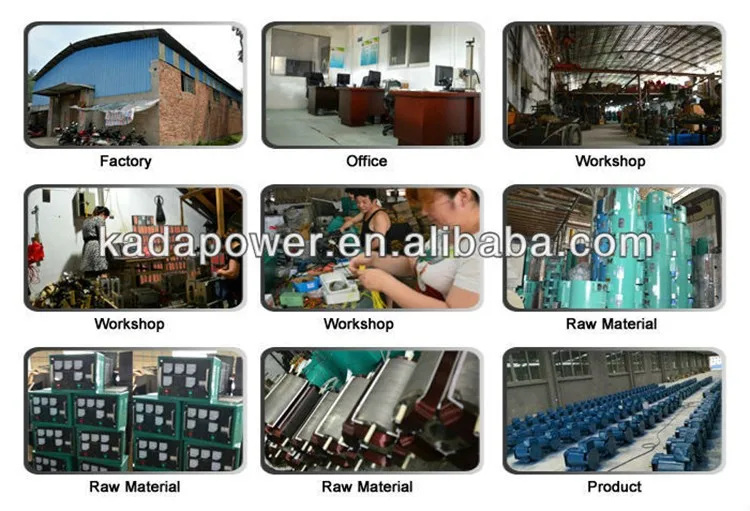

Company Profile
Ningde Kadapower Co.,Ltd
NINGDE KADA CO.,LTD is located in Ningde City, Fujian Province ,China which is well known as City of Electric Machinery and Appliances. It is only 1 hour car-drive or a 30-minute train-drive far from capital and sea-port city, Fuzhou City. Also our
factory lies in the municipal standardized manufacturing district, QinXinYang industrial area, which is the largest ST / STCproduction base in China. Since established in 2011, NINGDE KADA CO.,LTD devoted itself to integration management from R&D, production, and sale in kinds of mechanical and electrical products such as Alternator, Generator, Electric Motor, Water Pump, Gasoline Generator set, Diesel Generator set, etc. Now we have formed three main production lines specialized in producing Alternator, Diesel Generating Set and Electric Motors. Our marketing shares are covering all over the world, such as European Union, Middle East, South-East Asian, Africa, North America ect. All of our products constantly absorb advanced technology, adopt the top-most quality materials, and update designs, receiving unanimous good comments due to their high quality and reasonable price. After years of development, owing precise assemble lines, integrated testing system and checkout equipment and professional technical team, we are able to design and make according to customer's special requirement in the products. We will spare no efforts to our customers with excellent product and good service .Looking forward to your attention and long-term cooperation.
