Shanghai ja solar panels technology jam78s10 440/mr 450 watt 460 watt panel inverter 500kw with high rear side power gain
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.Bluesun Ltd.
Share on (1600076997012):
Product Overview
Description
Why Buy JA Via Bluesun
Products Description
ELECTRICAL PARAMETERS | ||||||||||||
TYPE | JAM72S20-440/MR | JAM72S20-445/MR | JAM72S20-450/MR | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Rated Maximum Power(Pmax) [W] | 440 | 333 | 445 | 336 | 450 | 340 | ||||||
Open Circuit Voltage(Voc) [V] | 49.40 | 46.40 | 49.56 | 46.65 | 49.70 | 46.90 | ||||||
Maximum Power Voltage(Vmp) [V] | 40.90 | 38.70 | 41.21 | 38.95 | 41.52 | 39.19 | ||||||
Short Circuit Current(lsc) [A] | 11.28 | 9.16 | 11.32 | 9.20 | 11.36 | 9.25 | ||||||
Maximum Power Current(lmp) [A] | 10.76 | 8.60 | 10.80 | 8.64 | 10.84 | 8.68 | ||||||
Module Efficiency [%] | 19.7 | 20.0 | 20.2 | |||||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc(α-jsc) | +0.044%/°C | |||||||||||
Temperature Coefficient of Voc(β_Voc) | -0.272%/°C | |||||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G | |||||||||||
NOCT | Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G | |||||||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | ||||||||||||

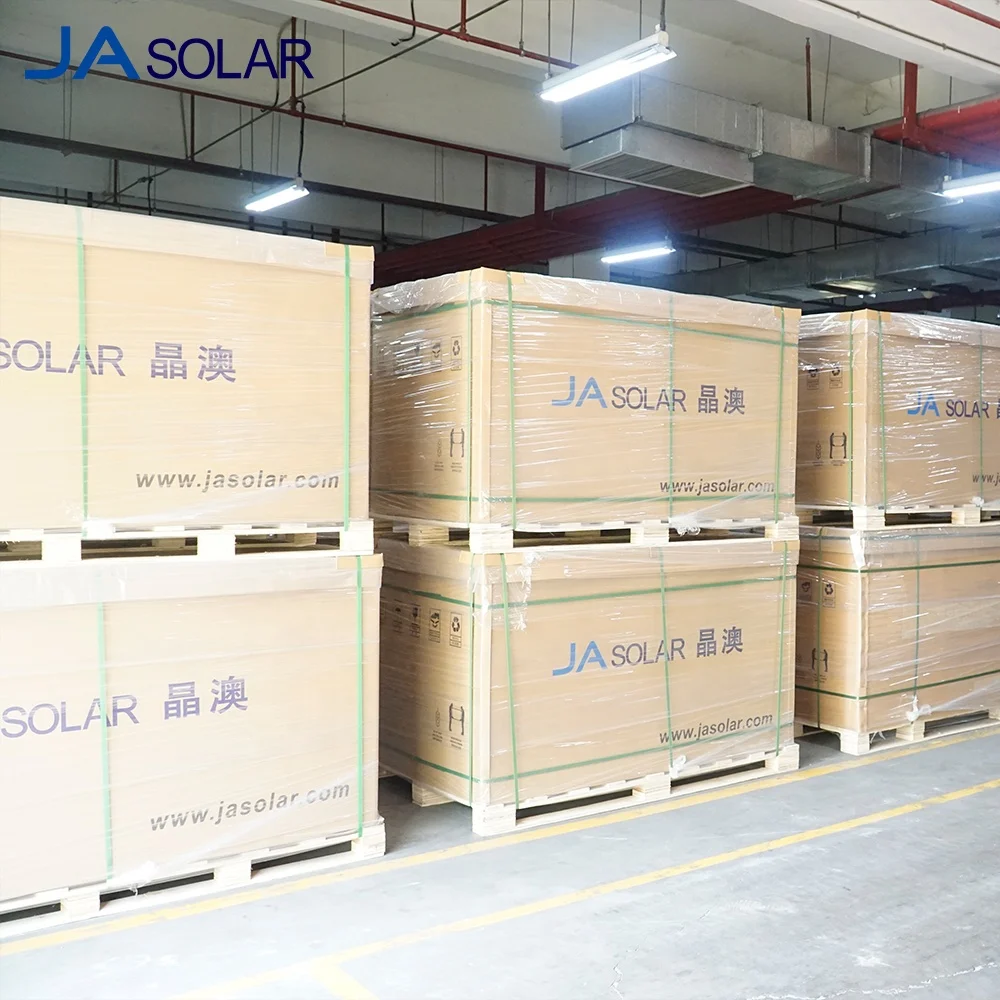

Packing
Model | JAM60D10/JAM60D20 | JAM72D10/JAM72D20 | JAM60S10/JAM60S20 | JAM72S10/JAM72S20 |
Pcs/Pallet | 30 | 30 | 30 | 30 |
Pcs/20'GP | 180 | 150 | 180 | 150 |
Pcs/40'HQ | 720 | 600 | 720 | 660 |
Packing
Model | JAM60D10/JAM60D20 | JAM72D10/JAM72D20 | JAM60S10/JAM60S20 | JAM72S10/JAM72S20 |
Pcs/Pallet | 30 | 30 | 30 | 30 |
Pcs/20'GP | 180 | 150 | 180 | 150 |
Pcs/40'HQ | 720 | 600 | 720 | 660 |
Our JA Solar Team
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
