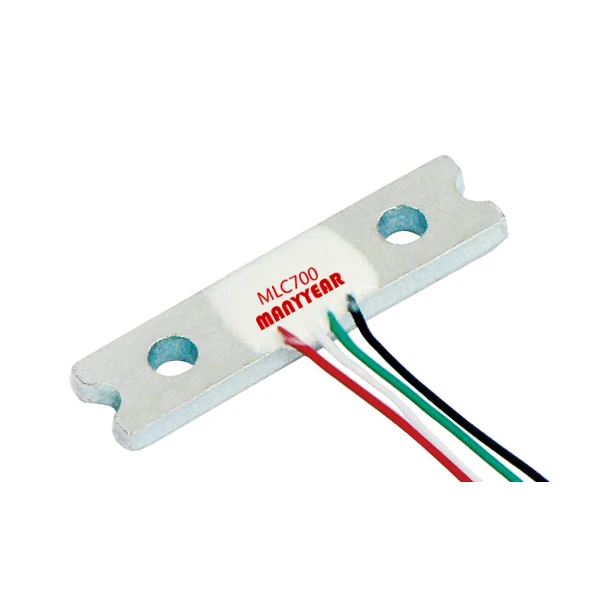

Low cost small size portable scale weight sensor 50kg
Model: MLC700
Category: micro load cell
Load range: 5~50kg
Dimension: 31.8*7.9*h (mm )
Material: alloy steel
Application: handle scale, kitchen scale, fish scale, post scale
Characteristic: postal scale load cell, handle scale load cell






Technology Specification
Below spec is only for customer design reference. we can provide ODM product.


Comprehensive error:
0.2FS
Output resistance:
1000±10Ω
Rated output:
1.7±0.15mv/v
Insulation resistance:
≥2000MΩ(100VDC)
Non-linearity:
0.2%FS
Excitation voltage:
5~10VDC
Hysteresis:
0.2%FS
Compensated temp:
-10~+40ºC
Repeatability:
0.2%FS
Use temperature:
-20~+55ºC
Creep:
0.2%FS/10MIN
Temp effect on zero:
0.2%FS/10ºC
Zero balance:
1±0.1%FS
Temp effect on span:
0.2%FS/10ºC
Input resistance:
1090±10Ω
Defend grade:
IP66

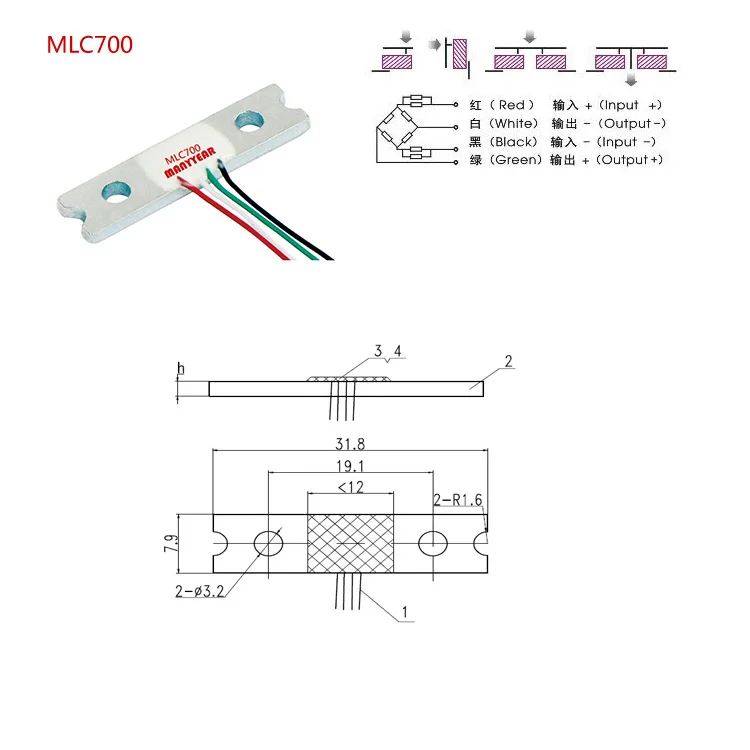

Product Assembly Structure
Blow force structure is for reference.




Product Process
for the load cell product process, include total 26 word step, take about 20days.




Product Application
this load cell can apply to pricing scale, packing scale, platform scale.




Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
