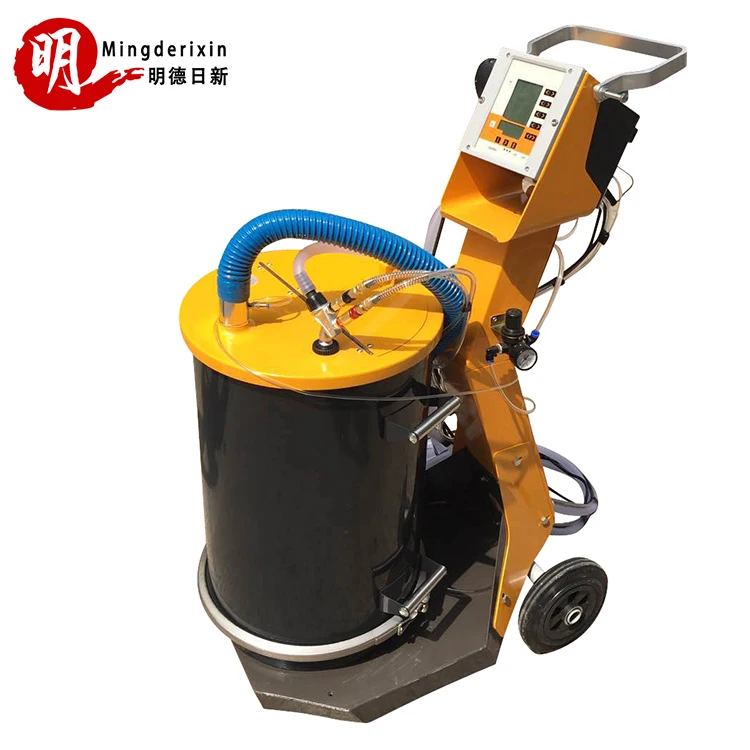

Small Manual Powder Coating Electrostatic Paint Machine

Electric Parameters

1

Supply Voltage

220-240V,customized

2

Frequency

50-60hz

3

Power

50W

4

Security Grade

IP54

5

Working Temperature

0-40C

Air Supply Parameters

1

Compressed air of main interface diameters

8meters

2

Input air pressure

4-8Bar

3

Maximum Water Content

1.3g/m3

4

Maximum Oil Content

0.1mg/m3

No.

Items

Specification

1

Structure

Packing down, easy to transport

3

Inside size

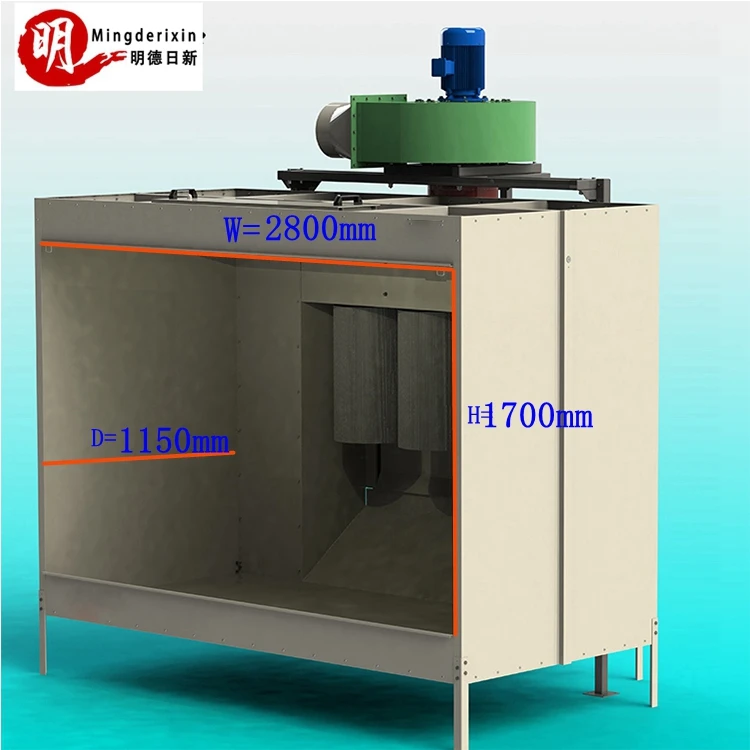

2800mm(L)*1150mm(W)*1700mm(H)

4

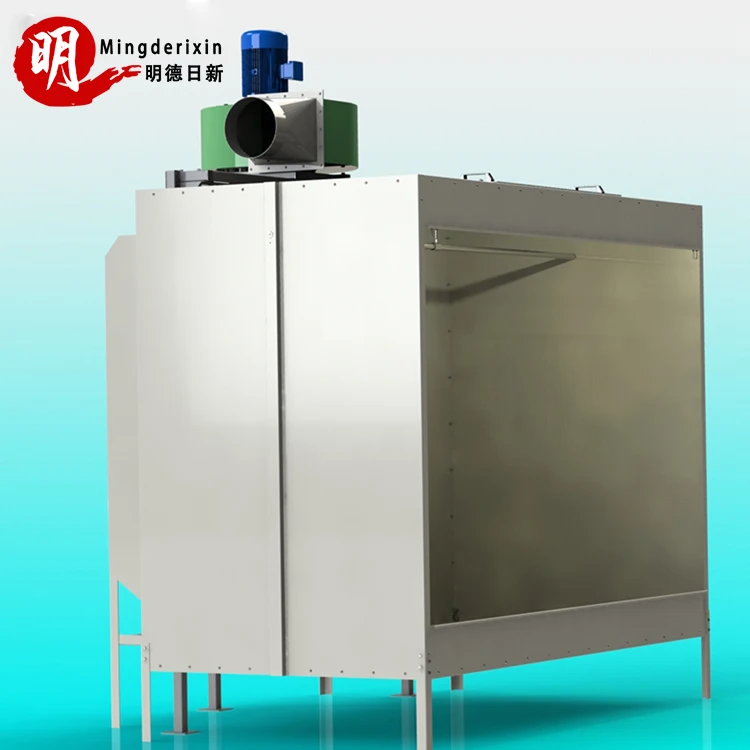

Cabin system

Made of galvanized steel ,powder coated on the surface

There is a stainless steel cross bar on the top for hanging the work piece

5

Powder recovery system

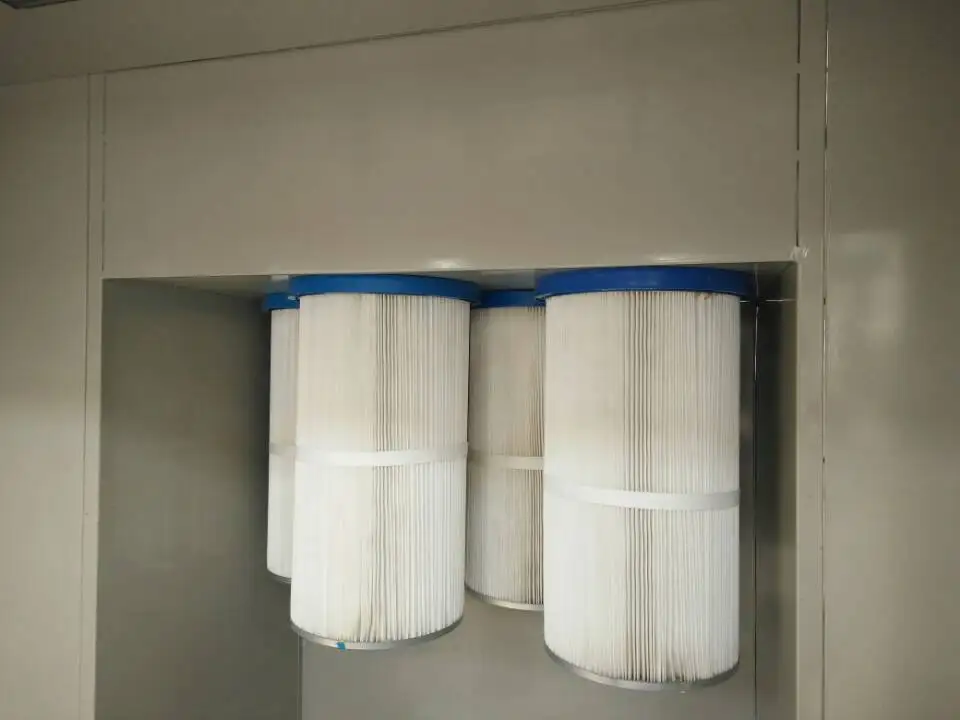

Dust filter cartridge*4pcs,each size 600mm*Φ320mm

Solenoid value *4pcs,the hole Φ20mm,DC24V

6

Circulation system

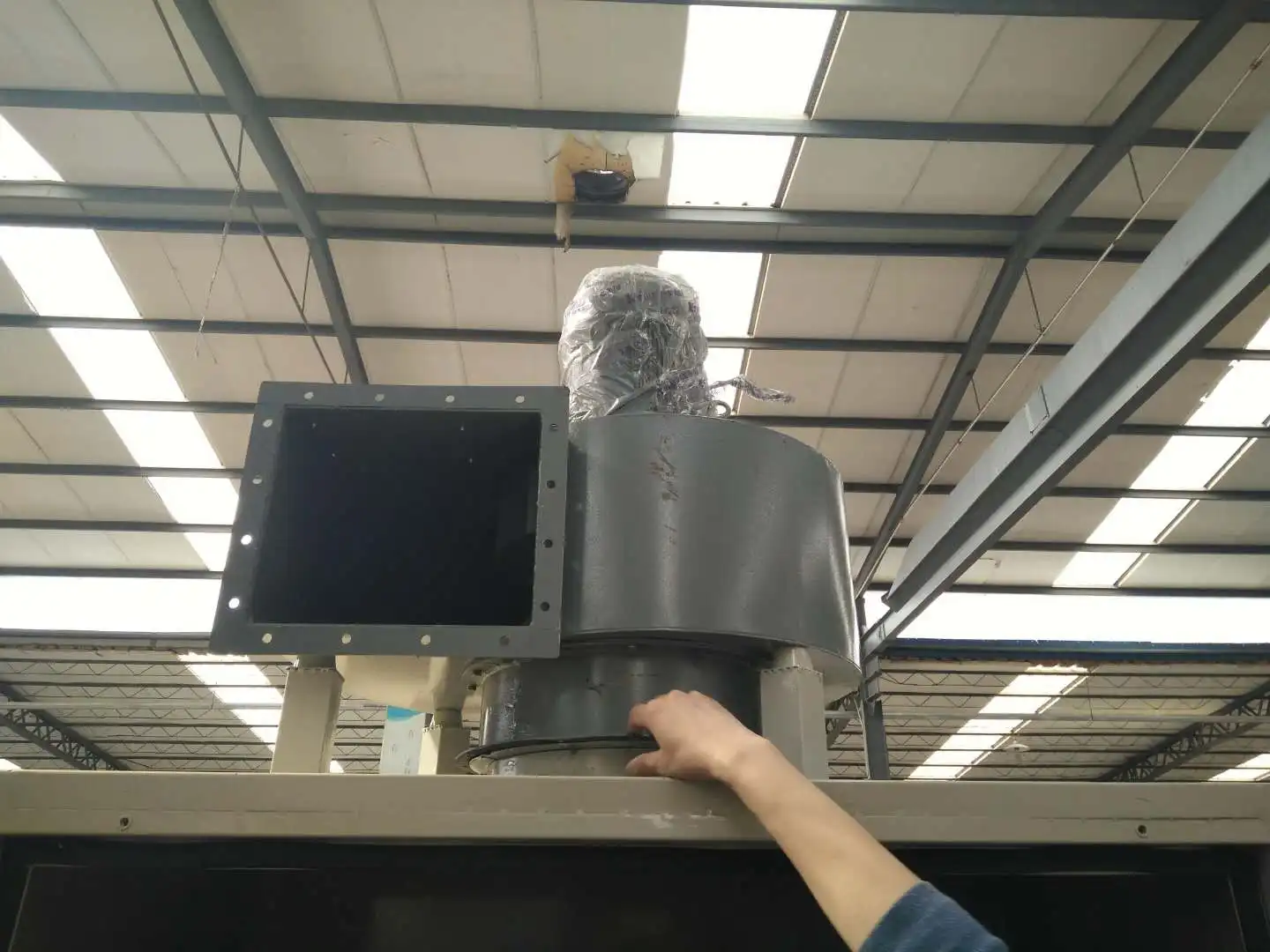

One set of centrifugal blower ,motor 5.5kw ,air flow 4000-6800m³/h

The blower connected with booth by anti-flaming soft tubes

The exhaust vent of the blower could be adjusted in four directions

7

Blower holder system

Made by 40*40 square tubes

Independent from the booth to prevent the resonance and reduce the noise

8

Lighting system

2 sets of explosion proof LED light ,each 21kw

9

Control system

One set, control the blower ,pulse blowback system and lights

10

Advantage

1. Fan independent support, and other parts of the soft connection to do so, effectively inhibit the fan noise and avoid spray system resonance, improve the working environment.

2. Selection of high-quality filter, to ensure the filtration efficiency.

3. The use of large-diameter solenoid valve to provide pulse backwash anti-blowing airflow to keep the filter for a long time to work continuously permeability.

4. Filter can be quickly removed and replaced, convenient and quick.

5.There are drawers under the recovery system ,in order to discharge the  system and clean powder quickly

Specifications

Chamber panel

Assembled insulation chamber.

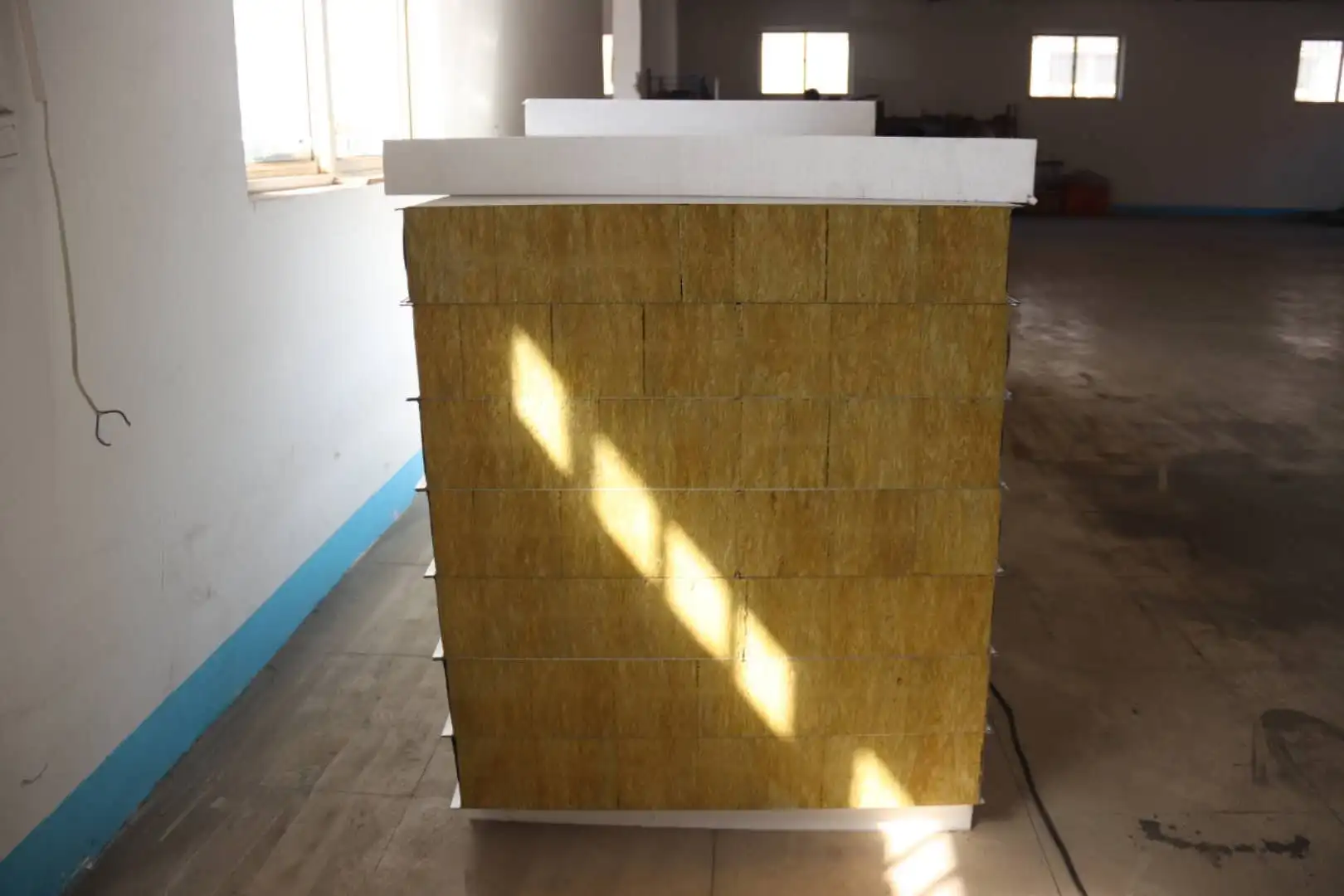

100 mm thickness Rockwool panel; 120kg/m³.

Outside is colorful steel, 0.476mm; inner surface is galvanized steel, 0.476m.

High quality rock wool board, insulation and fireproof, easy to install.

Two hinge doors, and door leaf is also made of 100mm thick rock wool panel, surrounded by 1.5mm galvanized sheet, and is firmly insulated.

Heating system

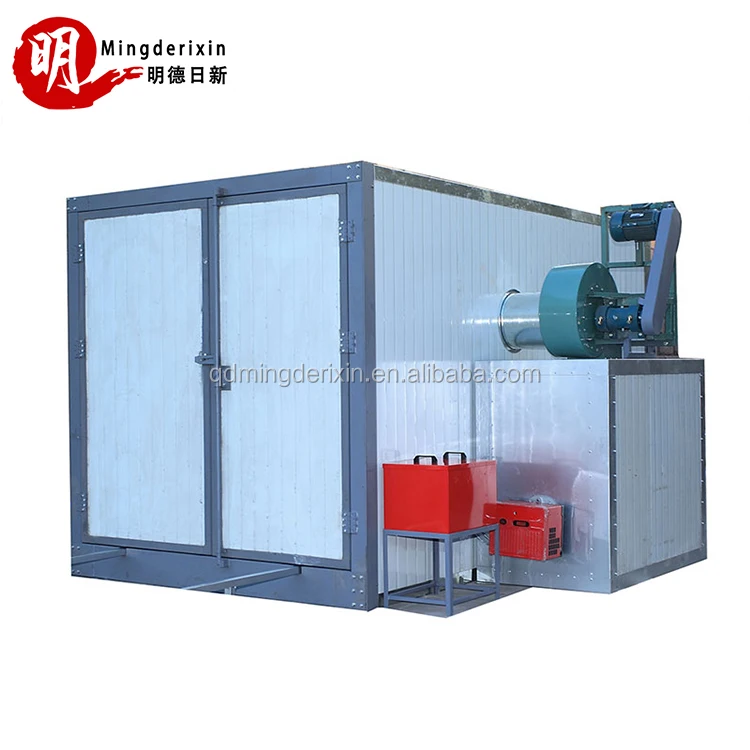

Italy Diesel Burner

Heat chamber and Heat exchange tubes are made of 304 and 316 stainless steel. With rock wool insulation.

Circulation system

With a high temperature centrifugal fan

With cooling system Cooling circulation fan bearing part.

The fan impeller is made by stainless steel. The fan bearing protection method is liquid circulation cooling protection.

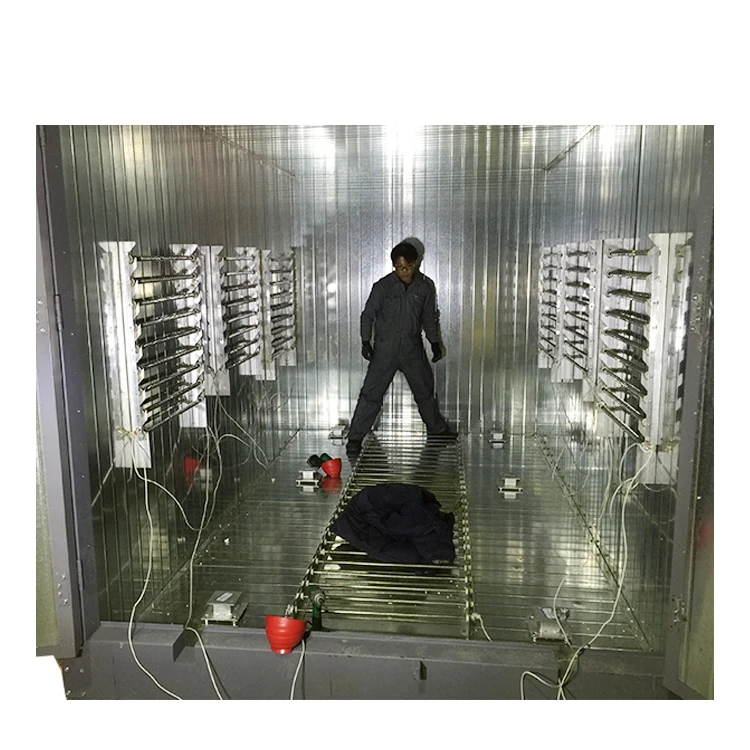

Independently adjustable hot air ducts are arranged inside the chamber to make the temperature in the curing furnace uniform.

The air duct is made by punching and bending with a 0.8mm galvanized sheet.

Guide Rail

One side equip ground rail used for workpiece entry and exit.

Optional

Transfer trolley

Control system

Microcomputer control, dual display digital temperature controller, hot air temperature and oven temperature are automatically controlled.

Fan control, heating control, temperature control, indicator lights for various items, and emergency stop.

Safety device, one set of explosion-proof relief valve, when the pressure inside the curing furnace increases, it will automatically open and discharge the excess air.
