Description：

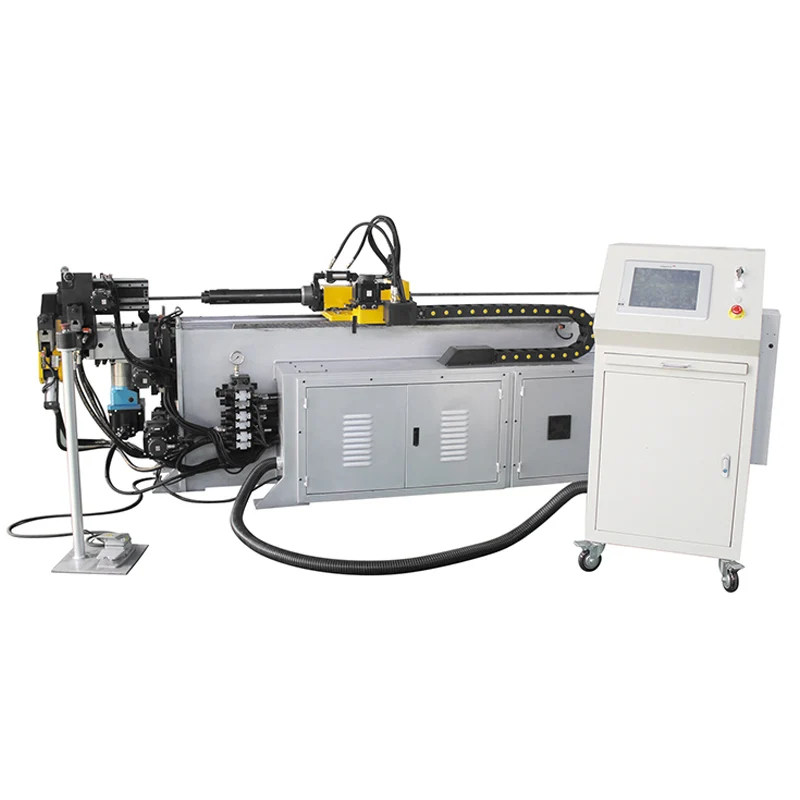

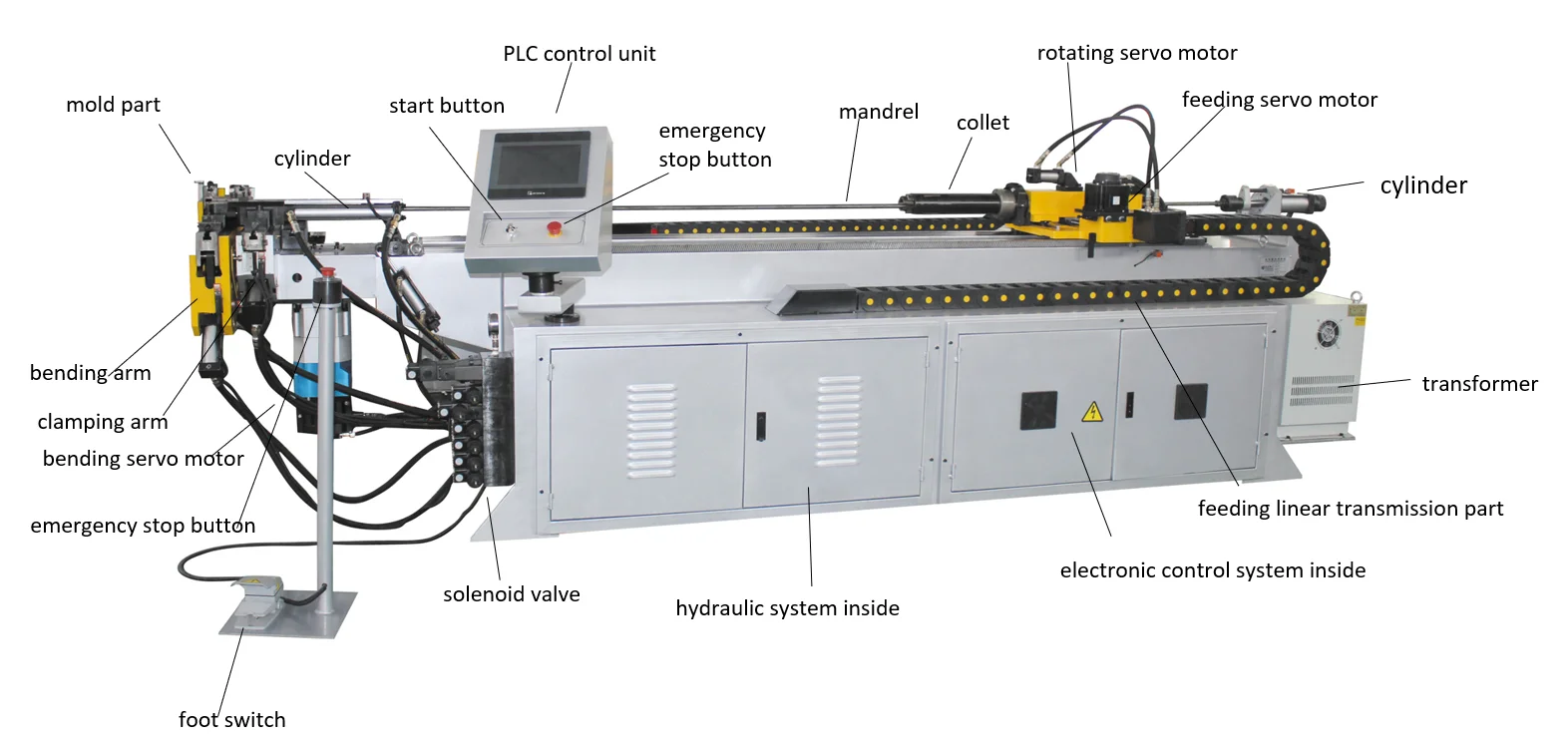

This model is a fully automatic CNC pipe bending machine, which can automatically bend, automatically feed, and automatically rotate the pipe. The four axes of feeding, rotating，bending，left-right shifting mold are precisely controlled by Mitsubishi servo motors.
Applicable materials: steel pipes, stainless steel pipes, iron pipes, aluminum pipes, copper pipes, titanium pipes, galvanized pipes, etc.
Applicable material shape: Not only can bend round pipe, square tube, rectangular tube, oval tube, but also can bend bar, profile, wire, angle iron, channel steel.
Especially suitable for the processing of pipe fittings with many spatial angles and high precision requirements. Such as: production of automobile fuel pipes, air conditioning pipes, headrests, motorcycles and bicycle frames etc.
Features:
1,Adopt Mitsubishi's servo system (servo driver, servo motor, positioning module, CPU, etc.) to accurately control the feeding, rotating and bending axes respectively, with strong performance and good stability;
2,The system can display the coordinate positions of X, Y and Z axes in real time. It has X, Z two-axis detection and alarm functions. It has the function of product quantity statistics and working hours statistics, which is convenient for production management.
3,Equipped with 10.4″ color touch screen, human-machine interactive operation, easy to understand. All the data of pipe bending can be input through the touch screen. The touch screen can be switched between Chinese and English. Other languages can also be customized;
4,It has the function of automatically detecting errors and faults. When any abnormal action or any danger occurs, the machine will immediately stop and issue an alarm to help the operator eliminate the fault;
5,The linear transmission part of the feeding part is composed of imported high-precision ball screw and high-quality wear-resistant linear guide rail, which ensures the accuracy of feeding and the sufficient service life of the machine.
6,The bending arm adopts imported high-strength silent chain transmission, controlled by oil cylinder, which ensures the power of the bending pipe is abundant.
7,The hydraulic system mainly uses imported brands. The hydraulic circuit has cooling and speed adjustment devices, which are powerful, stable and durable.
8,Mitsubishi ultra-large CPU can accommodate multiple sets of file editing. Each file can be set with 20 bend angles, and the memory can store multiple sets of files, which facilitates the processing of a wide variety of products and greatly improves production efficiency;
after the data is edited, it is protected by a key to prevent the data from being modified arbitrarily; 9,With power-off memory function, data can be permanently saved.
10,Manual, semi-automatic, and fully automatic operation modes can be set. When trying to bend, you can choose to manually resolve the movement, observe the interference point, and modify the movement.
11,For each bend, the three axes of feeding, rotating and bending can be set to move together or not to avoid interference points, thereby improving production efficiency.
12,Each bend can set rebound compensation value and demoulding clearance according to different material.
here are two kinds of feeding methods: direct feeding and pinch feeding. When no mandrel, the pinch feeding method can be used. The feeding can be repeated, and the length of the workpiece is not limited.
13The setting of the waiting position, safe position, bending die interference position, pressure die interference position, etc. can all be fine-tuned.
16/Equipped with servo proportional valve to control the flow is not affected by the oil temperature, high precision and stable equipment.

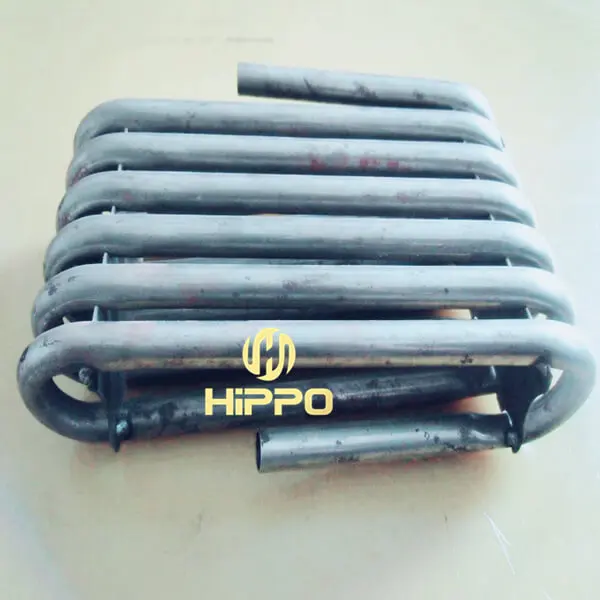

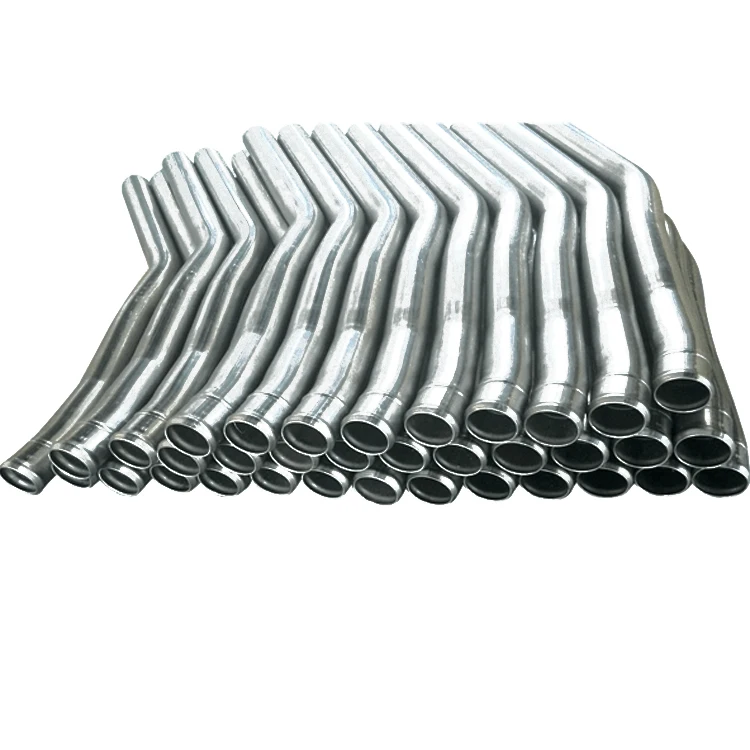

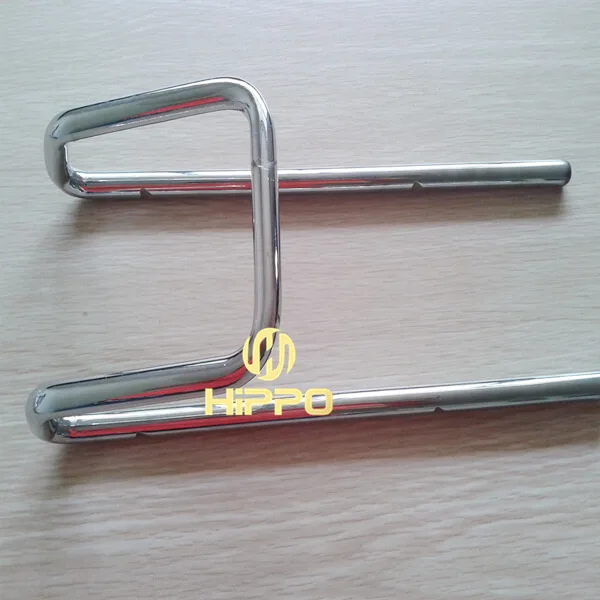

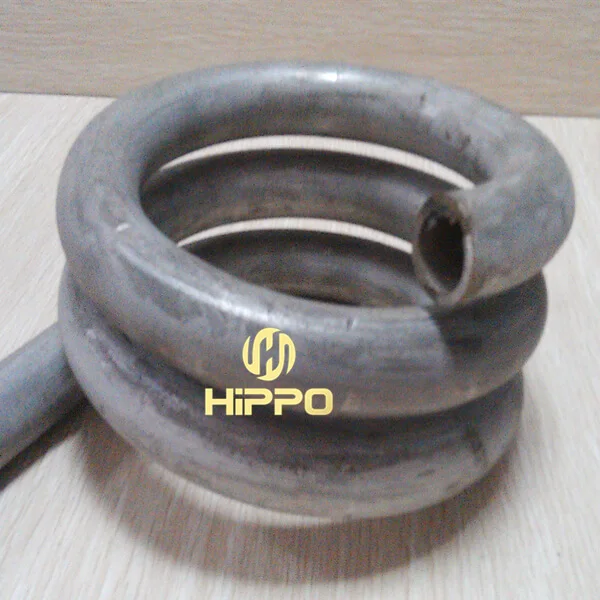

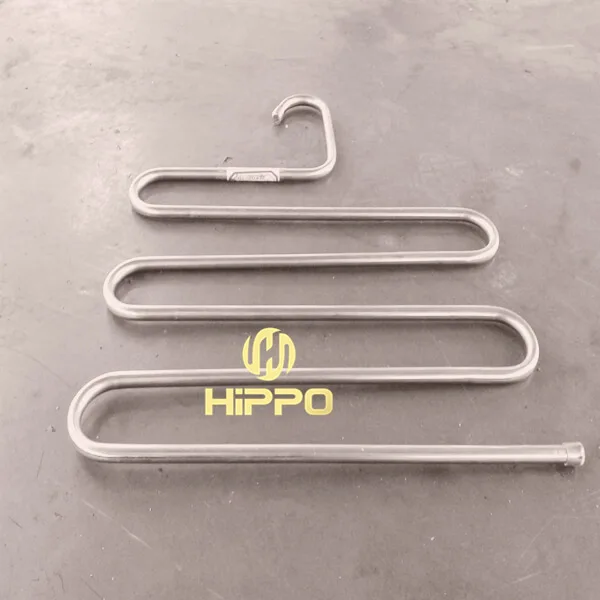

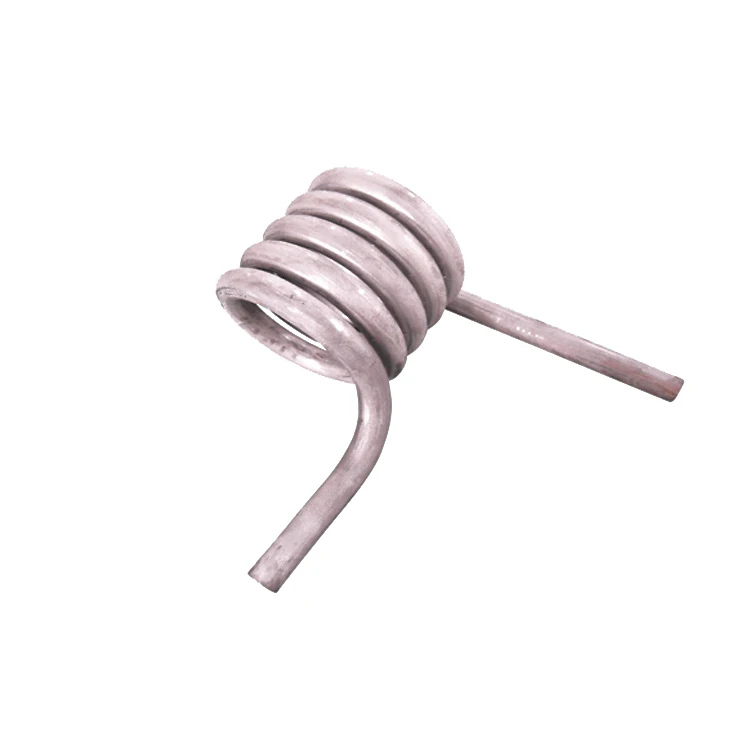

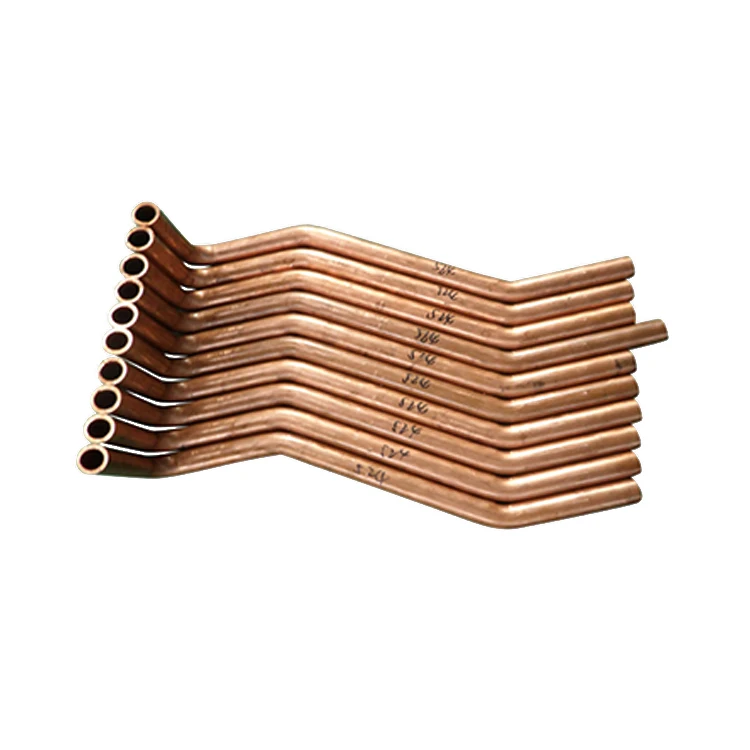

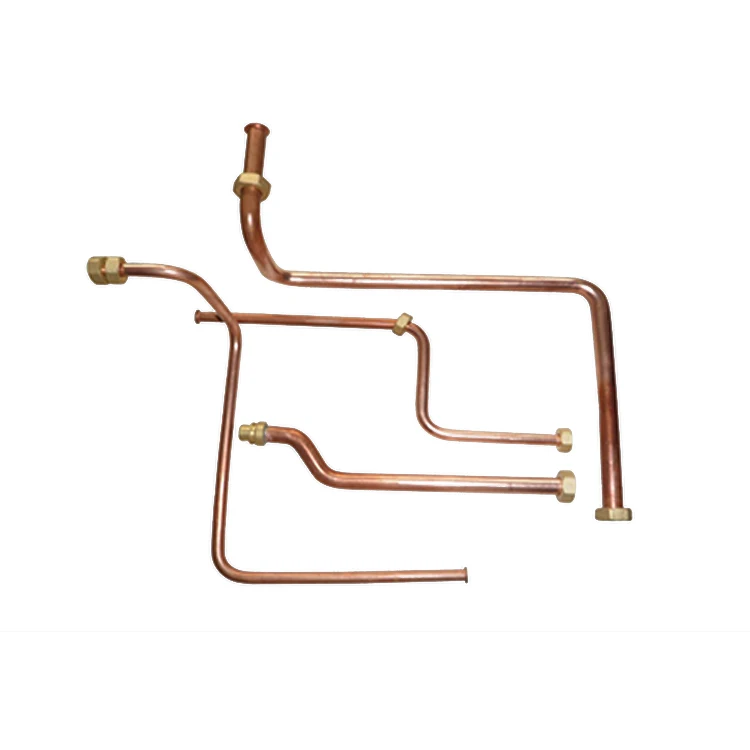

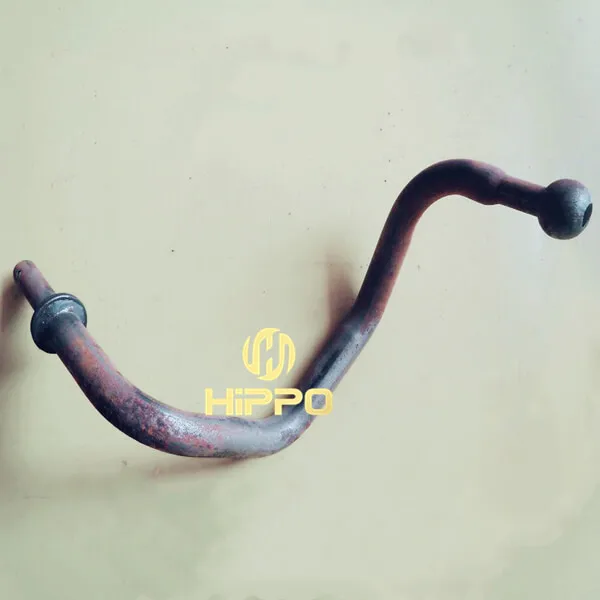

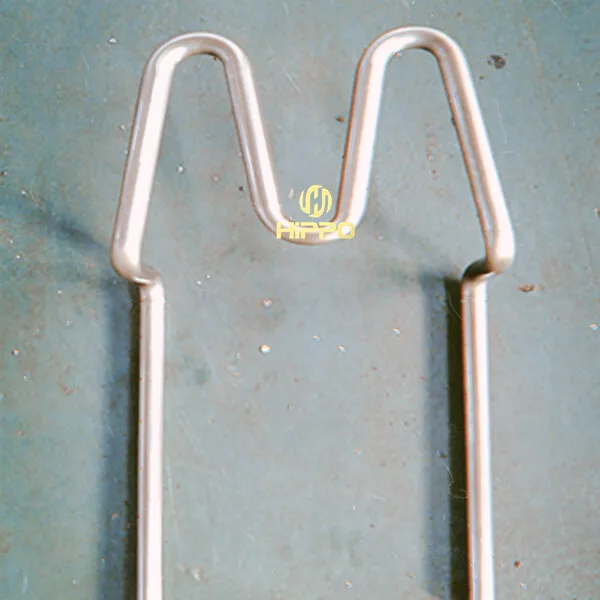

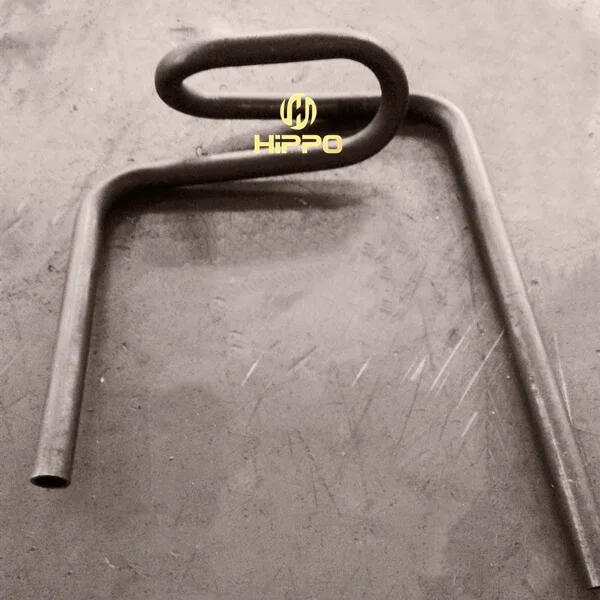

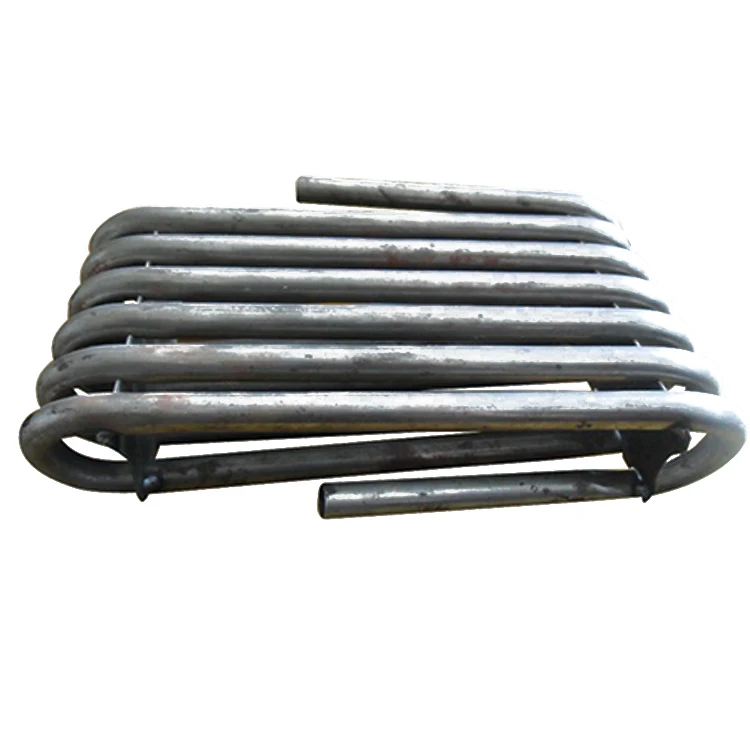

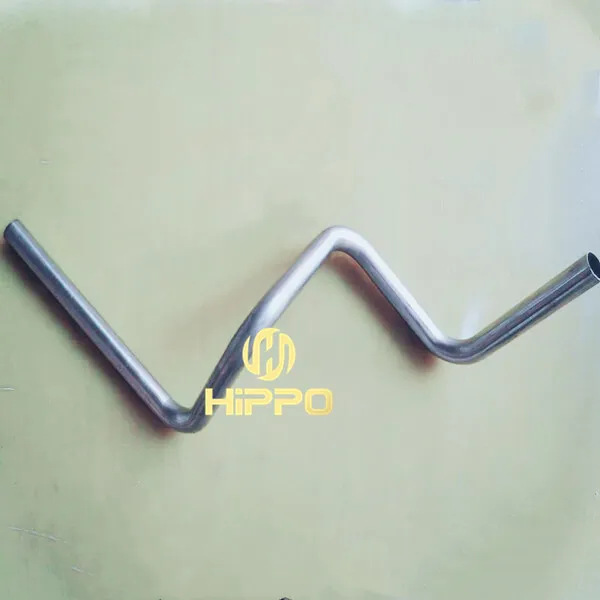

Sample Dispaly
Applications： 1）furniture/chair/school desk 2）car engine oil tube/ car seat frame/ car headrest/ car exhaust muffler pipe/ car bumper /car turbo horse/ car towbars /car hood support rod/ car air conditioning pipe/ car door lock lever/car brake pipe 3）heat exchanger/ condenser/boiler 4）baby stroller/wheelbarrow/bicycle handlebar/ luggage case frame/fitness gym equipment
Parameters
SB38CNC-TDR-4A
Control system
PLC control
Max bending capacity
Φ38x2mm
Bending radius
25～150m
Bending angle
0～195°
Max effective mandrel length
2000mm
Bending speed
90°/sec（can be adjusted）
Bending accuracy
±0.15°
Bending servo motor power
3500w
Feeding speed
200～1000mm/sec（can be adjusted）
Feeding accuracy
±0.2mm
Feeding servo motor power
1000w
Rotating speed
300°/sec
Rotating accuracy
±0.15°
Rotating servo motor power
400w
Left-right shifting servo motor power
750w
Total power
8KW
System hydraulic pressure
12MPa
Cooling system
water cooling
Size
3600×1100×1300mm
Viedo Watching
Tools：
will choose based on your pipe materials
What We Can Bend
Our Service

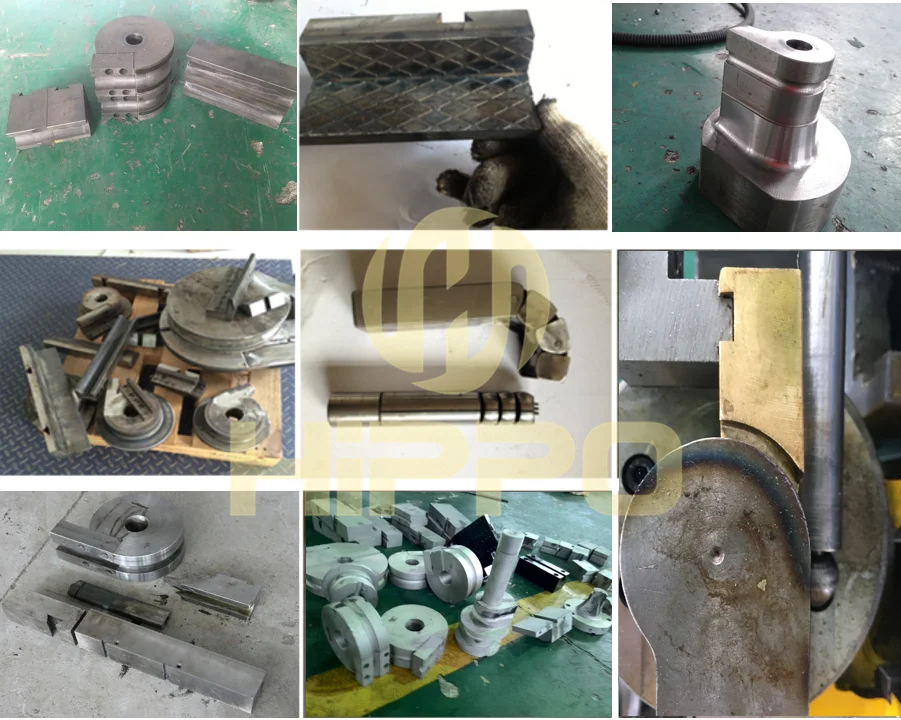

Standard tools: bending die, clamping die, pressure die.
We can provide optional tools: wiper die, mandrel. Effectively control the deformation and wrinkling of the processed pipe during bending
Tools material: mainly selected according to the pipe material and the bending difficulty. Common materials are 45#, Cr12, industrial nylon, 42MrMo, copper. Generally, we use 42MrMo,it’s vacuum quenched, the surface is nitrided, and the hardness of the mold surface is not less than HRC55 to ensure the wear resistance of the mold.
Tools size: customized according to the bending radius of different pipes. Multiple layers of molds can be installed to achieve multiple bends with different bending radii on one pipe.
We will debug all the bending tools, and the customers can use them directly, just need to change different tools by themselves, and the change is simple and convenient.
Optional device: 1. Push bending function, punching hole function, pipe cutting function 2. Automatic loading and unloading device. 3. IPC industrial computer type built-in WINDOWS operating system 4. Safety cover and safety mat to improve safety factor
