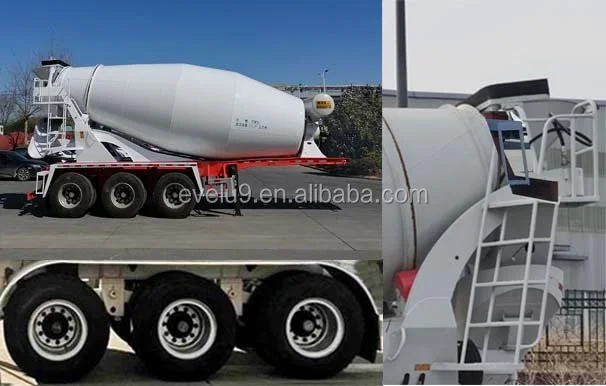

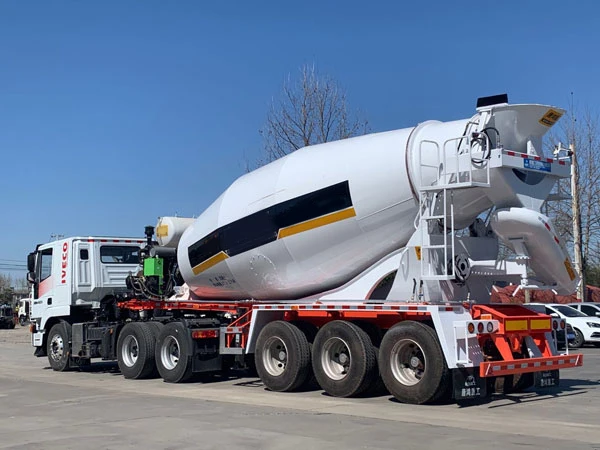

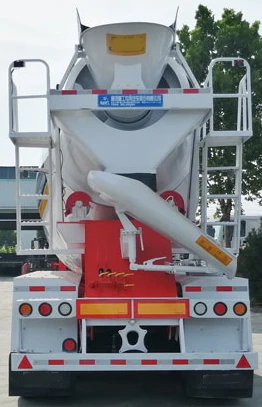

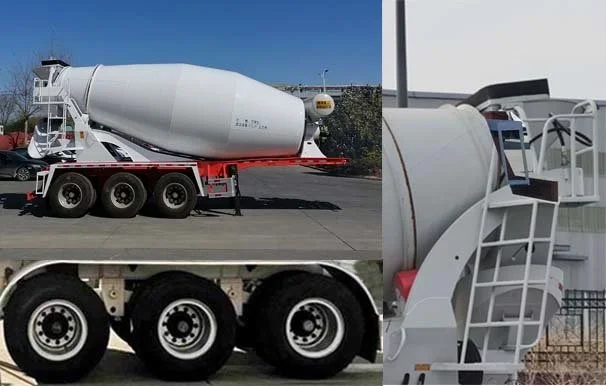

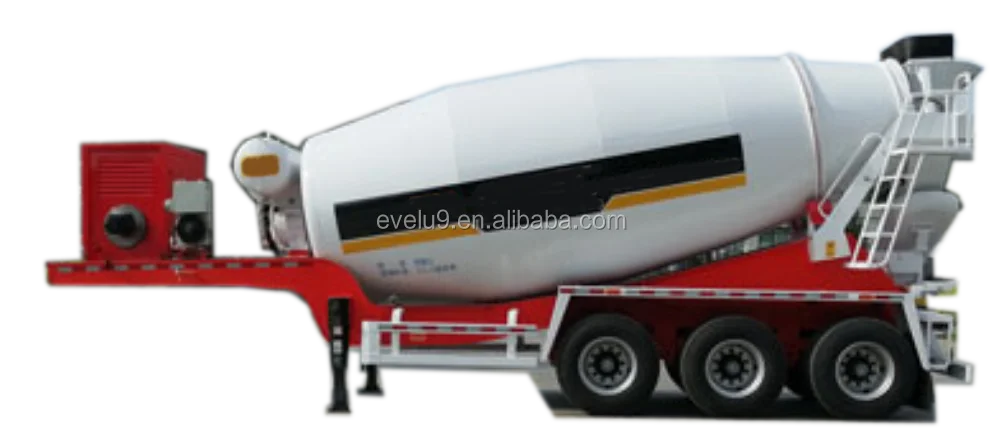

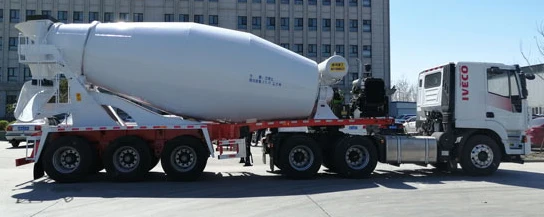

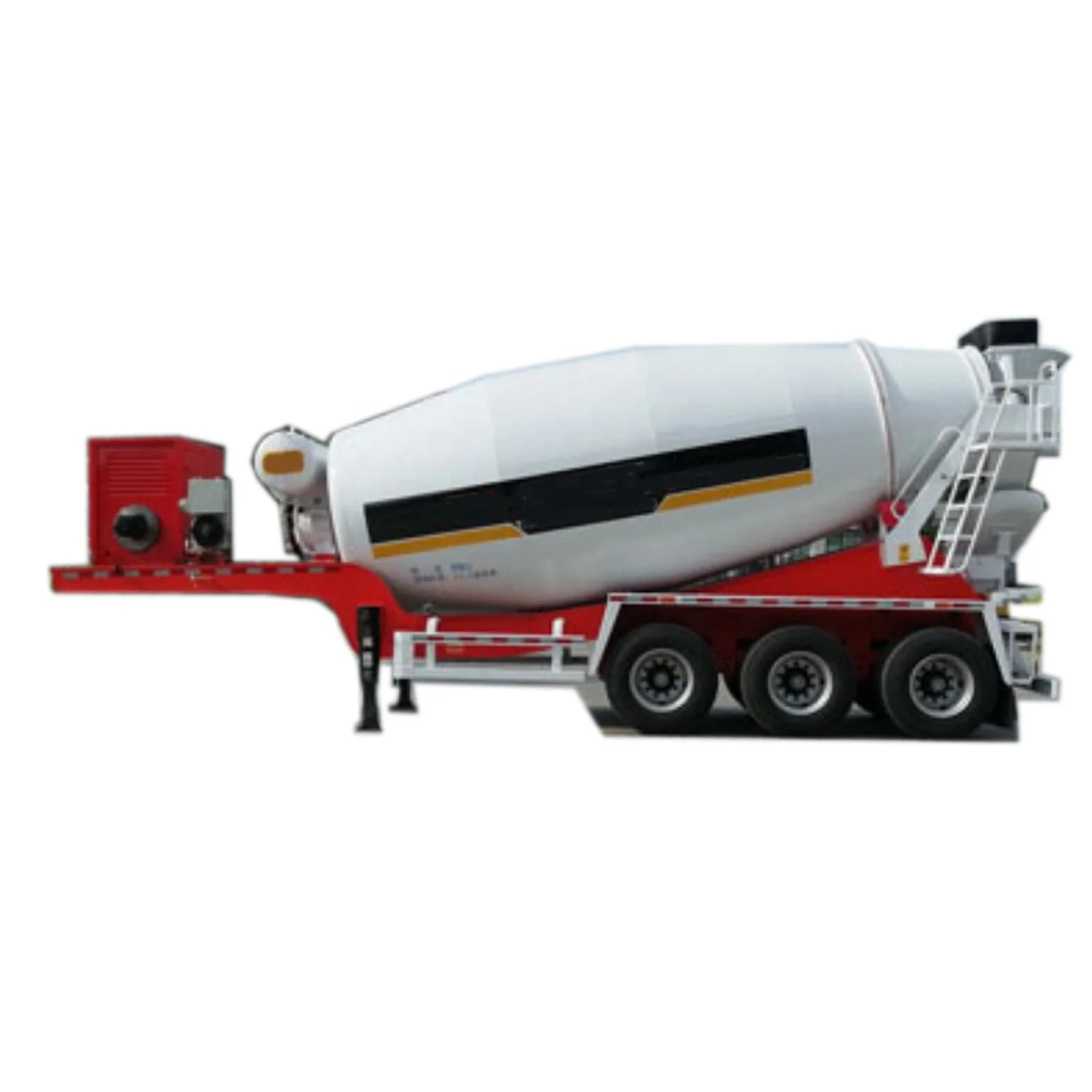

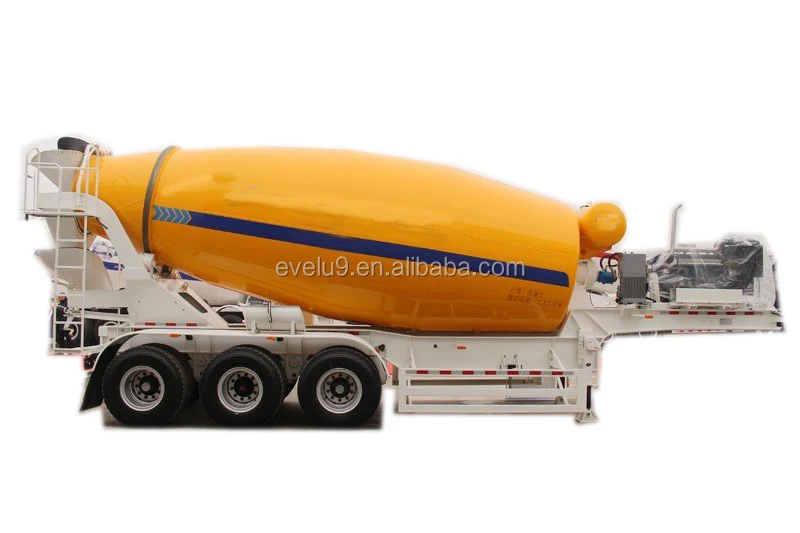

14 M3 tri axle concrete mixer semi trailer

Product Overview

Description



Product Description

Concrete mixer trailer,The concrete mixing and transporting trailer is a trailer used for concrete transportation, and needs to be matched with a tractor to transport. This trailer can choose to configure the diesel engine drive, or obtain rotary power from the tractor. High transportation efficiency and low investment.

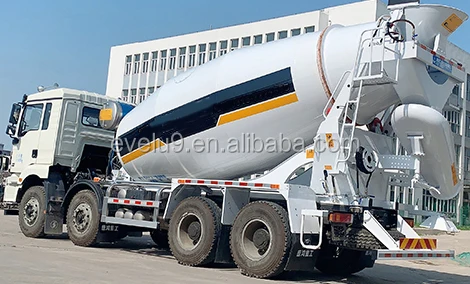

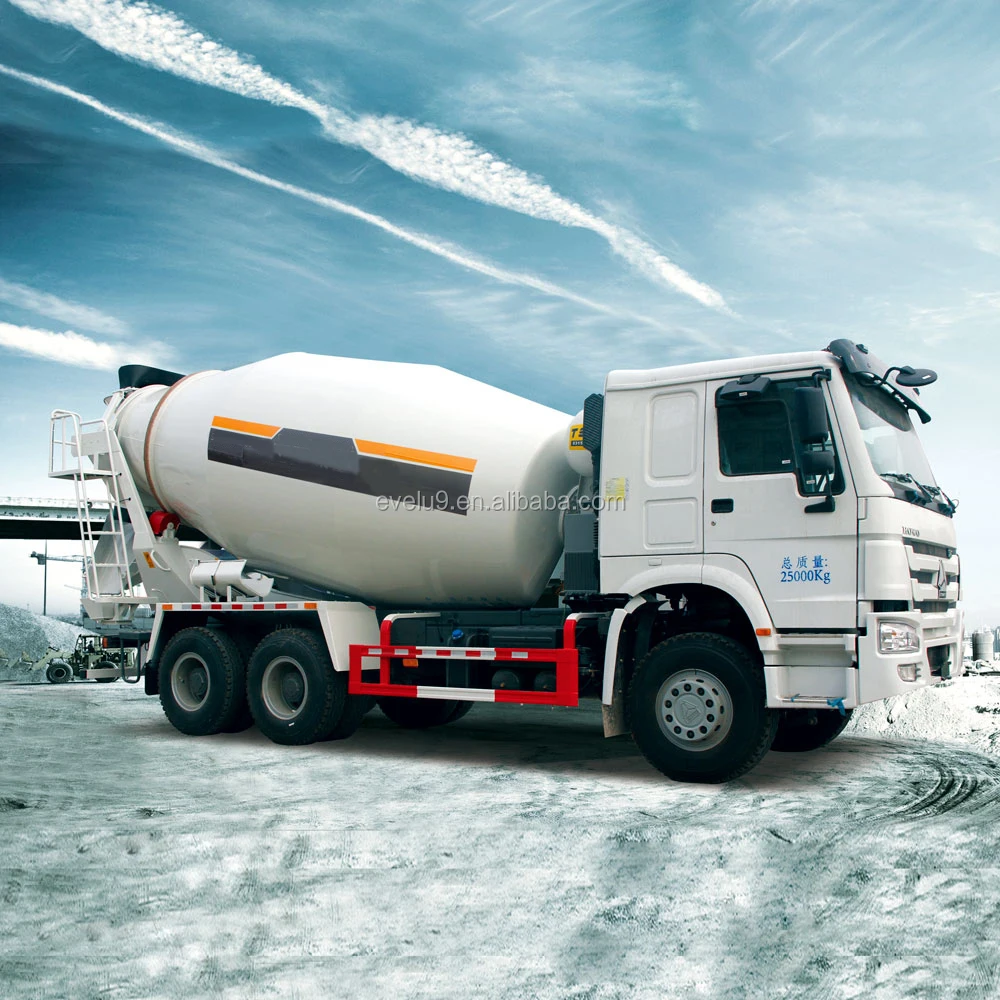

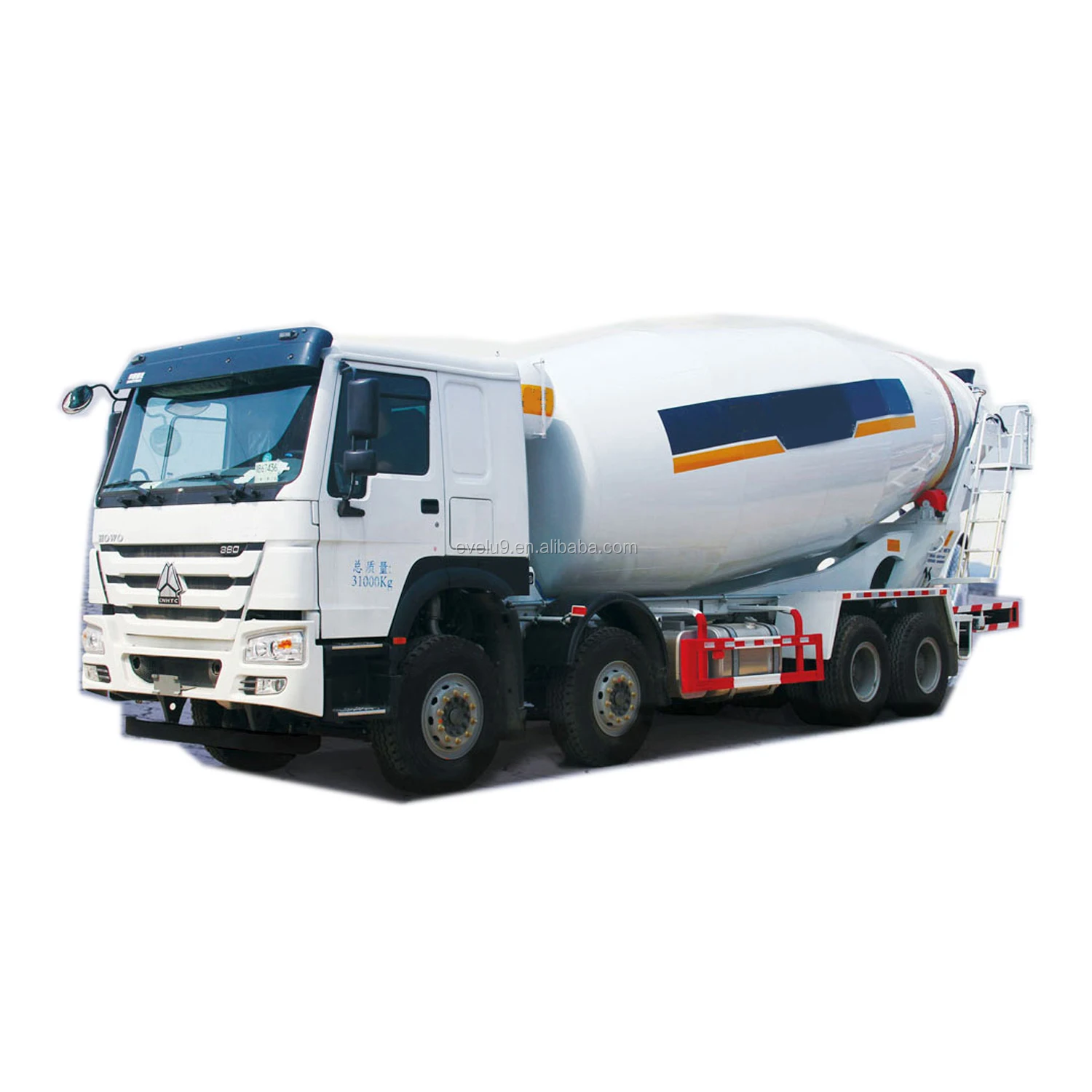

Concrete mixer truck, also called cement mixer,concrete mixer, concrete agitator truck,Concrete transport truck,it's a special truck used to transport concrete for construction.

These trucks are equipped with cylindrical mixing drums to carry mixed concrete.During transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.

Our commercial concrete mixer truck is used for mixing and transporting large volumes of concrete between 3 – 16 m3 for use on a building site.



Product Paramenters



Vehicle model		XT9401GJB	XT9400GJB
Main Technical Specification	Agitating capacity(m³)	14-16	15-20
	Dimension (L*W*H) (mm)	9620/8500*2550*3990	10060*2550*3990
	Curb weight(kg)	9670/9070	10400
	Charging Speed	≥ 3 m³ /min	≥ 3 m³ /min
	Discharging Speed	≥ 3 m³ /min	≥ 3 m³ /min
	Rolling Speed	0~14r/min	0~14r/min

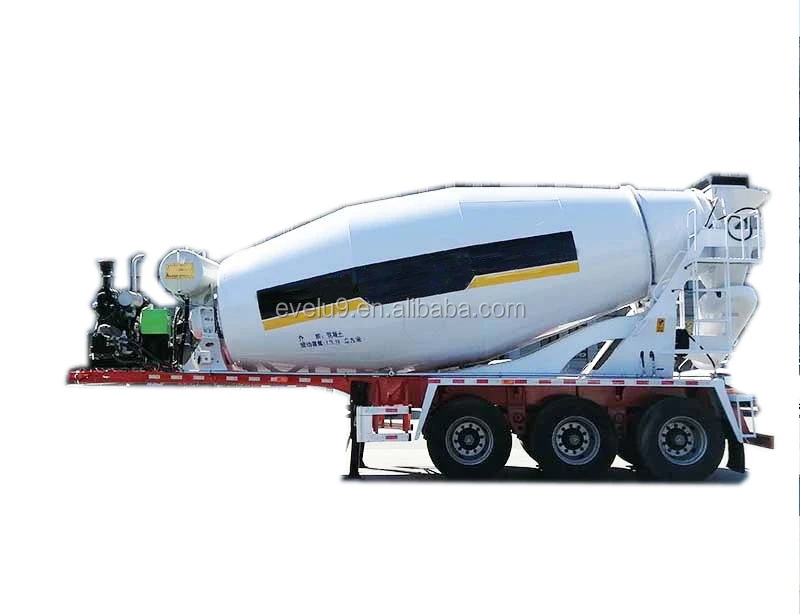

Engine	With engine	Optional	Optional
	Axle	3	3
	Wheel base(mm)	1800+3000+1400	1800+3000+1400
	Tire	12.00R20	12.00R20

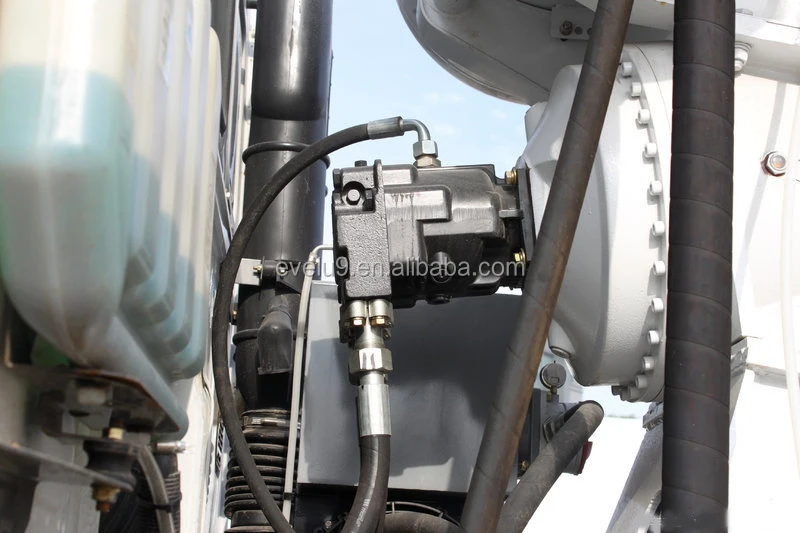

Hydraulic System	Reducer	PMP8Y/PMP9Y(Italy)	PMP8Y/PMP9Y(Italy)
	Hydraulic pump	SAUER-DANFOSS/Rexroth /IPH(Italy)/PMP(Italy)	SAUER-DANFOSS/Rexroth /IPH(Italy)/PMP(Italy)
	Hydraulic motor	SAUER-DANFOS/SRexroth //IPH(Italy)/PMP(Italy)	SAUER-DANFOS/SRexroth //IPH(Italy)/PMP(Italy)
Water tank	Water tank capacity	300L/400L	400L











Product Advantages

1.The hydraulic system uses internationally renowned brands, such as Italy PMP,USA SAUER-DANFOSS, Germany Rexroth, Italy IPH, etc., with good reliability and long life.

2.Equipped with high-strength rear axle, strong bearing capacity; with Wheel Reductor, Strong climbing ability ;free of disassembly and maintenance, saving labor and saving money.

3.The classic driving room has good soundproofing effect and the whole is more solid and safer! Luxury center console, luxury mobile home.

4.Create the best profit model with high speed, high efficiency, high reliability and fuel economy.

5.Efficient stirring technology.

6.Comprehensive reliability improvement of key components.

7.More convenient details application.
