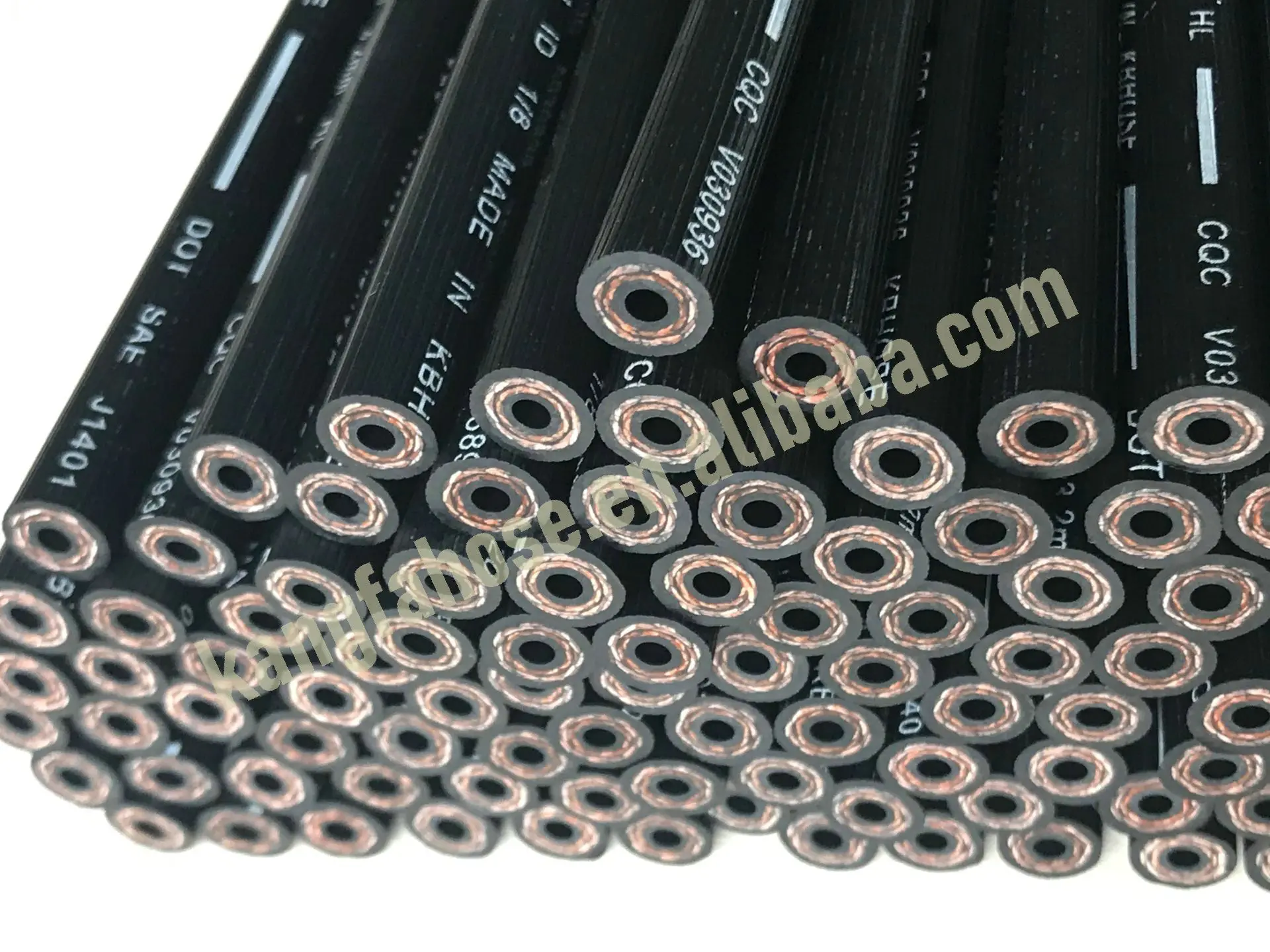

SAE J1401 DOT 1/8 HL Hydraulic Brake Hose

Share on (1600077920512):


Price:

Quantity:


Product Overview

Description


Product Description
Hydraulic brake hose

Application:
A flexible conduit manufactured for use in a brake system to transmit and contain the fluid pressure medium used to apply force to the vehicle’s brakes.
Construction:
Tube: NBR rubber formula with perfect brake fluid compatibility.
Reinforcement: High tensile braided fiber.
Cover: Black weather-,aging-resistant EPDM rubber
Working Pressure: 276 bar
Working Temperature: -40~+120℃.
Standard: SAE J1401


Specification:
ID
OD
Working Pressure
Burst Pressure
mm
mm
BAR
BAR
3.2
10.5
276
490
4.8
12.5
276
345
Product Name
Hydraulic Brake Hose
Standard
SAE J1401
Size
3.2*10.5mm
Working Pressure
276 bar
Working Temperature
-40~+120℃
Single Length
5meter or 30-150meter

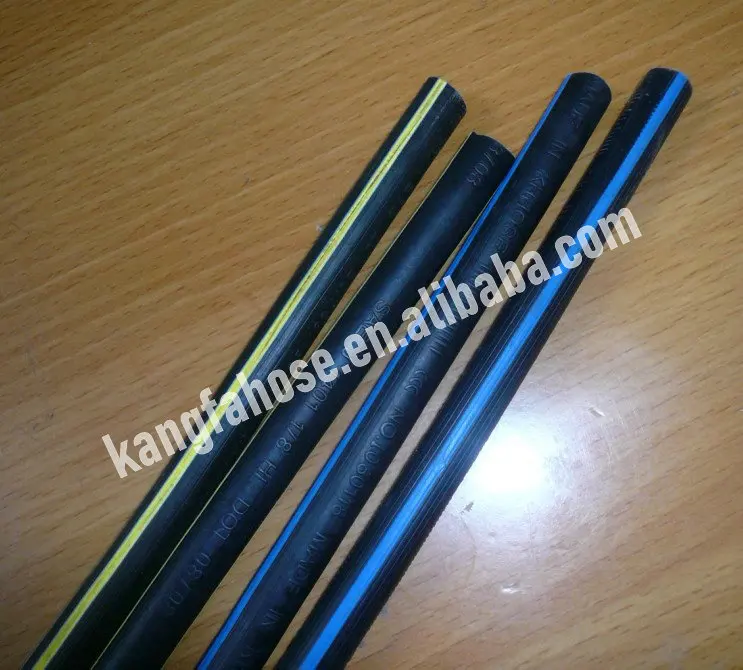

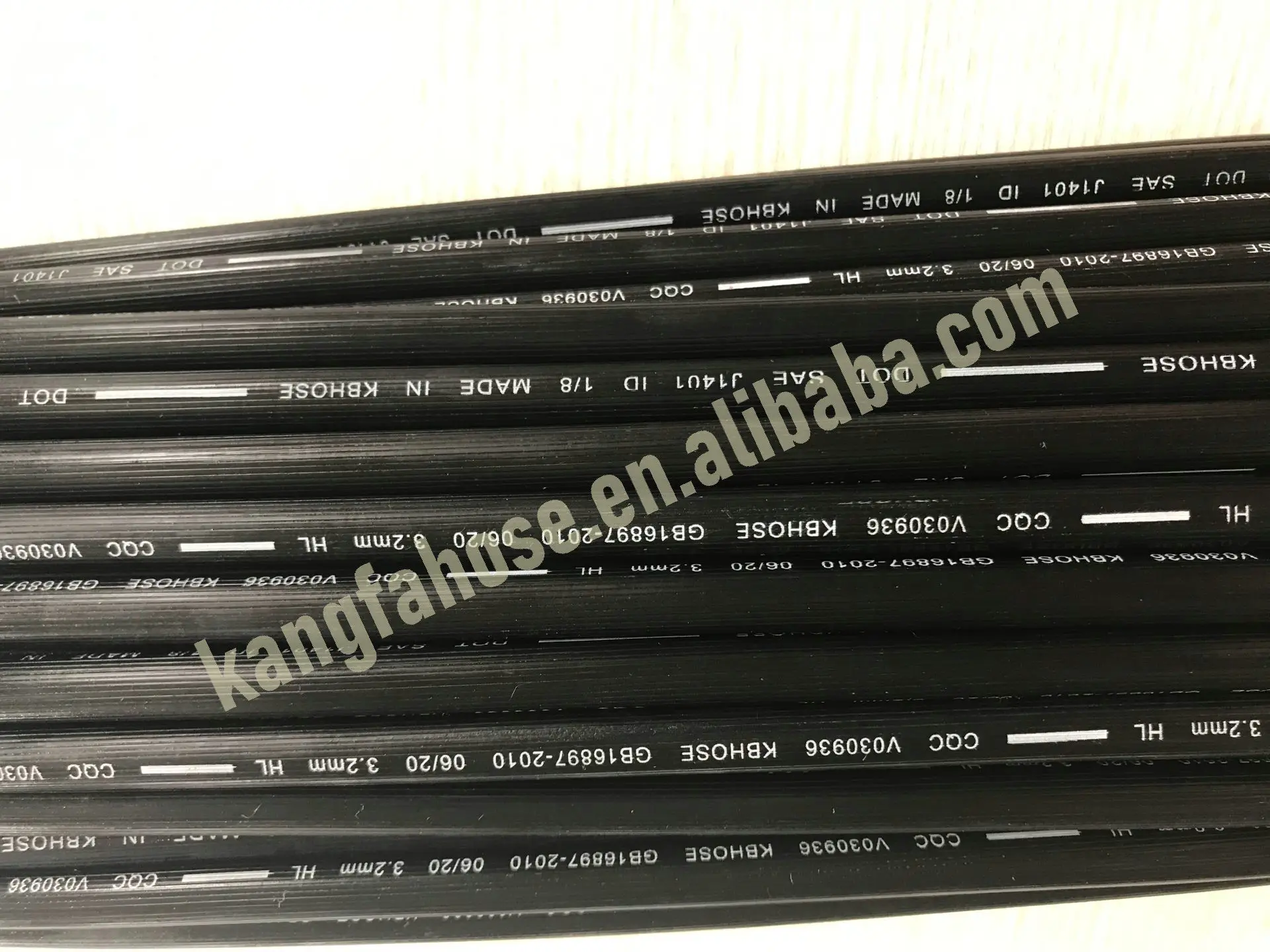

Detailed Images
Size Information
Hydraulic Brake Hose
ID
OD
Working Pressure
Burst Pressure
mm
mm
BAR
BAR
3.2
10.5
276
490
4.8
12.5
276
345
Related Products
Packing&Shipping
Packing:After finishing the hydraulic brake hose production, we will pack the hose. In general, the packing will use woven bag and plastic film or carton packing.
Special packing is available according to customers' requirements.
Company Introduction

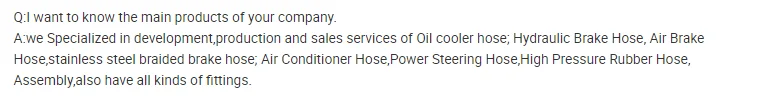

FAQ
