Product Overview

Description

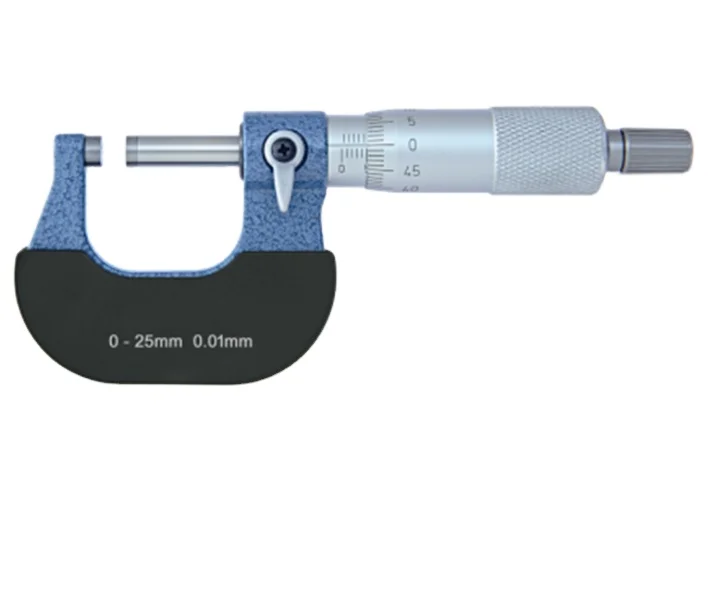

High Quality Outside Micrometer



Feature:



1. Carbide measuring faces.

2. Painted frame

3. Resolution:0.01mm(Metric);0.001"(Inch)



Specification

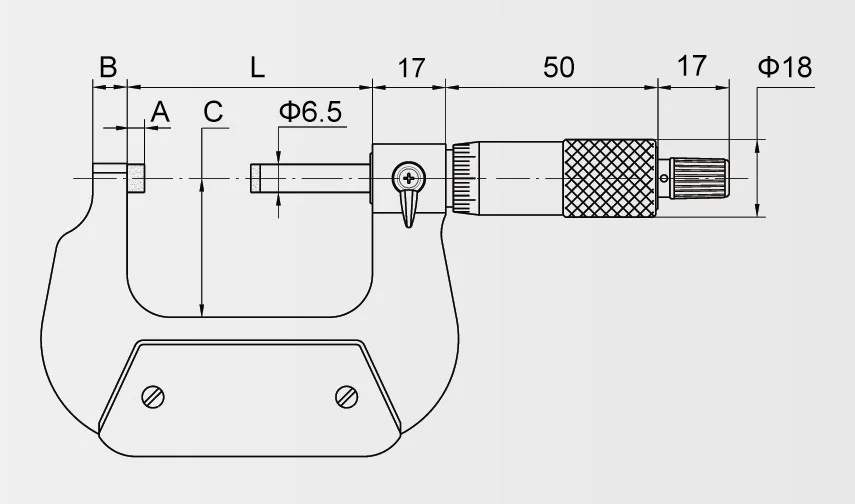

Item No	Model	Accuracy	A	B	C	L
720153	0-25mm	0.004mm	3mm	6mm	24mm	32mm
720154	25-50mm	0.004mm	3mm	8mm	32mm	57mm
720155	50-75mm	0.005mm	3mm	8mm	45mm	82mm
720151	75-100mm	0.005mm	3mm	8mm	57mm	107mm
720156	100-125mm	0.006mm	3mm	8mm	70mm	133mm
720157	125-150mm	0.006mm	3mm	8mm	82mm	158mm
720158	150-175mm	0.007mm	3mm	8mm	95mm	183mm
720159	175-200mm	0.007mm	3mm	8mm	107mm	209mm

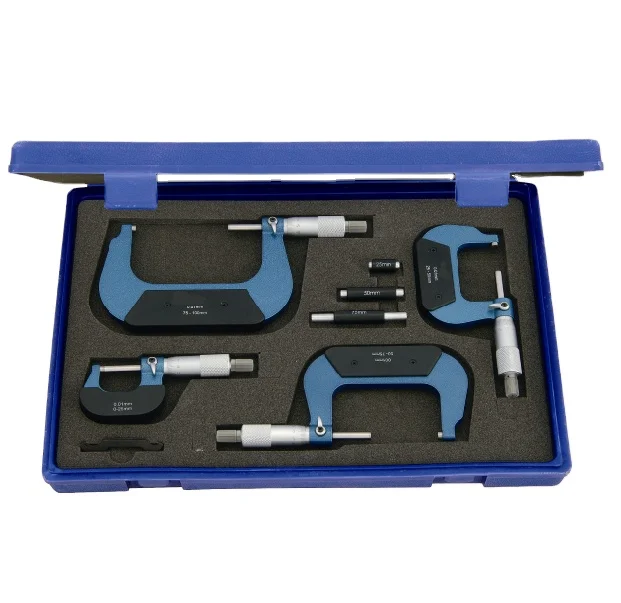

Micrometers Sets



Item No	Range	Pieces
720131	0-75mm	3
720133	0-100mm	4
720135	0-150mm	6
720140	0-200mm	8
