Full Auto Double Shaft Automatic Tyre Recycling Machine/Waste Tire Recycling Equipment
- Category: >>>
- Supplier: Xuchang Hongshuo Machinery Co. Ltd.
Share on (1600078090490):
Product Overview
Description
Product Description

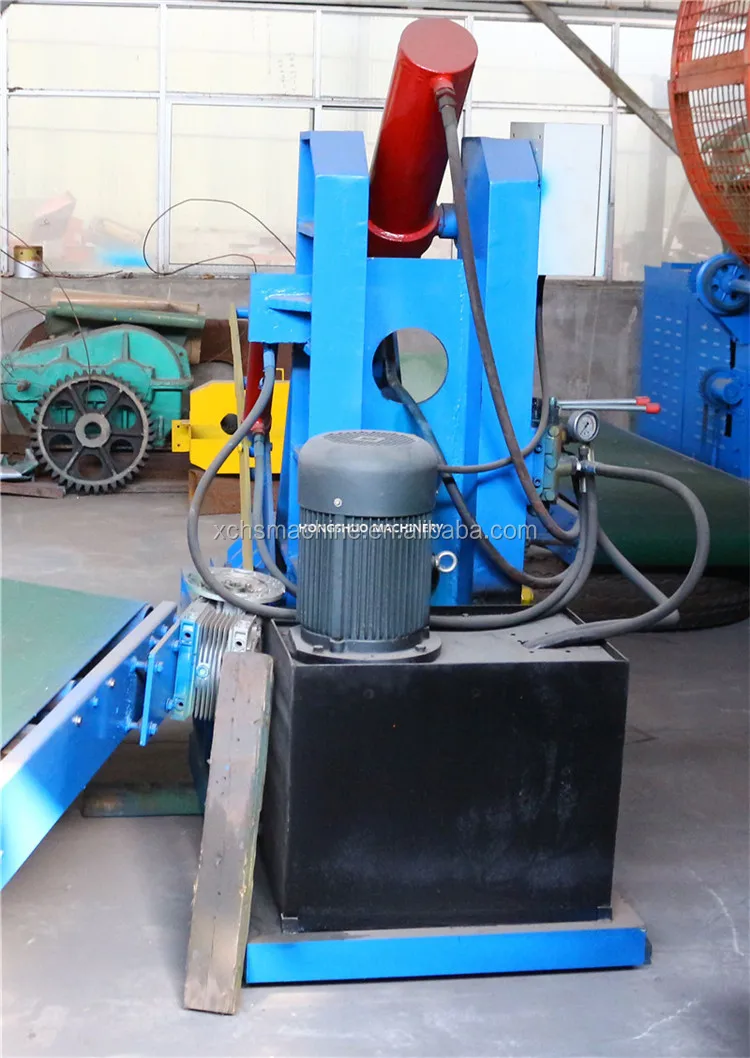

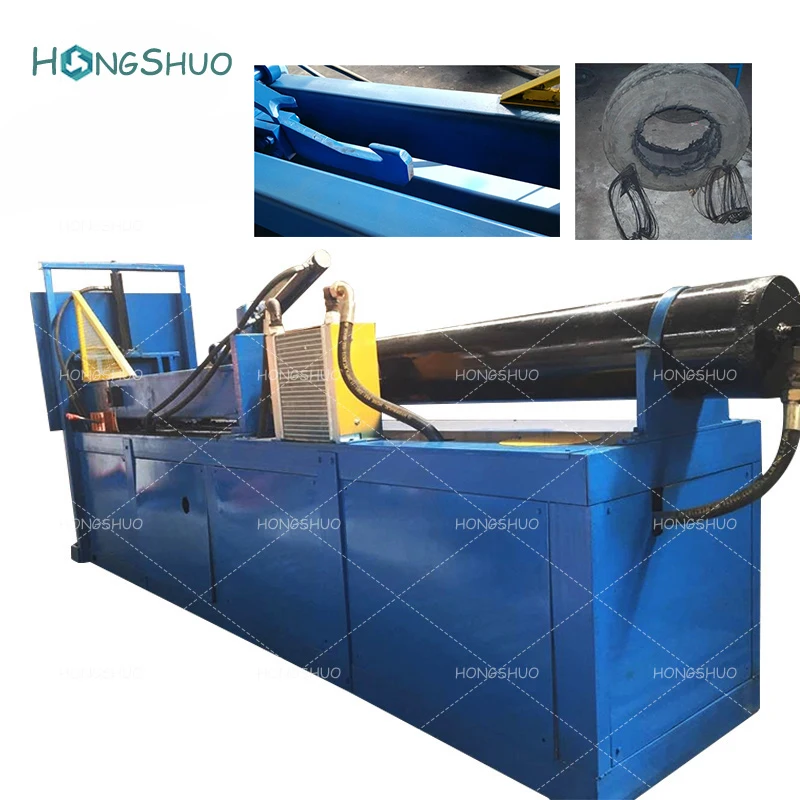

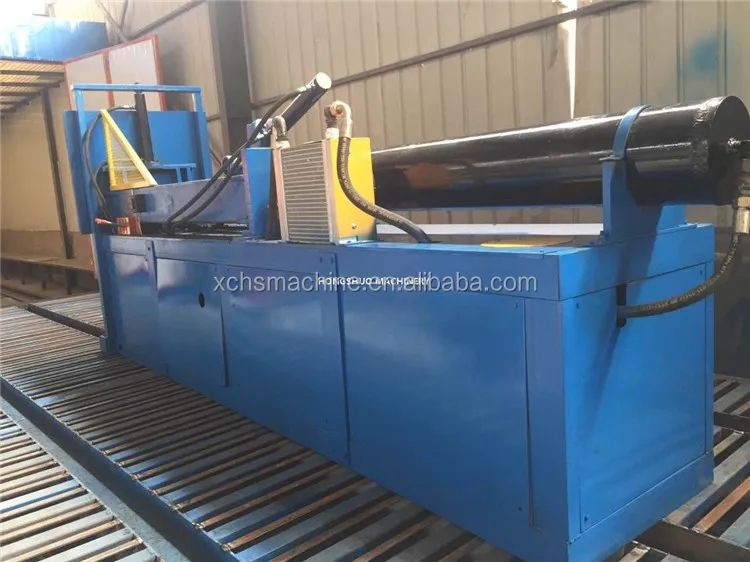

1.TD-1200Tire wire drawing machine
(To draw out the rim steel from tire bead)
Feed size of tire(mm) | ≤φ1300 |
Capacity(tires/h) | 30-40 |
Power(KW) | 11 |
Overall dimensions(m) | 4.1*0.9*1.7 |
Equipment weight (T) | 1.8 |

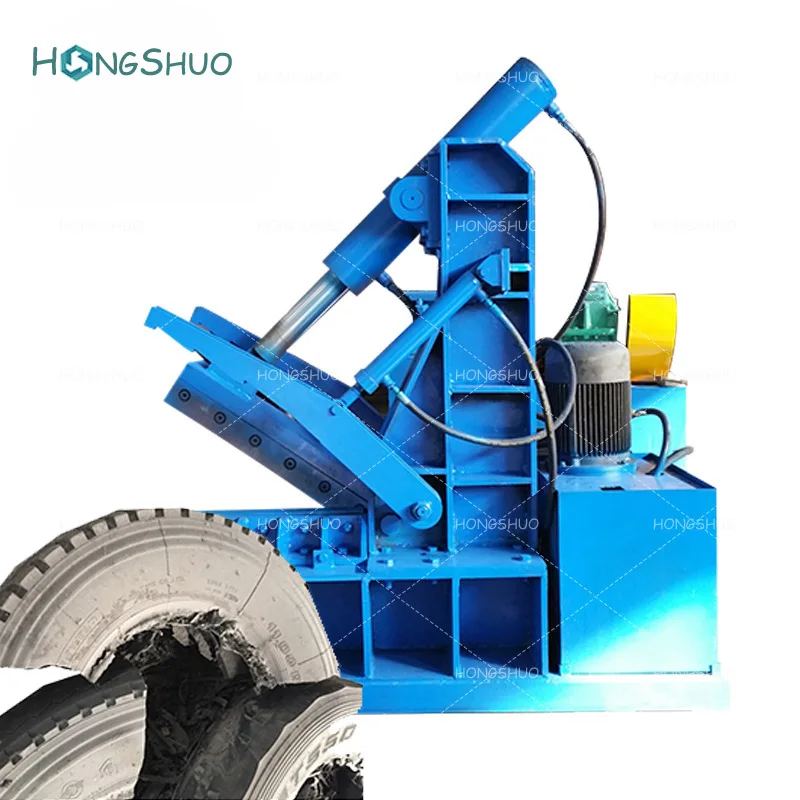

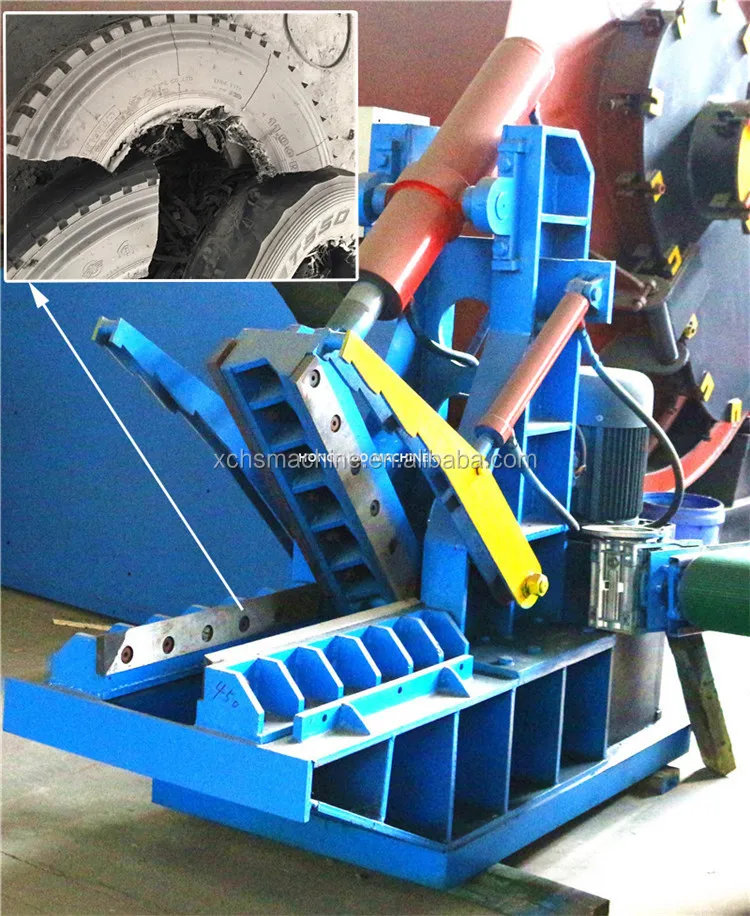

2. TC-1200Tire cutting machine
(To cut the whole tire
into several parts)
Feed size of tire(mm) | ≤φ1300 |
Capacity(tires/h) | 30-40 |
Power(KW) | 5.5/7.5 |
Overall dimensions(m) | 1.8*0.9*1.85 |
Equipment weight (T) | 1.5 |

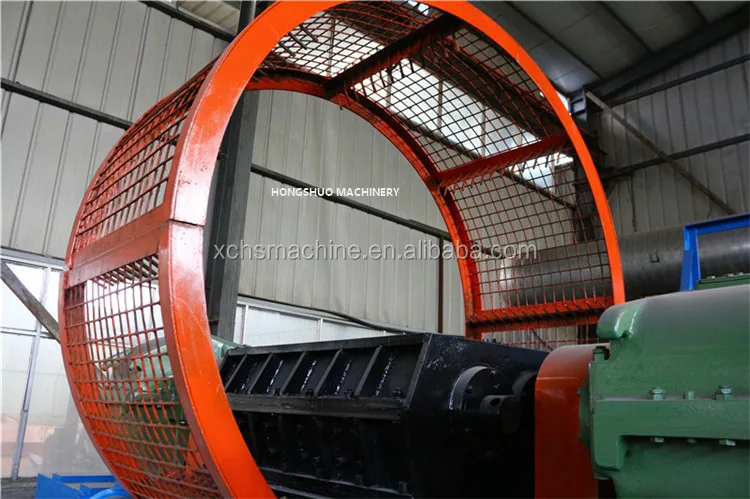

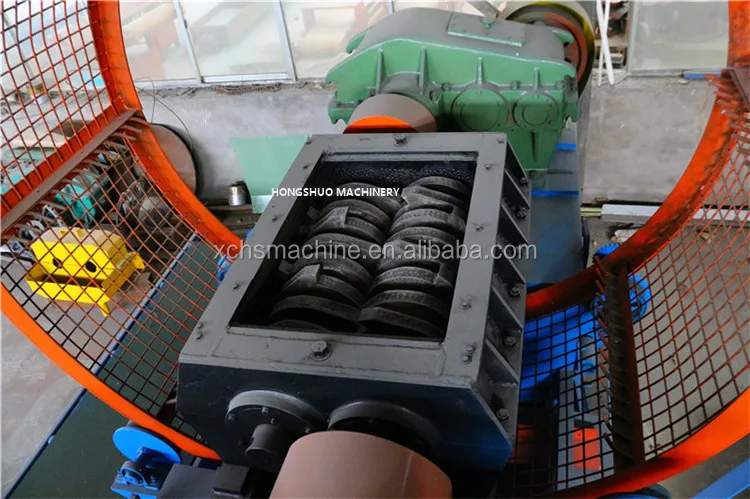

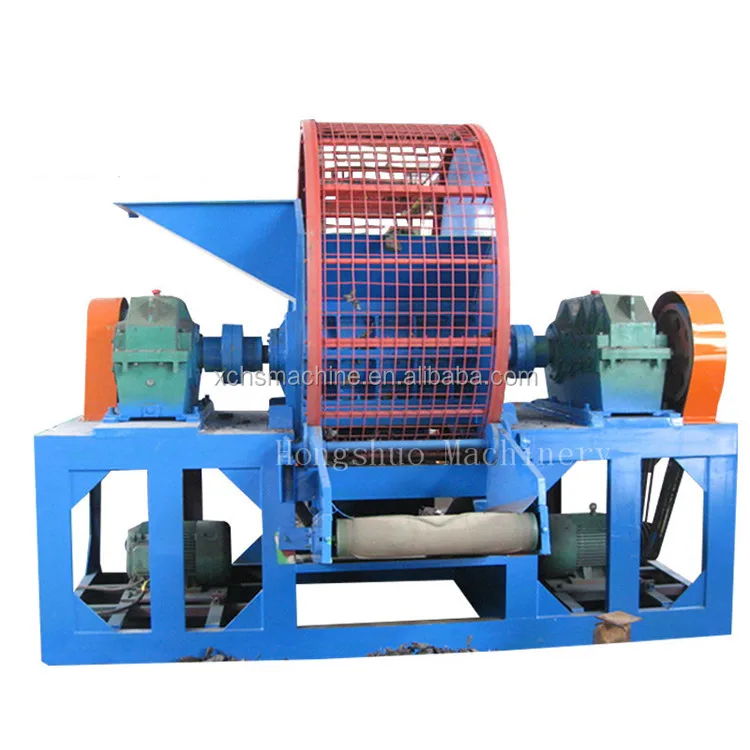

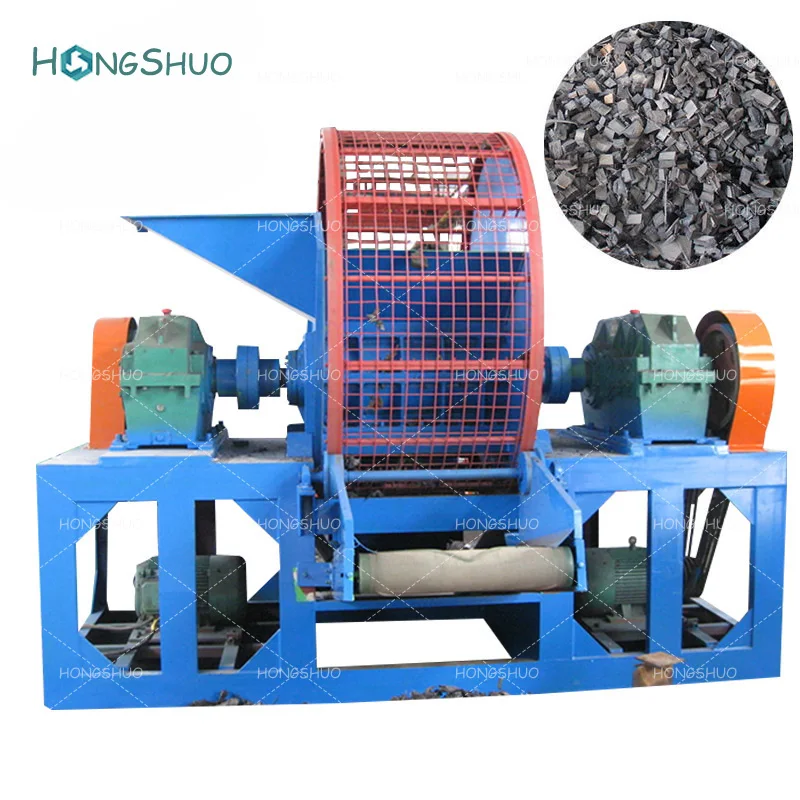

3. Tire Shredder
(to separate the steel wire
of tire circle)
Model | TS-800 | TS-1000 | TS-1200 |
Output(T/h) | 2-3ton | 3-4ton | 4-6ton |
Feed size of tire(mm) | ≤φ900 | ≤φ1000 | ≤φ1250 |
Output size(mm) | ≤50*50 | ≤50*50 | ≤50*50 |
Power(KW) | 22/30*2+4+1.5 | 45*2+4+1.5 | 75*2+5.5+1.5 |
Speed(r/min) | 15 | 14 | 14 |
Equipment weight | 9T | 12T | 15T |

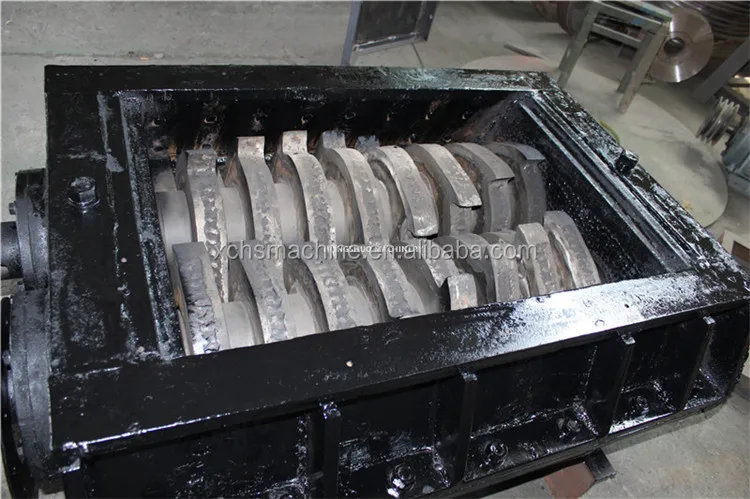

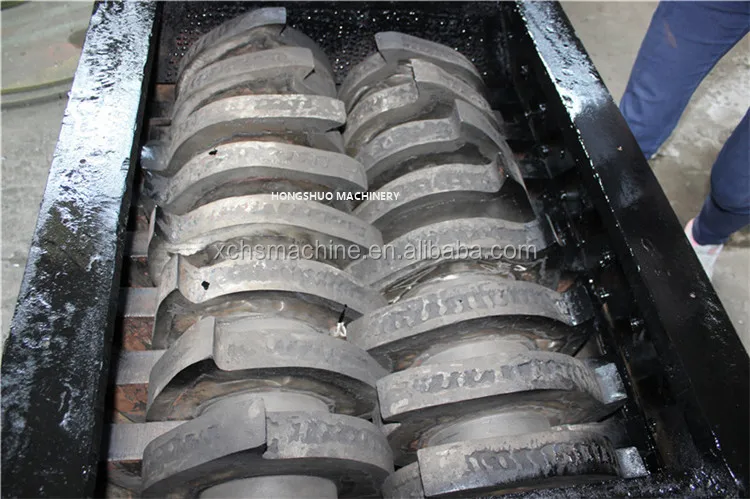

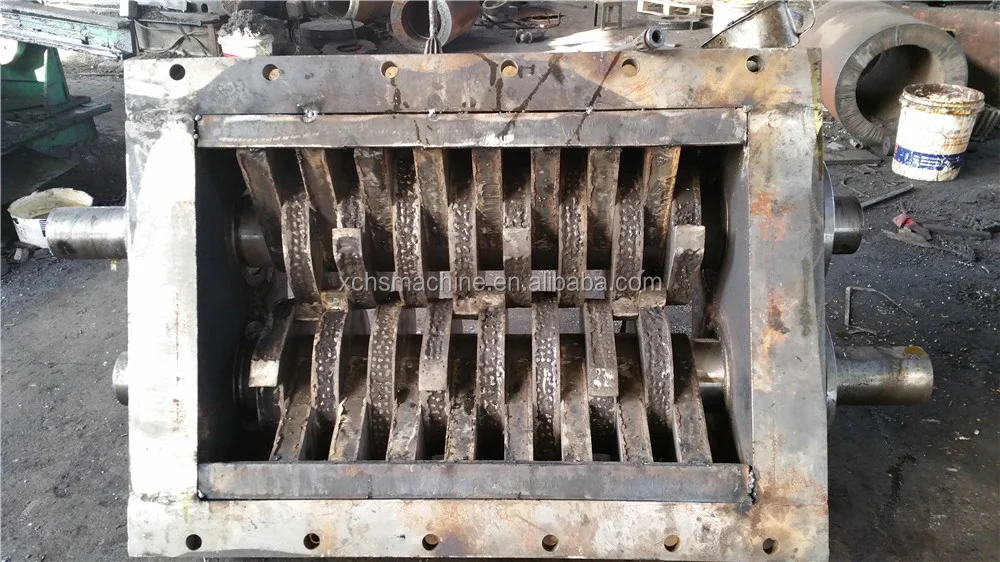

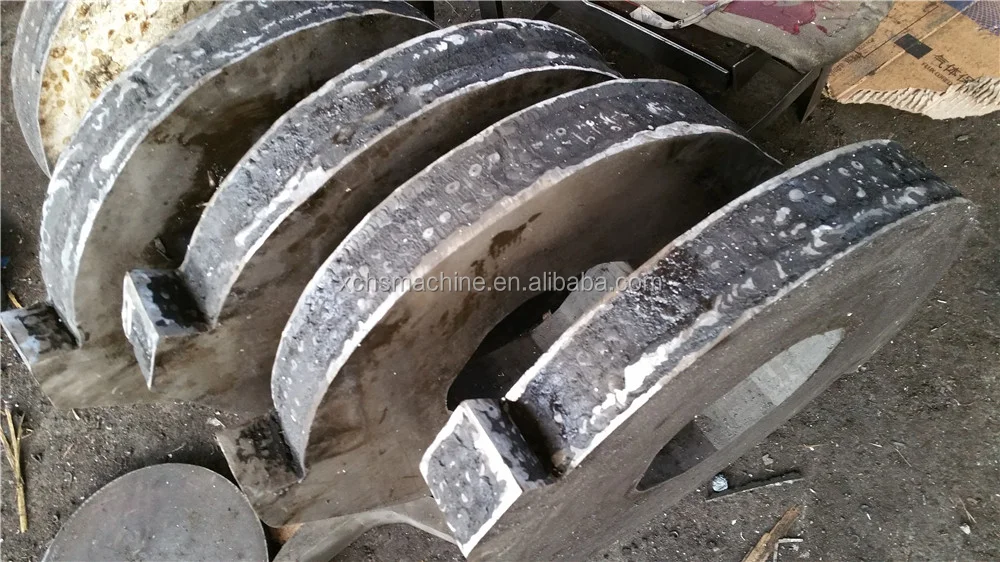

Composite Knives
5 chromium 6 manganese molybdenum inside and YD322 outside, which are very hard and durable. The salient point on the cutters can maintain the friction force, which will be wear-resisting and easier to feed the materials. The cutters cannot broken and can use long-life time, you just need to use the hard-facing electrode to weld the cutters if some places wear.

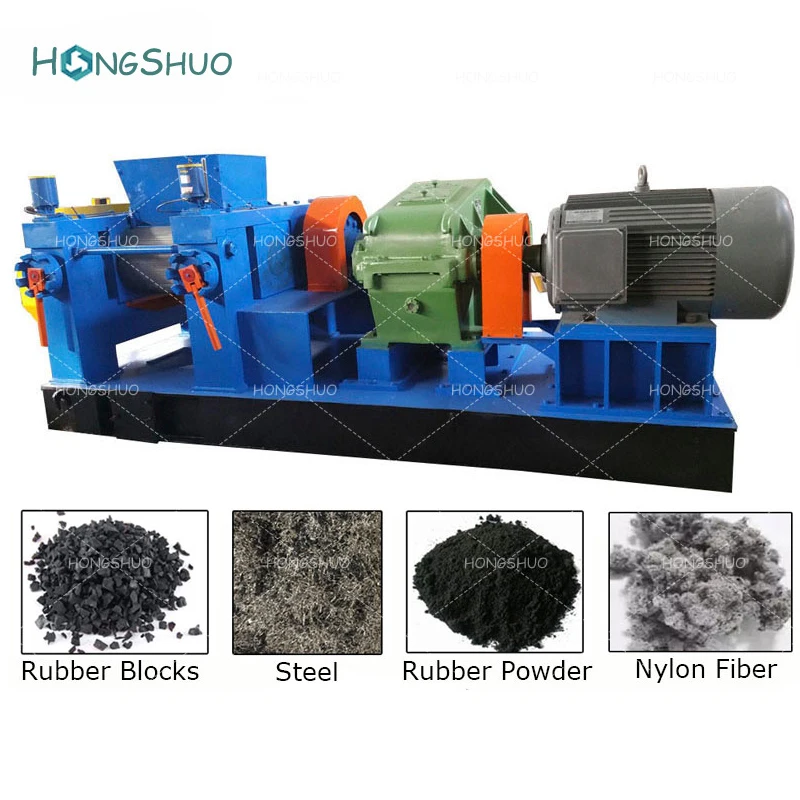

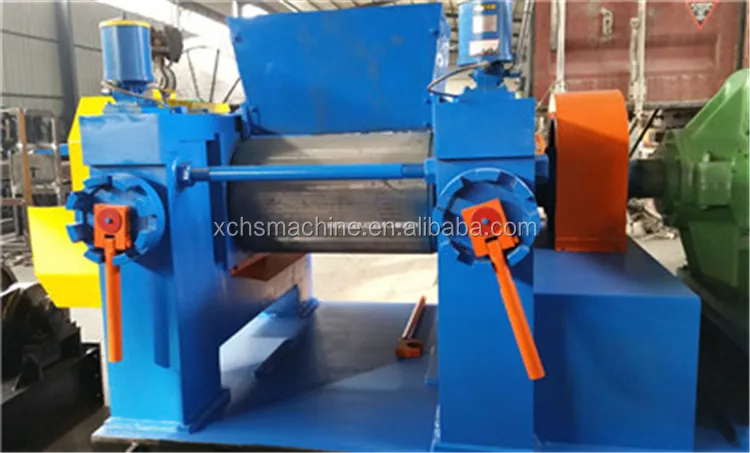

4. Tire Crusher
Model No. | XKP-350 | XKP-400 | XKP-450 | XKP-560 | XKP-560D |
Diameter of front roll | 300 mm (groove) | 400 mm (groove) | 450 mm (groove) | 560 mm (groove) | 560 mm (groove) |
Diameter of back roll | 300 mm (groove) | 400 mm (groove) | 450 mm (groove) | 510 mm (groove) | 560 mm (groove) |
Drum working length | 500mm | 600mm | 760mm | 800mm | 1000mm |
Front roll liner speed | 26.2m/min | 34.5 m/min | 38.0 m/min | 40.6m/min | 44m/min |
Roll ratio | 01:02.5 | 01:02.5 | 01:02.5 | 01:02.5 | 01:02.5 |
Max roller spacing | 10mm | 10 mm | 10 mm | 10 mm | 10mm |
Motor power | 30KW/37KW | 45KW/55KW | 75KW /90KW | 90KW/110KW | 132KW/160KW |
Weight | 6T | 8.5 T | 11T | 17.5T | 21T |
L*W*H | 3.5*1.6*1.5m | 4.3*1.8*1.6m | 4.6*2.0*1.65m | 5.3*2.0*1.7m | 5.6*2.0*1.7m |

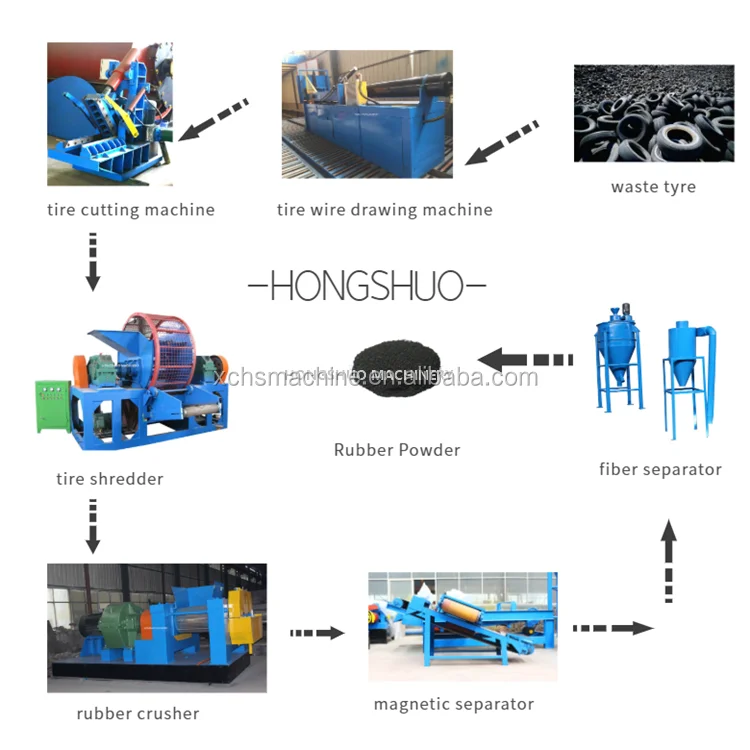

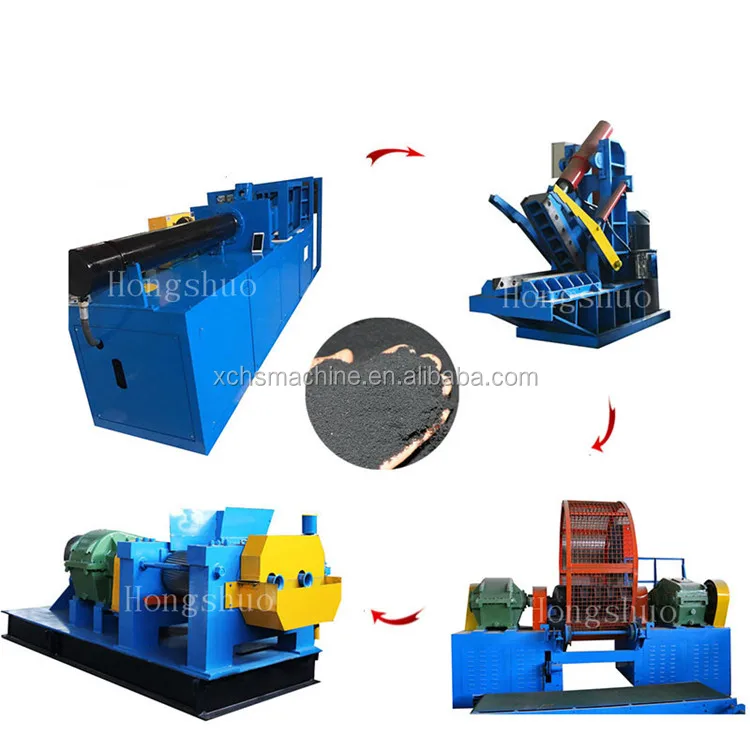

Process Flow
AUTO series tire recycling machines
Product Paramenters
AUTO series tire recycling machines
Model NO. | Hour Capacity | Day Capacity | ||
5 mesh(5mm) | 600-700 kg/h | 6-12Ton/day | ||
10 mesh(2.5mm) | 400-500kg/h | |||
20 mesh(1.25mm) | 300-350kg/h | |||
30 mesh(0.83mm) | 240-280kg/h | |||
40 mesh(0.63mm) | 150-175kg/h | |||
5 mesh(5mm) | 800-1000 kg/h | 8-16Ton/day | ||
10 mesh(2.5mm) | 500-600 kg/h | |||
20 mesh(1.25mm) | 400-500 kg/h | |||
30 mesh(0.83mm) | 350-450 kg/h | |||
40 mesh(0.63mm) | 200-250 kg/h | |||
5 mesh(5mm) | 1200-1400 kg/h | |||
10 mesh(2.5mm) | 900-1000 kg/h | |||
20 mesh(1.25mm) | 600-700 kg/h | |||
30 mesh(0.83mm) | 450-550 kg/h | |||
40 mesh(0.63mm) | 300-350 kg/h | |||
5 mesh(5mm) | 2400-2600 kg/h | |||
10 mesh(2.5mm) | 1500-1600 kg/h | |||
20 mesh(1.25mm) | 1200-1300 kg/h | |||
30 mesh(0.83mm) | 1000-1100kg/h | |||
40 mesh(0.63mm) | 800-900 kg/h | |||

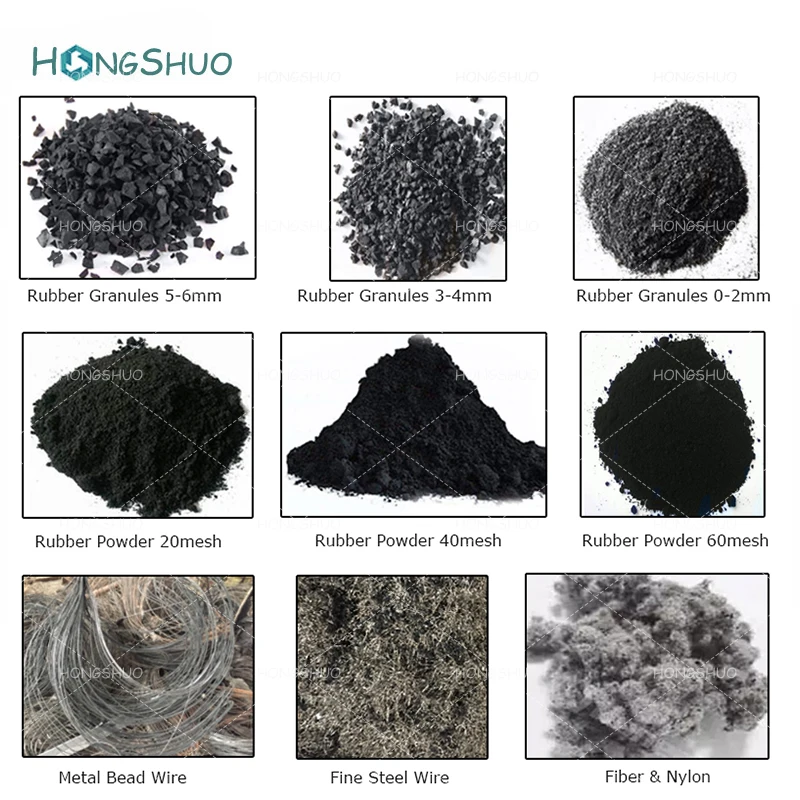

Finished Products
RIM STEEL
RUBBER BLOCKS

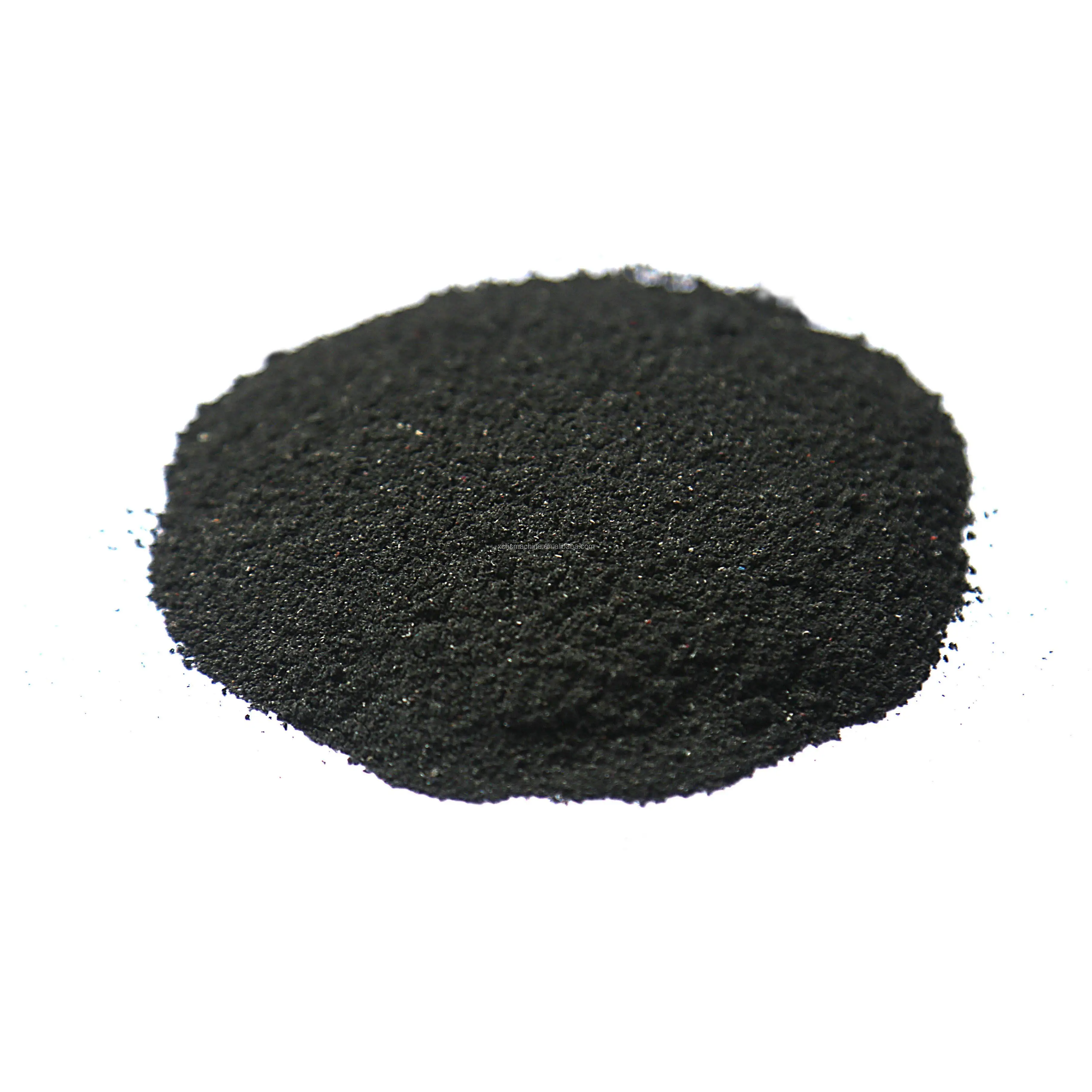

Tire Powder
333

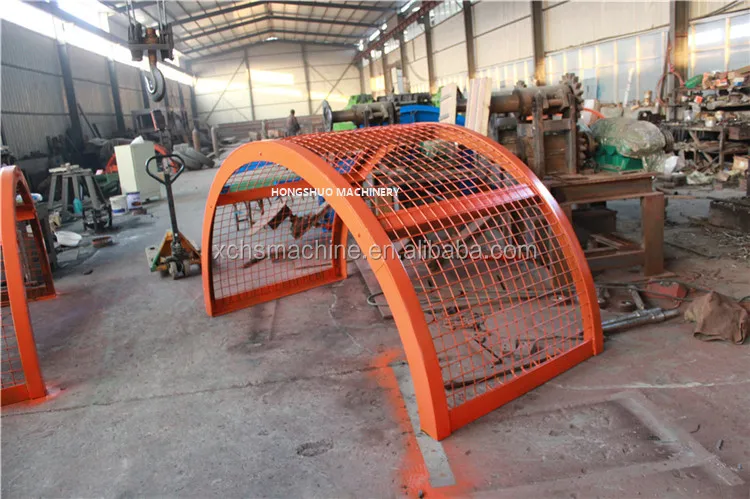

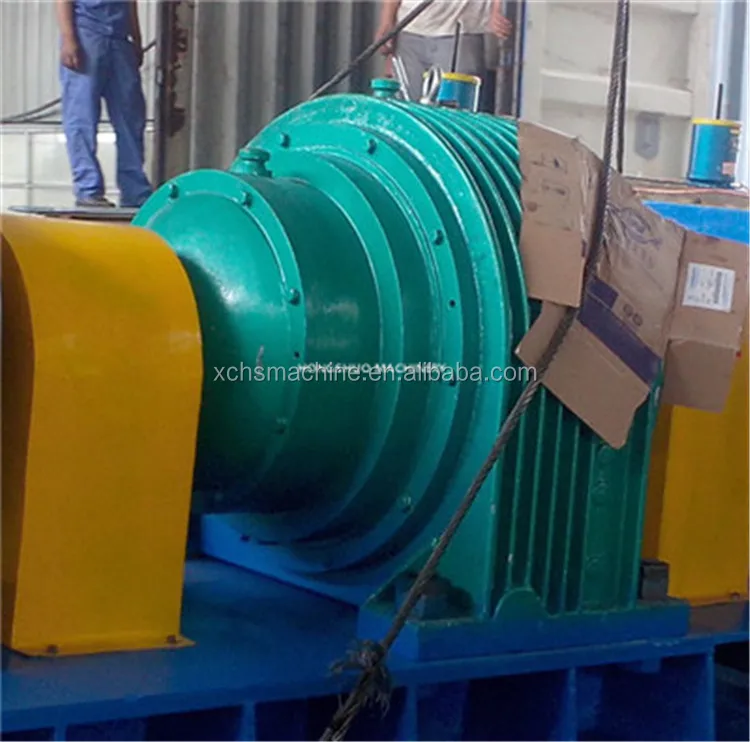

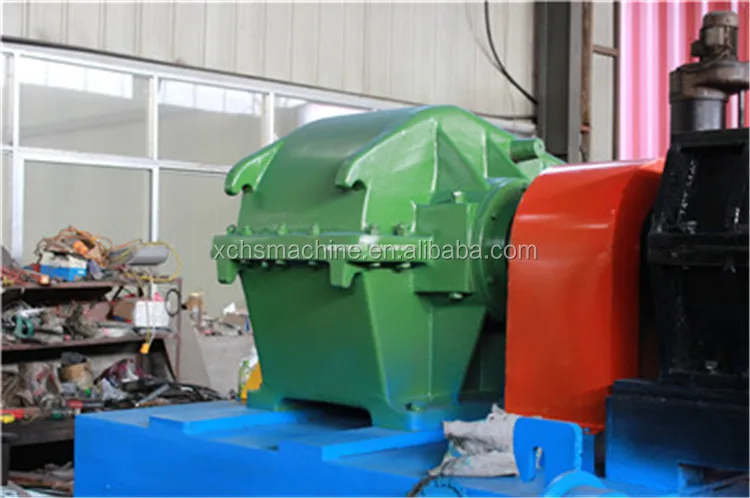

Detailed Images

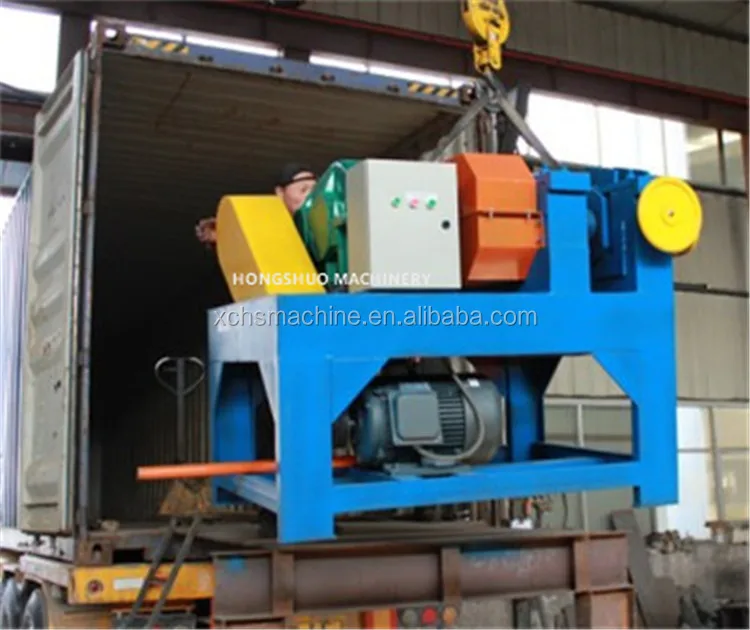

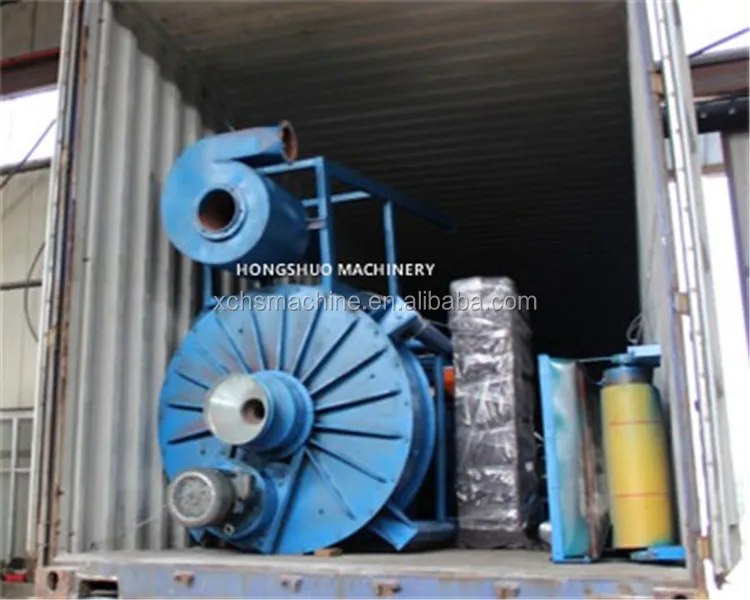

Packing&Shipping
wooden case or customzied according to the cuatomer's requirement
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Product testing support.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
FAQ
Question1: Are you a factory or trading company?
Answer: We are a manufacturer with 30 years experience,you could get factory price from us.
Question 2 :Can you customize the machine for us?
Answer: Yes ,we are factory ,we can customize the machine depend your request .
Question 3 :what is your payment terms?
Answer: Generally,35% deposit by T/T, 65% balance should be paid before shipment.
Question 4 :How long is the warranty?
Answer: Warranty 24 months .In period of warranty ,we change the new parts for
broken parts for free . we provide technical support for long-life.
broken parts for free . we provide technical support for long-life.
Question 5 :If the machine has a problem, how long will it get a reply?
Answer: We will provide solutions within 24 hours.
