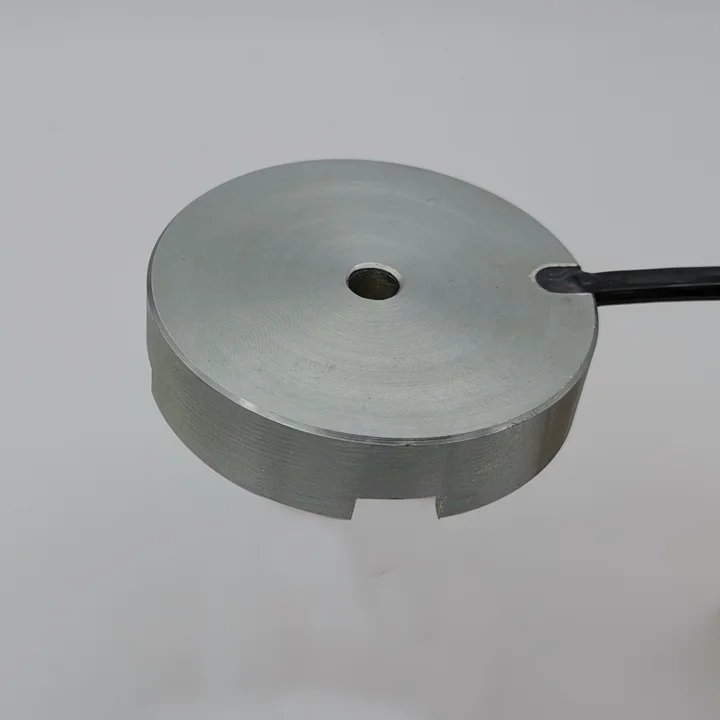

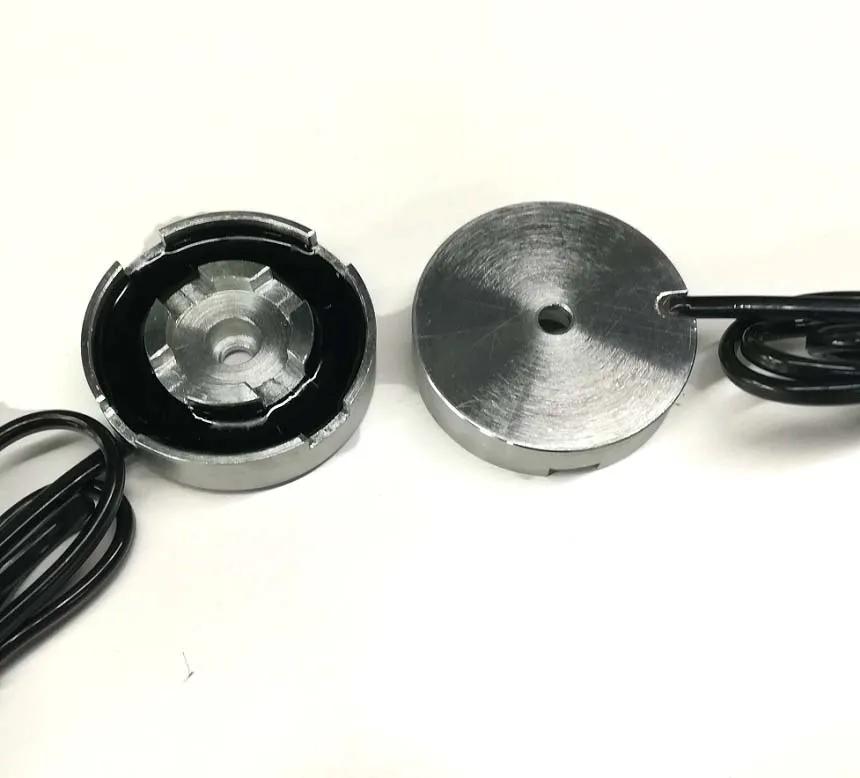

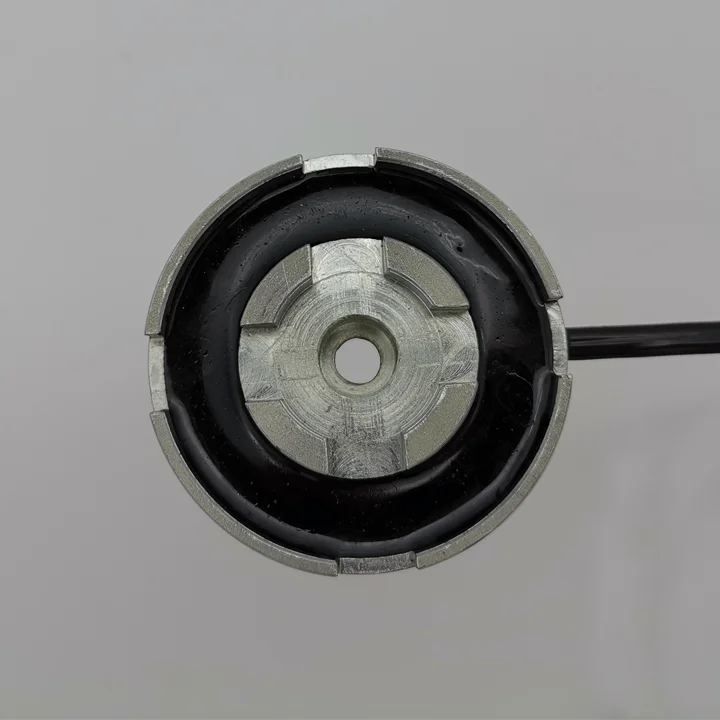

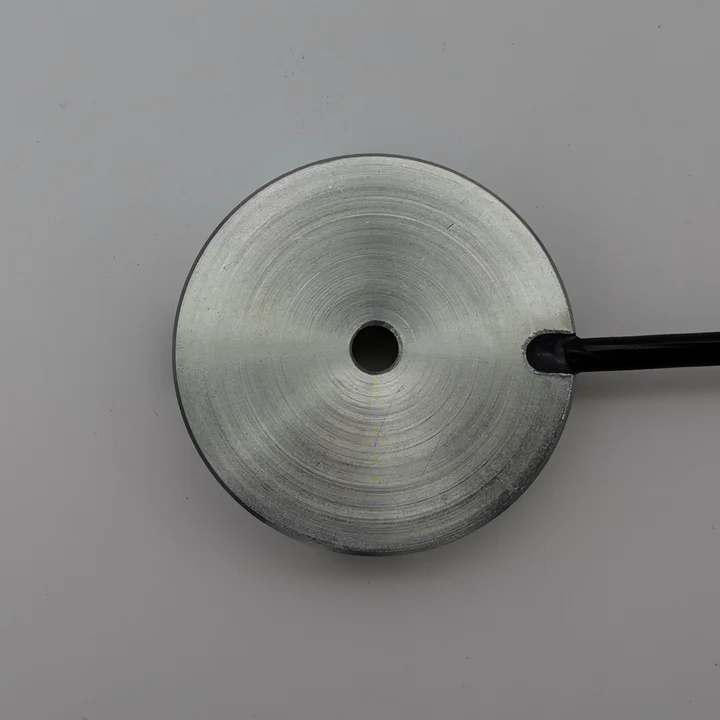

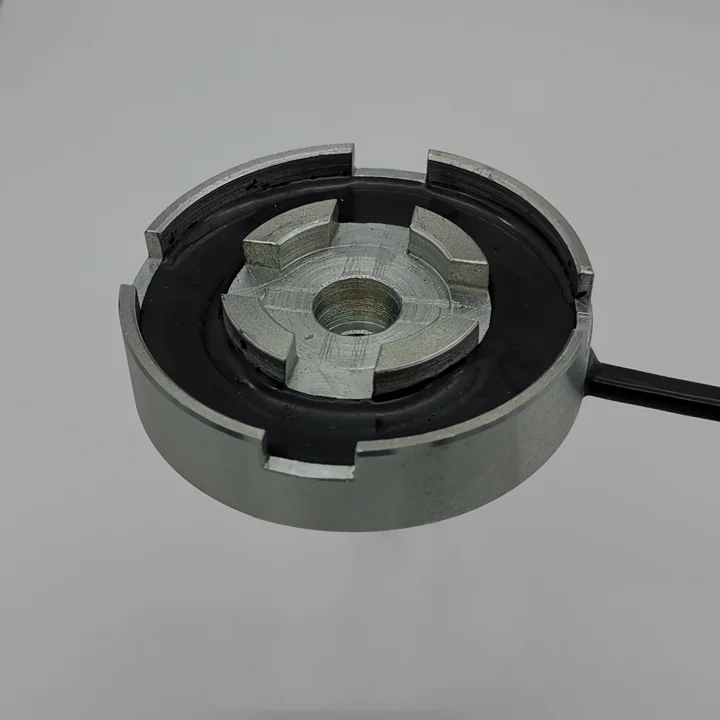

24V DC JSP 5614 28kgs Electrical Holding Electromagnet with Cross slot
- Category: >>>
- Supplier: Ningbo Jinsun Magnetoelectric Technology Co. Ltd.
Share on (1600078099291):
Product Overview
Description
Products Features
12V DC JSP-25080 3000KGS Industrial Big Electrical Holding Magnet Round Solenoid Lifting Electromagnet
- Big force to 3000KGS
- Holding when power on and release when power off
- Electroplating anti-corrosive
- Epoxy filled Waterproof IP65
- Side and bottom outlet for leadwire,wide application
- 20 years of design and produce experience
- OEM/ODM is welcomed
Technical Data
Product Name | Holding Electromagnet | Model | JSP-25080 |
Rated Voltage (V) | DC12V/24V | Product Size(mm) | Dia250 x H80 |
Work Model | Holding Type | Rated Power(W) | 90 |
Service Life | >500,000 Times | Holding Force (KG) | 3000 |
Material | Iron | Thread Size(mm) | M24 x H48 |
Install Style | By Screw | Thickness of contact plate | 40 mm |
Water-proof | IP65 | N.W.(KG) | 25 |
Hi-Pot Test | AC 600V / 2S | Residual Magnetism(KG) | <300 |
Insulation Class | Class B | Stroke(mm) | 0 |
Working Temperature | -10°C-100°C | Lead Wire Length(mm) | 200-670 or Customized |
Certification | CE,ROHS,ISO9001 | Duty Cycle | 100% |
Sample Order | Yes | Max. Power on time(S) | No Limited |
MOQ | 10 pcs | Reset Time(s) | 0.2 |
Delivery Time | 3-7 Days | Payment Term | ALIPAY, TT,PAYPAL |
Port of Loading | Ningbo | Warranty | 3 Year |

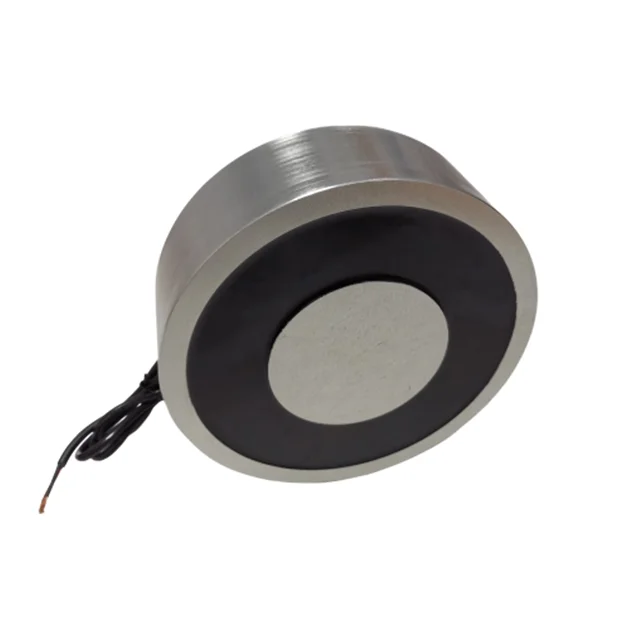

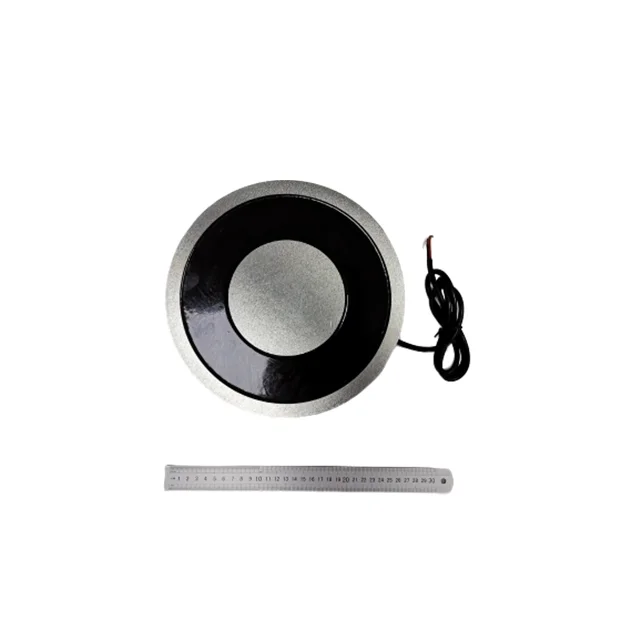

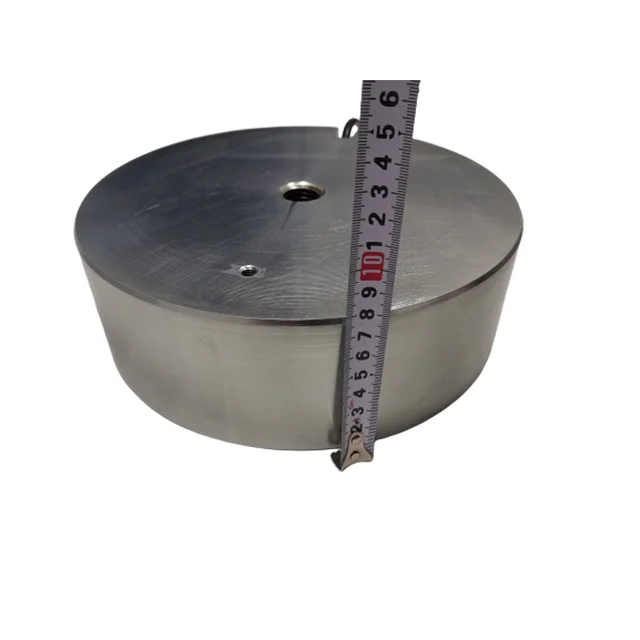

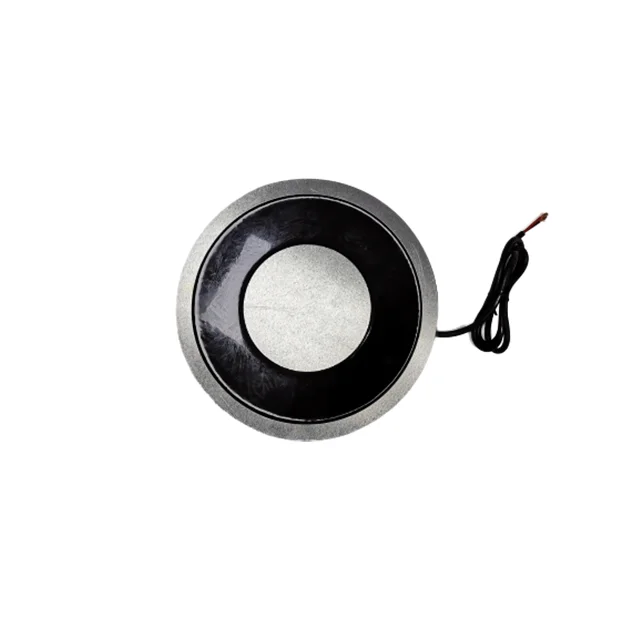

Product Photos

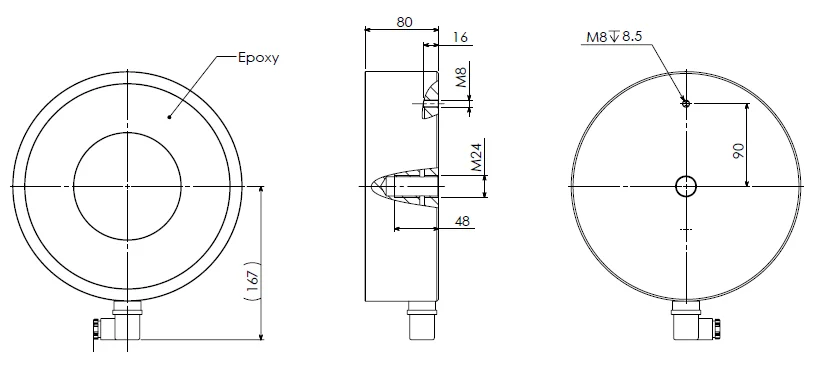

Product Drawing
Remark:
Customized design is welcomed.
Product Series
Circular Holding Electromagnet Series:
Please see below all range which may close to your application:
Model | Diameter (mm) | Height (mm) | Holding force (kgs) | Power(W) | Min. thickness of counter plate (mm) | Duty cycle |
JSP-0820 | 8 | 20 | 0.3 | 1.6 | 1 | 50% |
JSP-1010 | 10 | 10 | 0.3 | 1 | 1 | 100% |
JSP-1212 | 12 | 12 | 1 | 1 | 1 | 100% |
JSP-1515 | 15 | 15 | 2 | 1.4 | 2 | 100% |
JSP-1625 | 16 | 25 | 3 | 1.7 | 1.5 | 100% |
JSP-1811 | 18 | 11 | 3 | 1.4 | 2 | 100% |
JSP-2012 | 20 | 12 | 3.5 | 1.4 | 1.8 | 100% |
JSP-2015 | 20 | 15 | 5 | 1.8 | 2 | 100% |
JSP-2020 | 20 | 20 | 4 | 1.6 | 2.5 | 100% |
JSP-2520 | 25 | 20 | 14 | 3.6 | 2.5 | 100% |
JSP-2525 | 25 | 25 | 10 | 2.4 | 2.5 | 100% |
JSP-3022 | 30 | 22 | 20 | 4.3 | 3 | 100% |
JSP-3025 | 30 | 25 | 20 | 4.3 | 3 | 100% |
JSP-3219 | 32 | 19 | 25 | 3.6 | 3 | 100% |
JSP-3229 | 32 | 29 | 15 | 2.4 | 3.5 | 100% |
JSP-3425 | 34 | 25 | 25 | 9.6 | 3 | 100% |
JSP-3530 | 35 | 30 | 30 | 4.8 | 3.5 | 100% |
JSP-4026 | 40 | 26 | 30 | 5.6 | 5 | 100% |
JSP-4040 | 40 | 40 | 40 | 4.8 | 5 | 100% |
JSP-4530 | 45 | 30 | 45 | 4.8 | 5 | 100% |
JSP-4542 | 45 | 42 | 50 | 5.8 | 5 | 100% |
JSP-5030 | 50 | 30 | 70 | 6 | 6 | 100% |
JSP-6037 | 60 | 37 | 80 | 14.4 | 7 | 100% |
JSP-6330 | 63 | 30 | 100 | 9.6 | 8 | 100% |
JSP-7045 | 70 | 45 | 200 | 15 | 10 | 100% |
JSP-7060 | 70 | 60 | 140 | 21.3 | 8 | 100% |
JSP-8038 | 80 | 38 | 240 | 15 | 10 | 100% |
JSP-8055 | 80 | 55 | 250 | 14.4 | 12 | 100% |
JSP-9060 | 90 | 60 | 330 | 14.4 | 12 | 100% |
JSP-10043 | 100 | 43 | 340 | 21 | 15 | 100% |
JSP-10060 | 100 | 60 | 360 | 38 | 12 | 100% |
JSP-12060 | 120 | 60 | 400 | 41.3 | 15 | 100% |
JSP-15056 | 150 | 56 | 930 | 37 | 25 | 100% |
JSP-18063 | 180 | 63 | 1500 | 50 | 30 | 100% |
JSP-25080 | 250 | 80 | 3000 | 90 | 40 | 100% |
JSP-275110 | 275 | 110 | 4000 | 140 | 50 | 100% |
Model | Diameter (mm) | Height (mm) | Holding force (kgs) | Power(W) | Min. thickness of counter plate (mm) | Duty cycle |
