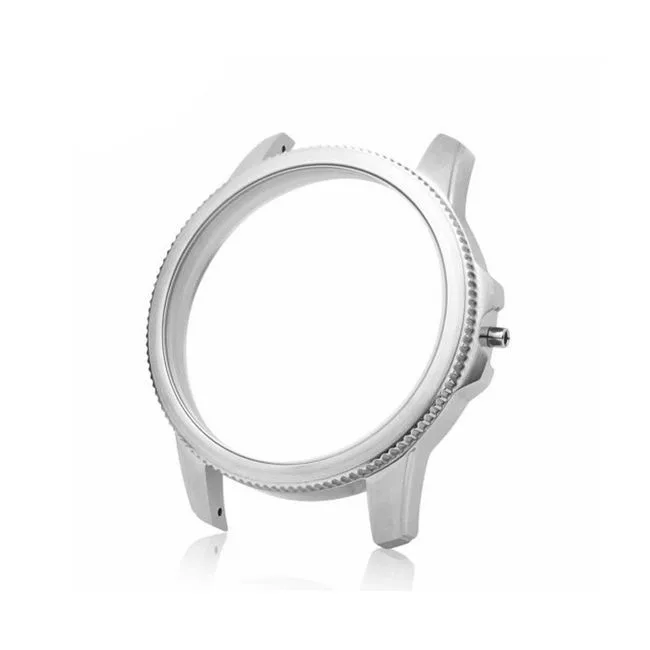

Customization Metal Injection Molding PM Stainless Steel Male Female Circles square Watchcase
- Category: >>>
- Supplier: Shanghai United Metal Materials Co. Ltd.
Share on (1600078201142):
Product Overview
Description
Why Choose Us
BRM has 5000m2 factory area & Daily output > 200000pcs
More than 20 years’ experience of powder metallurgy manufacturing
Certification of IATF16949 / ISO9001 / ISO14001 / ISO18001 / SGS / RoHS
Sintering Density can reach 7.97g/cm3 & Wall thinckness can achieve 0.2mm
One-stop service of Designing, Manufacturing and Finishing
Tooling 25 days & Sampling 15 days

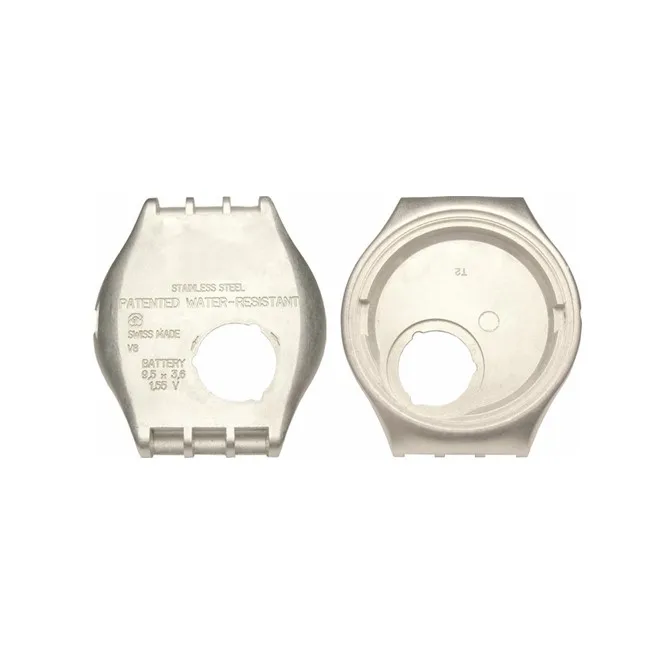

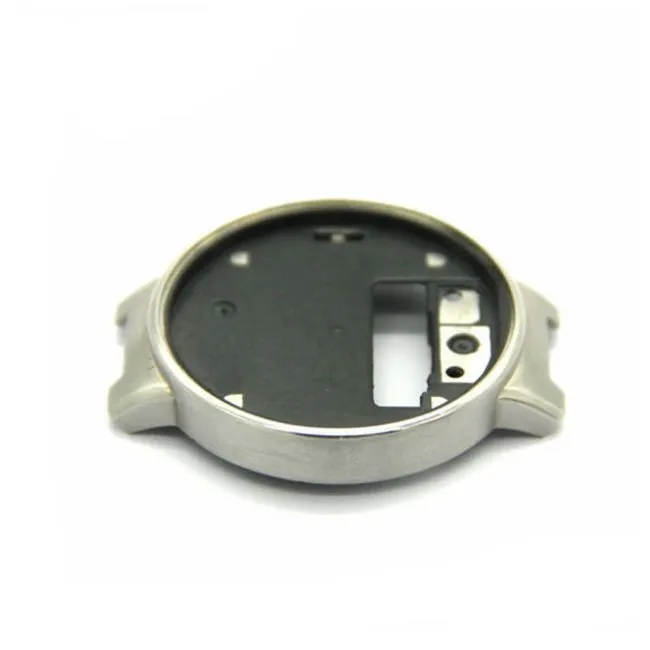

Products Show

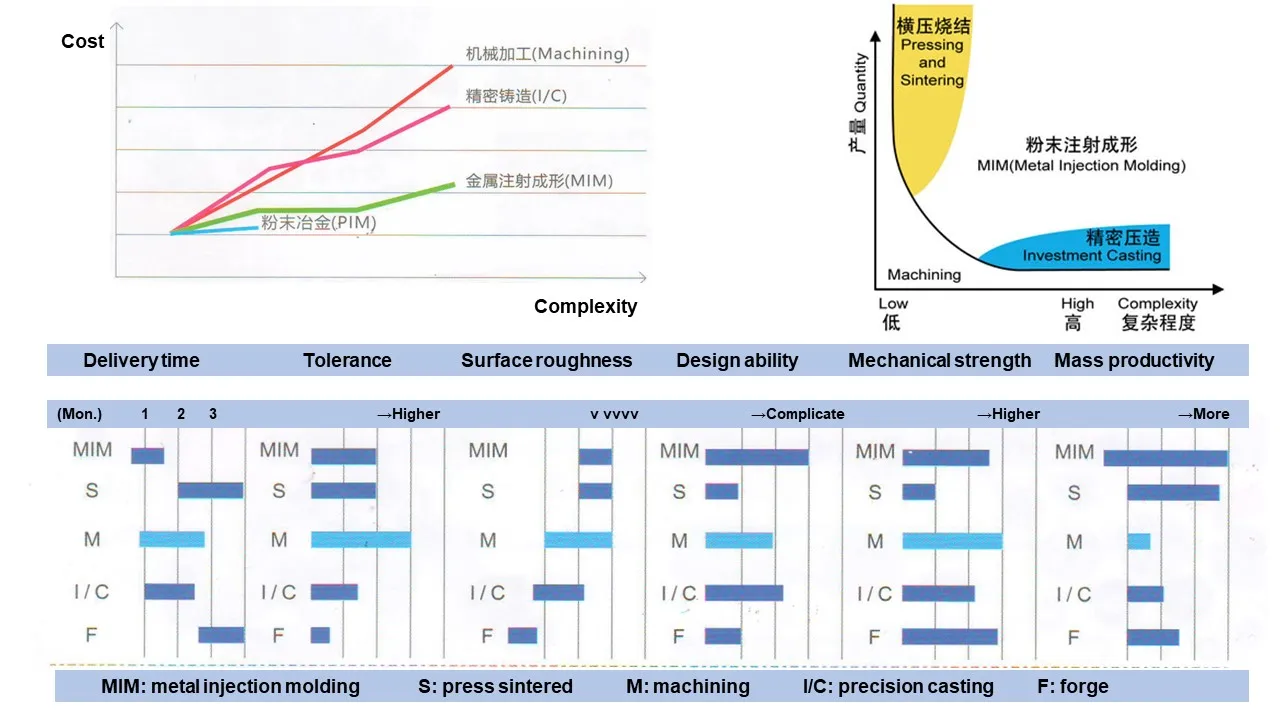

Characteristics | PM | MIM | Machining | Precision casting |
Precision (um) | 0.3~0.5 | 0.1 | <0.1 | 0.5~1.0 |
Density (%) | 88 | 98~99 | 100 | 99 |
Part Weight (Available) (g) | 5~2,500 | 0.01~200 | 1~10,000 | 1~10,000 |
Complexity Level | High | High | High | Medium |
Capacity | High | High | Medium | Medium |
Supply Ability | High | High | Low | Medium |
Mechanical Properties (%) | 70 | >95 | 100 | >95 |
Surface Roughness (Ra um) | 2~5 | 1 | 0.2~4 | 5 |
Characteristics | MIM | Precision Casting |
Hole Diameter (Min.) | 0.4mm | 2mm |
Blind Hole Diameter (2mm) | 20mm | 2mm |
Wall Thickness (Min.) | ＜1 mm | 2 mm |
Wall Thickness (Max.) | 10 mm | Unlimited |
Tolerance of 4mm Diameter | +/-0.06 mm | +/-0.2 mm |
Surface Roughness | 1 μm | 5 μm |
Why Choose MIM
MIM (Metal Injection Molding) is applicable to wide range of metal materials including low alloy steel, stainless steel, tool steel, nickel-based alloys,tungsten alloy, carbide, titanium, magnetic materials, Kovar alloy and fine ceramics, etc.
Factory
Manufacture Equipment
Continuours sintering furnace
Injection Machine
Sizing Workshop
Deburring
Debingding Furnace
Inspection Equipment
3D Measuring instrument
Rheometer
Rockwell Hardmeter
Micro Vickers
SEM Scanning Electron Microscope
Projector
Customers
Certifications
Packing & Delivery
Tooling Time (T0) | Sample | Shipping Express |
25 days | 10 days | UPS, FedEx, DHL, TNT |
FAQ
1. What is MIM technology?
A:MIM (Metal Injection Molding) is a manufacturing technology that combines the shape making complexity of Plastic Injection Molding with the material flexibility of Powder Metallurgy.
2. If I send you a 3D cad (.step) file, why do you need 2D drawings?
The 3 CAD files are helpful, but most do not include tolerances or additional notes that may apply to the part, which is why the 2D drawings are needed.
3. Can you sign our NDA before we provide sensitive project information?
To expedite your request for a quote, we suggest signing our NDA form. We can use your form if that is necessary, just know that it may slow the RFQ process
4. Why choose Metal Injection Molding technology (MIM)?
1). MIM parts (Metal injection molding parts) have an significant advantage in producing small, highly complex metal components. While conventional technologies such as PM, machining or casting can't produce it or its cost is very high.
A:MIM (Metal Injection Molding) is a manufacturing technology that combines the shape making complexity of Plastic Injection Molding with the material flexibility of Powder Metallurgy.
2. If I send you a 3D cad (.step) file, why do you need 2D drawings?
The 3 CAD files are helpful, but most do not include tolerances or additional notes that may apply to the part, which is why the 2D drawings are needed.
3. Can you sign our NDA before we provide sensitive project information?
To expedite your request for a quote, we suggest signing our NDA form. We can use your form if that is necessary, just know that it may slow the RFQ process
4. Why choose Metal Injection Molding technology (MIM)?
1). MIM parts (Metal injection molding parts) have an significant advantage in producing small, highly complex metal components. While conventional technologies such as PM, machining or casting can't produce it or its cost is very high.
2). Part weight is 1~100g.
3). Part thinckness is thin and need high strength which PM and precision casting can't manufacture.
4). MIM can process those metal parts which PM can't achieve better strength and casting can't meet higher tolerance.
