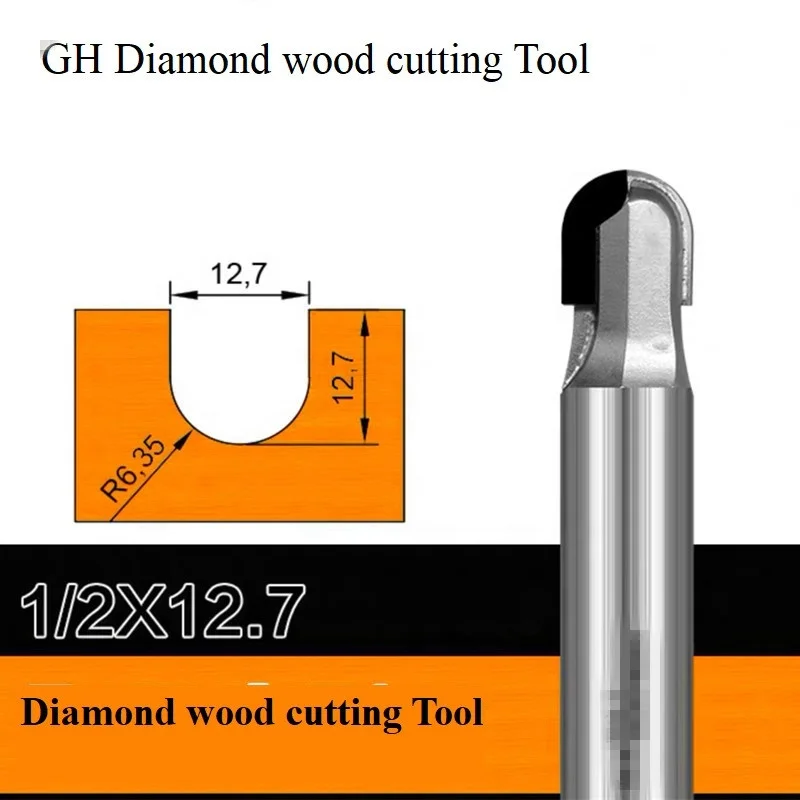

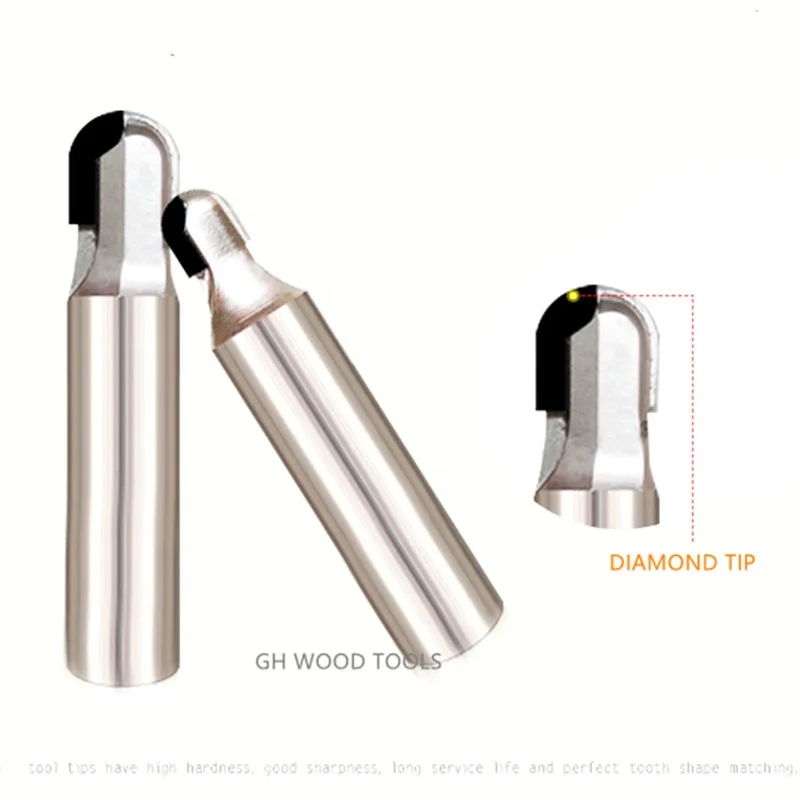

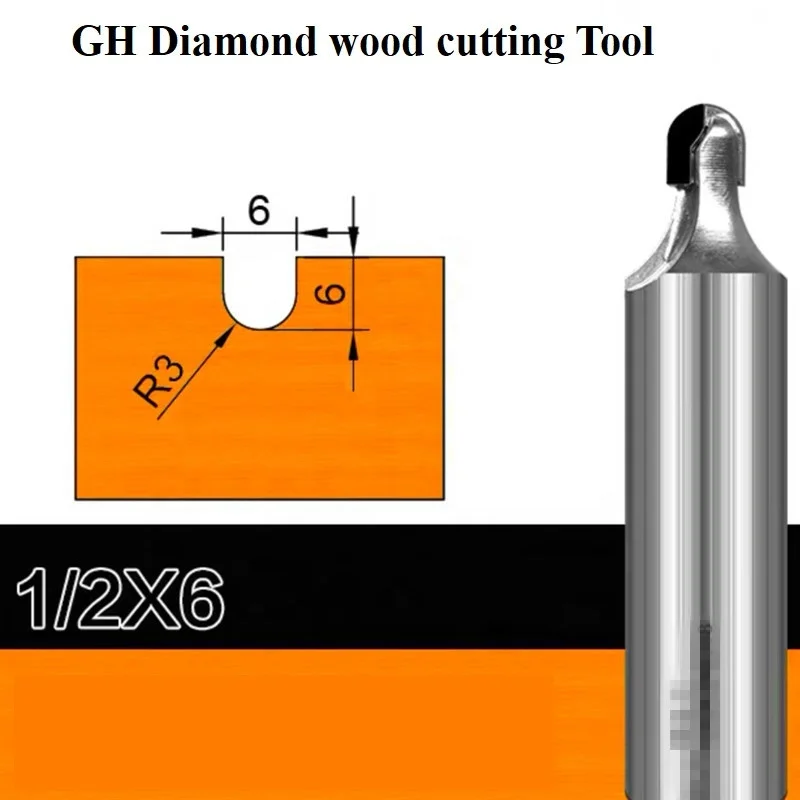

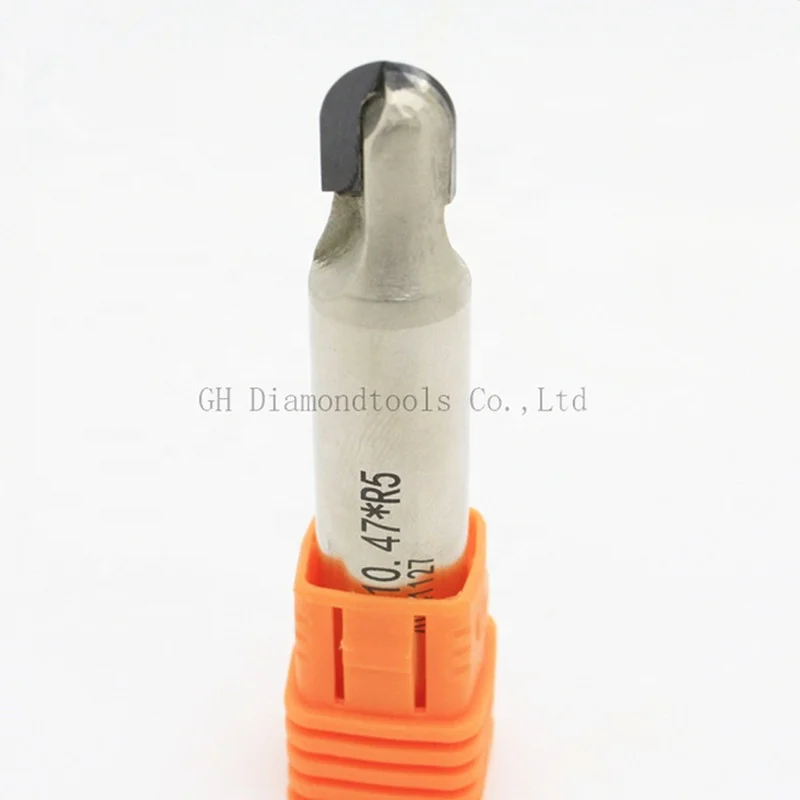

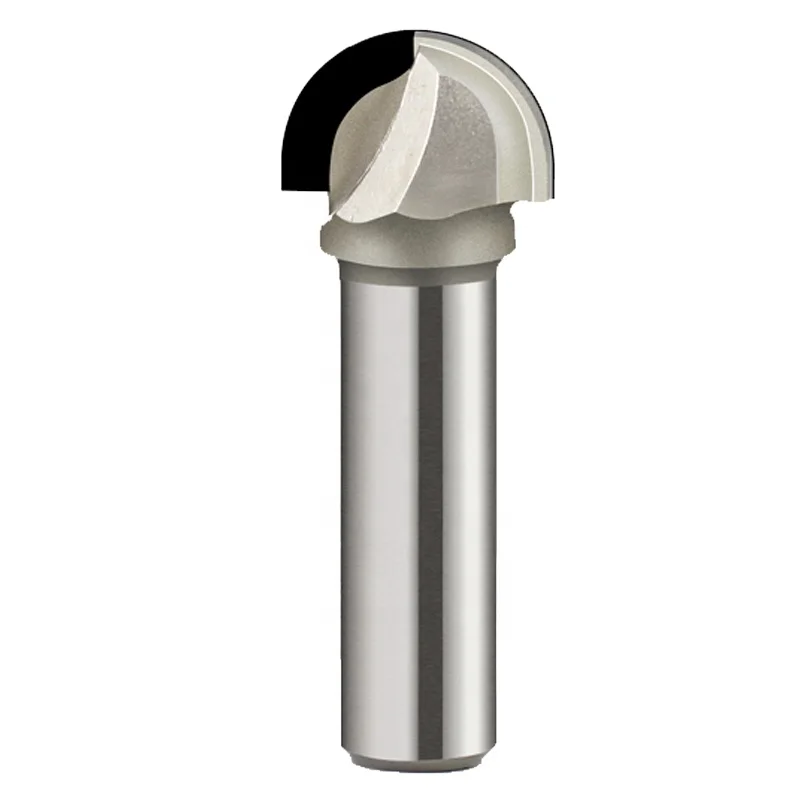

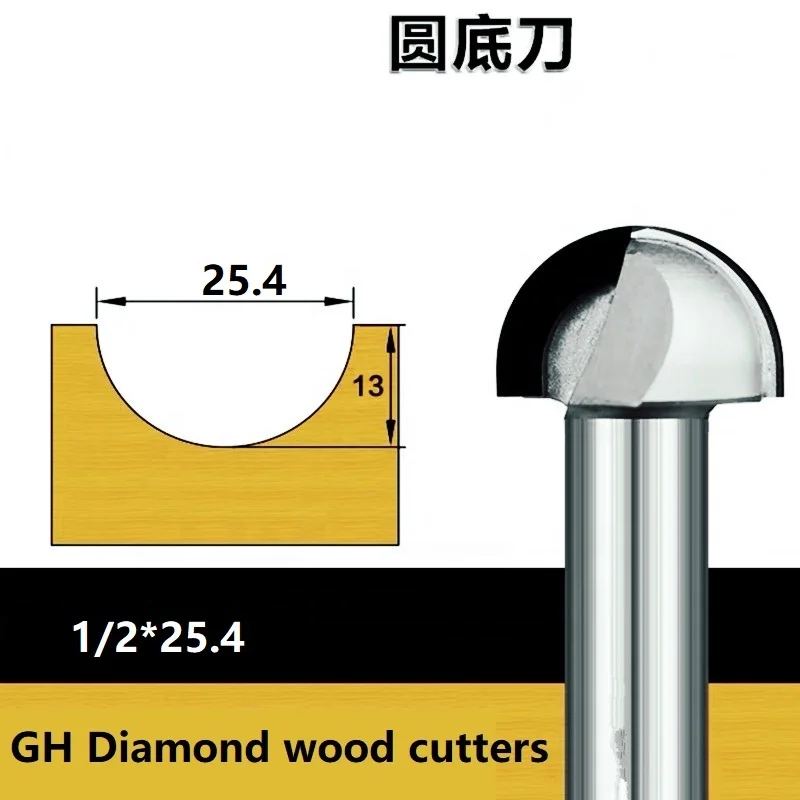

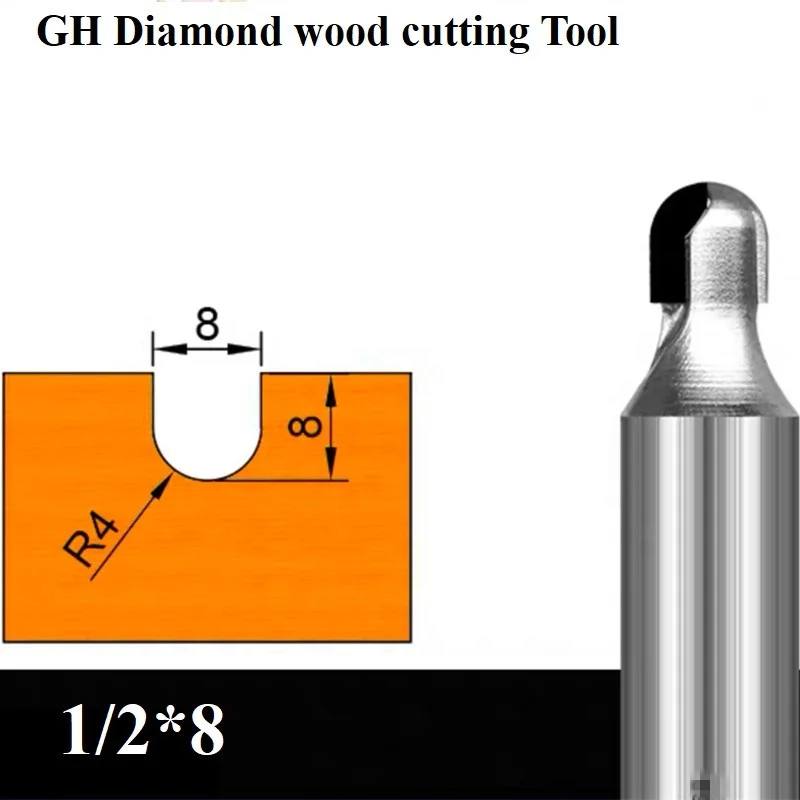

Diamond woodworking tools cove box bit PCD Round Nose router bits for wood furniture circular arc cutter

l  PCD

PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

l

The  diamond woodworking cutter can be used for solid wood, veneer and plastic edge bands, especially for CNC machine of woodworking industry, furniture industry, and other wood processing industries, and so on. For instance, machining work for laminated wood flooring, multilayer solid wood engineered flooring, bamboo flooring, solid wood door, etc.

We could produce the tools with many kinds of sizes.

PCD Recommended Cutting Condition Work piece Cutting Speed Depth of Cut Feed Rate (m/min) (mm) (mm/rev) Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40 Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40 Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25 Copper 350~1000 0.15~2.50 0.05~0.20 Sintered Carbid 15~25 0.05~0.60 0.10~0.20 Glass Fiber 100~800 0.15~0.50 0.03~0.25 Carbon 160~700 0.15~2.50 0.15~0.40 High Aluminum 70~250 0.05~1.50 0.03~0.15 Ceramics Wood 1000-2500 0.2~5.0 010~0.50         Materials to be Processed Products Nonferrous Metal Aluminum, Aluminum Alloy Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles. Tank body, shell and compressor parts for airplanes and electro mechanical products. Precision machinery parts for cameras, duplicators and metrical instruments. Parts for pump body and oil press. Copper, Copper Alloy Axle, bearing bush, bearing and pump body for internal combustion engines and ships. Parts for various instruments, dynamo commutators, printed boards and electronic apparatus. Bearing, bearing bush, valve and shell body. Tungsten Carbide Sinter such as valve seat and cylinder, and semi-finished sinter. Others Various nonferrous metal parts such as magnesium and zinc. Nonmetal Wood Hardwood, artificial board, artificial abrasion resistant fiberboard. Reinforced Plastic Glass fiber and carbon fiber reinforced plastic. Rubber Roller for paper and rubber ring. Graphite Carbon rod. Ceramic Sinter such as sealing ring and plunger piston, and semi-finished sinter.

GH Diamond Tools Co., LTD specializes PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) tools.

Main Products:   PCD insert,PCBN Inserts,PCBN &PCD Turning and Milling Tools.PCD woodworking cutter ,Diamond Wire Drawing Die Blanks. Diamond Glass Scribing Wheel And axle.

We could maketools in accordance with your drawing or specifications.

We serve from start to finish
