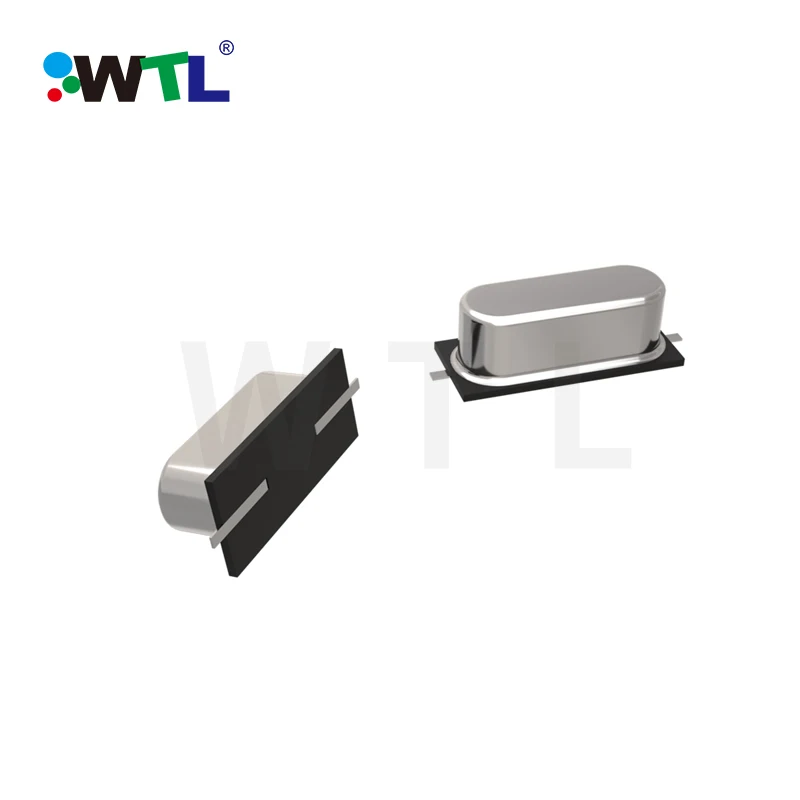

WTL HC 49S SMD 16pF 3.579MHz Quartz Xtal Resonator 3.579MHz Quartz Crystal HC 49S SMD
- Category: Resonators >>>
- Supplier: WTL International Limited
Share on (1600078336445):
Product Overview
Description
Product Description
Resistance Welded HC-49/S Surface Mount Package | ||
Item | Specifications | |
P/N | WTL2.03129ZX | |
Frequency | 3.579MHz | |
Load Capacitance(CL) | 16pF | |
Frequency Tolerance (at 25°C) | ± 20ppm | |
Frequency Stability Over Operating Temperature Range | ± 50ppm | |
Operating Temperature Range | -40°C--+85°C | |
Storage Temperature Range | -40°C--+85 °C | |
Shunt Capacitance (C0) | 7pF Max | |
Driver Level(Typical) | 100µW Typical | |
Aging(at 25°C) | ± 5ppm/year maximum | |
12.7×4.8×3.8 mm
Feature
●Surface mount type crystal units.
● Agreat number of standard frequencies.
●Higher frequency available and lower equivalent seriesresistance.
●Lower cost and highly mass production capability.
● RoHS Compliant / Pb Free
