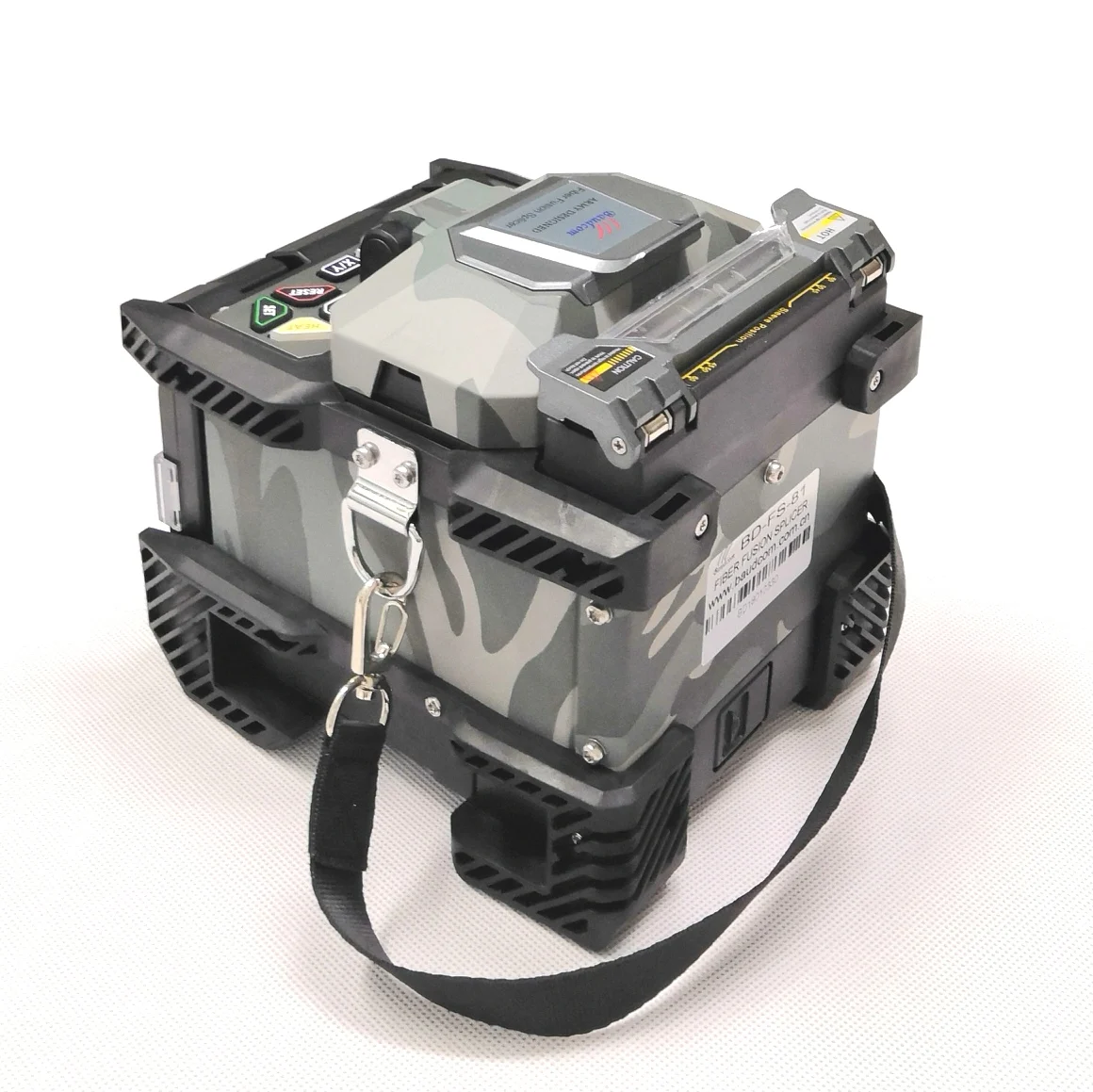

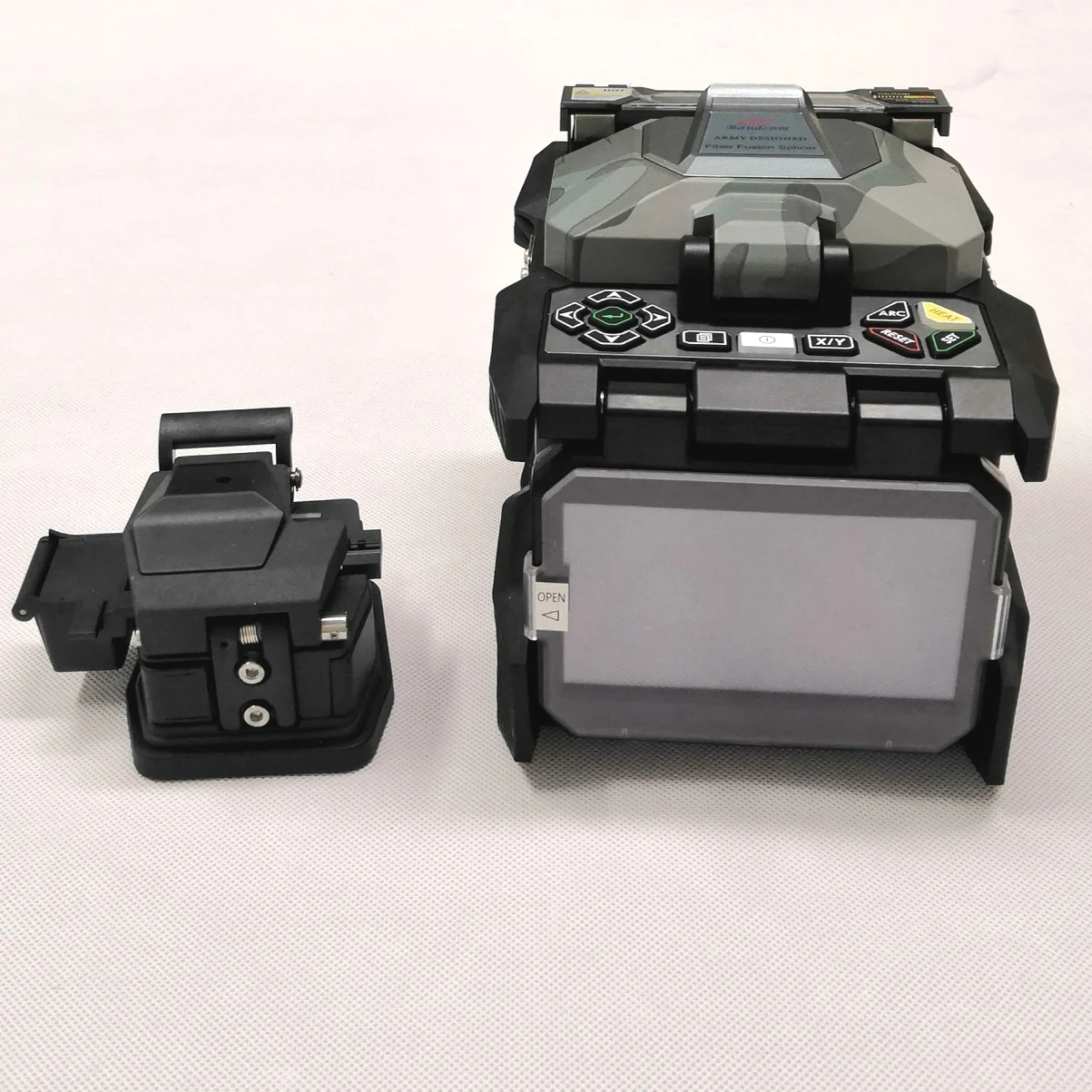

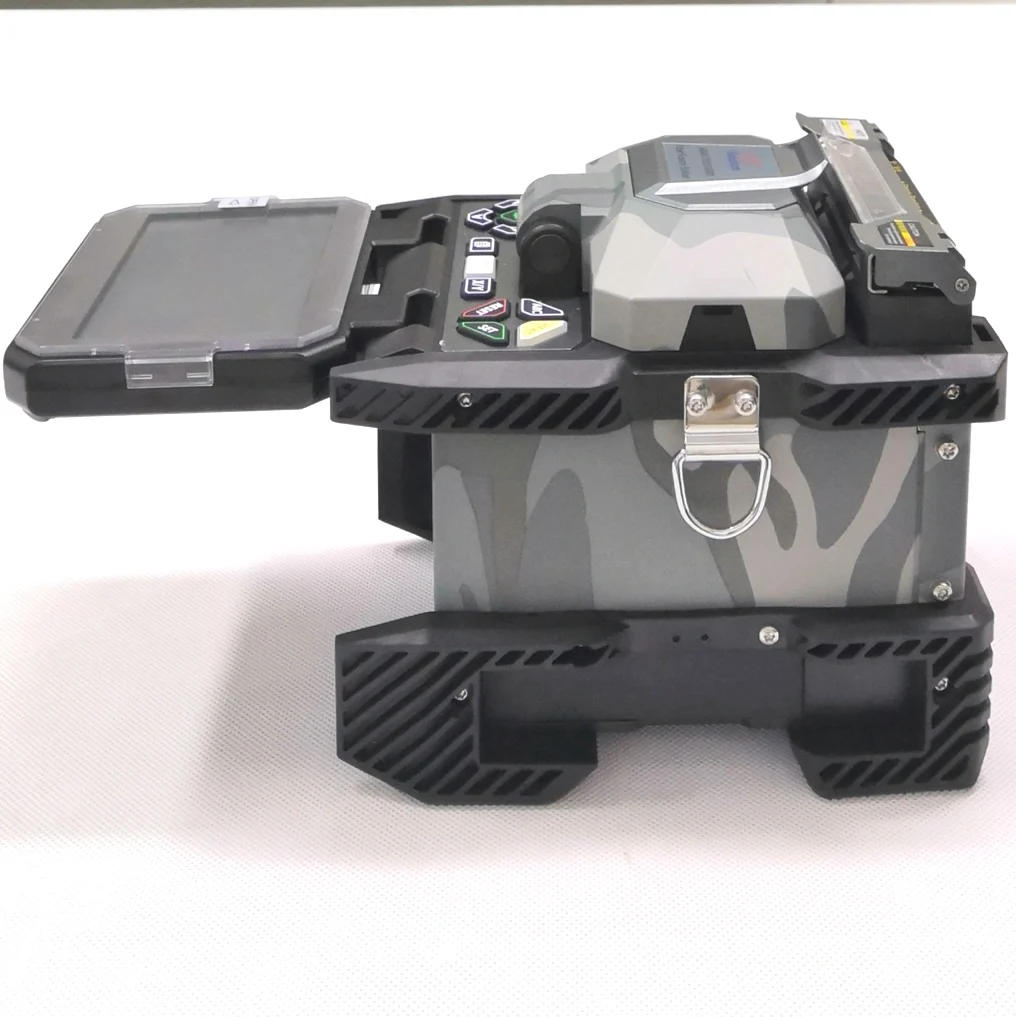

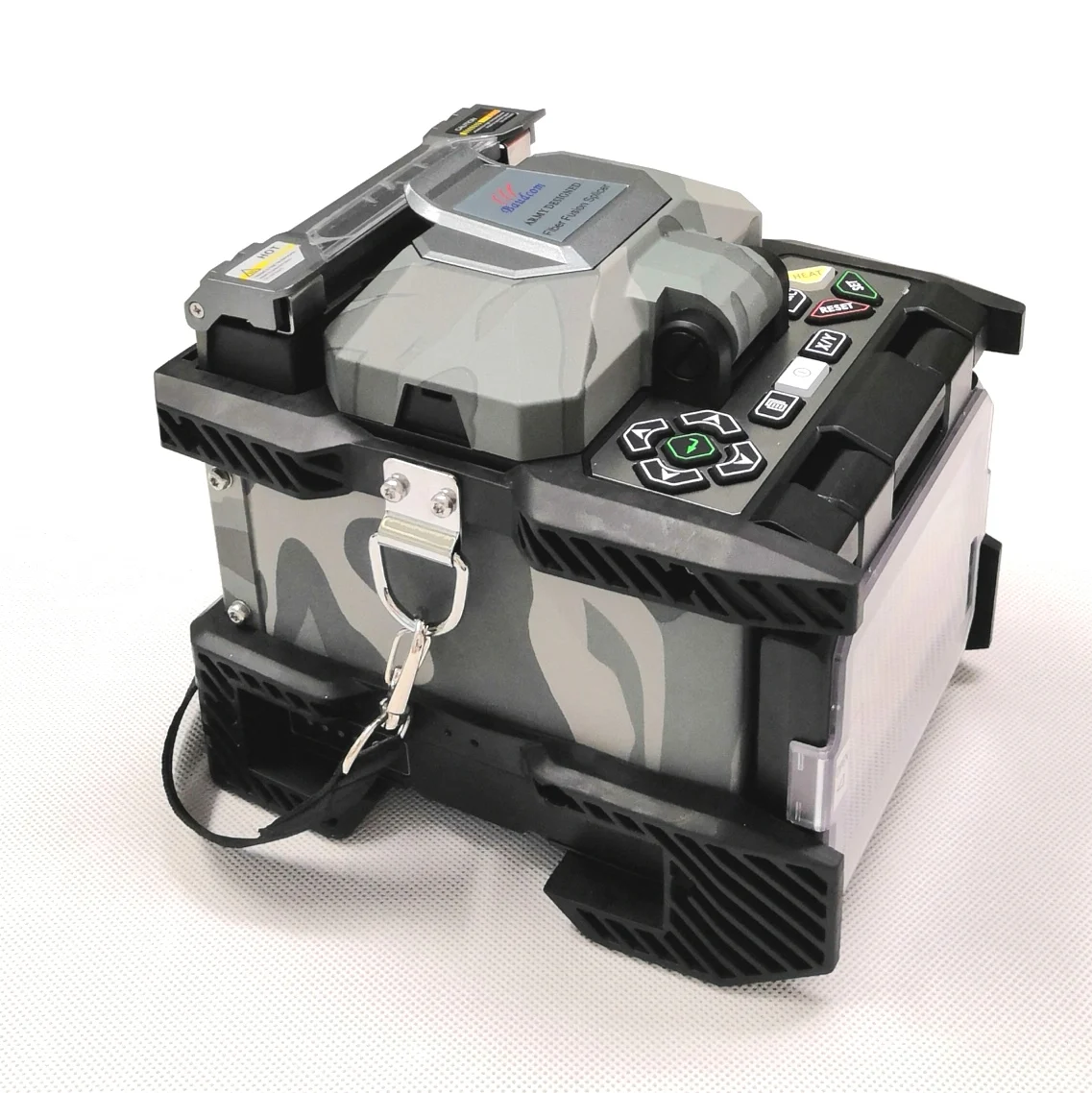

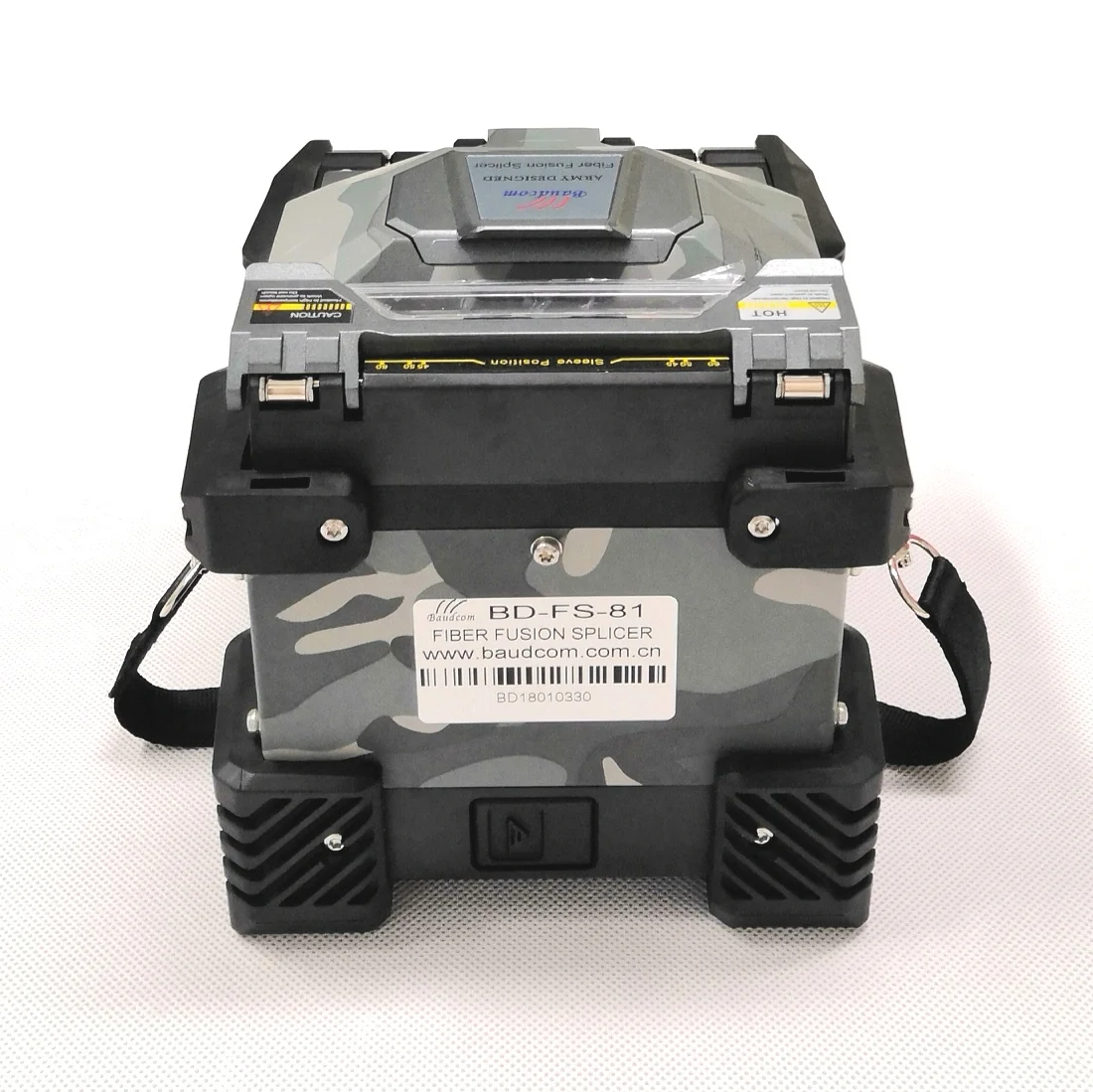

Fusion splicing machine 6 motor optical fiber welding fusion touchscreen FS 81

BD-FS-81 optical fiber fusion splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers' demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.

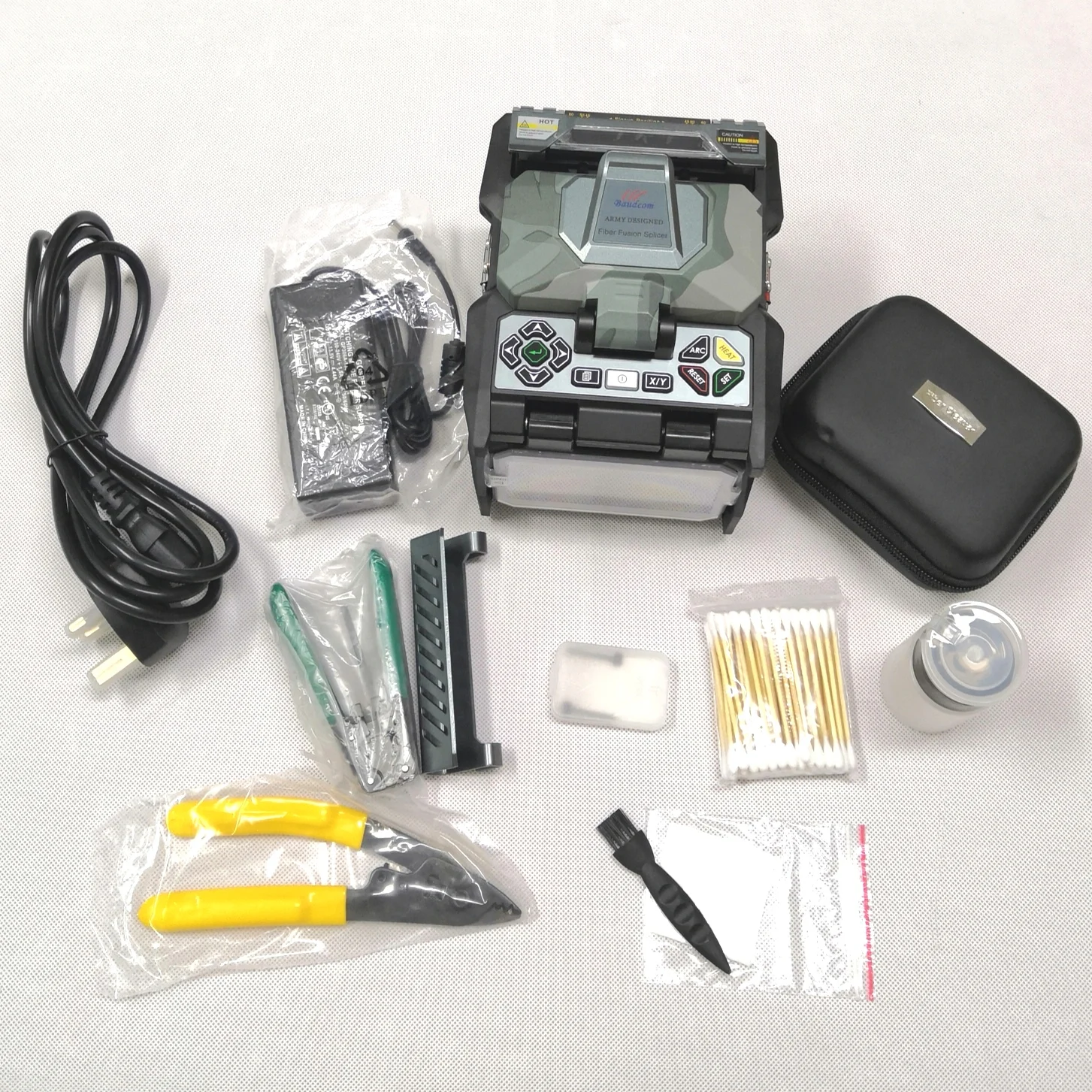

Standard Package:

• l  Small size, light weight


• l  7s fast splicing, 18s highly efficient heating


• l  320 times image magnification, 5mm fusing for ultra-short cleave length


• l  300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage


• l  Ceramic presser foot, ceramic V-groove, all-in-one fixture


• l  Dual-directional fusing, auto fusing, intelligent heat shrink


• l  USB and SD card interface, auto update of U disk


• l  Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles


• l  GUI (graphical user interface) and touch screen, convenient for operation


• l  Dust-resistant, water-resistant, shock-resistant, greater environment adaptability

Small and light

Small size and light weight, the splicer is easy to carry and can be lift by one hand.

Water-resistant, dust-resistant, shock-resistant, greater environment adaptability

Meet IP52 requirements.

All-in-one fixer

The all-in-one fixture meet fusion demands of multiple optical fibers, jumpers and rubber-insulted wires with a cladding diameter of 80~150μm.

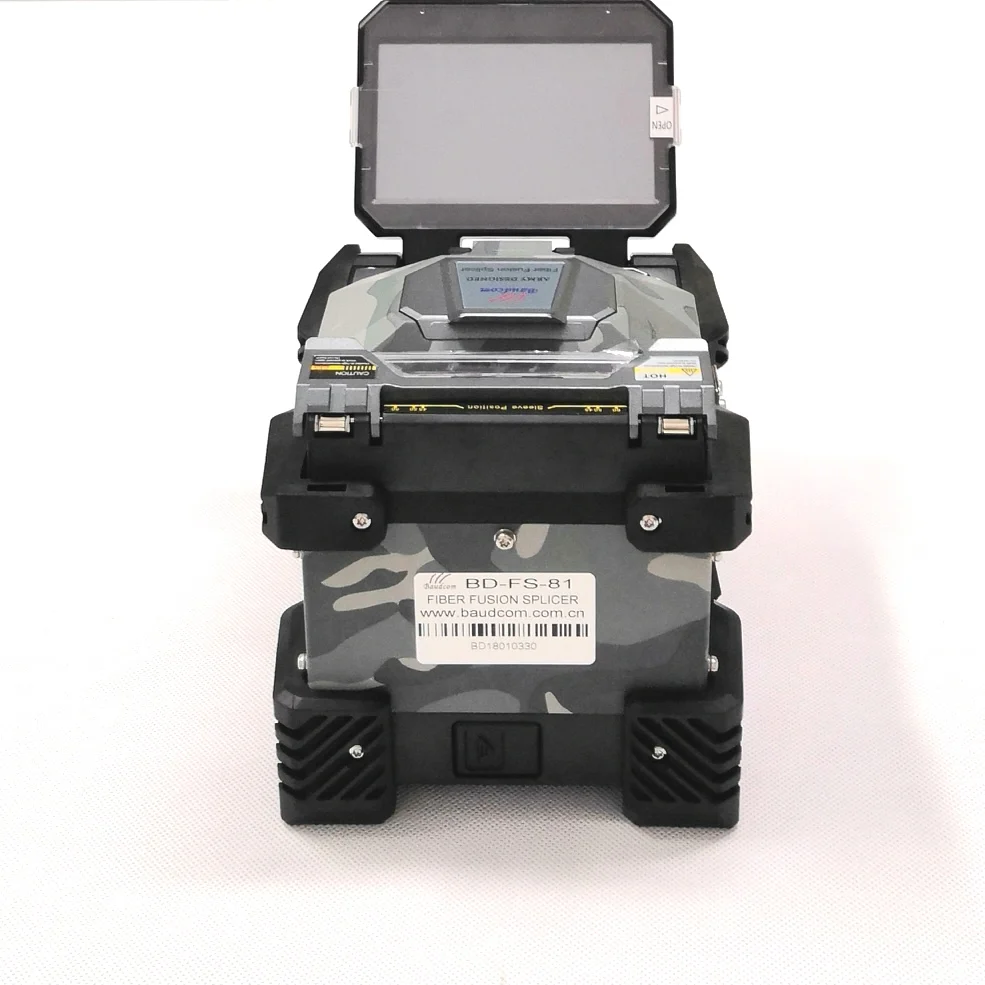

Graphical interfaces and touch screen

BD-FS-81 uses entirely new GUI and touch screen in design. Operators can set up the splicer and get to know relevant information of it simply and directly by graphical interfaces.

Intelligent heat shrink

A detection unit is embedded in the heater. The heating function will only be enabled when the protection sleeve is put in the heater, to avoid mishandling.

Pluggable lithium-ion battery of large-capacity

The built-in pluggable lithium-ion battery of large capacity can answer working demand lasting all day long (typical 220 counts of splicing and heating cycles).

Ceramic V-groove and ceramic presser foot

Ceramic V-groove with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.

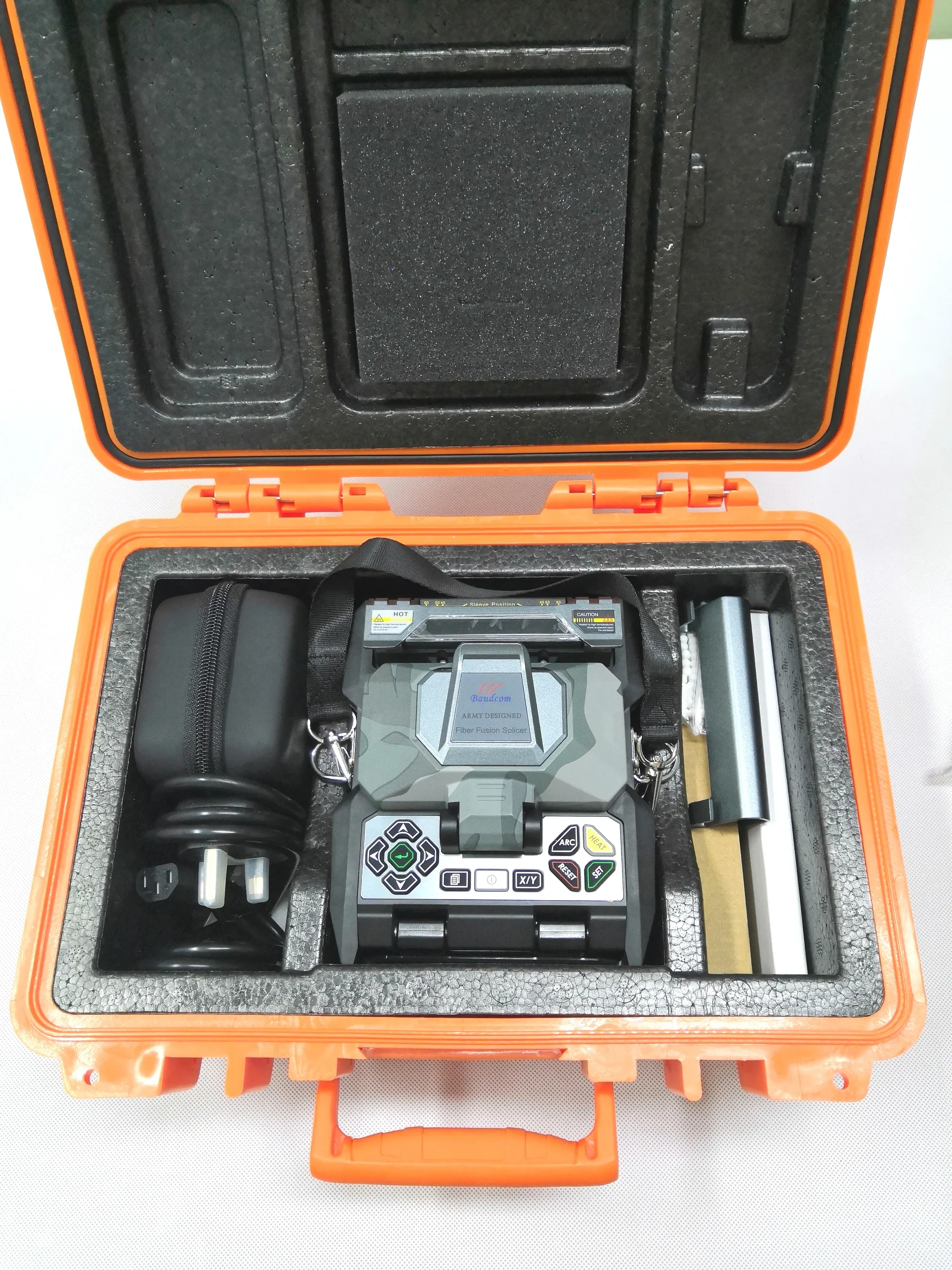

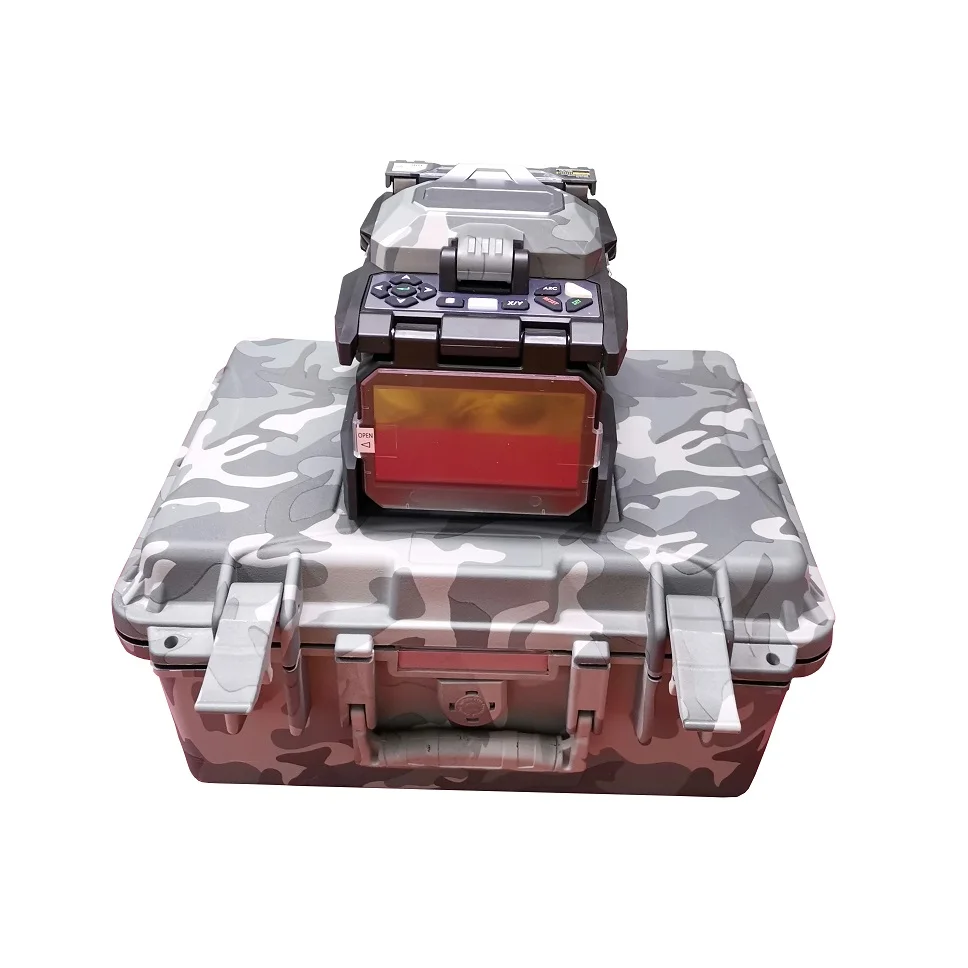

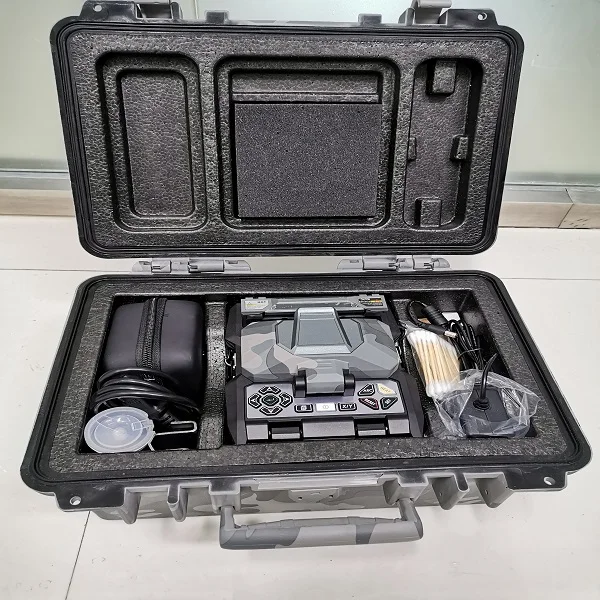

Carrying case

The carrying case is novel in design and light in weight, has built-in compact working bench. Open or close the cover can turn it to a working bench.

Application

BD-FS-81 Optical Fiber Fusion Splicer is compact equipment deploying the design of ergonomics, which delivers convenient operation and handy carrying case. Event very short fibers can be spliced easily. It’s capable of construction and maintenance of optical fiber line projects (including trunk), emergency repair, production and test of optical fiber devices and research and study in institutes.

1.How can I get optical fiber fusion splicer?
You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice  for your confirmation. When we got your advance payment (deposit), we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.

4.How about the shipping for optical fiber fusion splicer?
For small orders, we will send the goods by International Express like Fedex/DHL/TNT/UPS(Also you can use your existing DHL/Fedex/UPS accounts for shipping). Usually it takes about 7work days to arrive.

If big quantity we will ship by Ocean transportation, it takes one month to arrive.

if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.


Packaging & Shipping

The optical fiber fusion splicer will be well packaged by carton with Foam or other shock proof materials.
