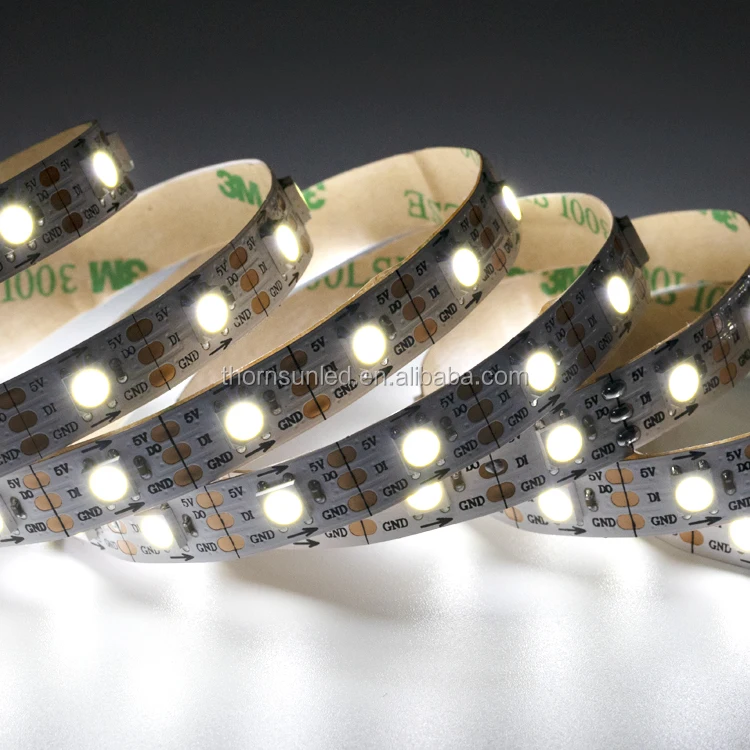

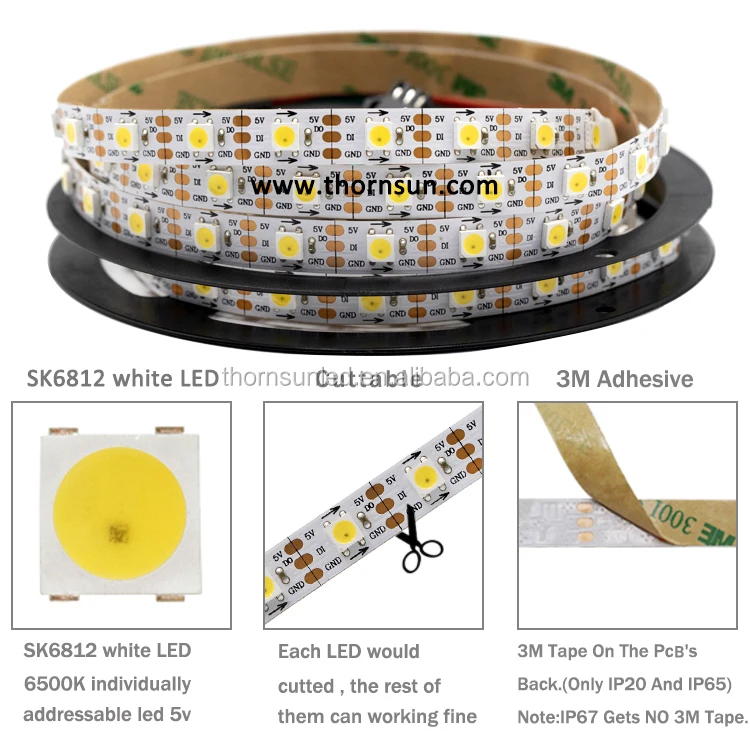

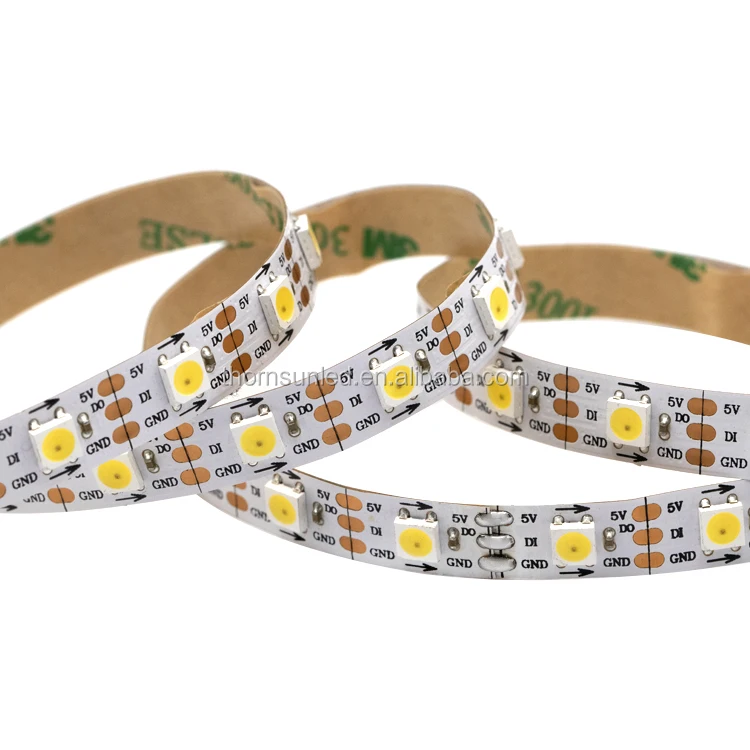

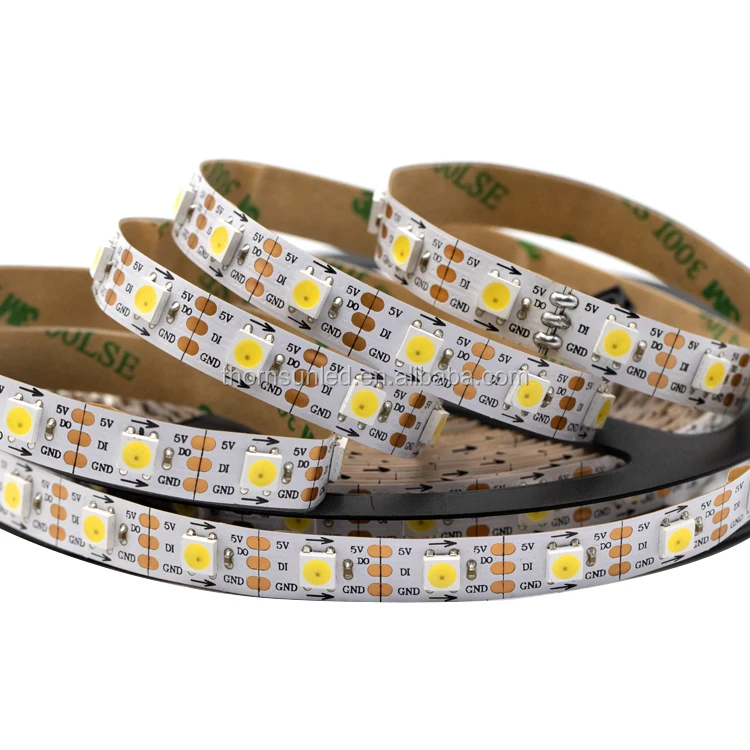

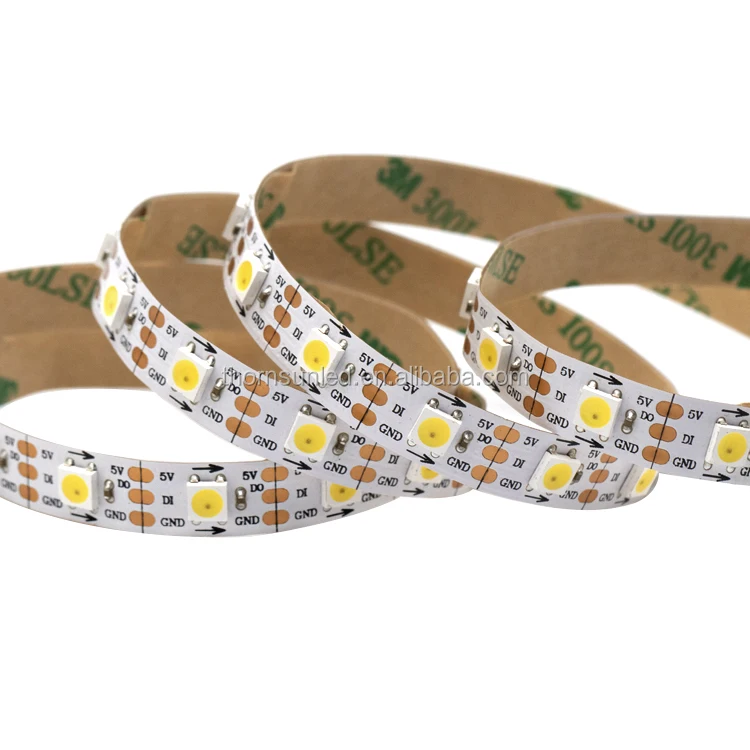

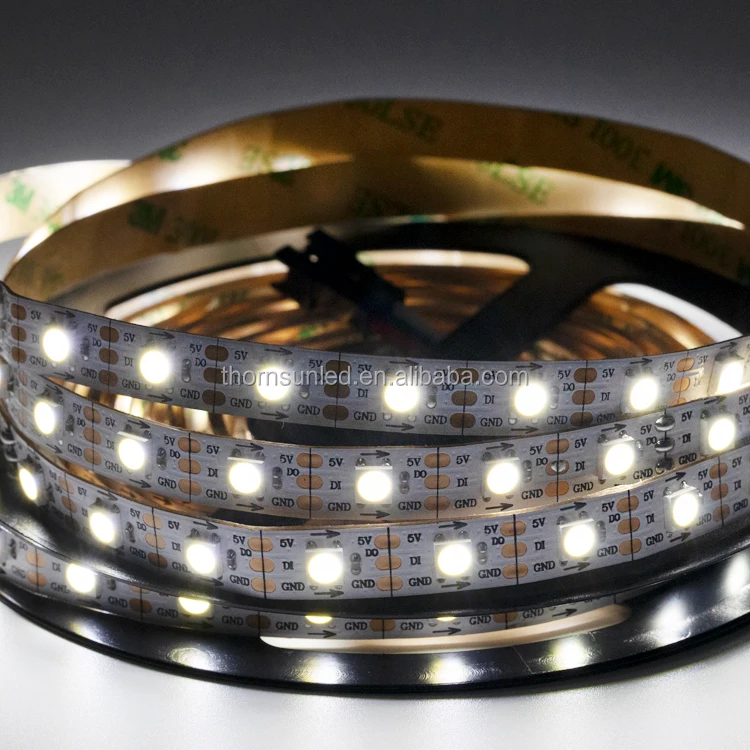

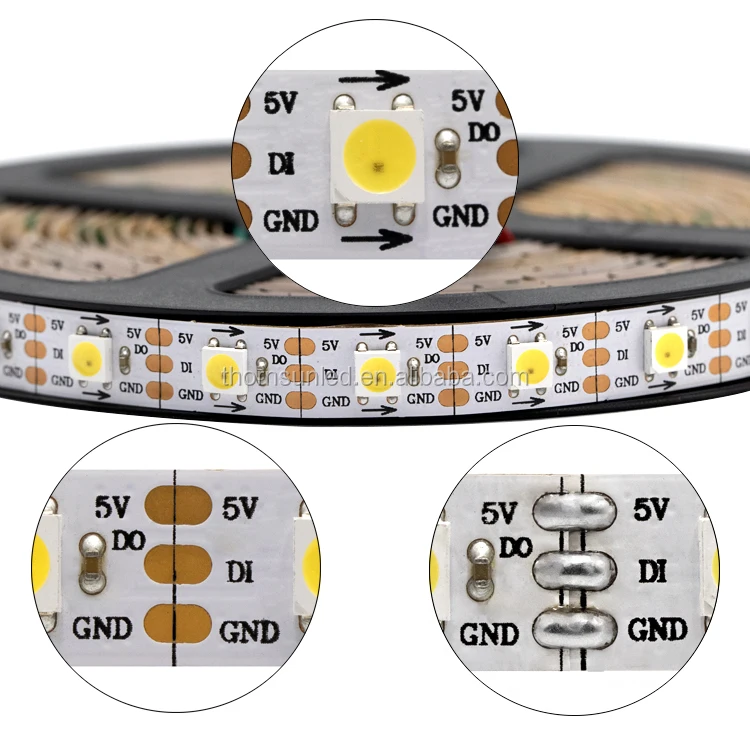

High quality led strip sk6812 6500k 5v led strip light
Specification
Model number:
TS-10060-SK6812White
LED TYPE :
sk6812 chip
PCB Size:
10mm
IC Model:
sk6812 led chip
View angel:
140 degree
LED QTY:
60LEDS
Power :
14.4w
Voltage:
DC5v
Color:
single color

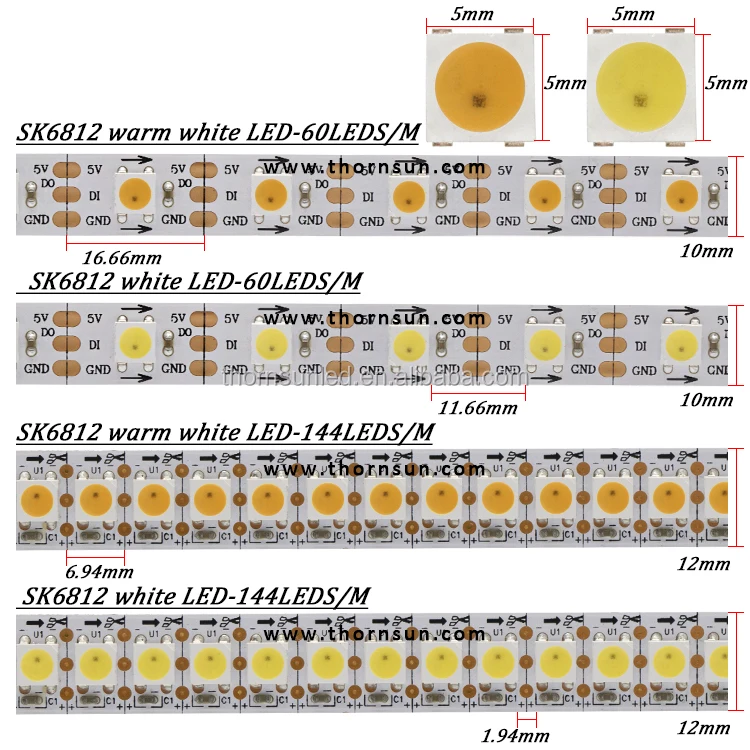

PCB pitch:
10mm
Package:
2pcs/bag , with anti -static bag
Detail use information: 1)You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface. 2)These panels require a 5V low voltage input for power which needs to be able to source a good amount of current– up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended). 3)Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking fora large panel of addressable LEDs to fit the contours of almost any surface you've come to the right place. 4)Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself. Needless to say, do NOT fold this matrix in half! Connection: SPI signal :LED strip+ LED power supply +led controller DMX control :LED strip + LED power supply+DMX controller +DMX decoder LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online) LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply: T-1000S +Meanwell power:
