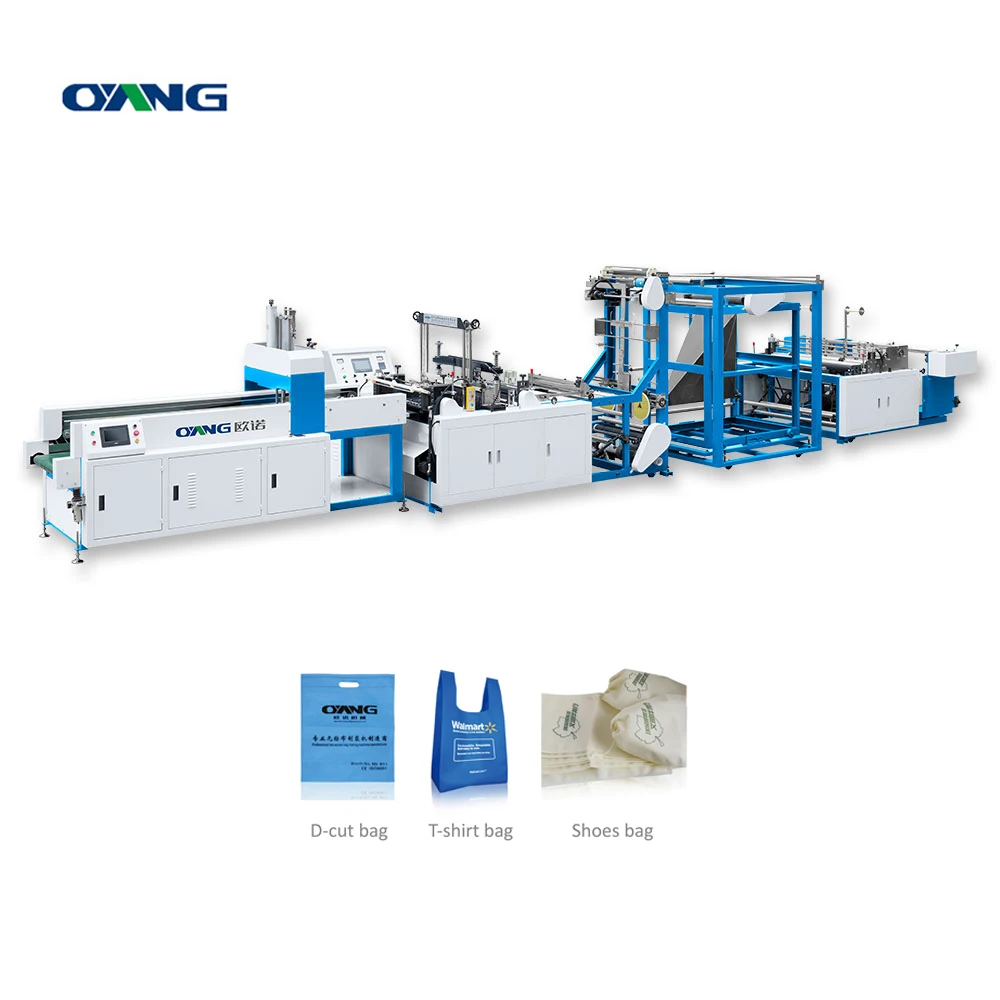

Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
High Speed Fully Automatic Non Woven T Shirt Bag Making Machine , Non Woven Fabric Packaging Material Bag Making Machine Price
- Category: Packaging Material Making Machine >>>
- Supplier: Zhejiang Allwell Intelligent Technology Co. Ltd.
Share on (1600078465282):
Product Overview
Description
Products Description
Model | ONL-C700 | ||||||

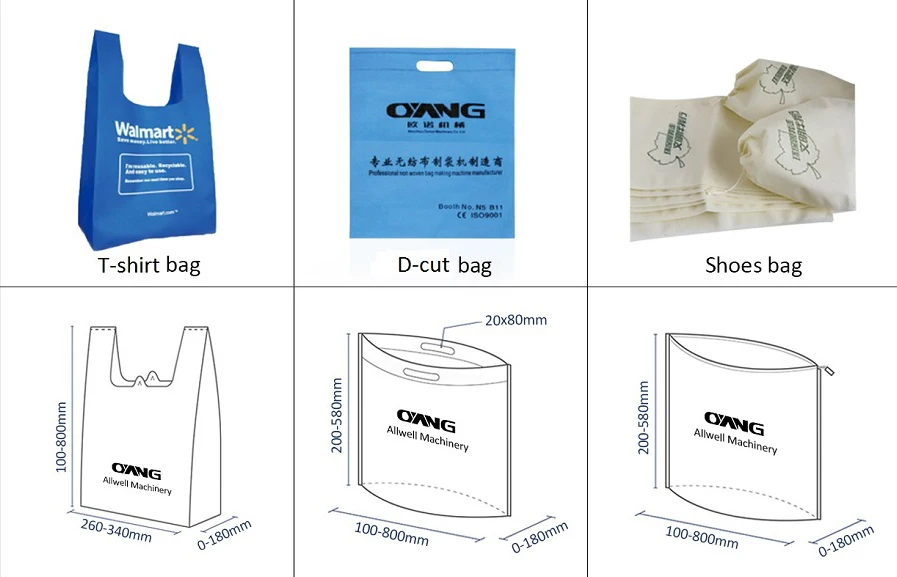

Finsh Products | Handle bag | T-shirt bag | D-cut bag | Shoes bag | |||
Production Speed | 60-120pcs/min | ||||||
Gusset | 0-18cm | 0-18cm | 0-18cm | 0-18cm | |||
Width | 10-80cm | 26-34cm | 10-80cm | 10-80cm | |||
Height | 20-58cm | 10-80cm | 20-58cm | 20-58cm | |||
Handle | 37-60cm | ||||||
Roller Windth | 1.25m | ||||||
Fabric Thickness | 35-100GSM | ||||||
Loop Handle Thickness | 60-120GSM | ||||||
Power Supply | 220V 50Hz | ||||||
Total Power | 12KW | ||||||
Overall Size | 10000X2100X2000mm | ||||||
Gross Weight | 2300KG | ||||||
Feeding Part
Function: Automatic loading, magnetic power tension controller, Automatic correcting deviation system.
Mouth Fold And Sealing
Function: Fold part can adjust, One side one ultrasonic part
Brand: Ounuo
Original: Ourselves
This Part have two ultrasonics which would keep working when you making all kind of bag except T-shirt bag.
Brand: Ounuo
Original: Ourselves
This Part have two ultrasonics which would keep working when you making all kind of bag except T-shirt bag.
Bag Side Folding Part
Function: This part is for fabric fold, for different type bag making, the pull through way is different.
Our engineer would teach you the way when machine install
Our engineer would teach you the way when machine install
Bag Bottom Gusset Part
Function: For box bag, handle bag, D-cut bag making, this part is for bag bottom finish. For T-shirt bag making, this part is for bag side gusset finish.
This Part have one ultrasonic which would working when you making T-shirt bag.
This Part have one ultrasonic which would working when you making T-shirt bag.
Photoelectric Tracking
Function: This part is for the picture check on the non woven fabric to ensure your bag making accurate.
Allwell Bag Making Machine would stop if the check eye miss the picture.
Allwell Bag Making Machine would stop if the check eye miss the picture.
Bag Side Sealing
Function: Using Ounuo made ultrasonic to seal bag side.
Different width bag making machine, the ultrasonic is different.
700 model have two ultrasonics;
800 model have three ultrasonics.
Different width bag making machine, the ultrasonic is different.
700 model have two ultrasonics;
800 model have three ultrasonics.
Cut And Collect
Function: cutting the bag one by one and collect, then pack these goods.
Operation Computer
Name: Touch Screen, PLC
Brand: VENINEW
Original: TAIWAN
Brand: VENINEW
Original: TAIWAN
