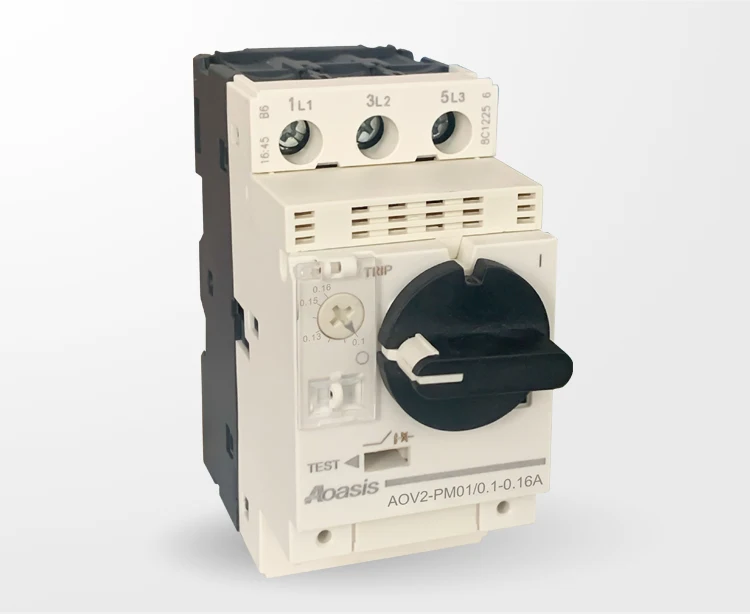

motorized_circuit_breaker AOV2 PM01 motor protection circuit breaker 3p housing
- Category: Motor Starters >>>
- Supplier: Zhejiang Zhongao Electric Co. Ltd.
Share on (1600078680752):
Product Overview
Description
Product Brand：AOASIS | Product Name：Motor Protection Circuit Breaker | |
Product Type：AOV2 PM01/0.1-0.16A | Degree of protection：IP20 | |
Rated working frequency： 50HZ/60HZ | Mode of operation：ME(Push button) PE(Rotary) | |
Current Specification：25-40A/40-63A/56-80A | ||
Installation method： With TH35-7.5 standard installation Rail Mounting | Installation: DIN-Rail Mounting | |
AOV2, AOV3 series motor protection circuit breaker (hereinafter referred to as circuit breaker)Suitable for AC 50/60Hz, rated voltage to 690V, rated current to 80A In the circuit, as a three-phase squirrel cage asynchronous motor overload, short circuit, phase failure protection Protection and infrequent start control, can be used for distribution line protection and infrequent The load conversion can also be used as an isolator.
Description
◆ Adjustable current setting value: when used, it can be adjusted to the appropriate current setting value indication position according to the actual working current.
◆ Can simulate the tripping design of the mechanism: the mechanism can be tripped by TEST, which is convenient for the simulation test.
◆ Front laser marking: the marking content is clear and durable.
◆ Double breakpoint structure: double breakpoints of contacts, suppress and disperse arc energy, improve arc extinguishing effect, improve connection breaking capacity, reduce contact electrical losses, effectively improve product electrical life.
◆ Thermal magnetic comprehensive protection structure: the product has multiple protection functions of overload, short circuit, three-phase unbalance.
◆ Can simulate the tripping design of the mechanism: the mechanism can be tripped by TEST, which is convenient for the simulation test.
◆ Front laser marking: the marking content is clear and durable.
◆ Double breakpoint structure: double breakpoints of contacts, suppress and disperse arc energy, improve arc extinguishing effect, improve connection breaking capacity, reduce contact electrical losses, effectively improve product electrical life.
◆ Thermal magnetic comprehensive protection structure: the product has multiple protection functions of overload, short circuit, three-phase unbalance.

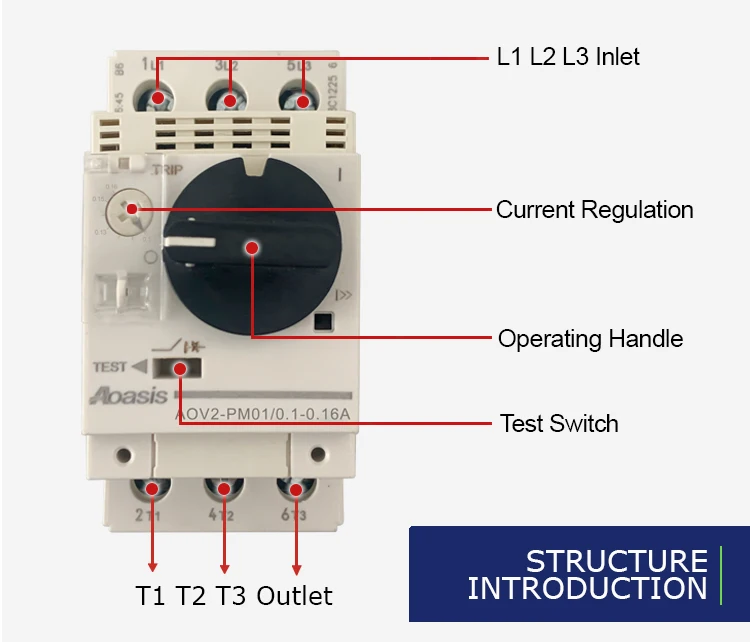

Product Structure

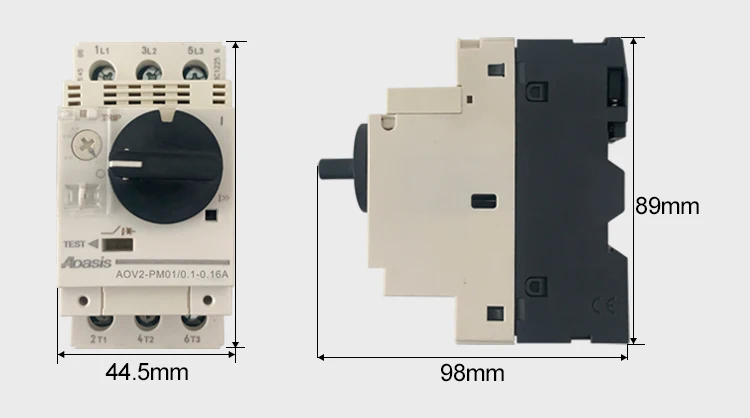

Dimensional Drawing
Technical Parameters

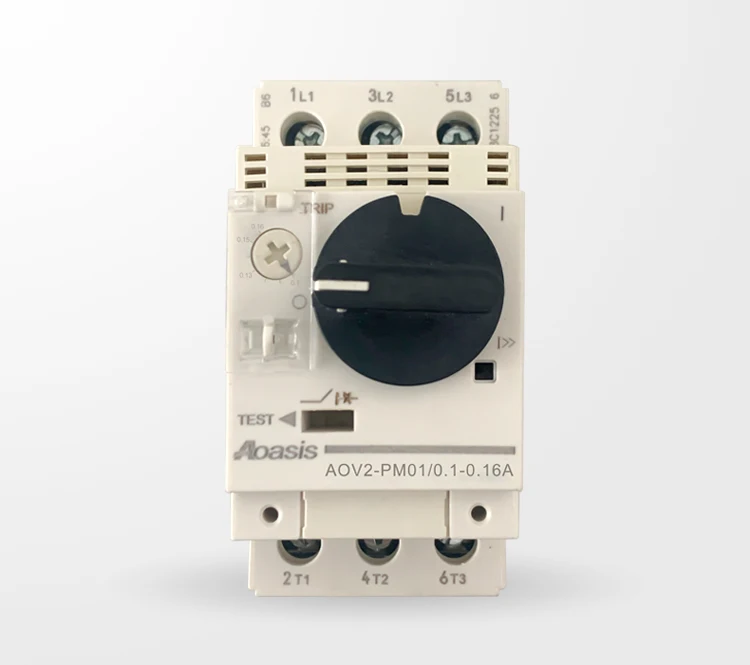

Front View

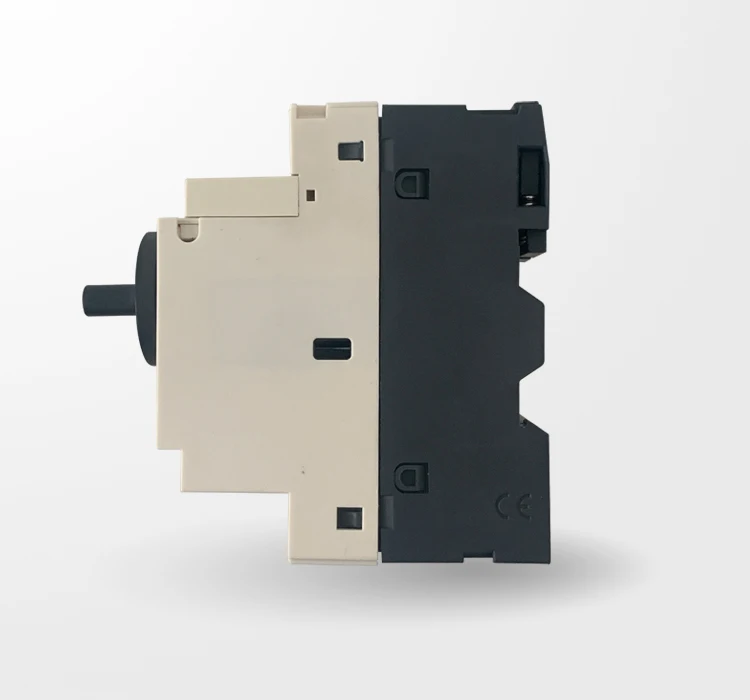

Side View
Side View
Back View
Back View
FAQ
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipping.
Q2. How's the delivery time ?
A. usually it will take about 25 days for production.
Q3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
