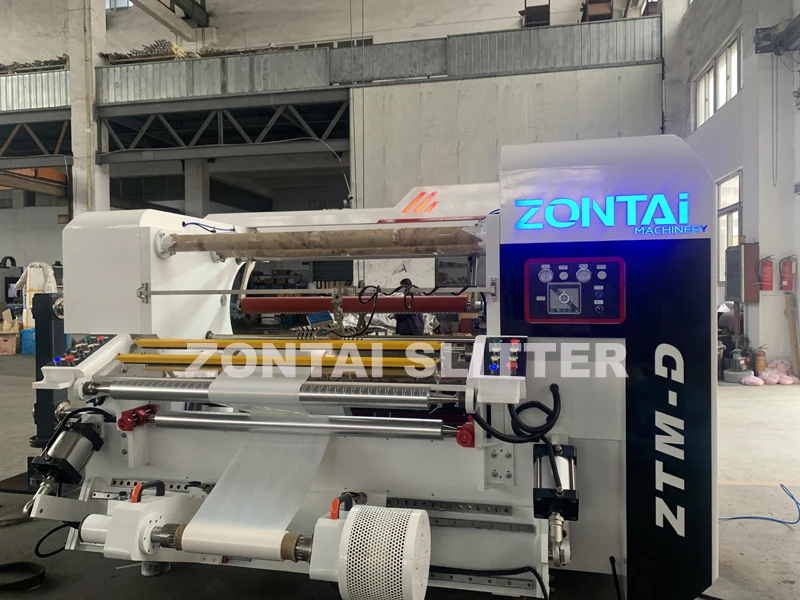

Slitting and Rewinding Machine Slitting Rewinder Woven Fabric 400m/min Production Capacity White
- Category: >>>
- Supplier: Ruian Xincheng Zhongtai Packaging Machinery Co. Ltd.
Share on (1600078782816):
Product Overview
Description
Product Information
Products Description
Uses:
The machine applies to cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical
materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials to slitting.
Vertical type Unwinder and Rewnider Slitting machine
Main characteristics:
Unwinder: pneumatic shaftless auto loader, with 3'' and 6'' adapters.
Max. unwinder diameter 800mm.
Unwinder with loadcell auto tension controlled.
Rewinders: pneuamtic friction shafts 3''. (6'' rings as optional).
Max. rewinder diameter 450mm.
Max. working speed: 400m/min.
Laser light for adjusting paper cores.
PLC and touch screen: Mitsubisih Japan
Inverters: Yaskawa Japan
Auto tension for unwinder and rewinders.
Knife: Razor knife as standard.
The machine applies to cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical
materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials to slitting.
Vertical type Unwinder and Rewnider Slitting machine
Main characteristics:
Unwinder: pneumatic shaftless auto loader, with 3'' and 6'' adapters.
Max. unwinder diameter 800mm.
Unwinder with loadcell auto tension controlled.
Rewinders: pneuamtic friction shafts 3''. (6'' rings as optional).
Max. rewinder diameter 450mm.
Max. working speed: 400m/min.
Laser light for adjusting paper cores.
PLC and touch screen: Mitsubisih Japan
Inverters: Yaskawa Japan
Auto tension for unwinder and rewinders.
Knife: Razor knife as standard.
Jumbo roll width | 1000mm-1600mm |
Diameter of roll | Ø800mm |
Diameter of rewinding | Ø600mm |
Inner diameter of paper core | 3’’or 76mm(optional:6’’or 152mm) |
Slitting speed | 10-450/min |
Tolerance of EPC | ≤0.1mm |
Min.width of produce | 50mm |
Total power | 12KW |
Weight | 4500Kg |
overall dimension (L X W X H) | 2000mm x 4200mm x 1840mm |
