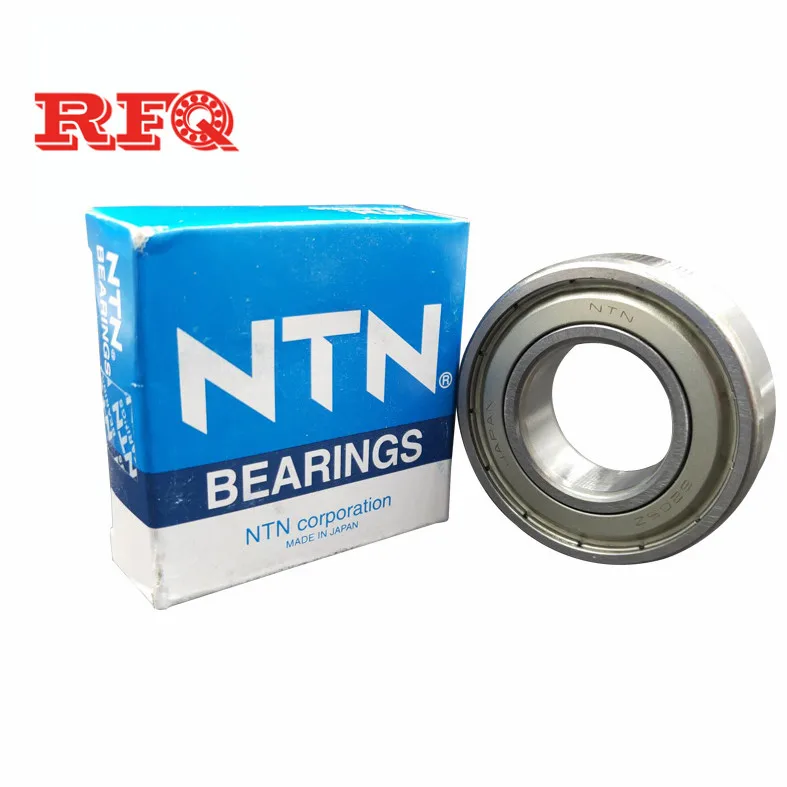

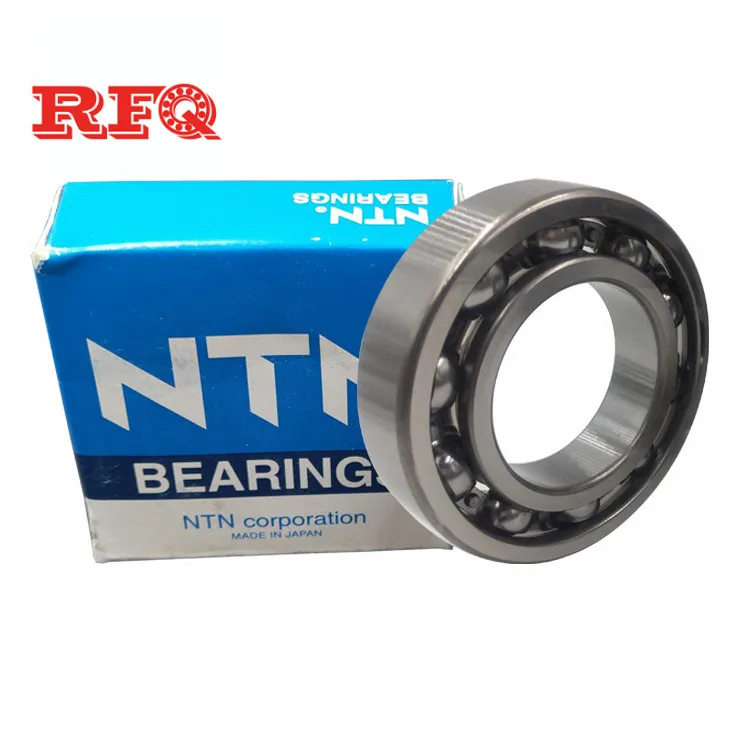

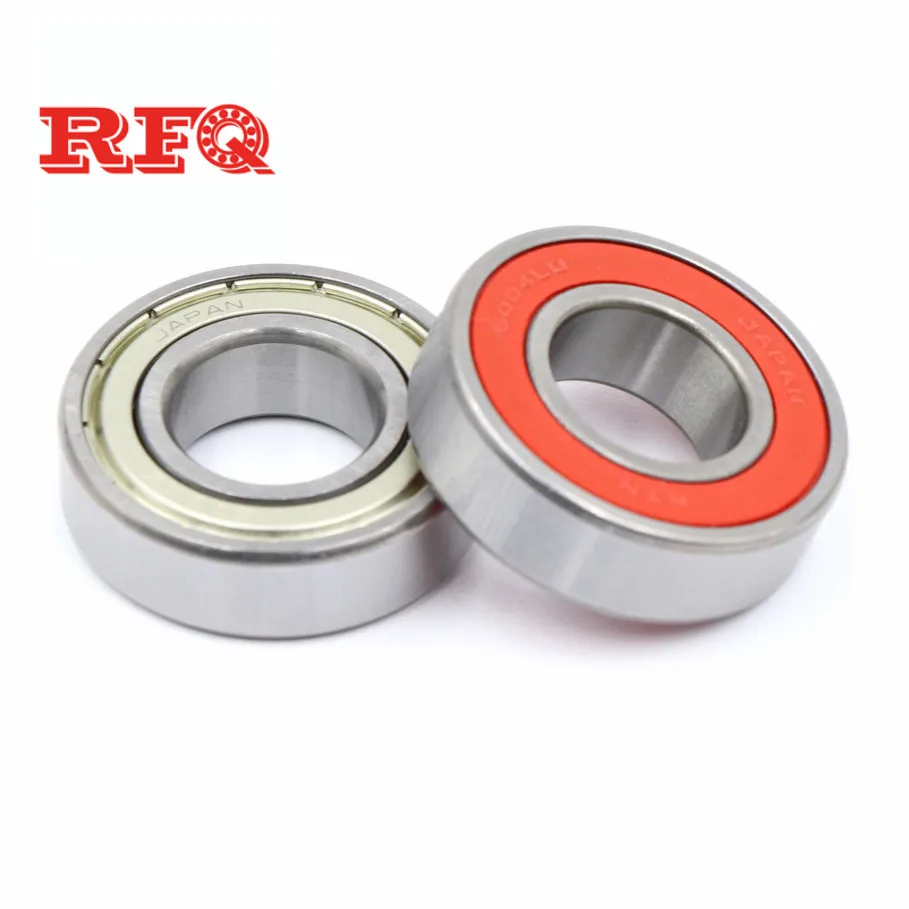

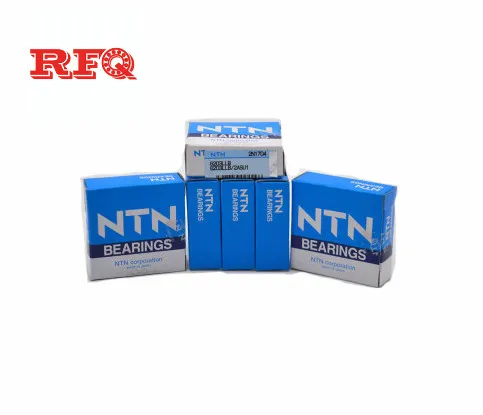

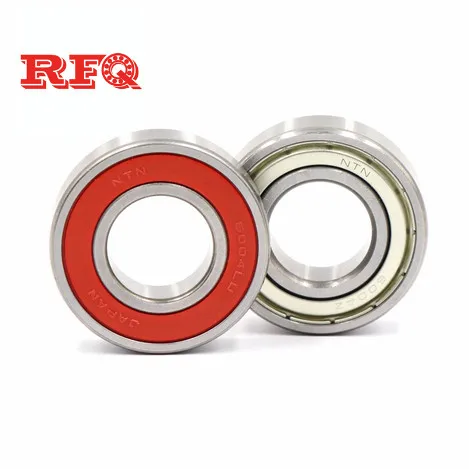

15x24x5mm Original Japan NTN 6802LU Sealed Ball Bearing 6802 LU Bearing
- Category: >>>
- Supplier: Shandong RFQ Bearing Co. Ltd.
Share on (1600078799355):
Product Overview
Description
Bearing Type | Principal Dimensions | Basic Load Ratings | limiting Speeds | Reference weight | ||||||||
(mm) | (KN) | (r/min) | (KG) | |||||||||
d | D | B | Cr | Cor | Crease | Oil | Wt | |||||
6200 | 10 | 30 | 7 | 5.1 | 2.39 | 24000 | 30000 | 0.032 | ||||
6201 | 12 | 32 | 10 | 6.8 | 3.05 | 22000 | 28000 | 0.037 | ||||
6202 | 15 | 35 | 11 | 7.65 | 3.75 | 20000 | 24000 | 0.045 | ||||
6203 | 17 | 40 | 12 | 9.55 | 4.8 | 17000 | 20000 | 0.067 | ||||
6204 | 20 | 47 | 14 | 12.8 | 6.6 | 15000 | 18000 | 0.107 | ||||
6205 | 25 | 52 | 15 | 1.4 | 7.85 | 13000 | 15000 | 0.129 | ||||
6206 | 30 | 62 | 16 | 19.5 | 11.3 | 11000 | 13000 | 0.119 | ||||
6207 | 35 | 72 | 17 | 25.7 | 15.4 | 8800 | 11000 | 0.291 | ||||
6208 | 40 | 80 | 18 | 30.9 | 19 | 7800 | 9700 | 0.366 | ||||
6209 | 45 | 85 | 19 | 30.9 | 19.4 | 7200 | 8900 | 0.413 | ||||
6210 | 50 | 90 | 20 | 35.1 | 23.3 | 6700 | 8300 | 0.467 | ||||
6211 | 55 | 100 | 21 | 43.4 | 29.3 | 6100 | 7500 | 0.608 | ||||
6212 | 60 | 110 | 22 | 47.8 | 33.1 | 5500 | 6800 | 0.798 | ||||
6213 | 65 | 120 | 23 | 57.2 | 40.2 | 5100 | 6300 | 0.974 | ||||
6214 | 70 | 125 | 24 | 60.8 | 45.1 | 4800 | 5900 | 1.11 | ||||
6215 | 75 | 130 | 25 | 66.1 | 49.6 | 4600 | 5700 | 1.17 | ||||
6216 | 80 | 140 | 26 | 72.7 | 53.1 | 4300 | 5300 | 1.37 | ||||
