pcap touchscreen open frame 21.5 inch lcd monitor touch screen monitor for All in one computer industrial touch screen panel pc

Product Overview

Description

GreenTouch pcap touchscreen open frame 21.5 inch lcd monitor touch screen monitor for All in one computer industrial touch screen panel pc



Direct Contact: Skype:greentouch4 ,Tel/wechat: 13430735089







2152C 21.5” LCD Open Frame Touch monitor

The GreenTouch's 2152C LCD open frame touch monitor is a touch solution developed for automated information systems, gaming and entertainment, as well as light industrial automation controls, making GreenTouch's touch monitor product line even more complete.The 2152C touch monitor is based on the concept "Design for simple and convenience", with proven GreenTouch expertise and reliability. Precise small frame design will be completely sealed touch screen, so that it has dust-proof, dirt-proof and water-proof function, and make it easier for customers to install 2152C in the cabinet. Designed and built by GreenTouch, the model has a long life cycle Period and can supply long-term demands. Even if the future replacement of a new generation of LCD panels, you do not need to do external changes.



The models adopted the industry-leading GreenTouch projected capacitive touch technology. This model has a global standard of agency certification with GreenTouch warranty and overall after-sale service. The 2152C LCD open frame touch monitor is a cost-effective touch solution for system integrators and value-added resellers (VARs).



Features

• Optional touch technologies include:PCAP



   •Compact and easy to integrate with mounting from sides or top and bottom; also a VESA mount option



• Worldwide agency approvals



• One year standard warranty

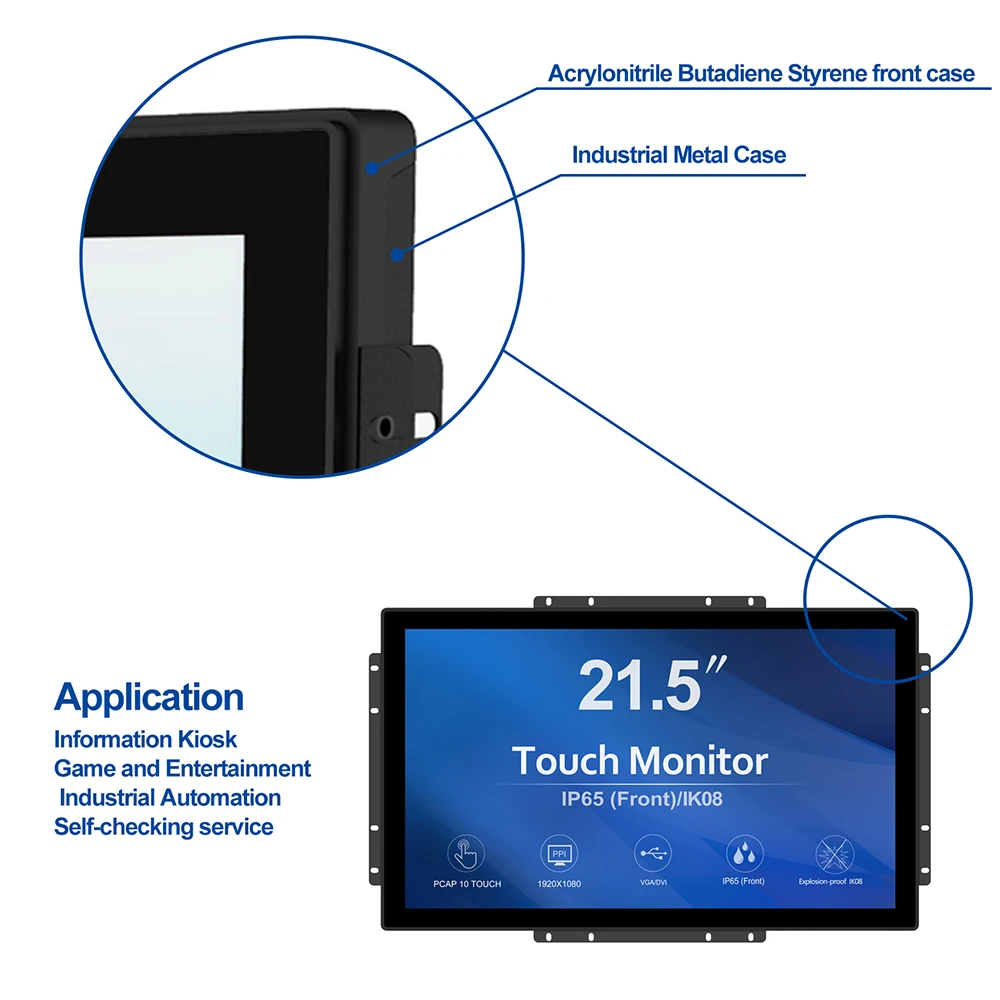

Applications

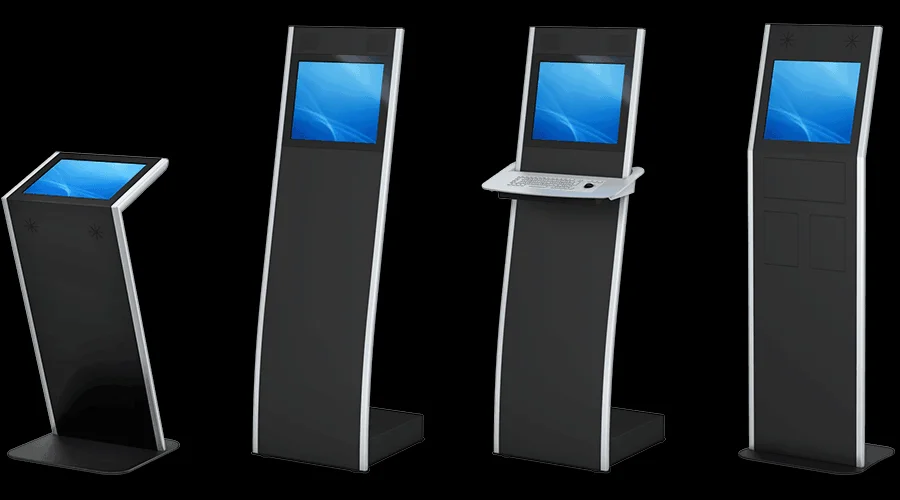

• Information Kiosk



• Game and Entertainment



• Industrial Automation



• Self-checking service







Specifications

Case/ frame color	Black
Display type	Active matrix TFT LCD, LED backlight
The diagonal dimension	21.5 "diagonal
Aspect ratio	16:9
Active Area Dimensions	476.6mm(H) x 268.1mm(V)
The display size	532mm(W) x319 mm(H),Thickness: 47 mm)
Resolution(pixel)	1920 x 1080 @ 60Hz
Display Colors	16.7m
Brightness (Standard)	250 cd/m
Response time (standard)	5 ms
View Angle(from center)	L/R:89/89;U/D:89/89 (Typ.)(CR≥10)
Contrast ratio (standard)	1000: 1(Typ.)
Input video formats	Analog VGA and digital DVI (optional HDM I)
Input Video Signal  Connector	Female head DE - 15 connector, female head DVI - D, Dual - Link connector,female head HDMI connector
Sweep frequency	Horizontal: 31.5 - 60.2 kHz; vertical: 56.3 - 75 Hz
Touch Technology	Projected Capacitive
	Touch chip:weida,eeti,ilitek
	Touch points:1-10
	Touch supply voltage:5V
	Touch interface:USB
	Touch support system:Windows,Android,linux
Power	External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (±0.3 mm);
	Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)
Power consumption (standard)	Display only: 13.5W(Typ.)
Temperature	Operating: 0°C to 40°C; Storage: -20°C to 60°C
Humidity	Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing)
MTBF	50,000 hours
Weight (approx.)	Net weight: 3.5 kg(Typ.); Shipping: 5.0 kg (reference)
Warranty	1 year
OSD	Digital OSD
User Controls	OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, phase, call default, language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD menu

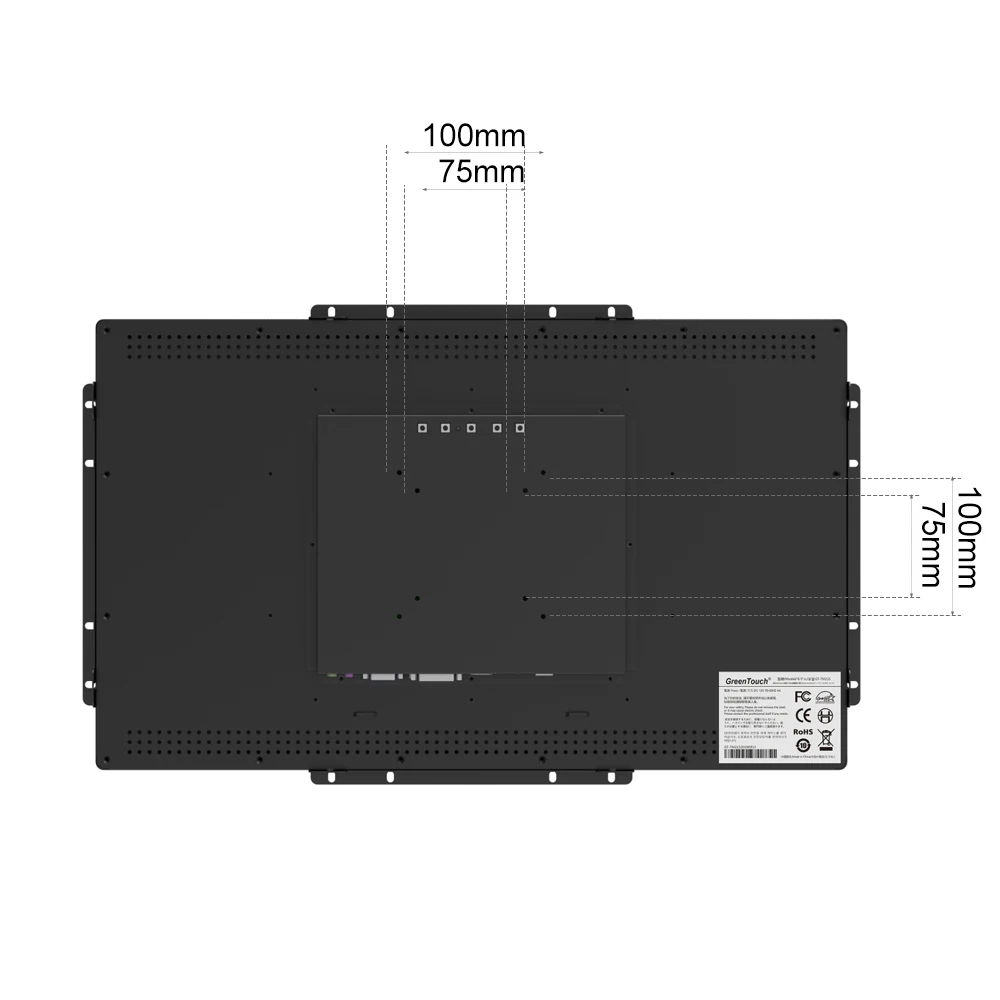

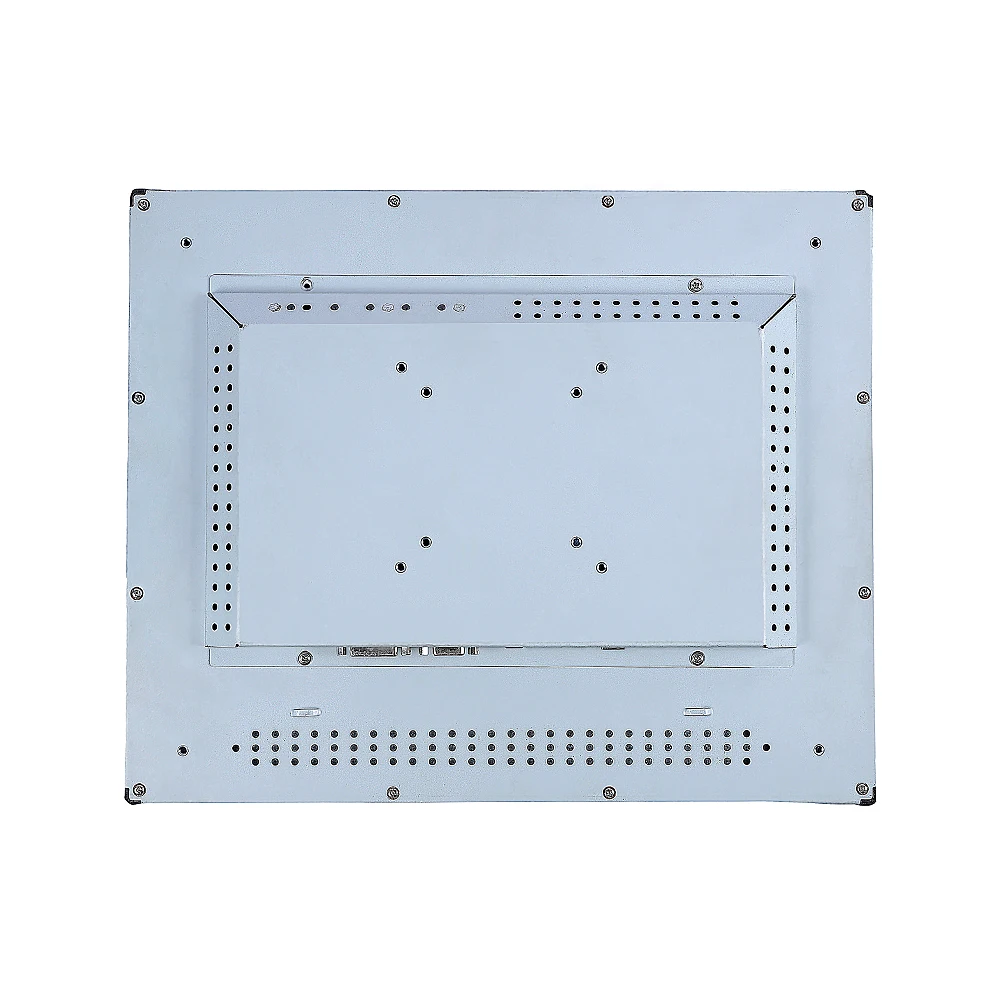

Mounting options	100mm or 75mm VESA mounting,open bracket mounting
Water and dust protection/Explosion-proof	IP65(front)/IK08(front)
Agency Approvals	UL,cUL (Recognized), FCC, CE, CB, China RoHS CQC

Ordering Information






Model	Part Number	Touch Technology	Display Ports	Interface	Surface Treatment	Availability
2152C	GT-TM-2152C-CTW	W-series PCAP	VGA,DVI	USB	Clear	Worldwide
	GT-TM-2152C-CTW-HD	W-series PCAP	VGA,DVI,HDMI	USB	Clear	Worldwide
	GT-TM-2152C-CTW-HD-DP	W-series PCAP	VGA,HDMI,DP	USB	Clear	Worldwide

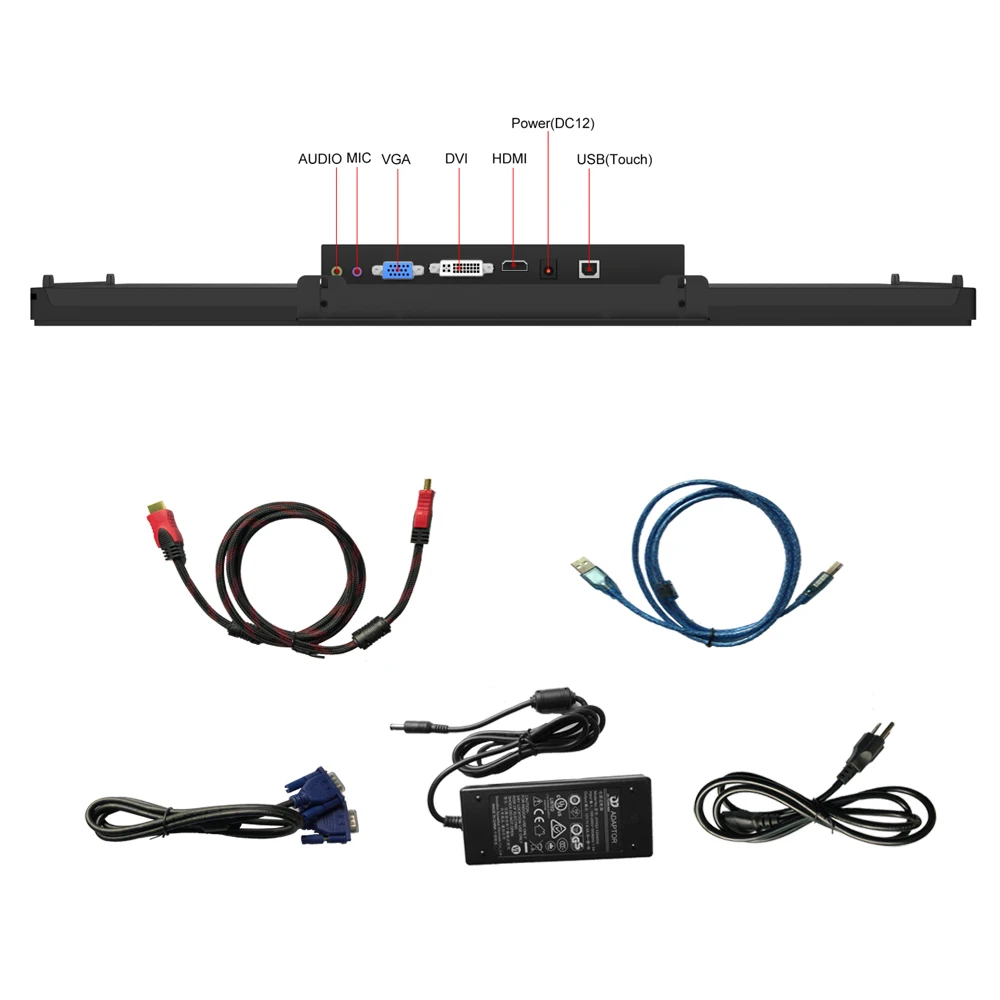

Package
