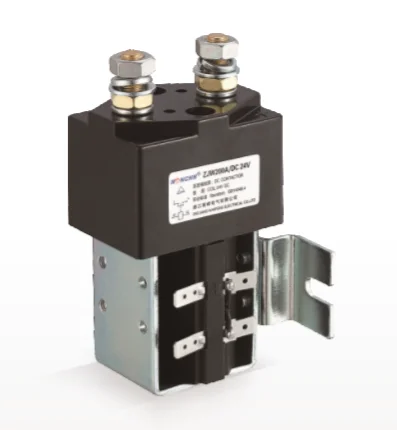

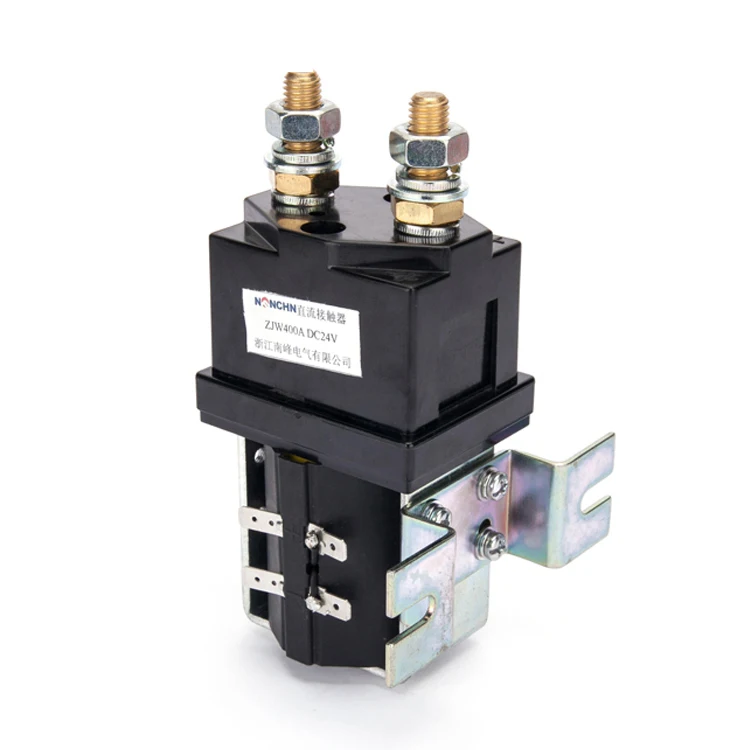

NANFENG New Energy 200A 1 Pole 1 Phase Standard Type Dc Contactor
Product Infomation
Brief Technical Data
Parameters
Coil Voltage Of Contact Circuit(V)
6-220V
Coil Power
11-14W
Main Rated Load Current Of Contact Circuit
200A
Rated Voltage Of Contact Circuit
6-80V DC
Dielectric(Volt)Strength
50HZ 1000V AC 1Min
Rated Load Current Of Contact Circuit
Not Above 80mv
Operating Time
Pickup(Contact makes):≤30 ms
Release(Contact breaks):≤30 ms
Action Characteristic
Pickup(Contact makes):≤66%us
Release(Contact breaks):≤30%us,≥5%us
Mechanical Life
100 Thouand times
Electric Life
20 Thousand Times
Specifications Subjiect To Change As The Customers' Request.

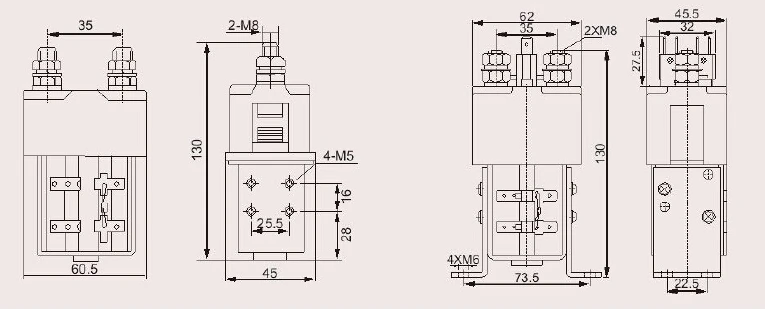

200A contact For Φ10, 300A contact for Φ 15.
Product Introduction
This series contactors are suitable for the battery or the rectification power and suppliers power,using for handling drawing,the pump motor and other electronic vehicle.
