IOCREST 4 Ports PCIe PoE Gigabit Ethernet network card for Intel350 I350 T4 wired network card
- Category: Network Cards >>>
- Supplier: Shenzhen,MMUI,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

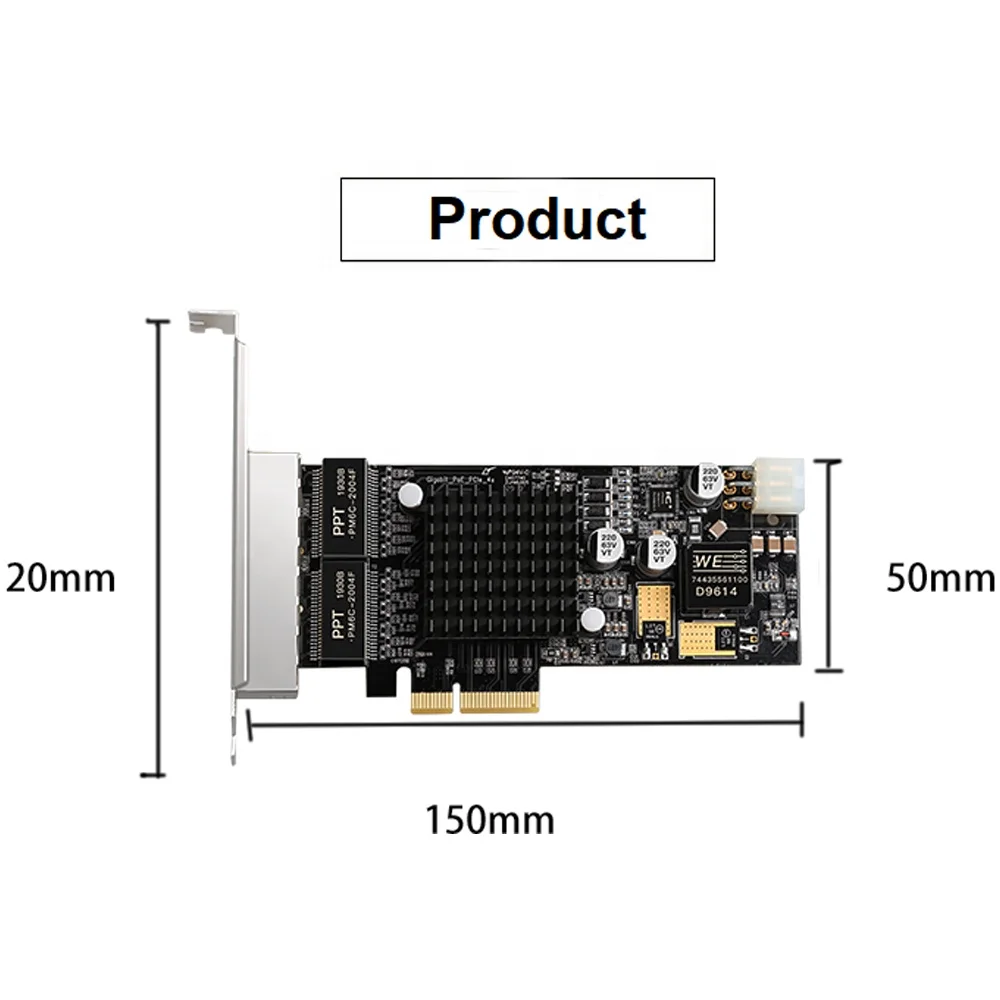

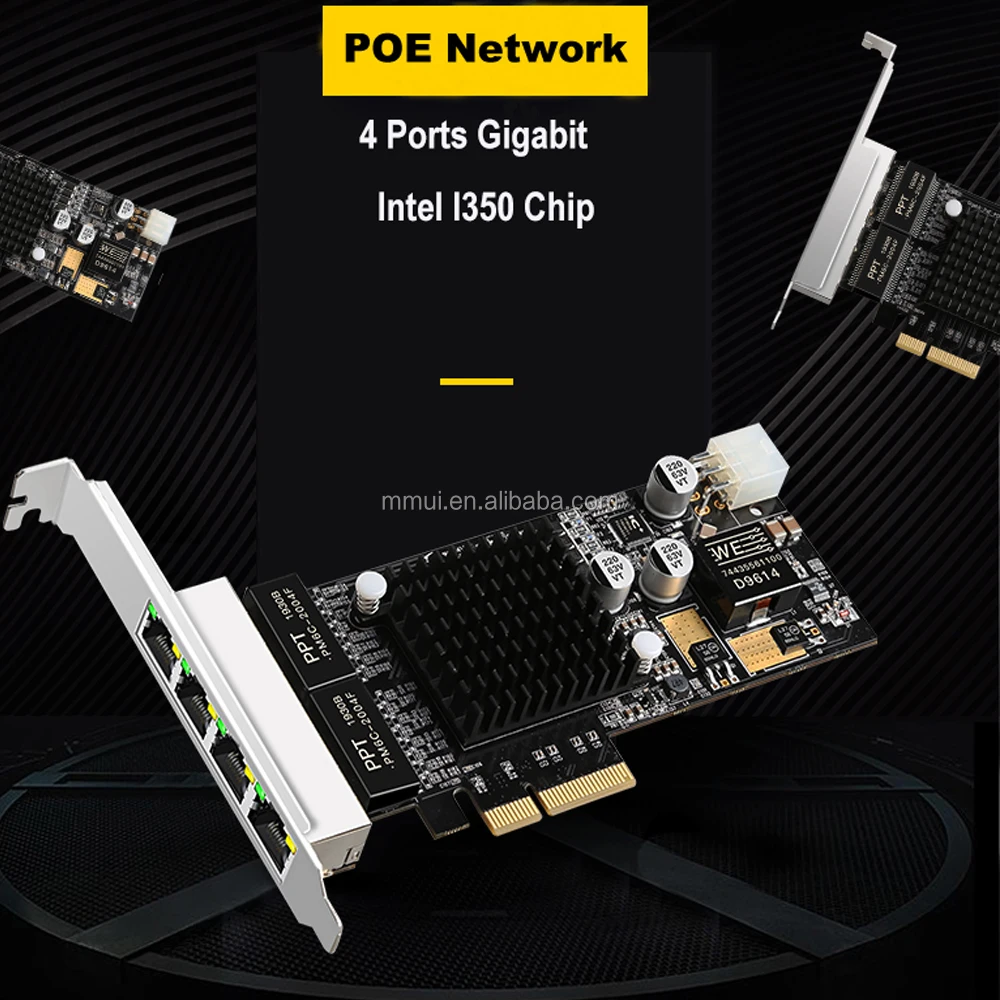

4-Port Gigabit 802.3at PoE+ PCIe Server Adapter
This is a 4-Port Gigabit 802.3at PoE+ PCI Express Server Adapter with a maximum of up to 70 watts of power output over Ethernet cables. Complied with PCI-E standard, it can be installed on any IPC or server motherboard with PCI-E socket to make the IPC or server able to communicate other Ethernet
devices and deliver power to PD devices.
devices and deliver power to PD devices.
Each port of the TXA072 can deliver 30W of power and 1000 Mb/s bandwidth over a networking cable of up to 100 meters. Its 30W PoE+ can now power not only PTZ (pan, tilt and zoom) cameras for surveillance applications but also 802.11ac AP for ultra-high-speed wireless application.
Features
* Intel® server-grade GbE Mac Controller
* PCI Express (PCIe) x4 interface, compliant with PCI Express 2.1 specification
* PXE network boot
* Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
* IEEE 802.3az Energy Efficient Ethernet (EEE)
* Provides installation flexibility for standard and low-profile computers, with a dual-profile design
* Supports 4 Gigabit Ethernet MAC Controller
* IEEE 802.3at compliant with up to 30W power per port
* 12V Mini-Fit 6-Pin power connector input
* Powered device (PD) auto detection and classification
* IEEE 802.1q VLAN ID tagged
* 9.5K jumbo frame size
* Complies with Microsoft and Linux platforms
* PCI Express (PCIe) x4 interface, compliant with PCI Express 2.1 specification
* PXE network boot
* Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
* IEEE 802.3az Energy Efficient Ethernet (EEE)
* Provides installation flexibility for standard and low-profile computers, with a dual-profile design
* Supports 4 Gigabit Ethernet MAC Controller
* IEEE 802.3at compliant with up to 30W power per port
* 12V Mini-Fit 6-Pin power connector input
* Powered device (PD) auto detection and classification
* IEEE 802.1q VLAN ID tagged
* 9.5K jumbo frame size
* Complies with Microsoft and Linux platforms
