AC 7206U 18 1,5*50 м acf клейкая лента для ЖК телевизора ремонт COF Склеивания стекла

Product Overview

Description

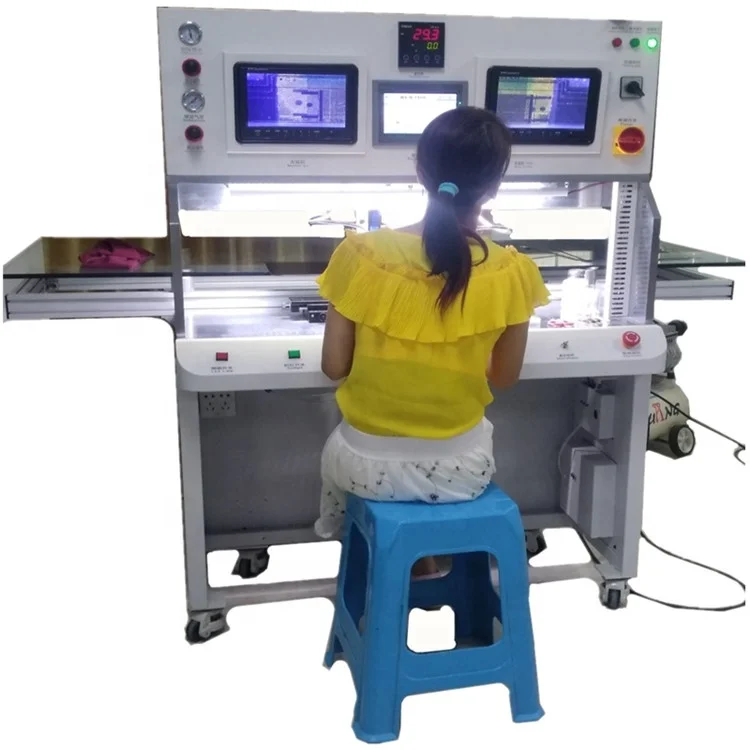

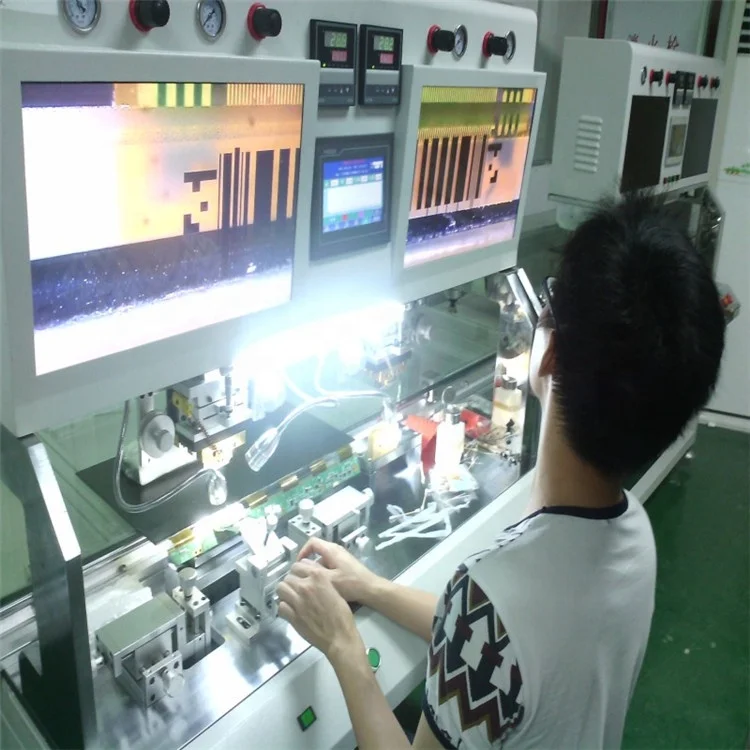

LCD bonding machine bright color vertical line repair machineAC-7206U-18 1.5*50m acf tape

25m acf tape

Anisotropic Conductive Film (ACF Tape / ACF Film)
ACF Tape is normally made up of two main components, namely Adhesive & conductive particles.

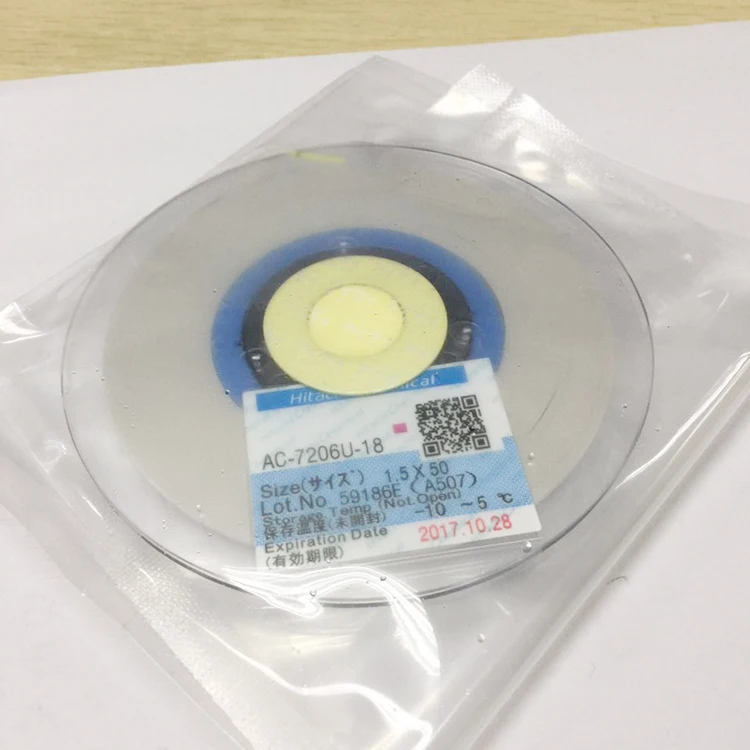

Model Number	AC-7206U-18
Adhesive Type	Hot Melt
Size	1.0 1.2 1.5 2.0(mm)*50(m)
Storage Temp	-10 ~ 5 ℃

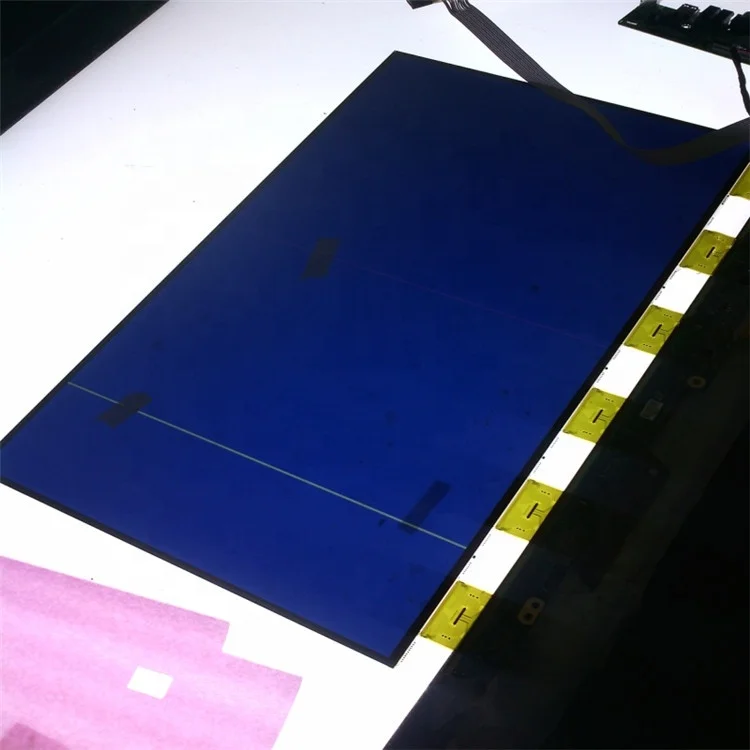

Usage	Repair LCD Screen











Adhesives:

The adhesive composition is dependent on the materials being assembled. This means an ACF designed for use in a flex-on-glass (FOG) assembly is usually not suitable for use in a chip-on-glass (COG), FOB, or any other configurations. It is specific to the application for which it is designed for.
ACF Conductive Particles
Conductive particles are used to conduct electricity from one side of the bond to the other. Depending on the application, conductive particles range from 3.5μm to 30μm in size, and can be made from Nickel-gold plated polymer spheres, gold plated nickel particles, or lead-free solder materials. Particles may be individually coated with a outer polymer to insulate them from other uncrushed particles, but which will crack open and allow electrical conduction if the particle is trapped and crushed between two pads during assembly.
