Professional factory cnc controller 2 axis machine Linux real time operating system
Professional factory cnc controller 2 axis machine Linux real-time operating system
Professional factory cnc controller 2 axis machine Linux real-time operating system
Professional factory cnc controller 2 axis machine Linux real-time operating system
Professional factory cnc controller 2 axis machine Linux real-time operating system
Professional factory cnc controller 2 axis machine Linux real-time operating system
Professional factory cnc controller 2 axis machine Linux real-time operating system

Professional factory cnc controller 2 axis machine Linux real time operating system

Share on (1600079802106):


Price:$2,150.00 - $2,250.00

Quantity:


Product Overview

Description



Product Description




Product details































































Axis2 Axis(extendable to 6 axes)
Product NameCNC Controller
Operating SystemWindow 10
Accuracy±0.001mm

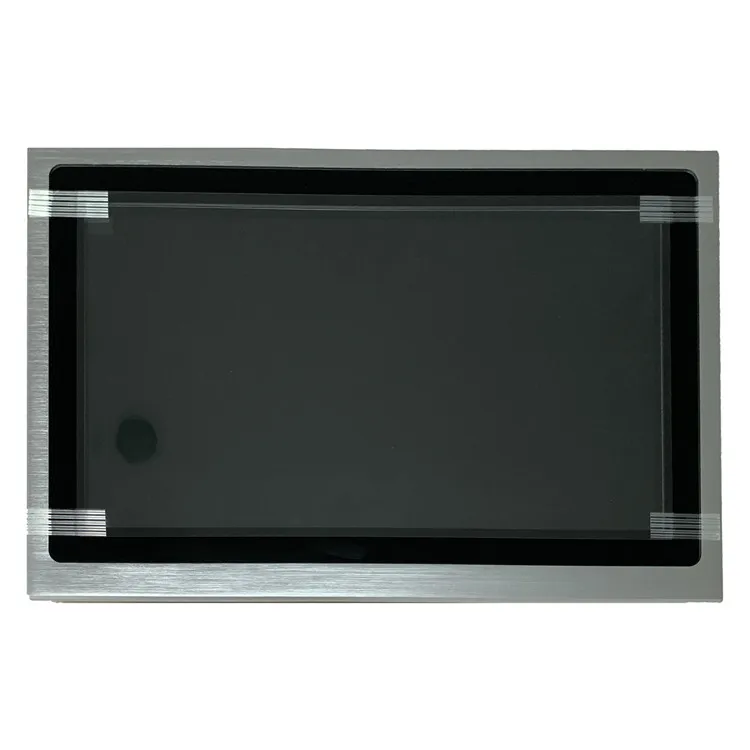

Display Size19 inch
COLORBlack
RAM4 G
Space120G SSD
PowerDC24V
CPU1.5Ghz

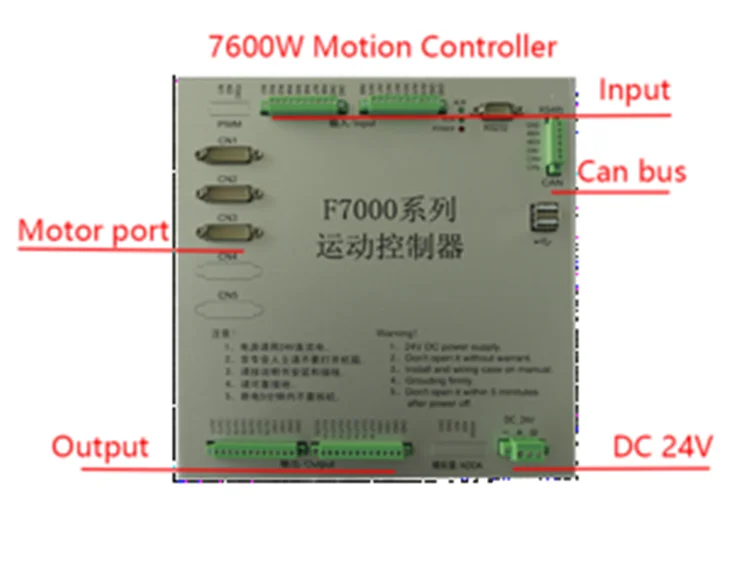

F7600W-IN CNC system absorbs the advantages of many CNC systems at home and abroad, and with reference to the company's F2000 series, F3000 series and F5000 series systems, a CNC system with more complete functions, stronger performance and more convenient use is developed. The product uses a multi-axis digital position control method that supports up to 6 axes of linkage, of which 4 axes have position monitoring. It is suitable for all CNC machine tools that use position control. Such as oxygen gas, plasma, laser cutting machine tools.


The F7000 controller runs on the Linux real-time operating system. It is equipped with Cortex-A8 chip and very large programmable device FPGA. The combination of software and hardware is adopted for interpolation. The Company has been engaged in numerical control system research for many years. Based on the original trajectory planning, speed preview and corner control, the S-type acceleration and deceleration and B-spline interpolation technology of the machine tool have been introduced, which makes the machine control more stable and the protection mechanism more perfect.


Function


































































No.



Standard Function



No.



Optional Function



01



Gantry dual-drive + Encoder feedback



10



Auto edge-tracing



02



Pre-installed CAM Software



11



Remote system diagnosis



03



Integrated THC(optional)



12



Plasma power source communication



04



Drilling and cutting



13



S-type acceleration



05



Cutting parameter library



14



Bezier curve



06



Dual small hole cutting



15



Work piece edge scanning and cutting



07



Horizontal independence servo axis



16



OPC UA Communication



08



Visualize remnant process



17



Cloud MES



09



Inkjet system



18



Laser/Plasma cutting

















































Technical specification



Control Axis



2-axis linkage (maximum expandable to 6 axes)



Control accuracy



±0.001mm



Motor drive



pulse + direction



Operation speed



30m/min



Power supply



DC24V



operating system



Windows 10



CPU



1.5Ghz



Memory



4G



Space



120G SSD














cnc controller 2 axiscnc controller 2 axiscnc controller 2 axiscnc controller 2 axiscnc controller 2 axiscnc controller 2 axis






Company information



cnc controller 2 axis






Customer Factory Application



cnc controller 2 axis






Exhibition



cnc controller 2 axis






Certificate



cnc controller 2 axis






FAQ




FAQ





1. Q: How do you guarantee the quality?


We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.




2. How do I make the payment?


We accept T/T, Western Union(only for a small amount).




3.Do you provide training for your product?


We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you


through the whole process.




4. What if I am not sure which controller I need? What if I need some technical consult?


Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.




5. How do you pack the goods?


Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.








Our Advantages




OUR ADVANTAGES



cnc controller 2 axis



QUALITY ASSURANCE


The products are widely used by well-known cutting machine manufacturers at home and abroad, and are exported to Southeast Asia, Russia, Africa, Europe, America and other countries




ONE-STOP SERVICE


We the best quality and the service attitude will serve for you!




18 YEARS EXPERIENCE


18 years of market and R&D experience




PROFESSIONAL TEAM


The R&D team consists of professors, senior engineers, doctors and masters from Shanghai Jiaotong University.
