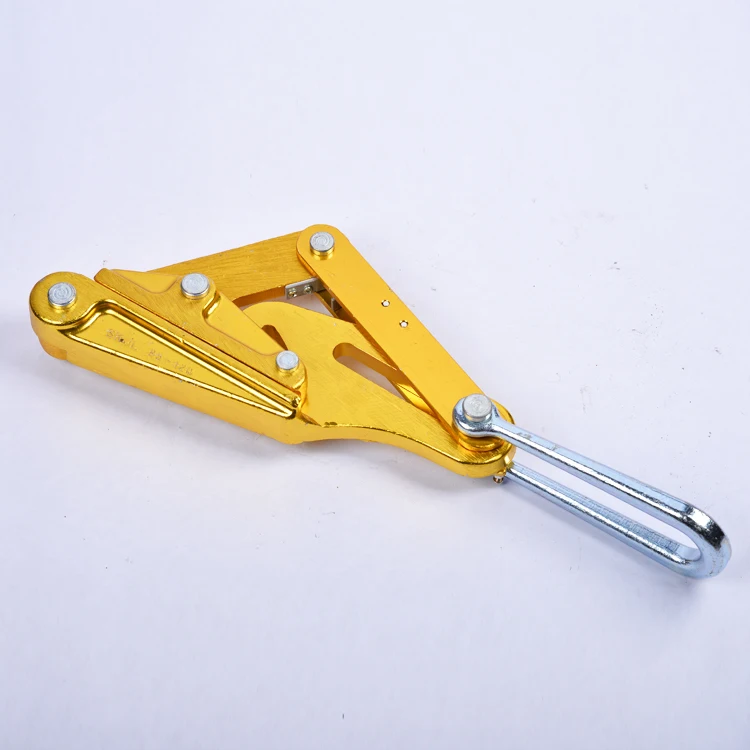

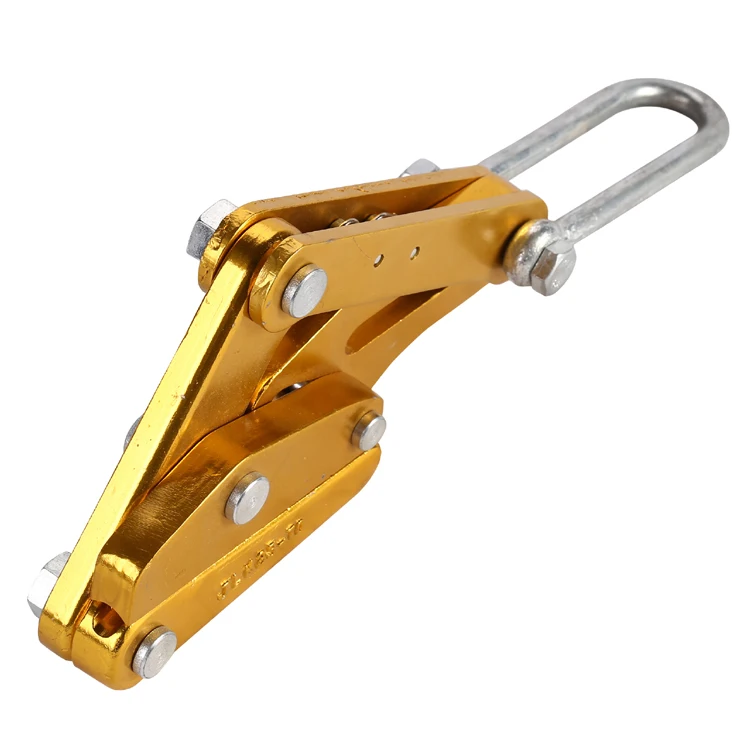

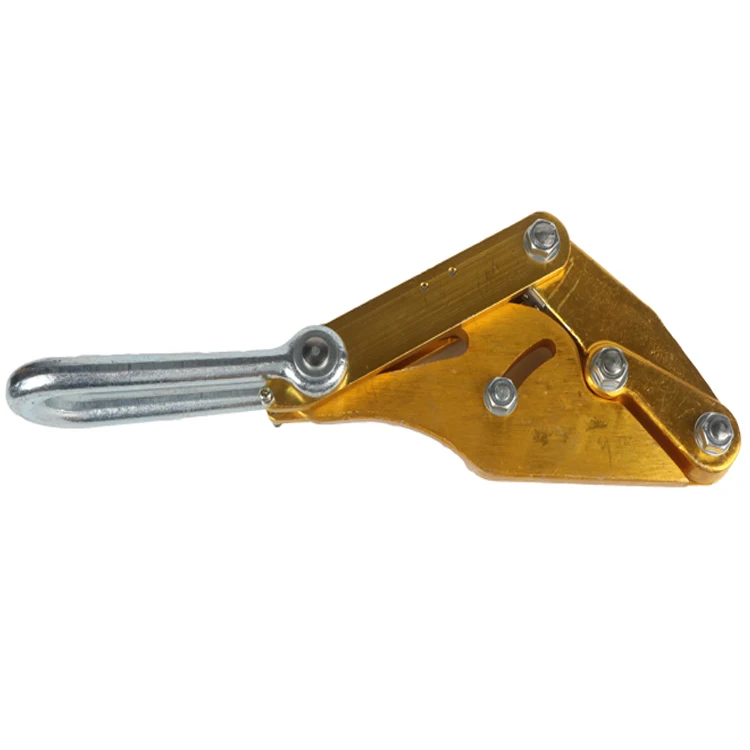

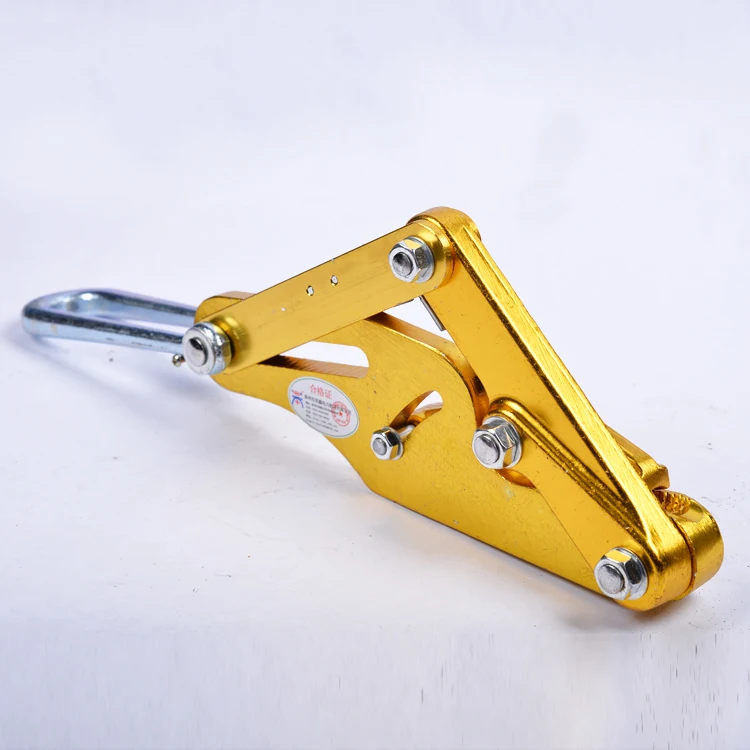

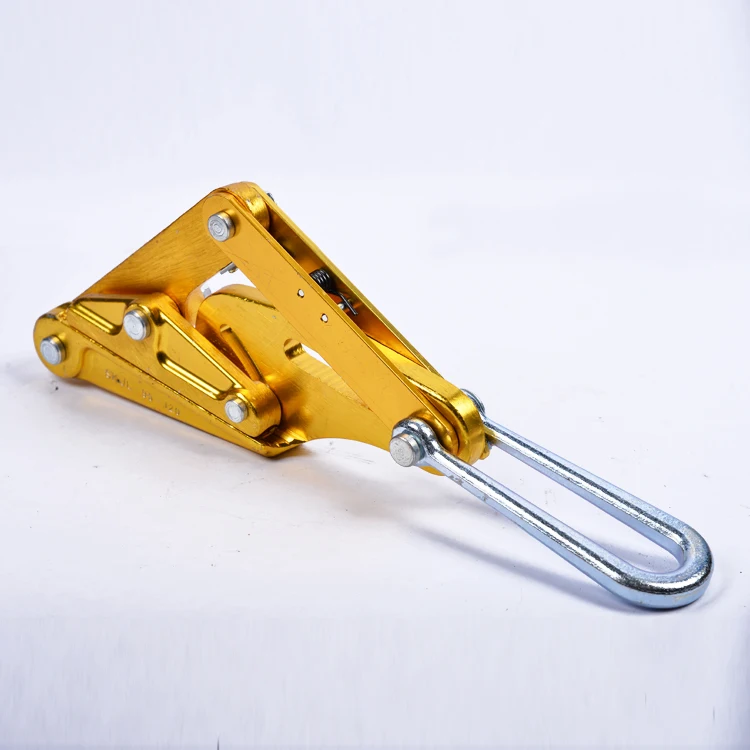

10kN to 25kN Aluminum Alloy Insulated Conductor Grip Conductor Wire Come Along Clamps

Description:

The come along clamp is used to hold the unfolded wire or ground wire after paying off or tightening operation, so as to complete relevant work on the line. According to the purpose of the come along clamp, there are wire clamp, ground wire clamp, optical cable clamp and wire rope clamp. It is mainly used for clamping steel strand, traction wire rope and aluminum alloy wire, etc.

Technical principle:

After the come along clamp holds the ground wire, the tension is applied to the pull ring, and the sliding shaft of the pull ring slides in the body wire slot, and drives the connecting plate, and the movable jaw seat rotates accordingly. Because the other end of the movable jaw seat is hinged firmly with the jaw, when rotating, the movable jaw is forced to press down along the pin shaft, and the cable is pressed on the fixed jaw seat. The greater the tension on the pull ring, the greater the downward pressure on the movable jaw, so as to ensure that the ground wire is tightly clamped by the movable jaw and the fixed jaw.

Structure composition:

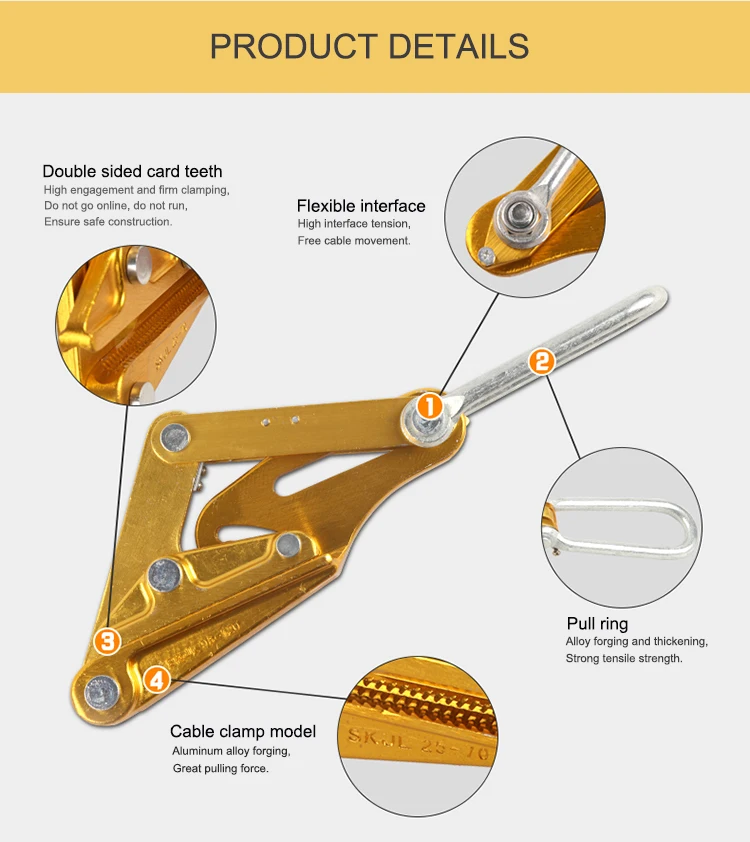

the come along clamp is mainly composed of movable jaw base, connecting plate, pull ring, fixed jaw (lower jaw), movable jaw (upper jaw), body and other components. Strengthening the hook can improve the overall stress condition of the come along clamp and make it more safe and reliable.

Aluminum Alloy Insulated Conductor Grip

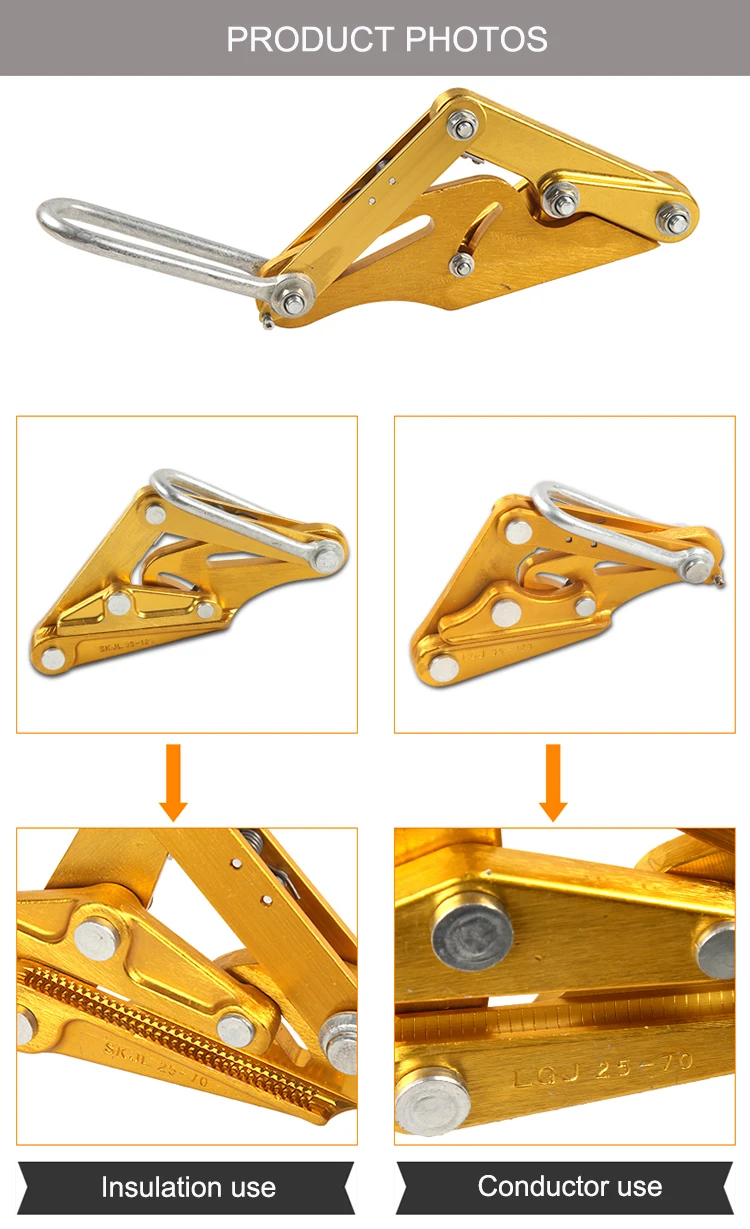

Aluminum alloy insulated conductor grip is mainly used to clamp wires with insulating layer outside.

Usage:

Clamp insulated wire tightly, adjust sag, tighten wire and fix it.

Features:

High strength aluminum alloy material, light weight without damage to the insulation layer.

10kN to 25kN Aluminum Alloy Insulated Conductor Grip Conductor Wire Come Along Clamps
