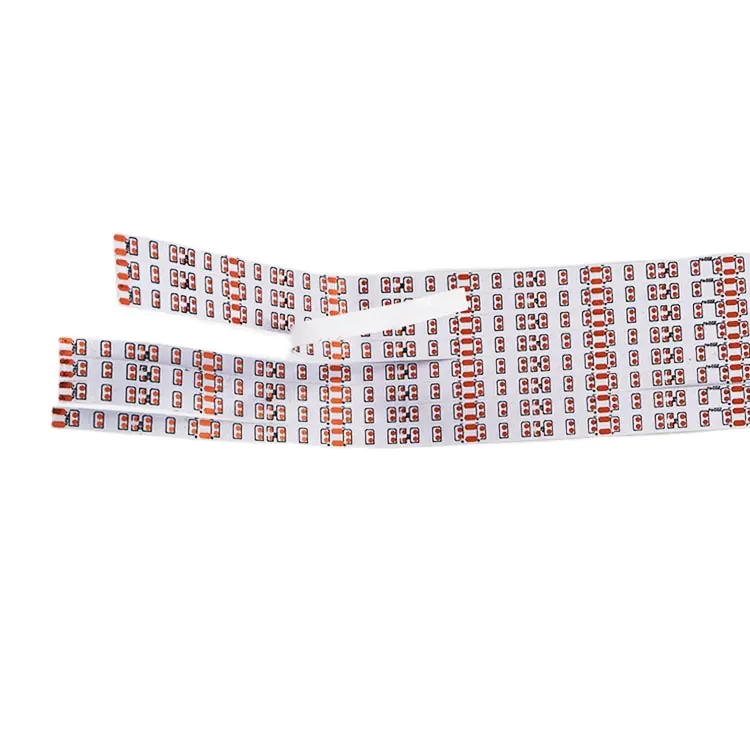

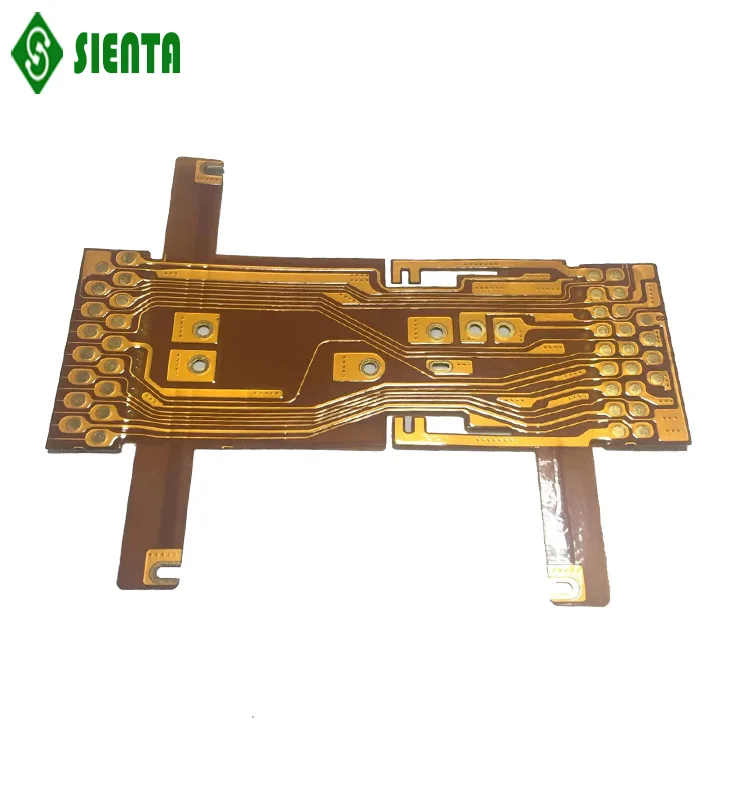

Flexible PCB Fpcb for LED Strip Factory
US $28.00-$30.00
Smart Electronics low cost flexible pcb in shenzhen
- Category: FPC >>>
- Supplier: Shenzhen Sienta Electronic Co. Ltd. [Guangdong China]Shenzhen
Share on (1600080114882):
Product Overview
Description

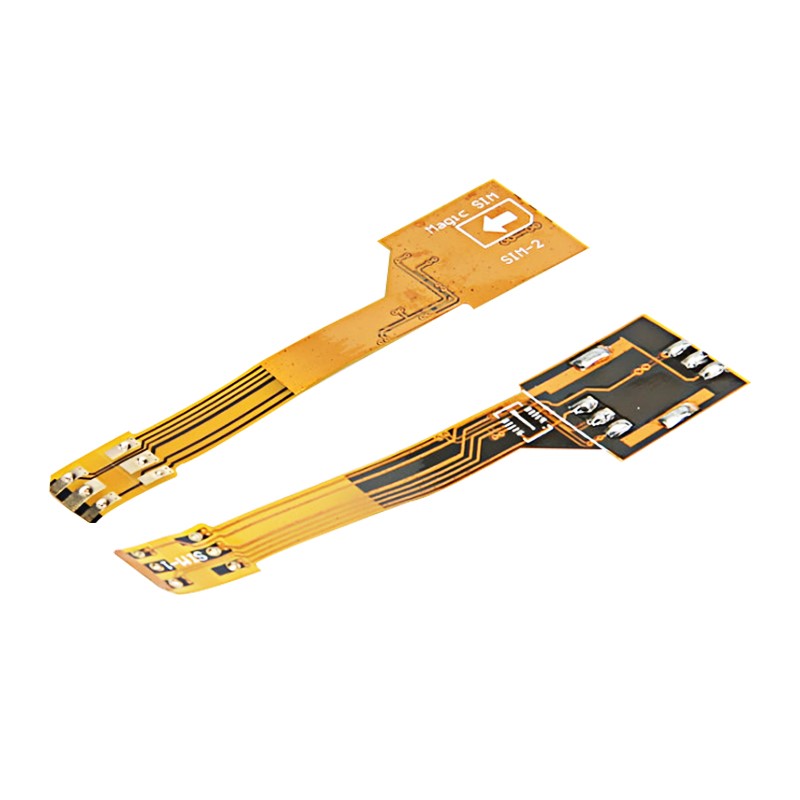

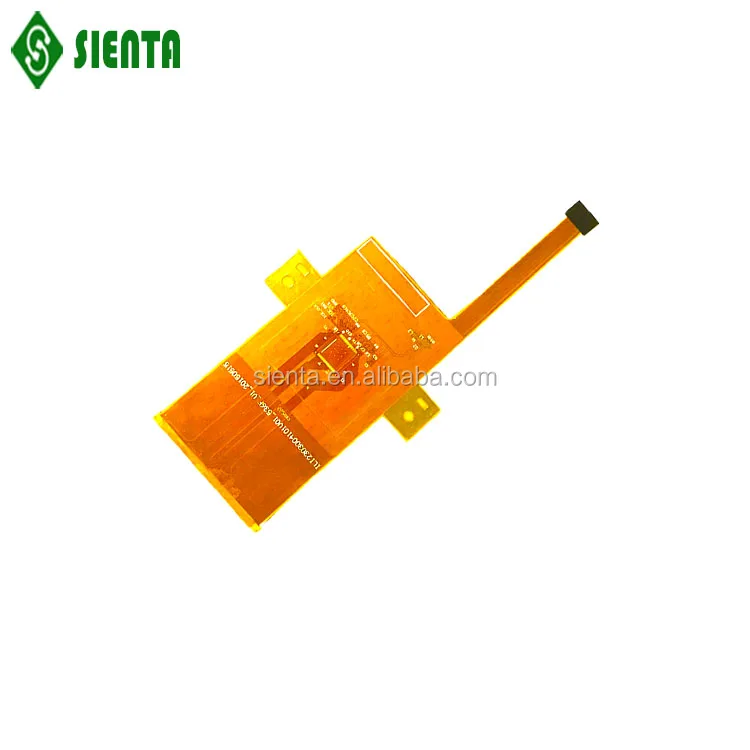

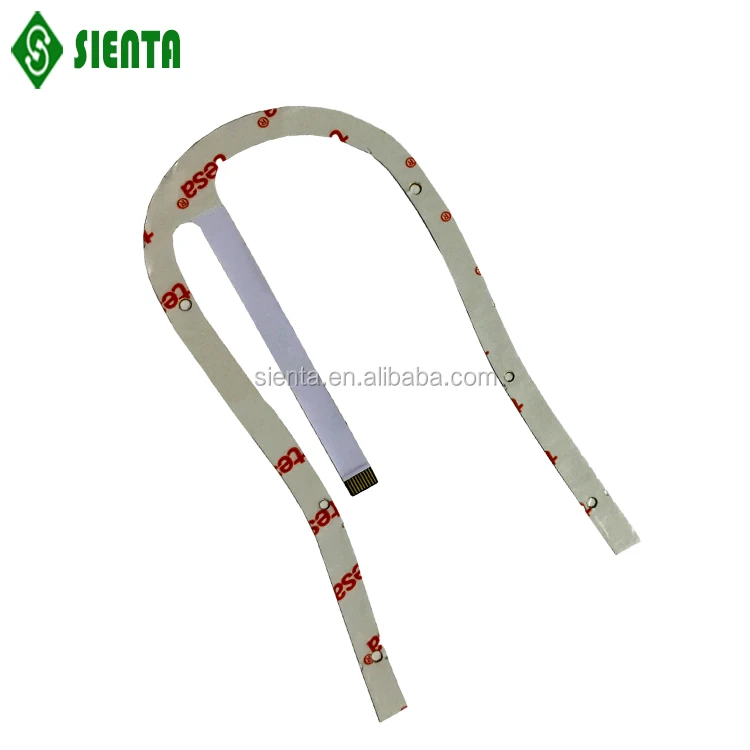

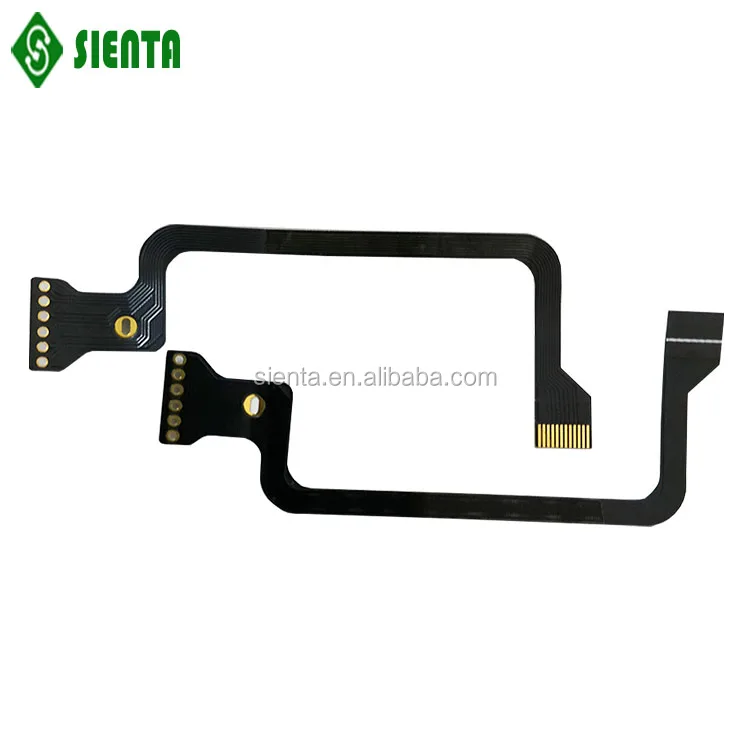

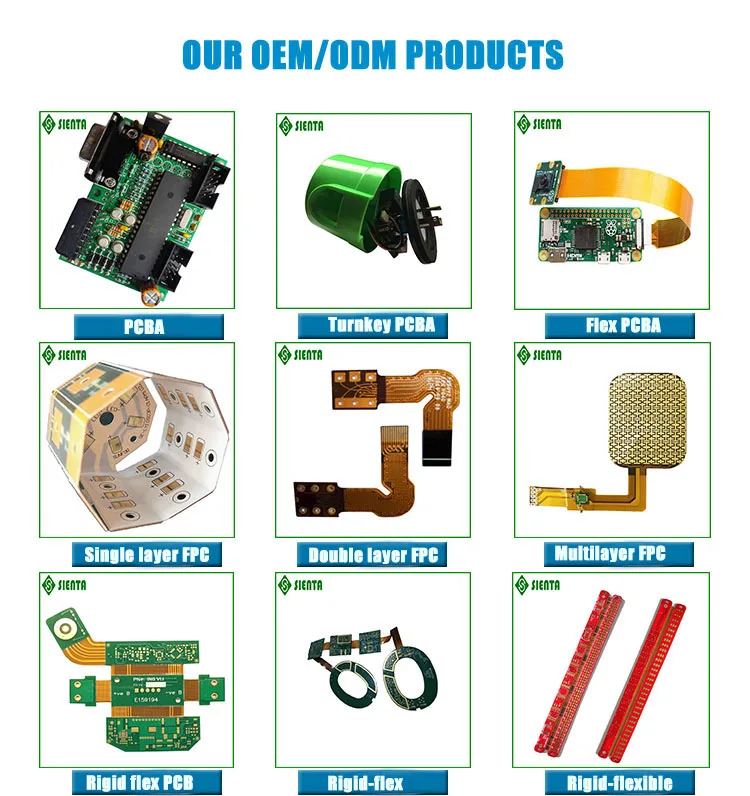

Products Show
Other Products
Lead Time
| Item | Sample | Mass production |
| Single layer Flexible PCB | 3-5 working days | 8-10 working days |
| Double-sided Flexible PCB | 3-5 working days | 8-10 working days |
| Multilayer Flexible PCB | 7-12 working days | 15-20 working days |
| Rigid-flexible PCB | 7-15 working days | 15-20 working days |
Production Capacity
| PROCESS | Item | Unit | Limit tolerance | Normal tolerance |
| Drilling |
Min drilling hole size |
mm |
0.1 |
0.2 |
| hole diameter |
mm |
±0.075 |
±0.1 |
|
| Exposure |
Min. line width/space |
mm |
0.05/0.05 |
0.075/0.075 |
|
hole ring |
mm |
0.125 |
0.20 |
|
| offset tolerance | mm | 0.10 | 0.15 | |
| Line with tolerance | mm | ±0.03 | ±0.04 | |
| Profile |
R angle for etching |
mm |
0.5 |
0.5 |
| steel die tol | mm | LS:±0.075 HS:±0.01
|
LS:±0.075 HS:±0.01 |
|
| cutting die tol | mm |
Etching:±0.20 Wooden:±0.30 |
Etching:±0.30 Wooden:±0.50 |
|
| Laser tol | mm |
±0.05 |
±0.05 |
|
| offest tol for fingers | mm |
±0.10 |
±0.10 |
|
| Surface treatment |
Immersion gold |
um |
Ni:2.0~5.0 Cu:0.03~0.8 |
Ni:2.0~5.0 Cu:0.03~0.8 |
|
Plating tin |
um |
8~20 |
8~20 |
Our Company

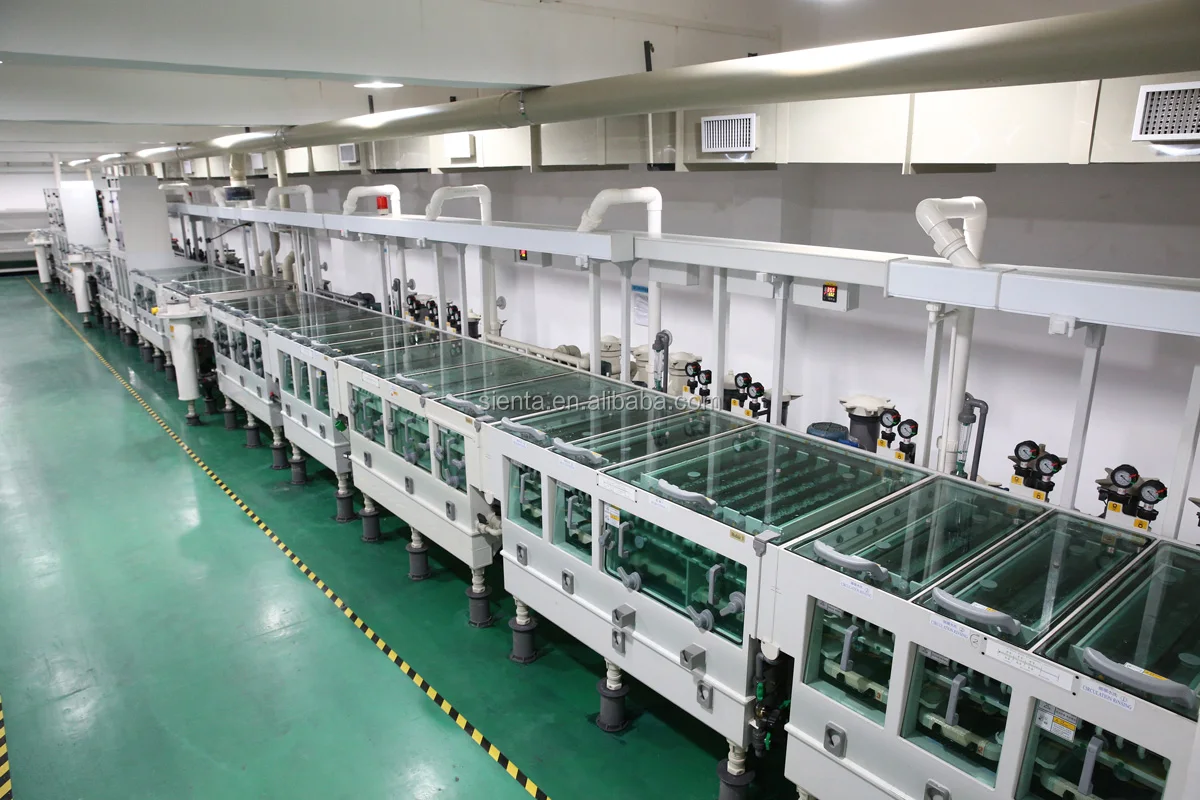

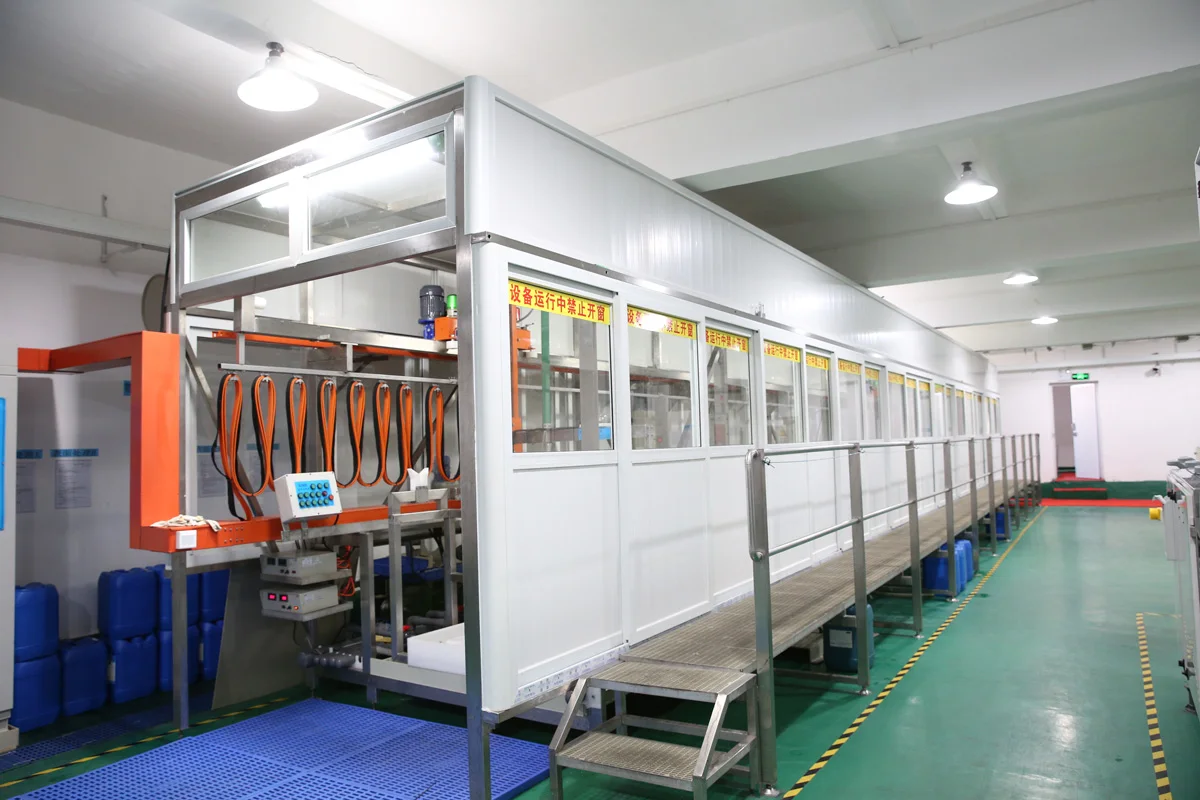

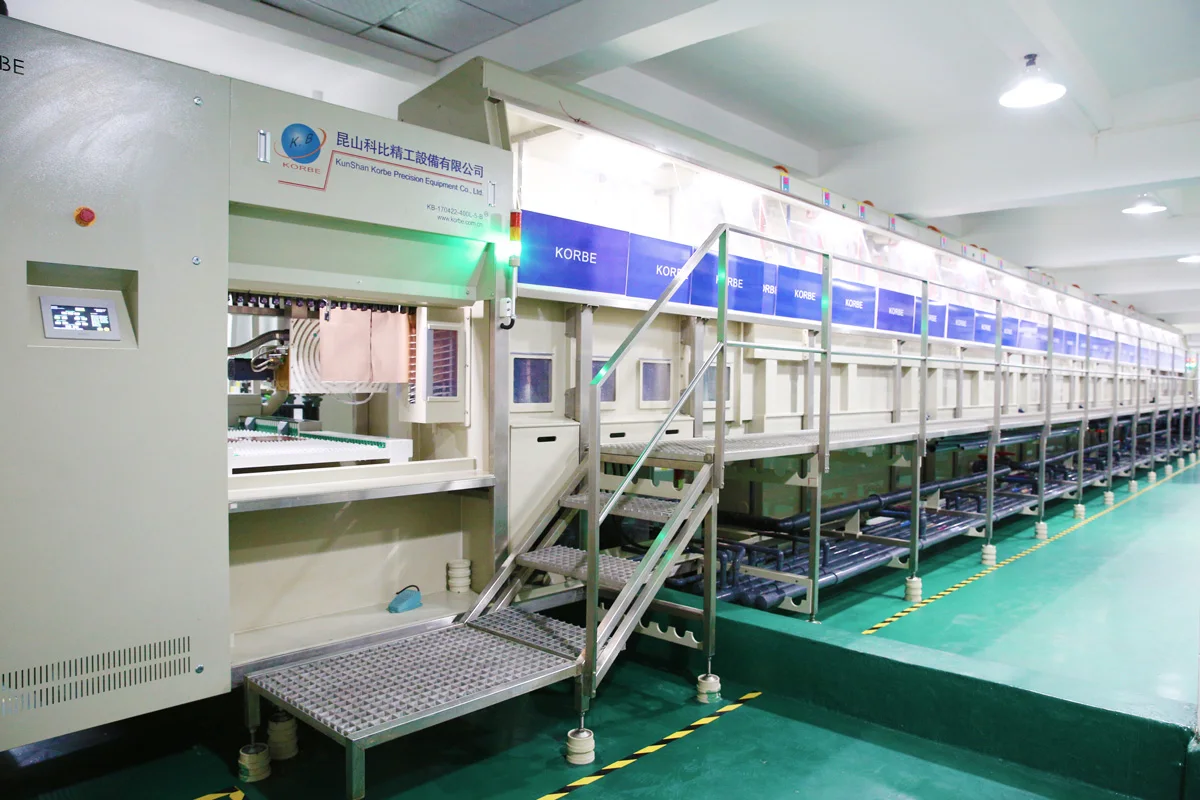

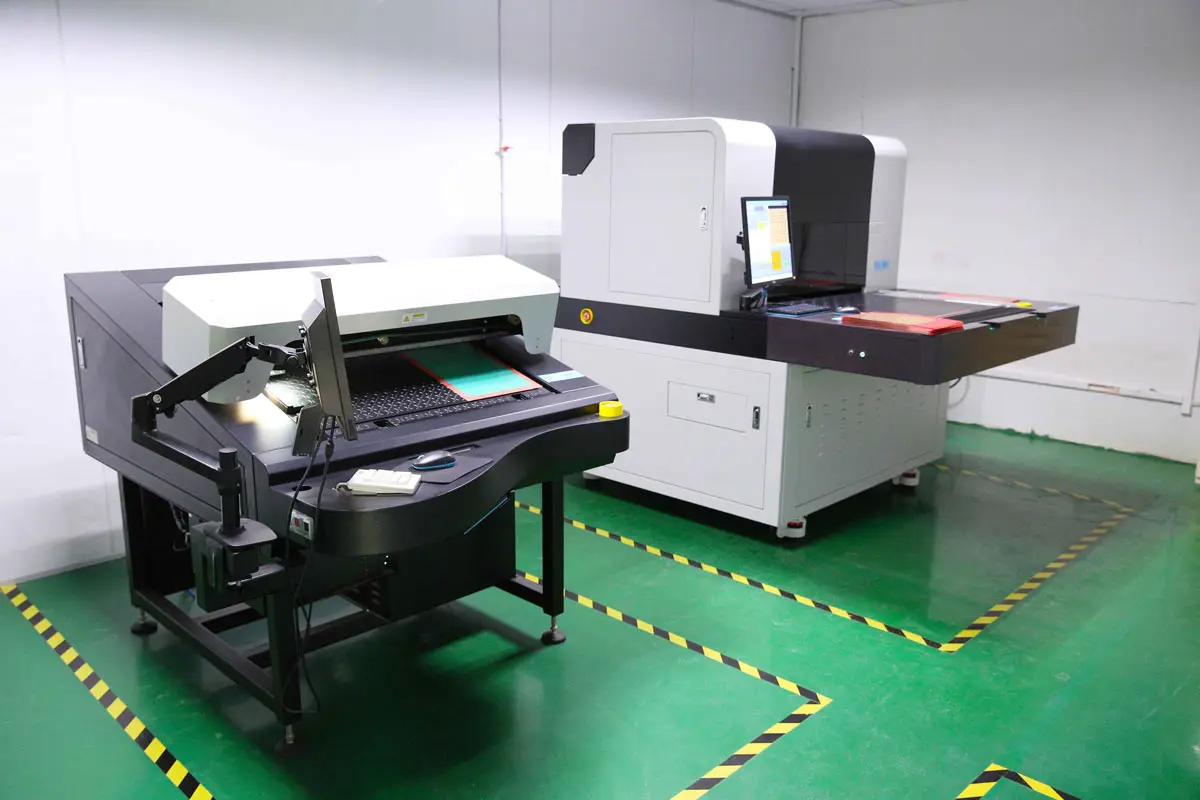

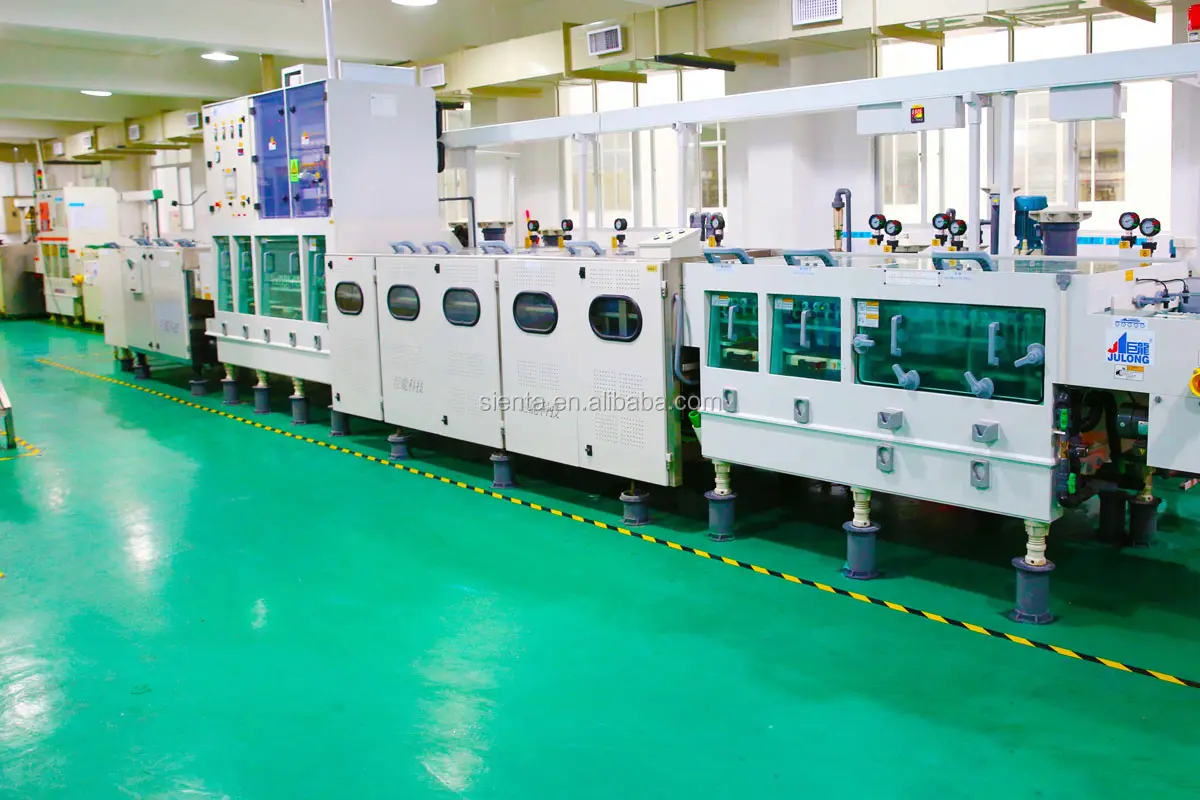

Workshops & Equipment
Our certufications
Payment
Packing & Delivery
FAQ
Q: How long is your delivery time?
A: As FPC is belong to customized products,generally it is 3-5 days for samples and 10-15 days for mass products.The actual delivery date according to difficulty of the products, the quantity and etc.
Q:What service do you provide?
A: We provide below service:
1.EMS-Electronic Manufacturing Service
2.PCB/FPC Supply and Layout
3.FPC/PCB Assembly on SMT, BGA and DIP
4.Cost Effective Components Sourcing
5.Fast Turn Prototype and Mass Production
5.Box Build Assembly
6.Engineering Support
7.Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)
8.Logistics and After-sales Service
Q: Which files do you accept for offer ?
A: We accept Gerber file, CAD file, brd file, PCB file, pdf file, BOM list and etc.
Q: Which type of orders do you accept ?
A: We accept small order even 1 piece and also big orders.
