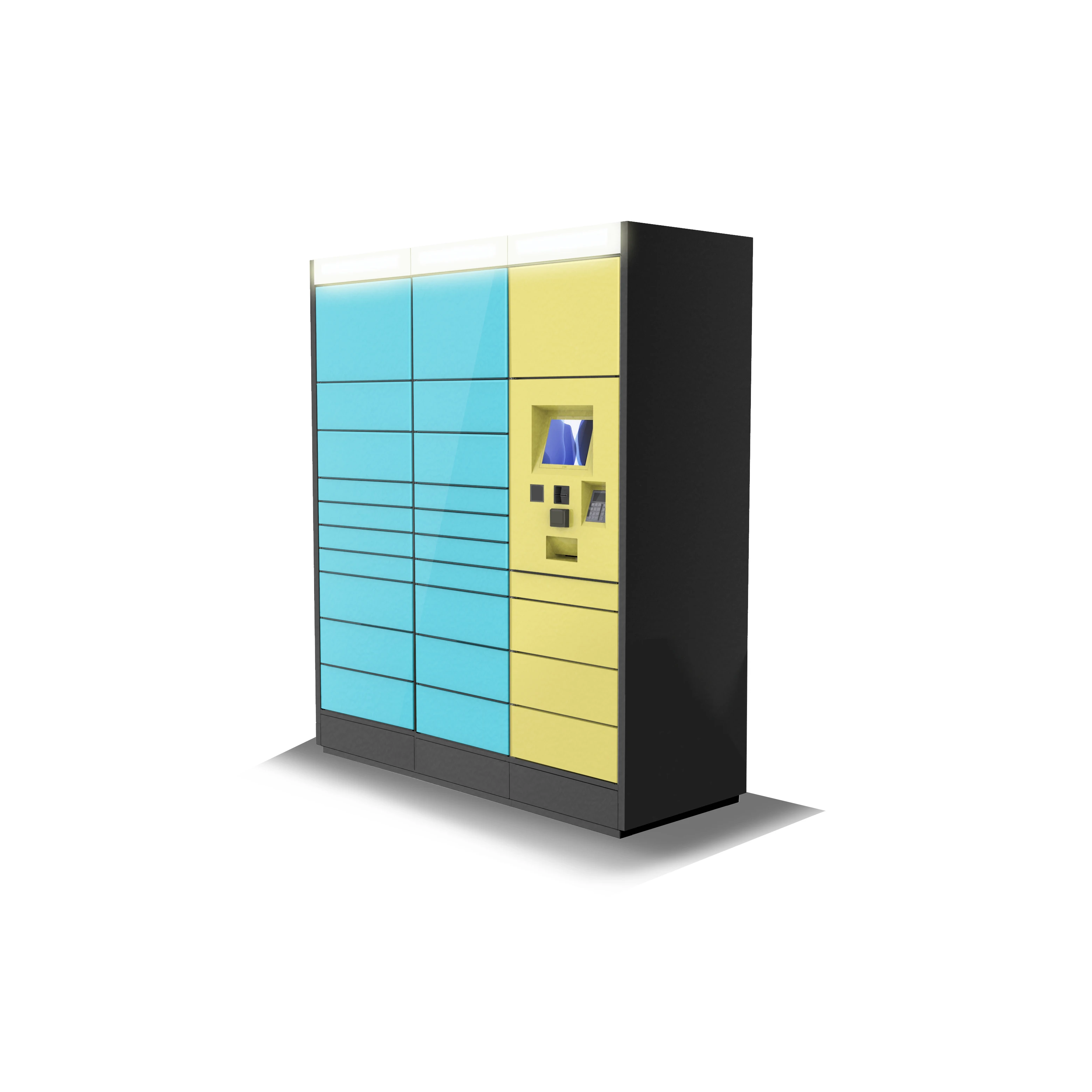

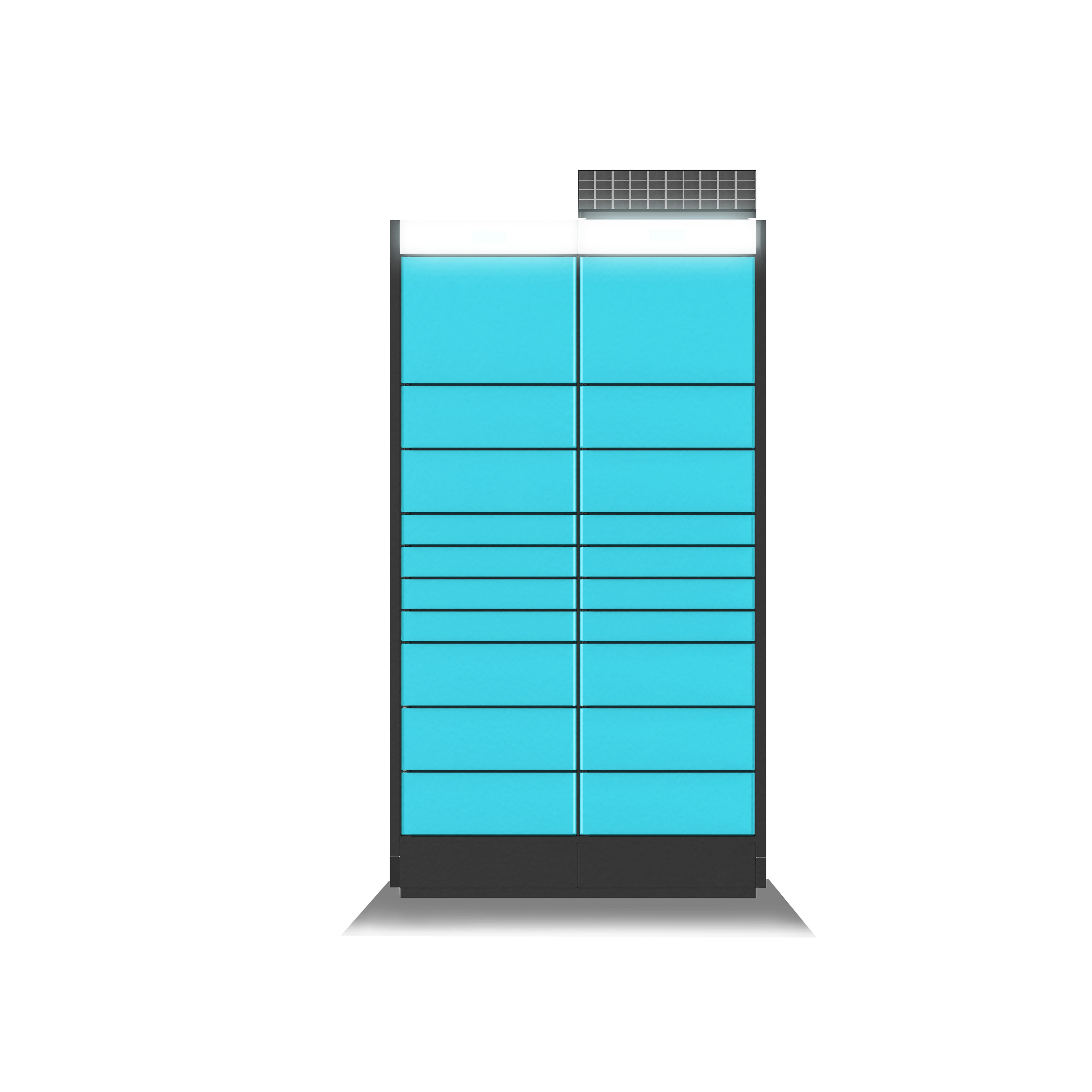

SNBC Touch Screen outdoor lockers industrial automatic delivery locker for post express

Items

Specification

Color

Customized

Surface treatment

Electrophoresis & Powder Coating

Logo

Customized

Compartment size

S:W450±10mm*L80±5mm*H410±10mm M:W450±10mm*L175±10mm*H410±10mm L:W450±10mm*L365±10mm*H410±10mm XL:W450±10mm*L745±5mm*H410±10mm

Load-bearing

S:10kg    M:20kg     L:31.5kg   XL:31.5kg

Material

Body: DC01, thickness 1.5mm Base: DC01, thickness 3.0mm Compartment Door: DC01, thickness 2.0mm Maintenance Door: DC01, thickness 1.5mm

Lock

Electromagnetic lock

Operating voltage

AC 230 V AC / 16 A

Operating temperature

-20℃~40℃

Storage temperature

-25℃~50℃

Humidity

10%~95%RH(Noncondensing)

Certification

CE/Static report/Fire protection requirement

Safety protection

EN 1627 level RC2     CEN TS 16819 safety level 5

Item

Specification

Color

Customized

Surface treatment

Electrophoresis & Powder Coating

Logo

Customized

Compartment size

S:W450±10mm*L80±5mm*H620±40mm M:W450±10mm*L175±10mm*H620±40mm L:W450±10mm*L365±10mm*H620±40mm XL:W450±10mm*L745±5mm*H620±40mm

Load-bearing

S:10kg     M:20kg   L:31.5kg    XL:31.5kg    Mailbox: 40kg

Material

Body: DC01, thickness 1.5mm       Base: DC01, thickness 3.0mm Compartment Door: DC01, thickness 2.0mm Maintenance Door: DC01, thickness 1.5mm

Lock

Electromagnetic lock

Communication

4G

Operating voltage

AC 230 V AC / 16 A

Operating temperature

-20℃~40℃

Storage temperature

-25℃~50℃

Humidity

10%~95%RH(Noncondensing)

Certification

CE/Static report/Fire protection requirement

Safety protection

EN 1627 level RC2       CEN TS 16819 safety level 5

Screen

10.4"       Interface: DVI/HDMI/VGA,USB-type B   Screen scale: 16:10

Barcode scanner

1D barcodes: Code 39, Code 128, Coda bar, UPC, EAN, Interleaved 2 of 5 2D barcodes: DataMatrix, QR Code, Aztec

Face camera

Optional

Printer

BK-C310 (Receipt)& BK-T6112(Labels and stamps)

Keyboard

OPP-C60 Compact

Card reader

Secure Card Reader SCR-B & Contactless reader COR-A10
