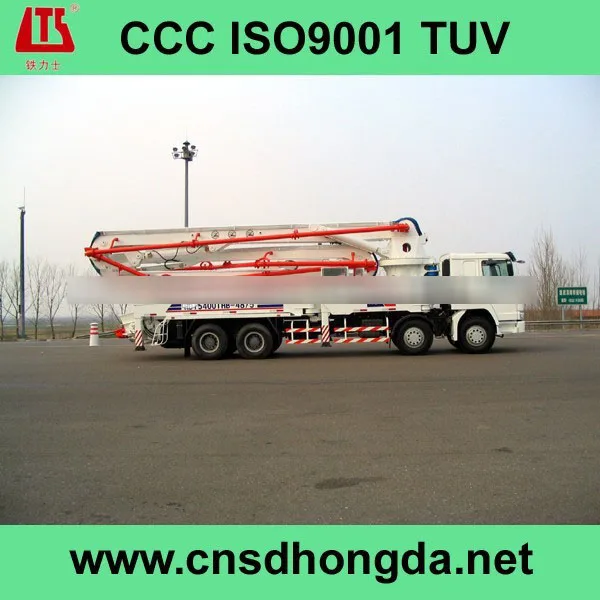

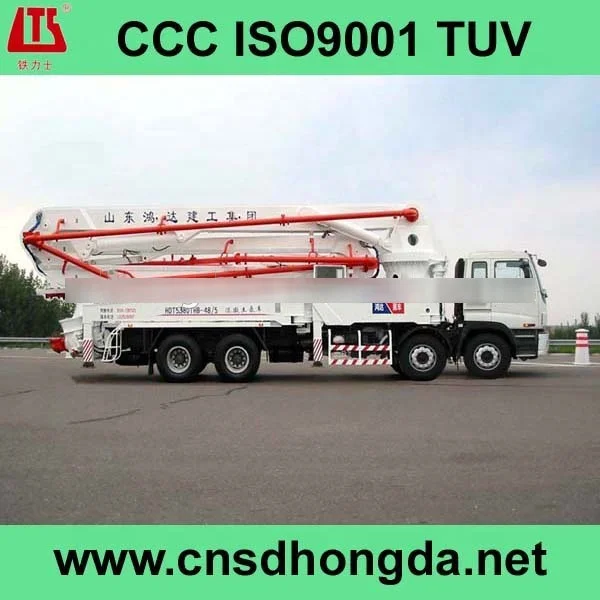

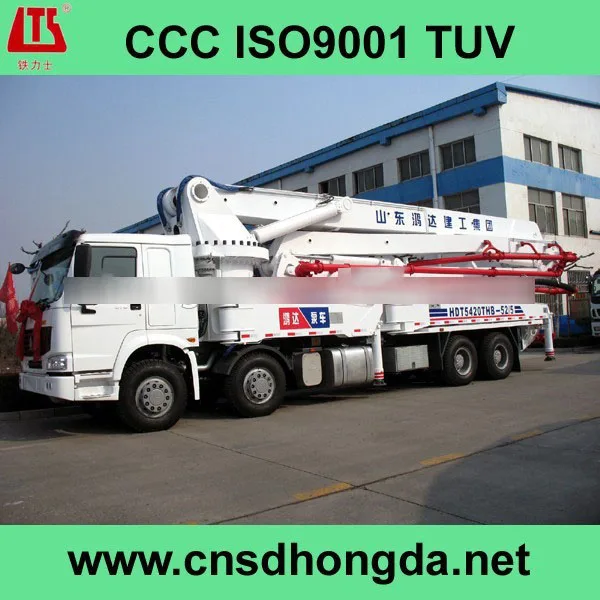

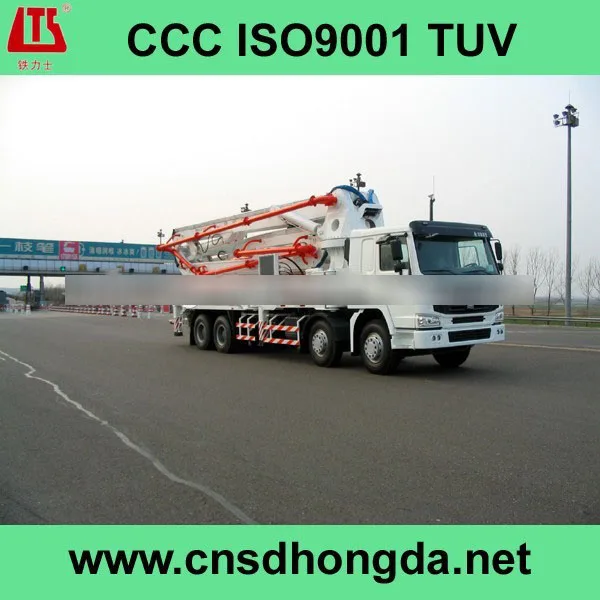

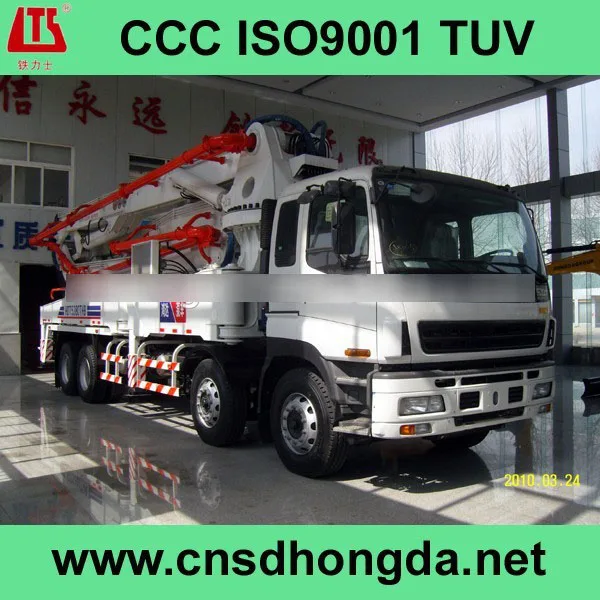

39m Boom Concrete Pump Truck for Sale

1. *The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.

2. *The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.

3. *The pumping capacity can be regulated through the stepless control device.

4. *The stretching speed of the distributing boom can be regulated through the quick-and-slow stepless control device.

5. *The slewing speed of the boom can be regulated through the stepless control device.

6. *It is equipped with the emergency brake device and the automatic speed-control device for the diesel engine to reduce oil consumption.

7. *Equipped with the STEIBEL transfer case and the REXROTH pump unit imported with original German packaging

8. *Equipped with slewing reducers and motors imported with original packaging.

9. *Equipped with HAWE proportional multi-way valves imported with original German packaging.

10. *Equipped with originally-imported REXROTH valves and valves made by Italian oil-control companies.

11. *It is equipped with an electric cabinet with totally-imported components; control modules like PLC are all products from the German company SIEMENS.

12. *The closed free fluid power system formed by double pump confluence has the features of large output, small depreciation and smooth commutation with no impact.

13. *The intelligent control system makes the driving oil flow incessantly and directly into the driving oil cylinder without any loss.

14. *As there are no fussy middle commutation control valves, the commutation impact is reduced and excessively high oil temperature is avoided. Meanwhile, it makes maintenance easier.

15. *Compared with the open system with a large oil tank, the closed system needs a small oil tank. The oil in the tank flows gently, which reduces the chance of emulsification.

16. *The unique buffering technology can lower the systems high-pressure peak value. Even at the time of high output, the distributing boom vibrates little and the tail pipe remains stable.

17. *The concrete output can be regulated through the electronic proportional variable adjustment according to your actual needs.

Main Technical Parameters of 37m/39m-boom Concrete Pump Trucks

Items		Unit	Parameters
			HDT5281THB-39/4	HDT5291THB-39/4
Main Technical Parameters in  Service	Theoretical Pumping Capacity	m3/h	125	125
	Pumping Capacity Index	Mpa.m3/h	586	586
	Theoretical Pumping Pressure	Mpa	8.5	8.5
	Hopper Capacity	L	700	700
	Feeding Height	mm	1370	1370
	Distributing Valve Form		S-pipe valve	S-pipe valve
	Max. Distributing Radius	m	34.7	34.7
	Max. Distributing Height	m	38.7	38.7
	Max. Distributing Depth	m	27	27
	Height of Distributing Boom When Stretched	mm	8830	8830
	Distance between Front Landing Legs	mm	6800	6800
	Distance between Rear Landing Legs	mm	7000	7000
	Distance between Front and Rear Landing Legs	mm	7432	7432
	Diameter  of Conveying Pipe	mm	125	125
	Length of Tail Hose	m	4	4
	Rotary Range of Distributing Boom		365°	365°
	Number of Boom Sections		4	4
	Rotary Angle of Each Boom Section	°	91/180/180/180/270	91/180/180/180/270
	Close-control Distance	m	33	33
	Remote-control Distance	m	200	200
Main Technical Parameters in  Traveling Condition	Max. Traveling Speed	km/h	85	90
	Min. Turning Radius	mm	8800	8800
	Brake Distance	m	7	7
	Approach Angle	°	16	16
	Departure Angle	°	11	11
	Chassis Model		ISUZU CYZ51Q	HOWO ZZ5307N4647C
	Wheel Base between the First and the Second Axle	mm	4595	4600
	Wheel Base between the Second and the Third Axle	mm	1310	1350
	Front Tread	mm	2065	2022
	Rear Tread	mm	1850	1830
	Max. Engine Power	kw	265(1800r/min)	247(2200r/min)
	Max Engine Torque	n.m	1422(1100r/min)	1350(1100-1600r/min)
	Max. Grade Ability	%	37	35
	Fuel Consumption Limit	L/100km	36.6	34
	Overall Dimension (L ×W× H)	mm	12500×2490×3950	12500×2490×3950
	Full-load Total Weight	kg	28000	29500





We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

2. Construction Elevators (multi-speed, stepless-speed);

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

4. Concrete Batchers;

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

6. Concrete Truck Mixers (6-16m3);

7. Truck-mounted Concrete Pumps (diesel, electric);

8. Trailer-mounted Concrete Pumps (diesel, electric);

9. Concrete Pump Trucks (with 24-52m booms);

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning).
