500T motor aluminum rotor die casting machine manufacturer
- Category: >>>
- Supplier: Taizhou Lvyang Garden Machine Co. Ltd.
Share on (1600080240006):
Product Overview
Description
Products Description
Product Paramenters

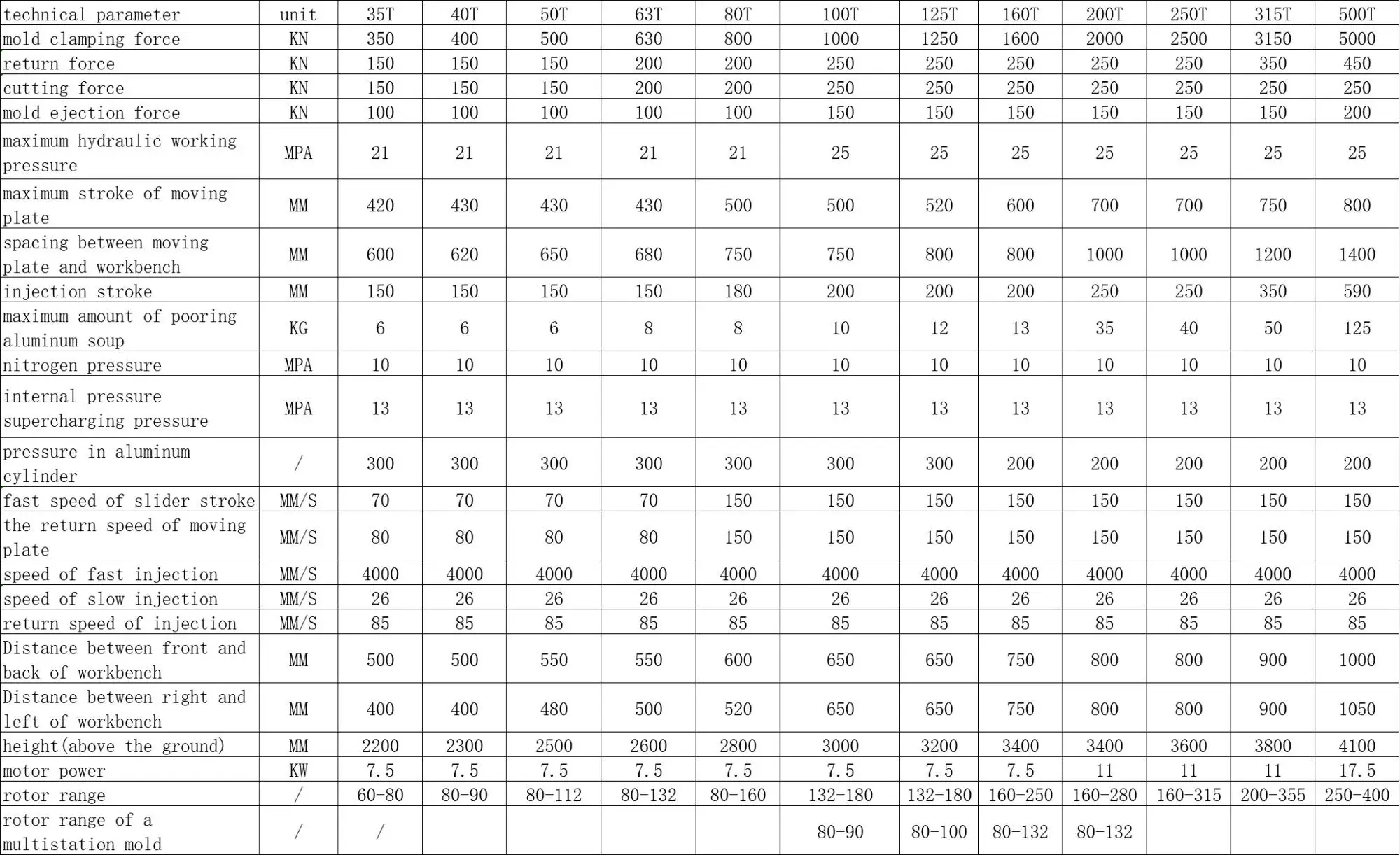

Technical parameter | |||
Mold clamping force | 5000KN | Max. hydraulic working pressure | 25mpa |
Return force | 450KN | Max. stroke of moving plate | 800mm |
Cutting force | 250KN | Spacing between moving plate and workbench | 1400mm |
Mold ejection force | 200KN | Injection force | 590mm |
Internal pressure supercharging pressure | 13mpa | Max. amount of pooring aluminum soup | 125KG |
Nitrogen pressure | 10mpa | Fast speed of slider stroke | 150mm/s |
Return speed of moving plate | 150mm/s | Speed of fast injection | 4000mm/s |
Speed of slow injection | 26mm/s | Return speed of injection | 85mm/s |
Distance between front and back of workbench | 1000mm | Distance between right and left of workbench | 1050mm |
Height(above the ground) | 4100mm | Motor power | 17.5kw |
Rotor range | 250-400 |
It can be customized by your requirements.The parameter list is not the only standard.
Our machines and products
Our Advantages
1.The machine is highly automated and easy to operate.
2.The required functions and parameters are controled by touch screen.
3.The oil cylinder seal ring is made of Taiwan material.
4.Hard chromium treatmeat,
5.The left and right side of the protective door of this machine is fixed, and the front and rear are pneaumaticlly movable up and down.
6.The machine adopts piston-type accumulator. It has the advantages of good stability, long service life, convenient maintenance and low maintenace cost.
Certifications
FAQ
Q1. Are you a factory?
Of course, we are factory.Machines are made by ourselves.
Q2.About Delivery team?
Usually we send the shipments in FOB terms. However terms of CNF and CIF are acceptable which depend on preference of clients.
Q3.About lead time
Usually it takes about 15-25days after we received your confirmations.(It depends on the kinds of machines and quantity）。
Q4.About payment
30%deposit,balance paid before shipment.
Q5. About presses
Each machine needs to be customized due to the industry specifics,material, size,shape,handling etc. And our trained technical team will be happy to discuss all your options either by phone and e-mail or you’re more welcomed to visit our factory to see the machines.
Of course, we are factory.Machines are made by ourselves.
Q2.About Delivery team?
Usually we send the shipments in FOB terms. However terms of CNF and CIF are acceptable which depend on preference of clients.
Q3.About lead time
Usually it takes about 15-25days after we received your confirmations.(It depends on the kinds of machines and quantity）。
Q4.About payment
30%deposit,balance paid before shipment.
Q5. About presses
Each machine needs to be customized due to the industry specifics,material, size,shape,handling etc. And our trained technical team will be happy to discuss all your options either by phone and e-mail or you’re more welcomed to visit our factory to see the machines.
